Fiber Optic Illuminator LED Light Source 1x1.5W 6mm 12V White Light

REF: FC015

Specifications

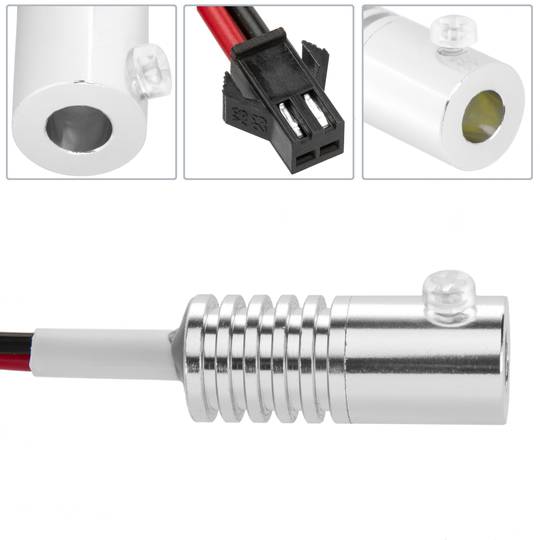

  • LED illuminator based on a single 1.5W white CREE LED.
  • 6 mm connector for connection to the optical fiber.
  • The connection with the optical fiber is made by pressing with a lateral screw.
  • Size: 34 x 13.5 mm and 20 cm cable.

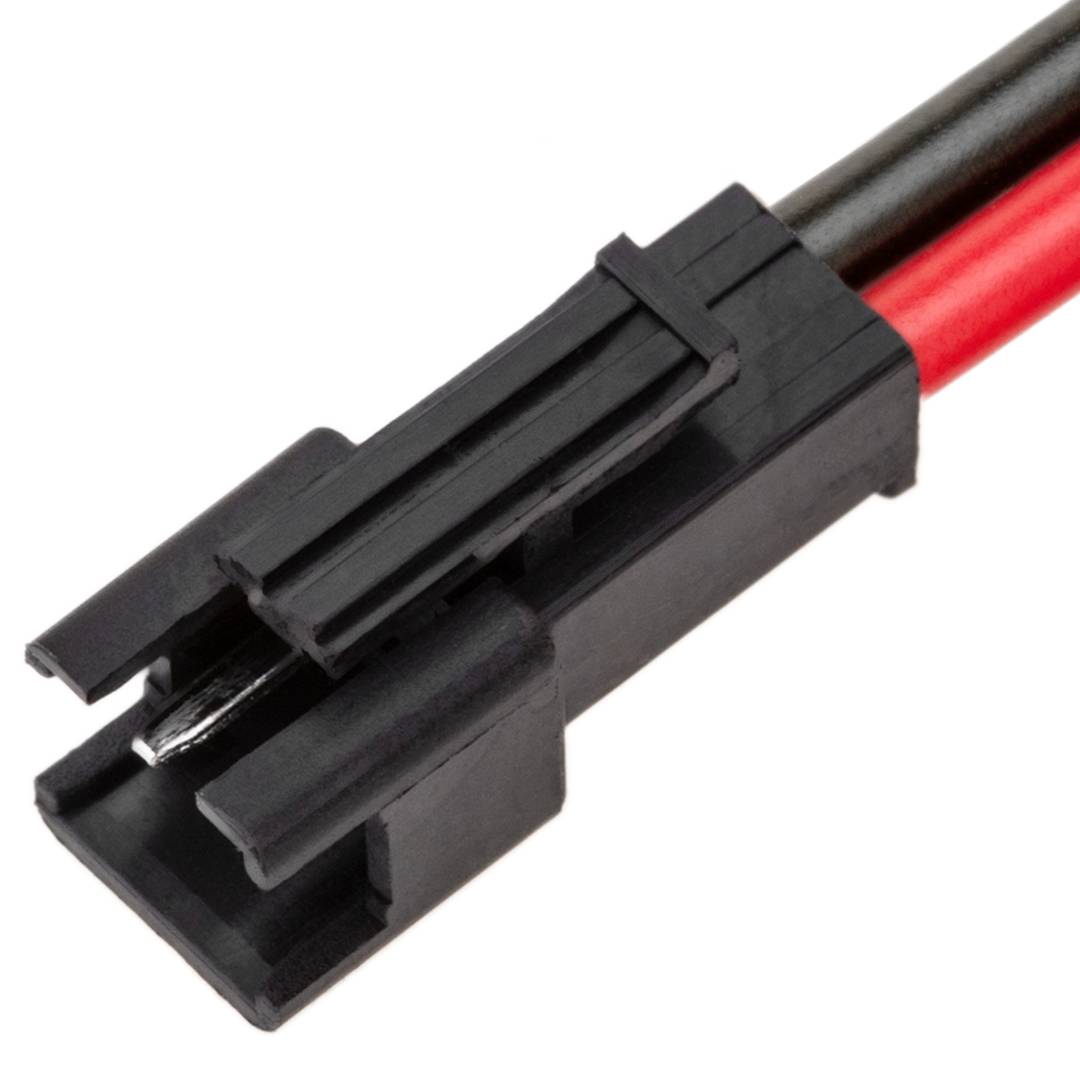

  • Includes 2-pin JST SM type connector for 12v electrical connection

Your price

PVP

14.62

Price including VAT: 14.62

PVD

11.94


Why different prices? Which one is mine? Check rate type

Shipping costs: 26,81 *
GB-SE1 1ES

Specifications

  • LED illuminator based on a single 1.5W white CREE LED.
  • 6 mm connector for connection to the optical fiber.
  • The connection with the optical fiber is made by pressing with a lateral screw.
  • Size: 34 x 13.5 mm and 20 cm cable.
  • Includes 2-pin JST SM type connector for 12v electrical connection

More info

LED lighting with optical fiber propagation. The combination of fiber optics with an LED light generator achieves spectacular effects and there are many applications. The system consists of an LED light source (illuminator) to which the optical fiber is connected. The light propagates through the optical fiber until it reaches the opposite end of the optical fiber, shining brightly. The light generator (illuminator) is the only component that requires power and can be hidden anywhere safe. Fiber optic cables are insulated, safe, can be installed outdoors, in water, flammable areas, and do not generate heat from lighting. Ideal for lighting and decoration, interior lighting, making starry ceilings, garden lighting, commercial signs, etc.

specs

  • LED illuminator based on a single 1.5W white CREE LED.
  • 6 mm connector for connection to the optical fiber.
  • The connection with the optical fiber is made by pressing with a lateral screw.
  • Size: 34 x 13.5 mm and 20 cm cable.
  • Includes 2-pin JST SM type connector for 12v electrical connection
  • The connector can be removed and connect the 2-wire cable to a source or use a DC jack adapter # FB029 and thus be able to use a 12V to 220V power supply (# VF001 or # VF002).
  • Wavelength 425nm-430nm.
  • Gross Weight: 17 g
  • Product size (width x depth x height): 1.8 x 1.8 x 4.0 cm
  • Number of packages: 1
  • Packages size: 15.0 x 10.0 x 2.0 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • LED
  • DC jack connector
