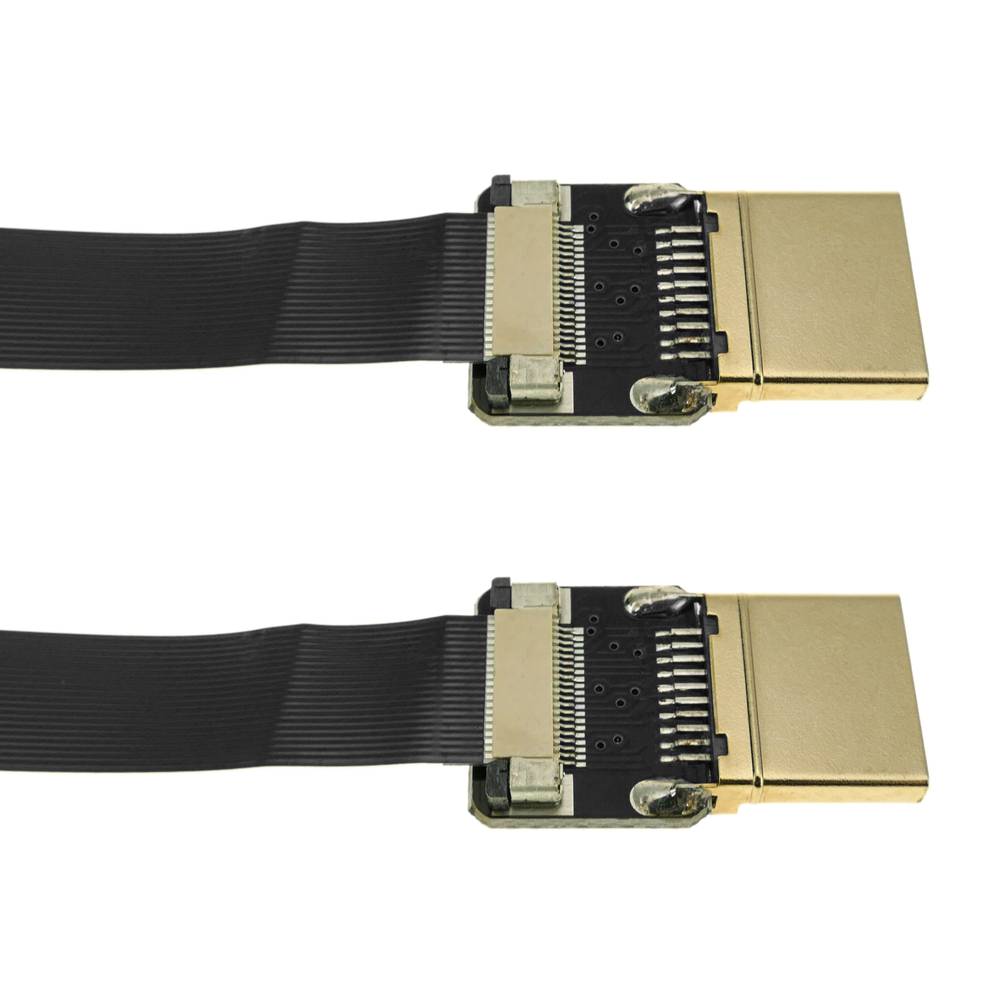

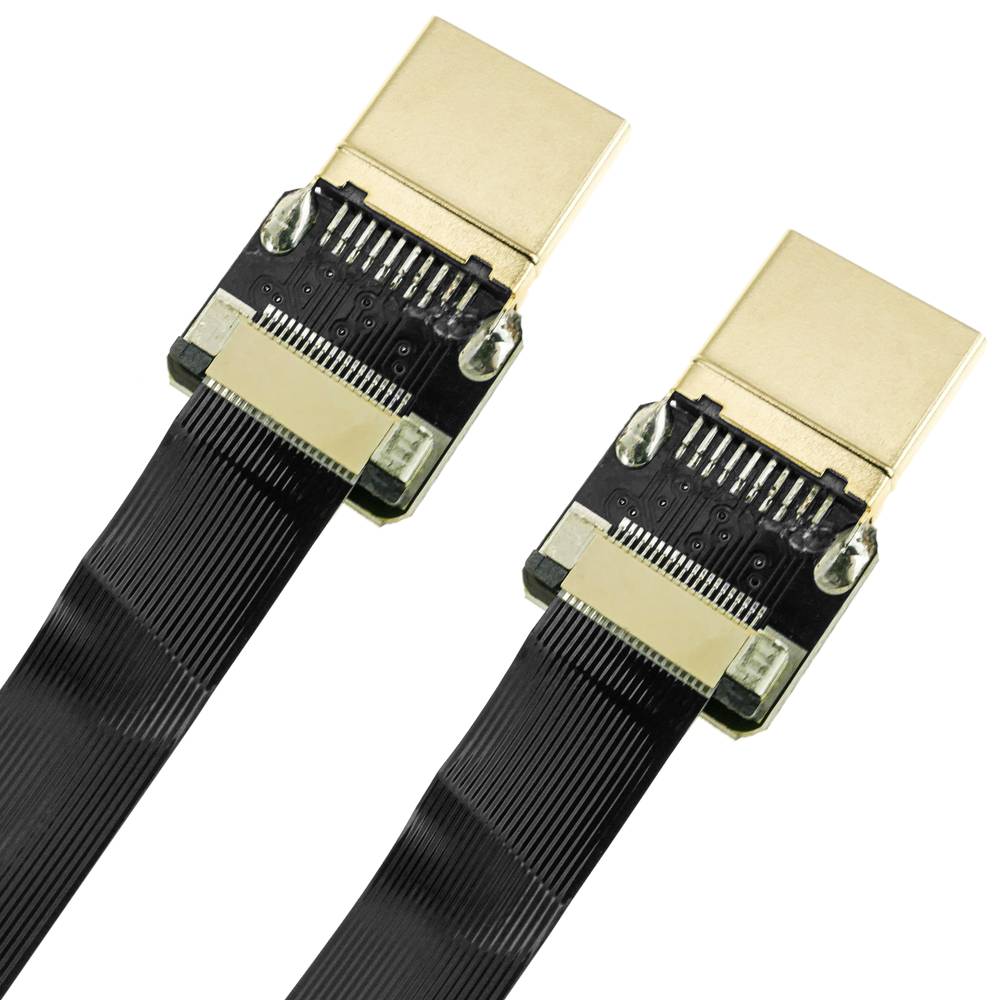

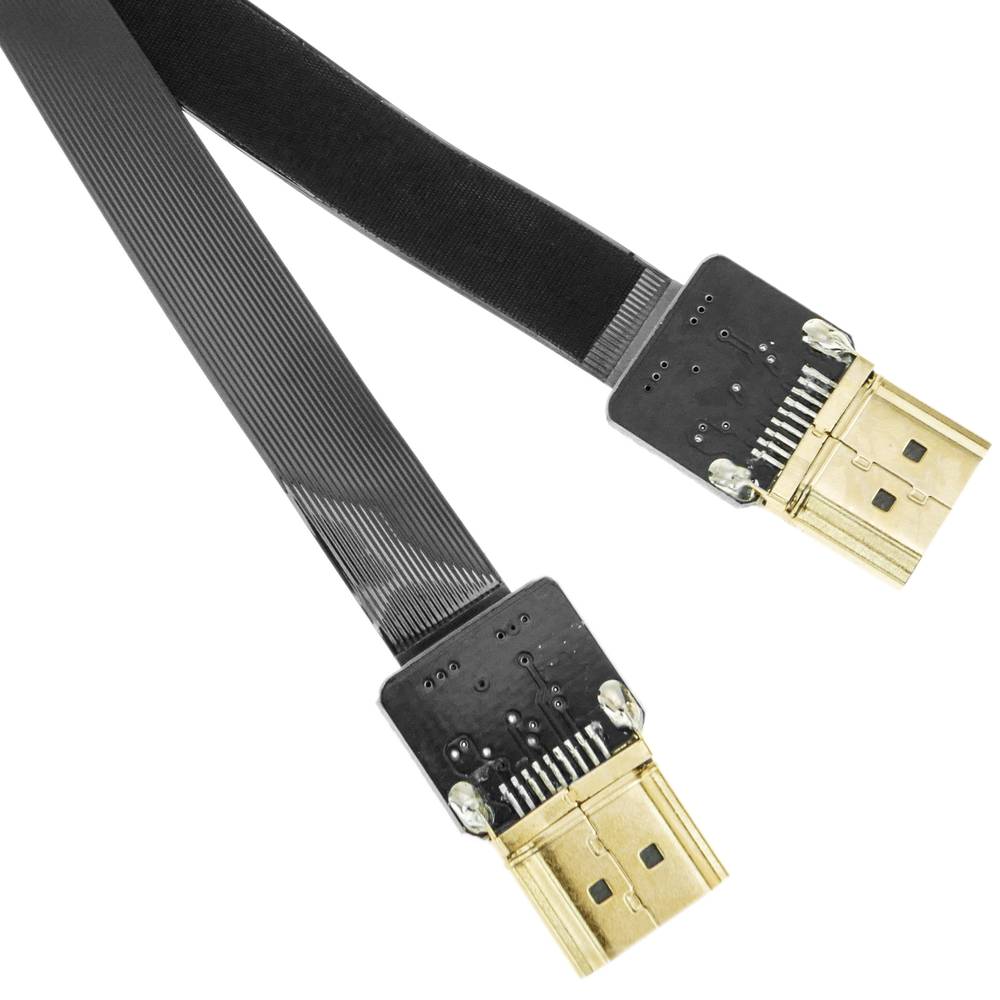

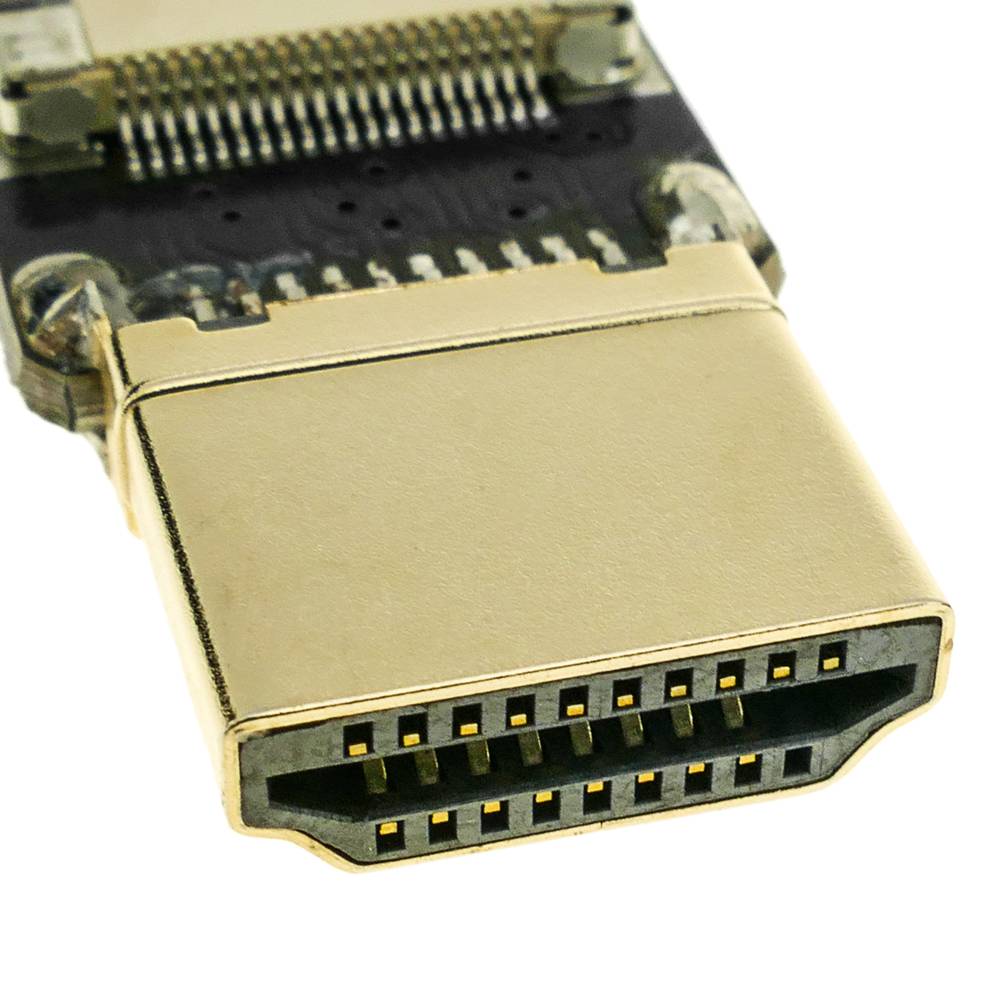

Flat HDMI video cable FPV 50 cm A-male to A-male

REF: HG081

Specifications

  • FPV flat HDMI video cable.
  • It is a super-flat cable for system integrators.
  • Ideal to be used to interconnect printed circuits, OEM cameras, drones, etc.
  • It has HDMI type A male connectors, on both ends of the cable.
  • Cable length: 50 cm.

Your price

PVP

8.64

Price including VAT: 8.64

PVD

7.59


Why different prices? Which one is mine? Check rate type

In stock

12/06/2019 11:56 a.m.
https://cablematic.com/en/products/flat-hdmi-video-cable-fpv-50-cm-a-male-to-a-male-HG081/

Flat HDMI video cable FPV 50 cm A-male to A-male

REF: HG081

Your price

PVP

8.64

Price including VAT: 8.64

PVD

7.59


Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • FPV flat HDMI video cable.
  • It is a super-flat cable for system integrators.
  • Ideal to be used to interconnect printed circuits, OEM cameras, drones, etc.
  • It has HDMI type A male connectors, on both ends of the cable.
  • Cable length: 50 cm.

More info

FPV flat HDMI video cable. It is a super-flat cable for system integrators. Ideal to be used to interconnect printed circuits, OEM cameras, drones, etc.

specs
  • FPV flat HDMI video cable.
  • It is a super-flat cable for system integrators.
  • Ideal to be used to interconnect printed circuits, OEM cameras, drones, etc.
  • It has HDMI type A male connectors, on both ends of the cable.
  • Cable length: 50 cm.
  • Gross Weight: 10 g
  • Product size (width x depth x height): 6.0 x 4.0 x 1.0 cm
  • Number of packages: 1
  • Packages size: 6.0 x 4.0 x 1.0 cm
  • Master-pack: 20

Videos

Technical terms

  • HDMI
  • HDV
  • HD High definition
HDMI
The acronym "HDMI" stands for "High Definition Multimedia Interface".

The HDMI interface allows transmission of video and audio between devices, supporting video resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 1600p.

Different HDMI versions

HDMi 1.0
- December 2002.
- Maximum transfer of 4.9 Gbit/s.
- Supports up to 165 Mpixels/s video mode (1080p or UXGA 60Hz) and 8-channel/192 kHz/24-bit audio mode.

HDMI 1.2
- August 2005.
- Added support for One Bit Audio, used on Super Audio CDs, up to 8 channels.
- Availability HDMI Type A connectors for PC.

HDMI 1.3
- June 2006
- Bandwidth 340 MHz.
- Data rate of 10.2 Gbit/s.
- Dolby TrueHD and DTS-HD,

HDMI 1.4
- Send video and audio HD
- Data and 3D video.
- FullHD to XHD (eXtended High Definition) up to 4096 × 2160 pixels (24 frames per second) or 3840 × 2160 (30 fps).
- Audio Return Channel that will need fewer cables to have a surround sound system connected to the TV.
- Built-in Ethernet connection cable with speeds up to 100 Mbit/s own.

HDMi 2.0
- September 2013
- Bandwidth of up to 18 Gbit/s
- 4K @ 50/60 (2160p) video
- Up to 32 audio channels to a multi-dimensional immersive experience
- Up frequency 1536kHz for maximum audio fidelity sound
- Simultaneous Delivery 2 streaming video to multiple users on the same screen
- Streaming audio up to 4 users
- Support theater angle 21:9 radio
- Dynamic synchronization of video and audio in streaming
- Extensions of CEC commands to control multiple devices from a single point.


Type HDMI

Type A (picture 1): It is the standard connector used in almost all devices.
Type B (picture 2): A connector rarely used.
Type C (picture 3): A connector widely used in tablets, smartphones and other devices.
Type D (picture 4): A connector used in smartphones.
Type E (picture 5): IA connector used for vehicles connectivity.
