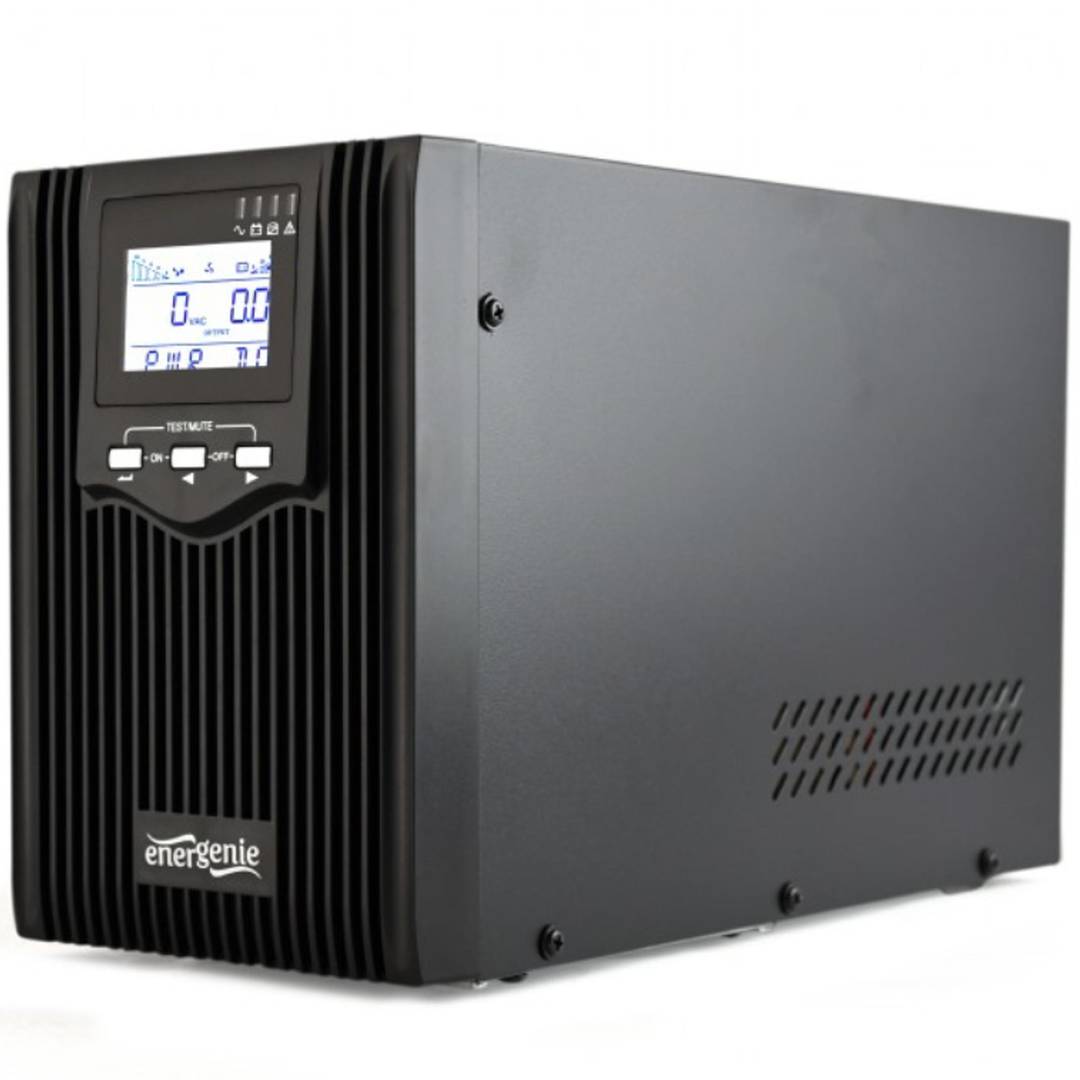

Gembird 1000VA Pure Sine Wave USB LCD UPS Black EG-UPS-PS1000-01
- UPS topology: Line interactive.
- Output power capacity (VA): 1 kVA.
- Output power: 800W.
- AC outlet type: C13 coupler.
- Connector: C14 coupler.
2 yearswarranty
14 daysreturns
100%safe
- UPS topology: Line interactive.
- Output power capacity (VA): 1 kVA.
- Output power: 800W.
- AC outlet type: C13 coupler.
- Connector: C14 coupler.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
Uninterruptible power supply device with a line interactive topology, offering an output power capacity of 1kVA and an output power of 800W. Equipped with C13 coupler and C14 coupler connectors, for a total of 4 AC outlets. This UPS has line interactive topology with output power capacity of 1kVA and output power of 800W. AC output is equipped with C13 coupler and C14 coupler connector, total 4 AC outputs. It is powered by a sealed lead acid (VRLA) battery with a capacity of 7 Ah, a voltage of 12 V. The form factor is tower with a black color, and an LCD screen. Its measurements are 144 mm wide, 345 mm deep and 215 mm high. The power supply is a sealed lead acid (VRLA) battery with a capacity of 7 Ah and a voltage of 12V. Manufactured by Gembird under reference EG-UPS-PS1000-01.
Specifications
- UPS topology: Line interactive.
- Output power capacity (VA): 1 kVA.
- Output power: 800W.
- AC outlet type: C13 coupler.
- Connector: C14 coupler.
- Number of AC outlets: 4 AC outlets.
- Sealed Lead Acid (VRLA) battery technology.
- Battery capacity: 7 Ah.
- Battery voltage: 12 V.
- Form Factor: Tower.
- Product colour: Black.
- Display type: LCD.
- Width: 144mm.
- Depth: 345mm.
- Height: 215mm.
- Ideal for protecting computer equipment and devices from unexpected power outages.
- Compatible with computers, servers, networks, printers and other devices that need protection against power outages.
- Gross Weight: 12.6 kg
- Product size (width x depth x height): 14.4 x 34.5 x 21.5 cm
- Number of packages: 1
- Packages size: 14.4 x 34.5 x 21.5 cm
Technical terms
- IEC
- Battery charging cycles
- USB
- MicroUSB
- Mini USB
- USB 3.0
- Reversible USB Type-C
The IEC 60320 standard defines an international set of non-locking appliance couplers for connecting power supply cords to electrical equipment up to 250 V.
The specification ensures electrical and mechanical interchangeability across a wide range of devices. Connectors are designated by even and odd numbers, where odd numbers (C7, C13, C19) refer to the female connector and even numbers (C8, C14, C20) to the male appliance inlet.
| Type | Current (A) | Ground | Typical Use |
|---|---|---|---|
| C7 / C8 | 2.5 A | No | Consumer electronics (Shotgun). |
| C13 / C14 | 10 A / 15 A | Yes | PC, IT equipment. |
Widespread adoption of this standard has enabled global hardware manufacturing efficiency, allowing a single power supply unit to work worldwide by simply swapping the localized cord. In modern data center architectures, the shift toward C19/C20 standards is vital to handle the increased power density of high-performance servers.
Key Features
- Global standardization and compliance.
- Class I and Class II equipment support.
- High thermal tolerance variants available.
Standardized by the International Electrotechnical Commission.
