The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)

or horizontal. The micro USB with five pins, which pins identification (ID) Micro AB USB connectors special work. AB connectors with pin ID can allow the device to function as a connector A or B to standard USB technology. This gives the new smart phones and other devices the option to act as either a single storage device or as provi

The mini USB connectors are smaller than their standard counterparts and have USB fifth pin. The fifth pin is known as the pin ID and is typically not used in mini USB connectors. It was designed to allow later improved USB technology. The mini USB connectors have a cycle life of at least 5000 connections and disconnections, which accommodates the mobile nature of the devices that are designed to interact. The standard USB connectors are generally used with devices that are stationary and not disconnected often.

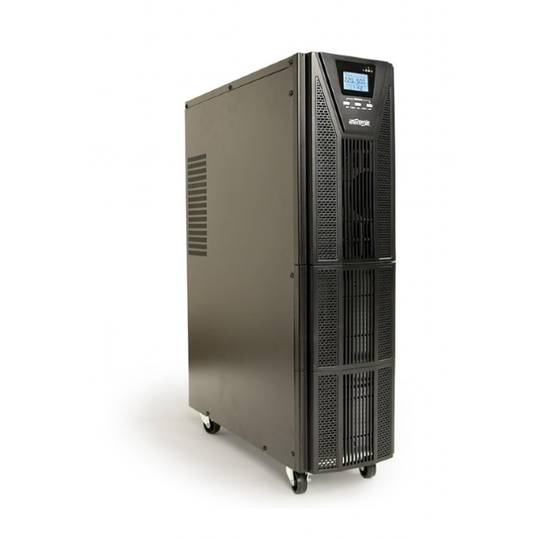

An uninterruptible power supply, UPS, also known as UPS (uninterruptible power supply English), is a device that, thanks to batteries or other energy storage elements, can provide power for a limited time and for a blackout all the devices connected. Other features that can be added to these teams is to improve the power qualityéctrica reaching loads, ups and downs filtering and eliminating voltage harmonics of the network in the case of using AC. There are different types of UPS UPS DC loads connected to the UPS require DC power, so they will transform the alternating current to direct current sales network and use it to power the load and store it in your batterys. So they do not require converters between the batteries and loads. UPS AC UPS obtained These outputs an AC signal, so they need an inverter to convert the direct signal from the batteries in an alternating signal. UPS standby (Standby Power Systems) This system has two main circuits: the power line, which only addsa stabilized and additional filtering of each team to normal feed, and the actual circuit UPS circuit whose core is called "inverter". It is called system "standby" or waiting, because the circuit of alternative power, the inverter is "offline" or inactive, waiting to become operational when it produces a failure in the power supply. It has a switching element that connectsand either circuit switched alternately. UPS line-interactive (in-line) This type of UPS regulates voltage variations by elevations or reductions in mains voltage. During these interventions, the UPS uses its battery to perform the voltage regulation. UPS online (online) In contrast, the UPS "online" (on-line), the battery and the inverter are permanently It is utiized, ensuring a maximum response in a timely manner before the event of network failure. In addition, they can also correct the frequency shifts as re-generate the ac wave permanently. Diagram UPS online In the picture (1) Rectifier The picture (2): battery in the picture (3): Inverter

USB 3.0 is the second major revision of the standard Universal Serial Bus (USB) connectivity for computing. USB 3.0 has transmission speeds of up to 5 Gbit/s, which is 10 times faster than USB 2.0 (480 Mbit/s). Connector Types 1 - USB type A plug 2 - 3 USB type A female - USB type B 4 - Micro USB B

The Simple Network Management Protocol, or SNMP (English Simple Network Management Protocol) is a protocol for the application layer that facilitates the exchange of management information between network devices. It allows administrators to monitor network performance, find and solve problems, and plan for growth. In an attempt to explain in a simple way, we could imagine that instala card using SNMP to monitor a UPS on a network.

USB-C reversible USB version called USB cables USB Type C Type C or USB reversible. The important thing is this type of USB is that it has top and bottom. So you may save the blows that are given involuntarily to connect the connector upside down. It is also characterized in that when connected will make an audible "click". The USB-C or reversible USB cables can reach 10 Gbps and support USB 3.0, 3.1Use is estimated up to 10,000 applications and has some measures 8.4mm x 2.6mm is also compatible with USB 3.1 and USB indicate creators

When calculating the life of a battery it will be necessary to know the number of charge cycles that can be performed until the battery does not begin to lose its capacity.
Depending on the type of battery these charging cycles can vary, the most common being the mobile batteries, manufactured Li-Ion or Li-Po, which have a duration of between 300 and 500 charging cycles according to model and manufacturer.
Once thisE limit we will notice how the battery loses duration of operation, arriving to lose up to 25% of its capacity of load.
At this point it will be necessary to evaluate a battery change.
It should be noted that usage and charging habits can significantly affect battery life. For example, factors such as heat, charge the battery several times a day without it is almost exhausted, etc. Will be affectedits duration.
Therefore, to get the most out of the battery we must know when a full charge cycle is performed, and try to avoid misuse of charge, to increase its useful life.
A charging cycle is considered when the battery has been discharged or its 100% charge has been used.
The manufacturers advise that the charge is never made below the 58% battery, since the battery voltage would not fall so lowTo, so you could end up winning up to 4000 charge cycles.
Tips to increase the life of a battery.

• Avoid extreme heat or cold or very long applications of the device.
• Charge the battery as often as you can.
• Fully discharge the battery from time to time.
• Do not let the battery run out completely before charging.

Below is a table with theDifferent voltages (V), charge cycles (C) and battery percentage (B).
