KVM switch Cat.5 of Uniclass 2KVM to 8CPU 1U Rack

REF: UM071

Specifications

  • Control by means of control keys or OSD (On Screen Display) menu.
  • 2-digit viewer for identification of banks and 2 LEDs for each computer (Activity and Online).
  • Upgradeable firmware Cable is supplied for connection to serial port.
  • Switch mounted in a metal housing that can be mounted in a 19 "rack cabinet, metallic brackets are supplied to be attached to the housing.
  • Compatible with Windows, Linux, Mac and Sun environments

Your price

PVP

£139.39

£114.30

Price including VAT: £137.16

PVD

£117.61

£96.44


Why different prices? Which one is mine? Check rate type

In stock

KVM switch Cat.5 of Uniclass 2KVM to 8CPU 1U Rack

REF: UM071

Your price

PVP

£139.39

£114.30

Price including VAT: £137.16

PVD

£117.61

£96.44


Why different prices? Which one is mine? Check rate type

In stock

More info

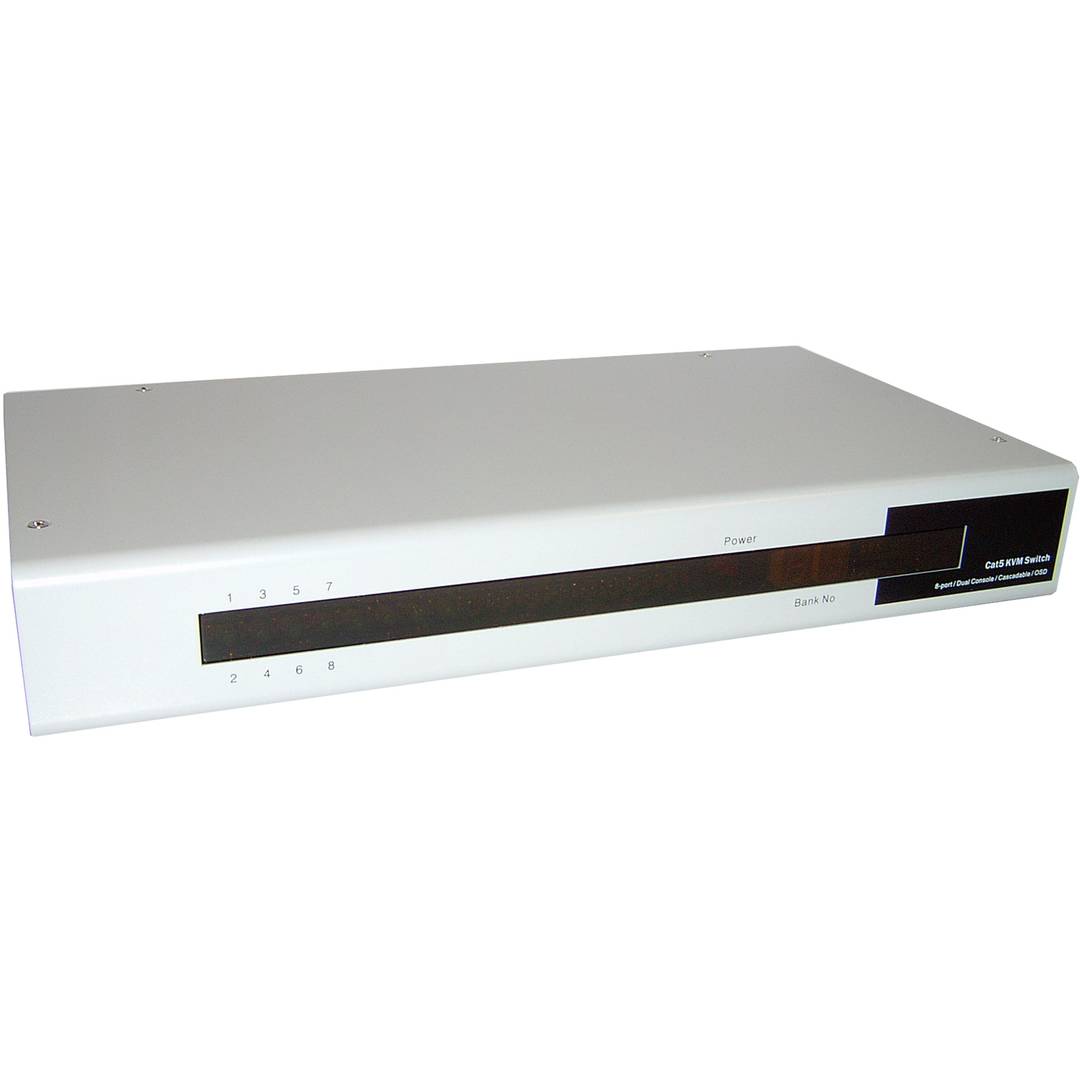

8-port CPU controller (8-Port CPU KVM Switch) from the prestigious firm Uniclass. The Dual Console Cat.5 range interconnects computers with the KVM-Switch using Cat.5 UTP cable, which facilitates installation and allows a distance of up to 100m. It also allows you to install 2 consoles, one local and another remote connected by UTP Cat.5 cable. The connection of the computers with the KVM-Switch is done by Cat.5 UTP cable. For each computer the switch has a female RJ45 connector to which a cable of up to 100m can be connected. At the other end of this UTP cable one of the following two modules must be connected:
  1. VGA + USB module (reference # UM83). This module has an RJ45 female connector on one end and on the other end there are two cables that are terminated in a USB (A-Male) and VGA (HD15 Male) connector. The USB port manages the keyboard and mouse signal. Ideal to be used on PC, Mac and Sun.
  2. VGA module + PS2 + PS2 (reference # UM82). This module has an RJ45 female connector on one end and on the other end there are 3 hoses terminated on PS2 (2 x MiniDin6 Macho) and VGA (HD15 Macho) connectors. The PS2 ports manage the keyboard and mouse signal. Ideal to be used in PC.


Connection of the keyboard, mouse and monitor of the console Allows the connection of 2 control consoles: a local console and a remote console. Both consoles share the same keyboard, mouse and monitor signal. From the local console you can control access to the remote console for security reasons. The connection of both consoles to the CPU switch is described below:

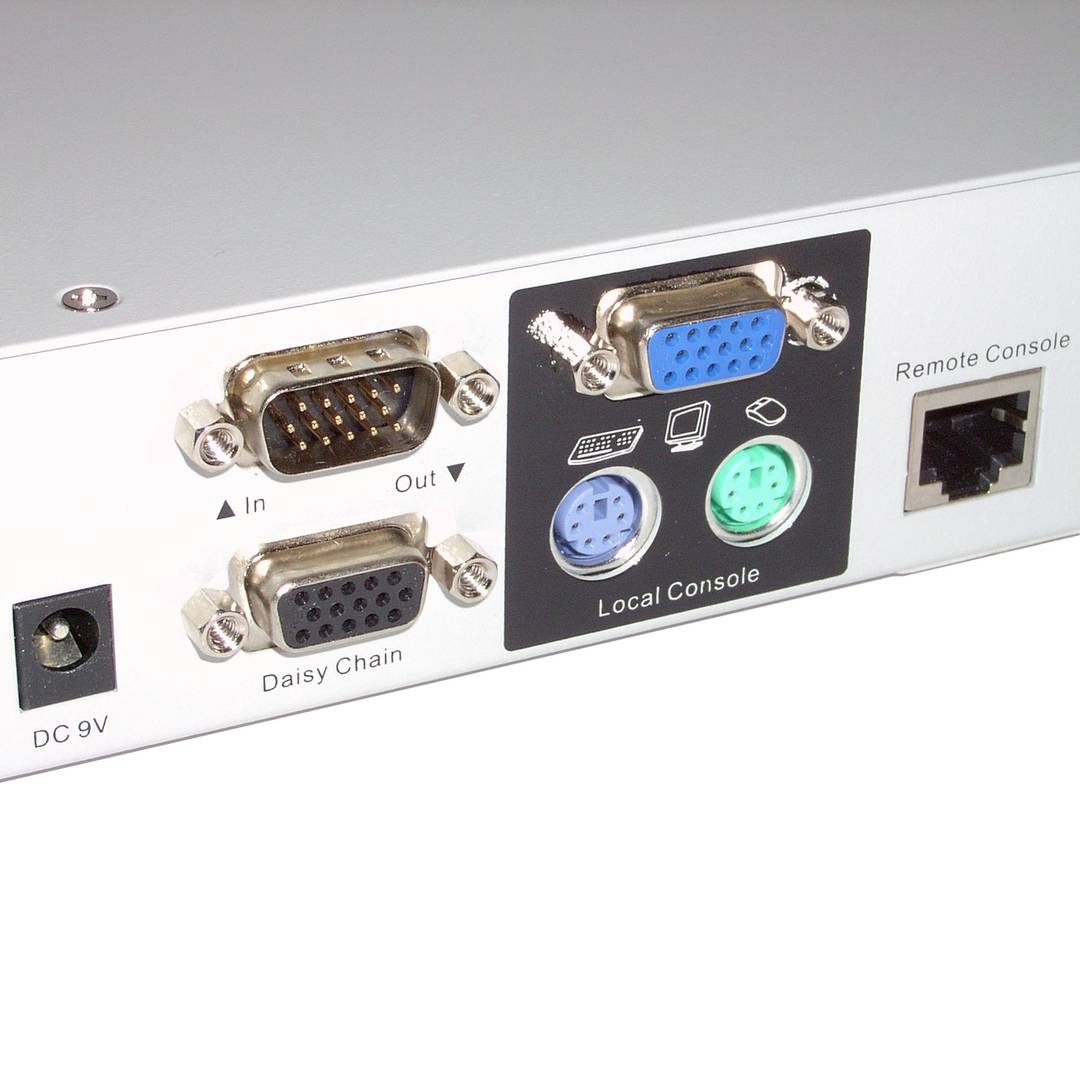

  1. Local console It has connector VGA (HD15 Female) and PS2 for keyboard / mouse (2 x MiniDIN6 Female).
  2. Remote console. It has a female RJ45 connector and the connection is made using Cat.5 UTP cable up to 100m. At the other end, the Remote Console Module is connected (reference # UM81). This module has VGA connector (HD15 Female) and PS2 for keyboard / mouse (2 x MiniDIN6 Female).


Chain of switches

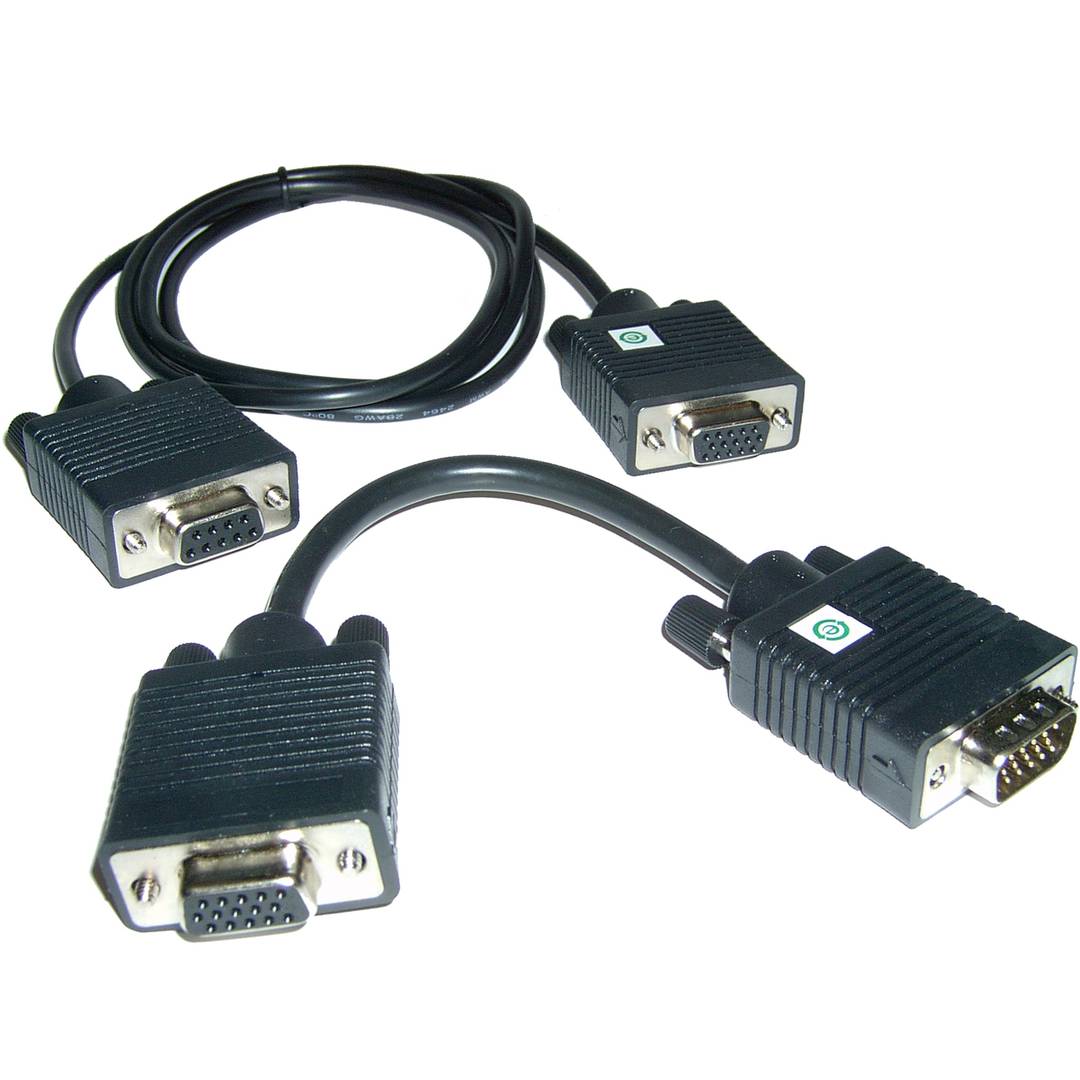

Enables cascading of up to 8 switches in the Uniclass Dual Console Cat.5 series (references # UM7x). This allows you to configure a maximum of 256 ports (8 units of reference # UM83). For this the switch has two HD15 connectors (IN / OUT). A small 10 cm cable is supplied for the chaining.


Specifications
  • Control by means of control keys or OSD (On Screen Display) menu.
  • 2-digit viewer for identification of banks and 2 LEDs for each computer (Activity and Online).
  • Upgradeable firmware Cable is supplied for connection to serial port.

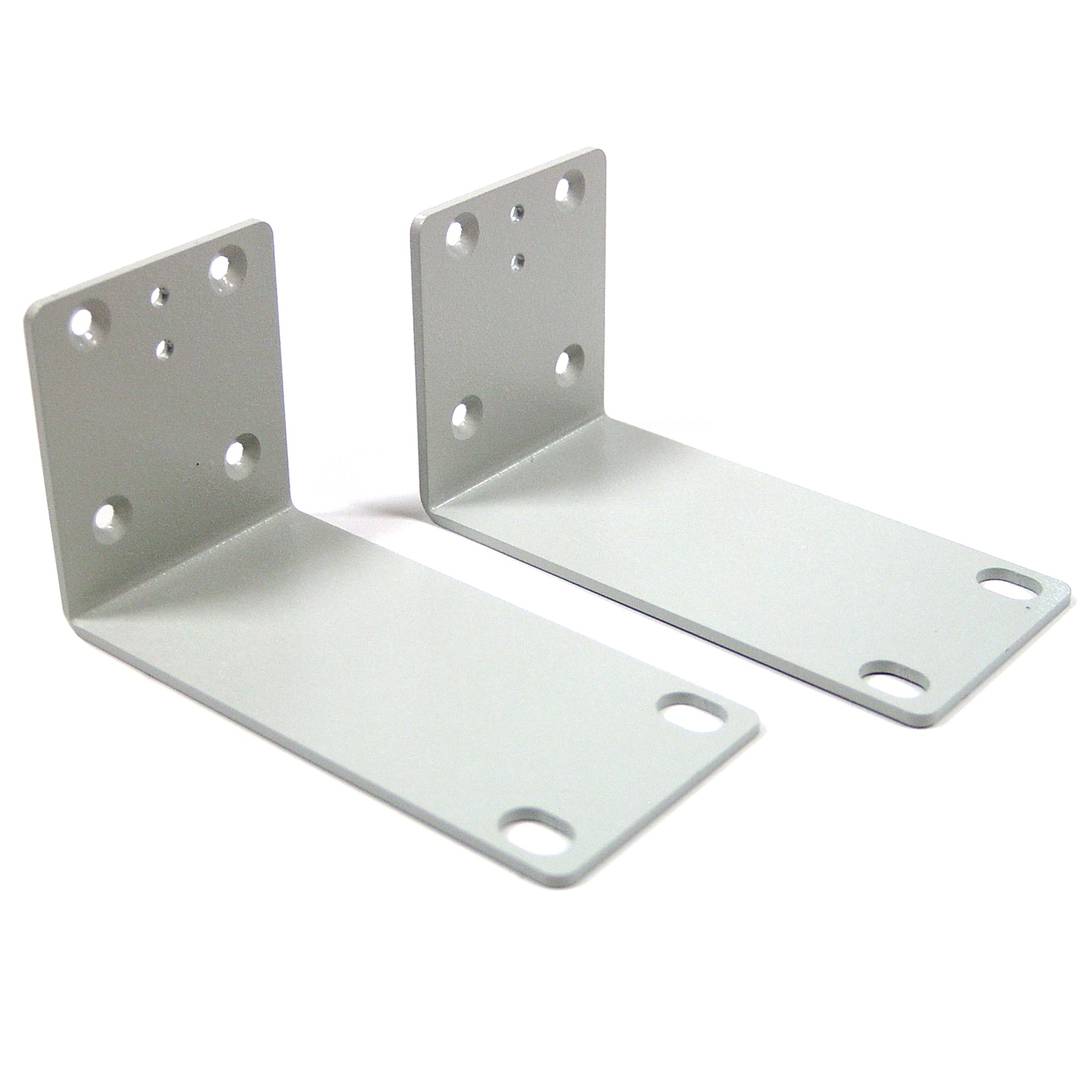

  • Switch mounted in a metal housing that can be mounted in a 19 "rack cabinet, metallic brackets are supplied to be attached to the housing.
  • Compatible with Windows, Linux, Mac and Sun environments
  • Programmable auto-scan from 5 to 99 seconds.
  • Maximum supported resolution: 1600 x 1200.

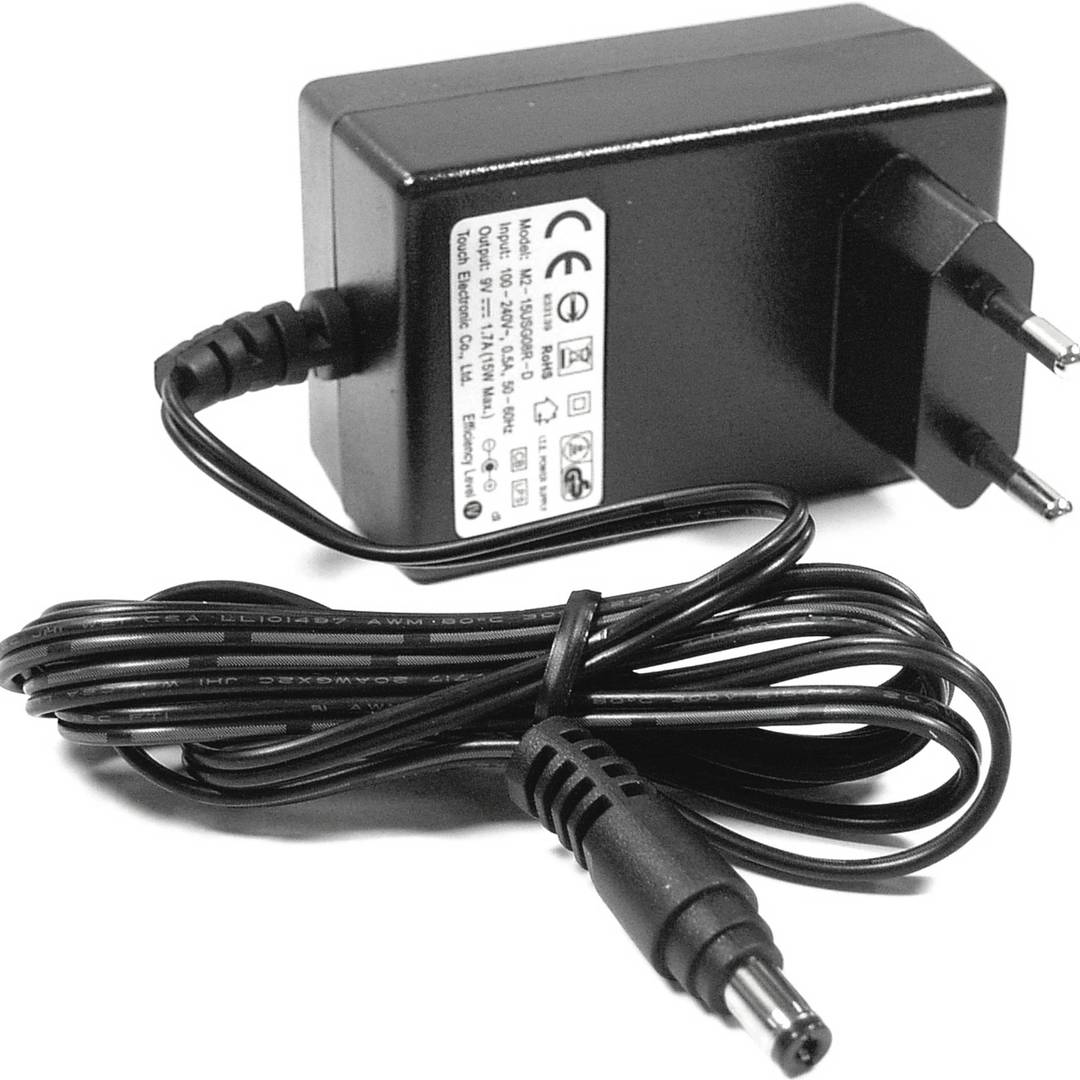

  • Supplied with 9 VDC (2A) power supply.
  • Case size: 300 x 220 x 44 mm.
  • Gross Weight: 2.6 kg
  • Number of packages: 1
  • Packages size:
    • Package 1: 0 Unit/s
