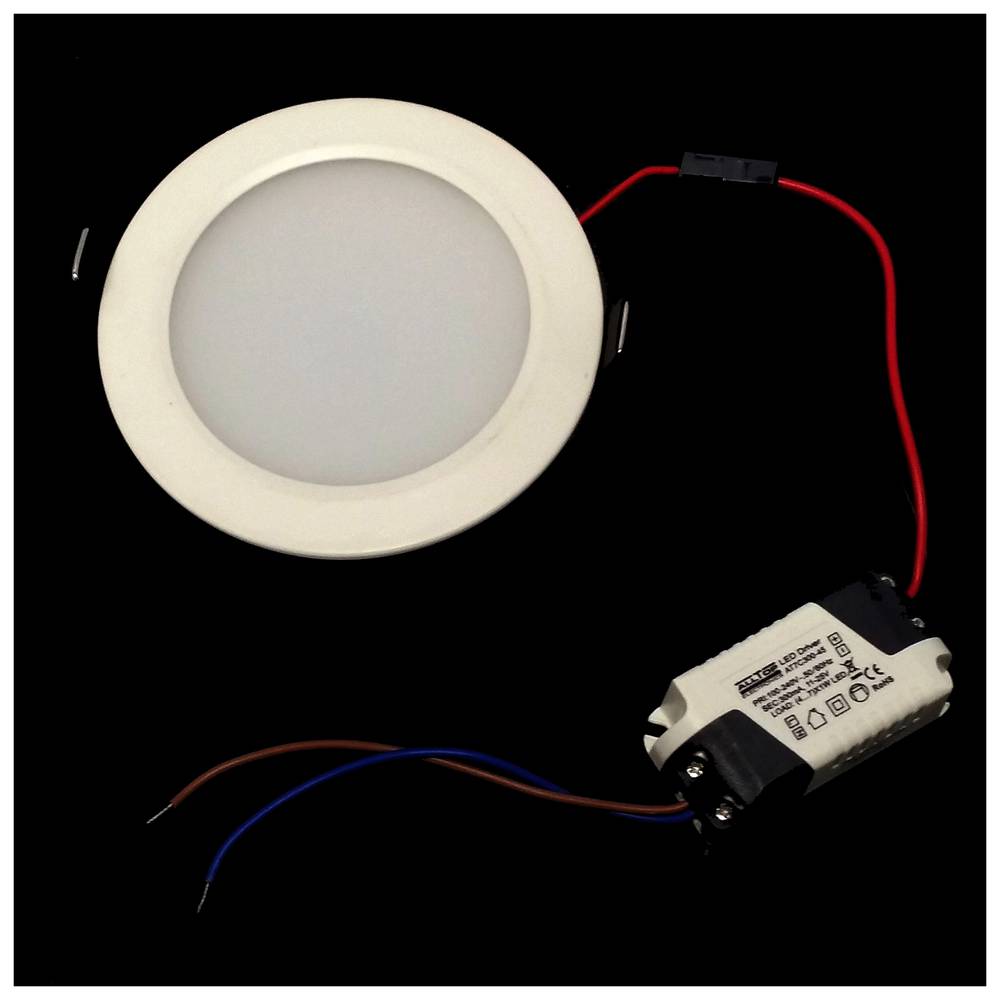

LED recessed downlight 15W 135-150mm white cold day

The word LED, which is the acronym for Light Emitting Diode, is a passive optoelectronic component characterized by its versatility, taking on many forms and being integrated into many optical elements, from screens to light bulbs and even photographic flashes.

One of its best features is its low energy consumption, as well as its longer lifespan, its durability that perfectly withstands almost any type of vibration, in addition to low heat emission.

In the diagram:

1. Anode
2. Cathode

1. Lens/epoxy encapsulation (plastic capsule).
2. Metal contact (conducting wire).
3. Reflective cavity (reflective cup).
4. Semiconductor termination.
5. Anvil.
6. Post.
7. Anvil and post assembly replacing the filament.
8. Flat edge.

The lumen (symbol: lm) is the unit of the International System of Units to measure the luminous flux, a measure of the light power emitted by the source. The luminous flux of radiant flux difference that the former provides the variable sensitivity of the eye to different wavelengths of light and the latter involves all electromagnetic radiation emitted by the source according Wien law and Stefan-Boltzmann regardless of whether such radiation is visible or not. 1 lm = 1 cd. sr = 1 lx. m2

VDC would be the abbreviation for Volt Direct Current which translated would volts direct current. The idea of ??this type is unidirectional current to the load. Direct current is normally produced by batteries, thermocouples, solar cells and a dynamo electric machine type. The direct current can flow in conductors such as wires, but may also flow through semiconductors, insulators ... In the image: 1 - current per pulse 2 - Direct Current (DC) 3 - Alternating Current (AC) 4 - Variable Current

When carrying out an electrical installation or electrical circuit several factors must be taken into account, one of them is the selection of the appropriate cable. According to the installation and the use of the same we can find different diameters that support different loads. The cable section will also help us not to overheat our installation, since the larger the section, the greater the thermal resistance.
In the following table poWe can see the corresponding load supported for the different sections of cables.

The degree Kelvin (K) is the unit used to classify the color temperature according to the scale created by William Thomsom from degrees Celsius. Lord Kelvin based on the table of William constructed a scale of temperatures to which its name is attributed to him.
A deeper explanation would introduce us into the world of physics, so in our sector knowing the relationship between Kelvins and kind of light will be sufficient.and.
This measurement factor is useful to know at a glance which tone or quality of light has a certain light source, for example, if we are going to buy a light bulb or a fluorescent we may be interested in knowing the kelvin it provides, as it will depend on This factor whether the light will be yellow or white.
The lower the kelvin value will be the light temperature, for example a 1600K bulb will have a temperatUra and color quality similar to the light of an exit or sunset. While a light bulb with 5000K will be more like daylight.
To better understand the relationship between kelvin and light temperature is attached the following table, where in a visual way it becomes easier to choose the type of bulb that best suits our needs.

A: It is equivalent to the temperature of a candle, it is aIn yellow light.

B: It resembles the color of dawn, it is similar to a tungsten bulb.

C: It is the tone of light of the old bulbs that were not led, filament bulb.

D: Similar to a study light.

E: Similar to mid-afternoon light about 20 °, similar to a fluorescent light warm.

F: Similar to mid-afternoon light at about 30 °.

G: Daylight, similar to a lightOf a flash.

H: Sunlight at noon.

I: Very sunny day and clear sky.

J: Partly cloudy day.

K: Cloudy day.

L: Wide shade clear day.

M: Very cloudy day.

N: Blue sky without sun.

O: Very clear day.

VAC would be the abbreviation of Volt Altern Current which would be translated Volts of alternating current. The difference between VDC is that its sinusoidal oscillation achieving a more efficient energy transmission.

The alternating current is the energy that we receive in our homes, it is generated in the power plants by means of alternators.

The intensity of this type of current varies with time, and changes direction 50 times throughsecond (50hz). The generated voltage changes in the form of sine wave so it is not constant.

In the image:

1. Current by pulsations.
2. Direct current (DC).
3. Alternating current (AC).
4. Variable current.

The insulating or insulating tape is a fundamental element when making a repair or performing an electrical installation. The insulating tape will help us to protect and insulate the electrical cables from possible crossings or contacts between them or with other elements, guaranteeing that the connection is well insulated avoiding possible short circuits.
Its use is very simple, since being a flexible material allows us to apply it with comfort.
To achieve a perfect union, it is recommended that we wrap the tape covering half the cable and half over the joint, stretching the tape slightly while rolling obliquely.

• For the ground wire, colored insulation tape will be used:
• Green.
• Green with a yellow line.
• For the neutral cable, blue insulating tape will be used.
• For the cable the phase isYou can use any other color:
• Any color different from neutral or earth.
• Black insulating tape.
• Brown insulating tape.
• Gray insulating tape.

As it is common in installations we can find a standard of colors in the electric cables.

These regulations help at a glance to understand the connection and the resolution of possible faults or failures.

Below we attach the color/cable relation for electrical installations.

1. The ground wire can be identified in several ways:
• Green cable.
• C cablegreen smell with a yellow line.
• Cable without insulation.
2. The neutral wire will be blue.
3. The phase cable can be identified in several ways:
• Any color different from neutral or earth.
• Black insulation.
• Brown isolate.
• Gray insulation.
