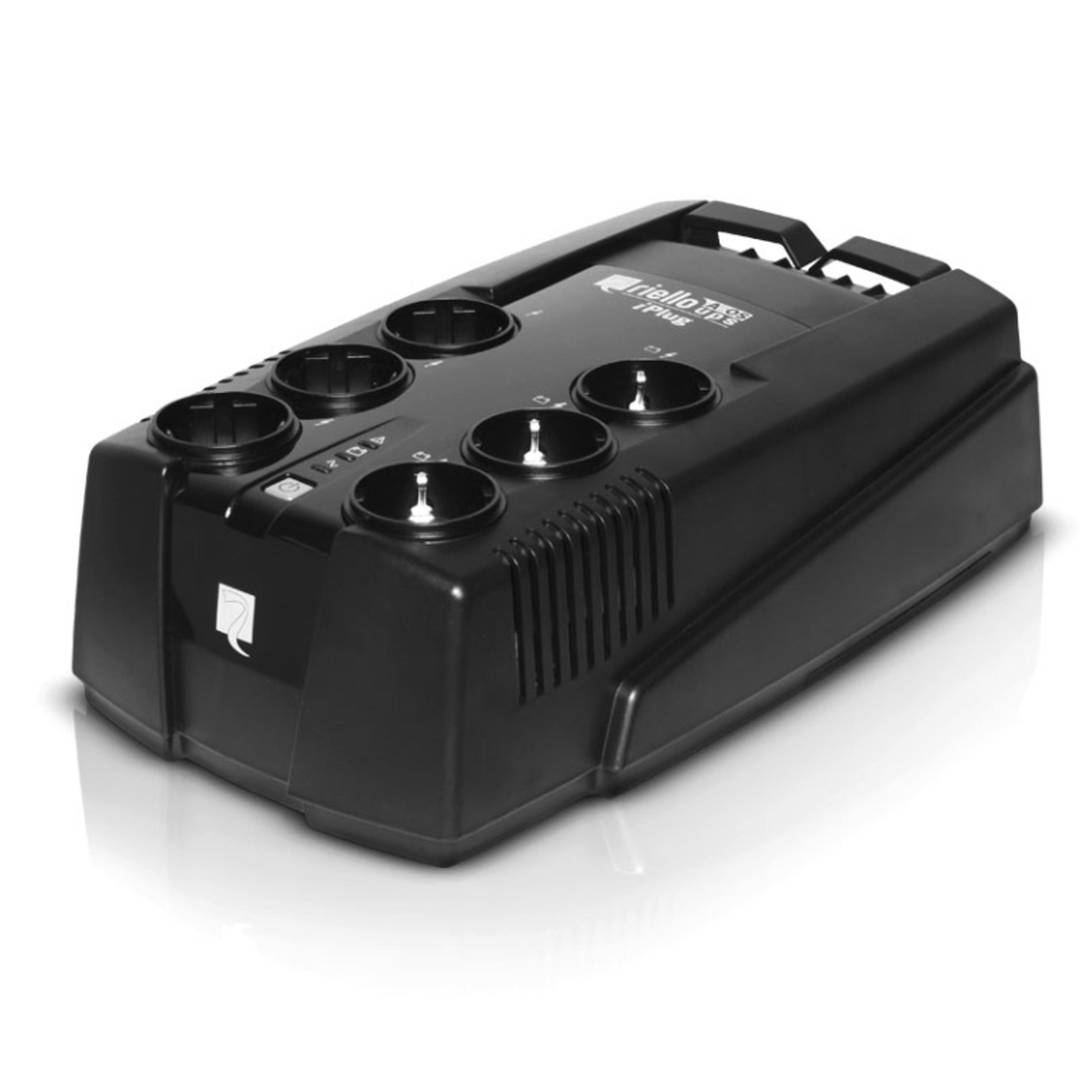

Line interactive UPS iplug 600VA 360 W USB Riello IPG 600 DE

Li-Ion or Lithium batteries are one of the most common batteries used today.
We can find this type of battery in mobile phones, wireless headphones, UPS, smartwatches, cars, etc.

Lithium is a very light metal capable of generating ions easily, making it ideal for the manufacture of batteries.

Unlike other types of batteries, they are a bit more expensive, but in return, they are much smaller and lighter, capable of doubling the duration of a Ni-Cd battery.

Thanks to their composition, they can be manufactured in different shapes, adapting to the device where they are to be located, and their low memory effect makes them ideal for any type of device.

Summarizing their positive points:

• Easy to find
• Many different sizes and shapes
• Small size
• Lightweight
• Capable of accumulating more charge
• Less memory effect
• Long lasting
• Low self-discharge rate.

These batteries also have their negative points, namely:

• Lifespan of about 3 years.
• Limited number of charges, between 300 and 1000.
• They are more expensive.
• They can overheat to the point of exploding.
• Poorer performance in cold conditions.
• Highly variable voltage.

Within lithium batteries, we can find 3 types:

• Lithium-ion polymer batteries.
• Lithium iron phosphate (LiFePO4).
• Olivine-type lithium iron phosphate batteries.

BATTERY TYPE	NI-CD	NI-MH	LI-ION	LI-PO
Charging time	10 to 14 hours	2 to 4 hours	2 to 4 hours	1 to 1.5 hours
Discharge time/month	30.00 %	20.00 %	6.00 %	6.00 %
Number of recharges	approx. 500	approx. 1000	approx. 4000	approx. 5000
Discharge	Necessary	Recommended	Failure at 2.5 v	Failure at 2.5 v
Overcharge	Supported	NOT recommended	Supported	Supported
Power/kilo	50 Wh/kg	70 Wh/Kg	110-160 Wh/Kg	100-130 Wh-Kg
Memory effect	Very High	Low	None	None
Ah (Ampere hours)	0.5 – 1Ah	0.5 – 10 Ah	-	-
Voltage per cell	1.2 V	1.2 V	3.7 V	3.7 V

The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)

or horizontal. The micro USB with five pins, which pins identification (ID) Micro AB USB connectors special work. AB connectors with pin ID can allow the device to function as a connector A or B to standard USB technology. This gives the new smart phones and other devices the option to act as either a single storage device or as provi

The mini USB connectors are smaller than their standard counterparts and have USB fifth pin. The fifth pin is known as the pin ID and is typically not used in mini USB connectors. It was designed to allow later improved USB technology. The mini USB connectors have a cycle life of at least 5000 connections and disconnections, which accommodates the mobile nature of the devices that are designed to interact. The standard USB connectors are generally used with devices that are stationary and not disconnected often.

An uninterruptible power supply, UPS, also known as UPS (uninterruptible power supply English), is a device that, thanks to batteries or other energy storage elements, can provide power for a limited time and for a blackout all the devices connected. Other features that can be added to these teams is to improve the power qualityéctrica reaching loads, ups and downs filtering and eliminating voltage harmonics of the network in the case of using AC. There are different types of UPS UPS DC loads connected to the UPS require DC power, so they will transform the alternating current to direct current sales network and use it to power the load and store it in your batterys. So they do not require converters between the batteries and loads. UPS AC UPS obtained These outputs an AC signal, so they need an inverter to convert the direct signal from the batteries in an alternating signal. UPS standby (Standby Power Systems) This system has two main circuits: the power line, which only addsa stabilized and additional filtering of each team to normal feed, and the actual circuit UPS circuit whose core is called "inverter". It is called system "standby" or waiting, because the circuit of alternative power, the inverter is "offline" or inactive, waiting to become operational when it produces a failure in the power supply. It has a switching element that connectsand either circuit switched alternately. UPS line-interactive (in-line) This type of UPS regulates voltage variations by elevations or reductions in mains voltage. During these interventions, the UPS uses its battery to perform the voltage regulation. UPS online (online) In contrast, the UPS "online" (on-line), the battery and the inverter are permanently It is utiized, ensuring a maximum response in a timely manner before the event of network failure. In addition, they can also correct the frequency shifts as re-generate the ac wave permanently. Diagram UPS online In the picture (1) Rectifier The picture (2): battery in the picture (3): Inverter

USB 3.0 is the second major revision of the standard Universal Serial Bus (USB) connectivity for computing. USB 3.0 has transmission speeds of up to 5 Gbit/s, which is 10 times faster than USB 2.0 (480 Mbit/s). Connector Types 1 - USB type A plug 2 - 3 USB type A female - USB type B 4 - Micro USB B

USB-C reversible USB version called USB cables USB Type C Type C or USB reversible. The important thing is this type of USB is that it has top and bottom. So you may save the blows that are given involuntarily to connect the connector upside down. It is also characterized in that when connected will make an audible "click". The USB-C or reversible USB cables can reach 10 Gbps and support USB 3.0, 3.1Use is estimated up to 10,000 applications and has some measures 8.4mm x 2.6mm is also compatible with USB 3.1 and USB indicate creators

The word LED, which is the acronym for Light Emitting Diode, is a passive optoelectronic component characterized by its versatility, taking on many forms and being integrated into many optical elements, from screens to light bulbs and even photographic flashes.

One of its best features is its low energy consumption, as well as its longer lifespan, its durability that perfectly withstands almost any type of vibration, in addition to low heat emission.

In the diagram:

1. Anode
2. Cathode

1. Lens/epoxy encapsulation (plastic capsule).
2. Metal contact (conducting wire).
3. Reflective cavity (reflective cup).
4. Semiconductor termination.
5. Anvil.
6. Post.
7. Anvil and post assembly replacing the filament.
8. Flat edge.
