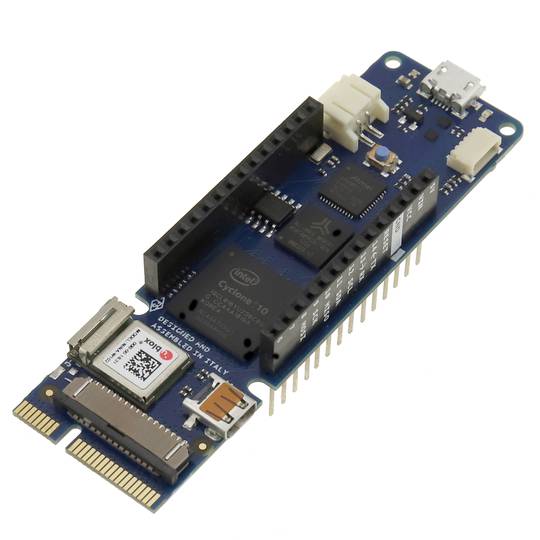

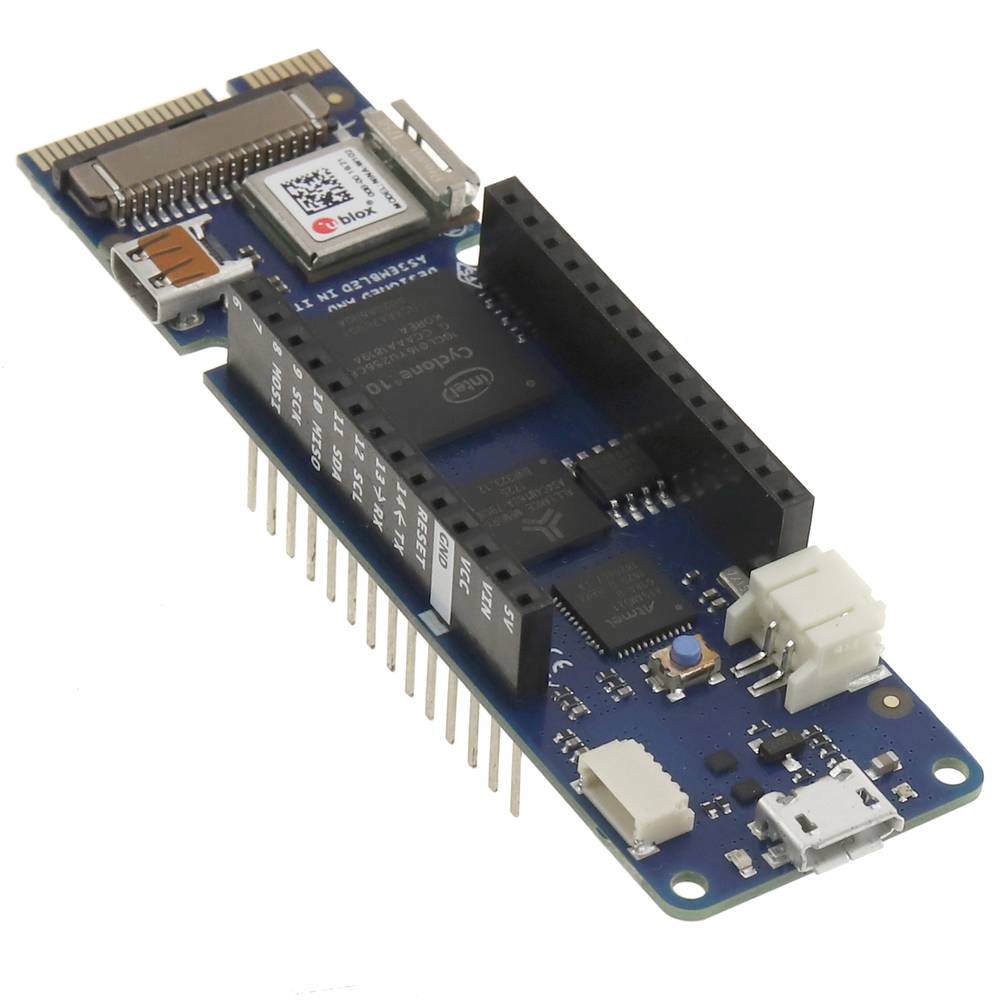

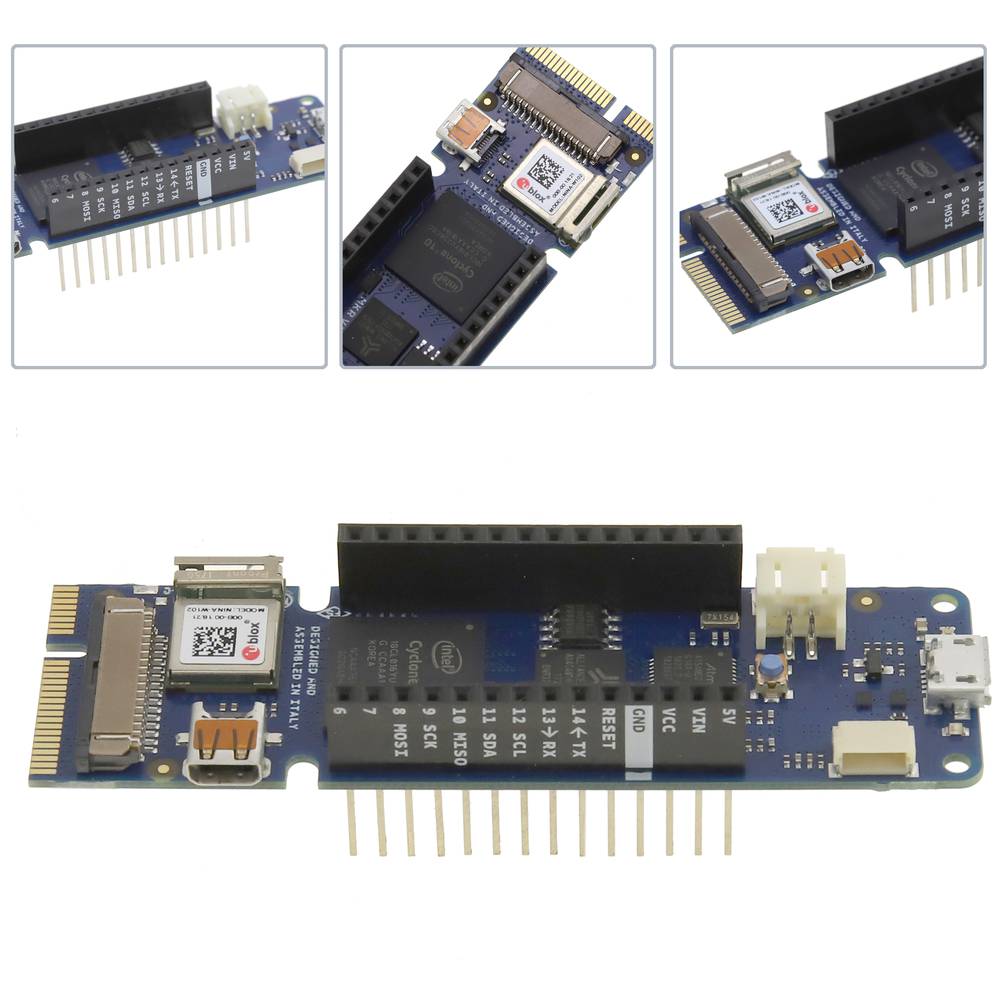

MKR Vidor 4000 Development Board
REF: AR125
Specifications
  • High performance development board. Highly configurable thanks to its powerful integrated FPGA (Field-programmable gate array). It allows high-speed digital video and audio processing, control the PWM pins to manage the speed of motors, in short, it is a device that invites experimentation, precision and high-speed computing.

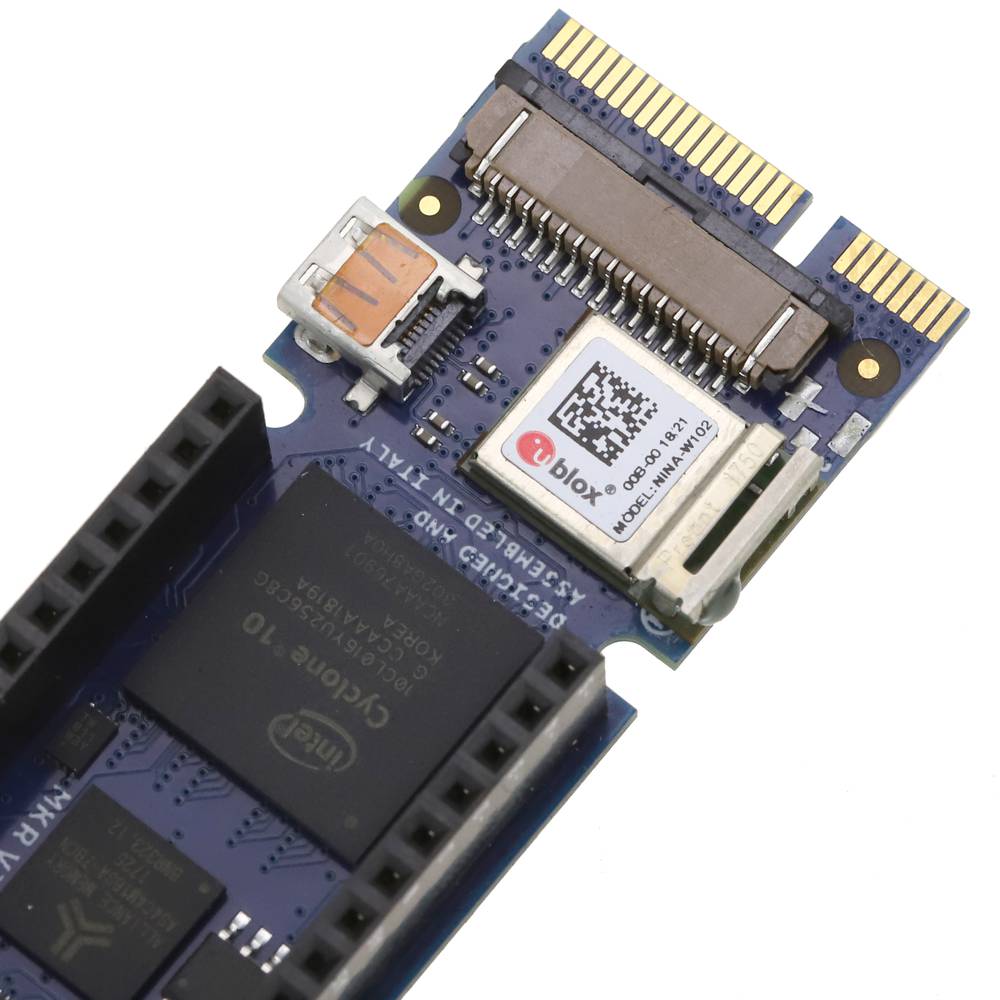

  • Integrates a powerful Intel Cyclone® 10CL016 FPGA with 8MB SRAM, a 2MB QSPI Flash chip (1Mb allocated for user applications)

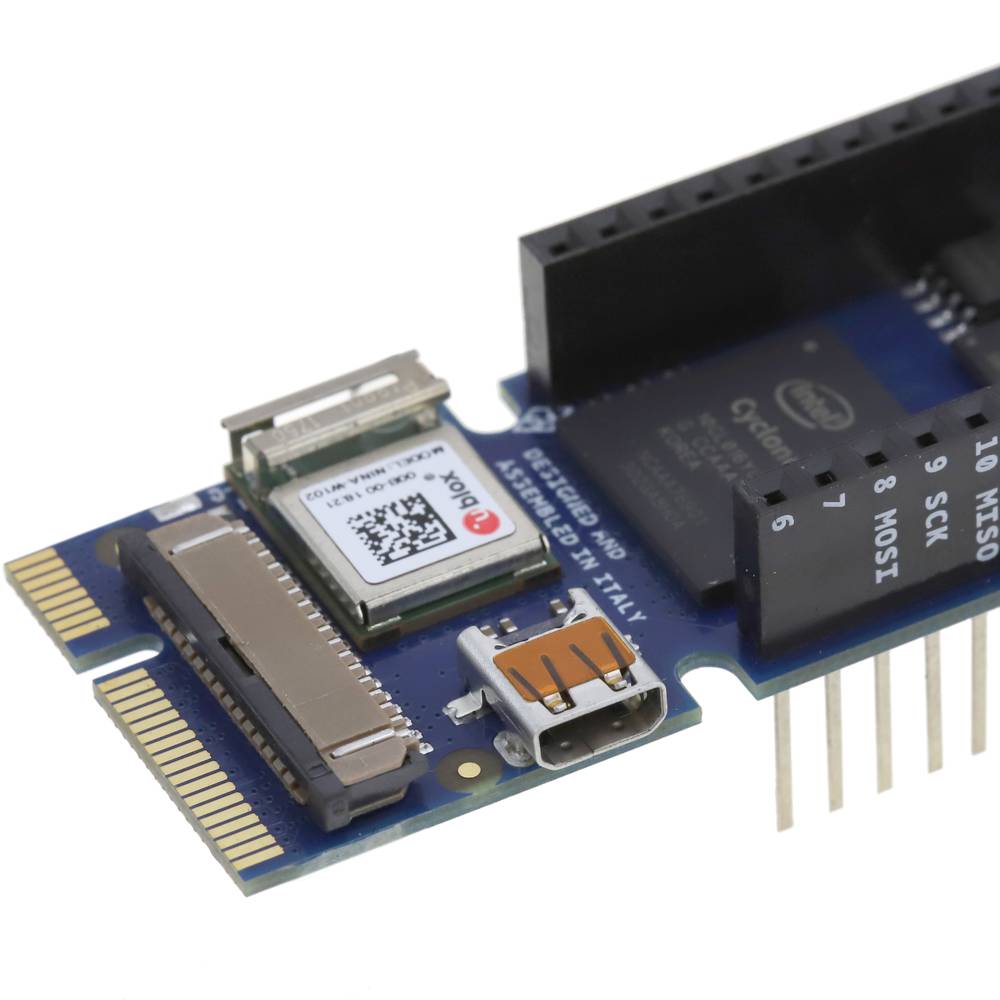

  • Connectivity: Wi-Fi NINA W102. BLE (Bluetooth low energy) connectivity, MicroHDMI video output, MIPI connector for camera. Programmable MiniPCI Express ports. Integrated host MicroUSB port.
  • It has 22 digital input / output (I / O) ports, 13 analog ports through PWM (Pulse Width Modulation) conversion.
  • It has a Lipo port for the connection of an external battery.
play_button Watch video
More info
PVP
66.59
Price including VAT: 66.59
PVD
60.22
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • High performance development board. Highly configurable thanks to its powerful integrated FPGA (Field-programmable gate array). It allows high-speed digital video and audio processing, control the PWM pins to manage the speed of motors, in short, it is a device that invites experimentation, precision and high-speed computing.
  • Integrates a powerful Intel Cyclone® 10CL016 FPGA with 8MB SRAM, a 2MB QSPI Flash chip (1Mb allocated for user applications)
  • Connectivity: Wi-Fi NINA W102. BLE (Bluetooth low energy) connectivity, MicroHDMI video output, MIPI connector for camera. Programmable MiniPCI Express ports. Integrated host MicroUSB port.
  • It has 22 digital input / output (I / O) ports, 13 analog ports through PWM (Pulse Width Modulation) conversion.
  • It has a Lipo port for the connection of an external battery.

Keywords

Did not find what you were looking for? These topic could help you

More info

Range of hardware electronics devices and free software (Open Source) with a re-programmable microcontroller, ideal for developing electronics projects both at a professional level, as well as for education or home users. It allows to connect different input and output (I / O) components, an interface that allows to carry out automation of systems and robotics, as well as to control and power different devices. It can be programmed in Windows, macOSx and GNU / Linux.

specs
  • High performance development board. Highly configurable thanks to its powerful integrated FPGA (Field-programmable gate array). It allows high-speed digital video and audio processing, control the PWM pins to manage the speed of motors, in short, it is a device that invites experimentation, precision and high-speed computing.
  • Integrates a powerful Intel Cyclone® 10CL016 FPGA with 8MB SRAM, a 2MB QSPI Flash chip (1Mb allocated for user applications)
  • Connectivity: Wi-Fi NINA W102. BLE (Bluetooth low energy) connectivity, MicroHDMI video output, MIPI connector for camera. Programmable MiniPCI Express ports. Integrated host MicroUSB port.

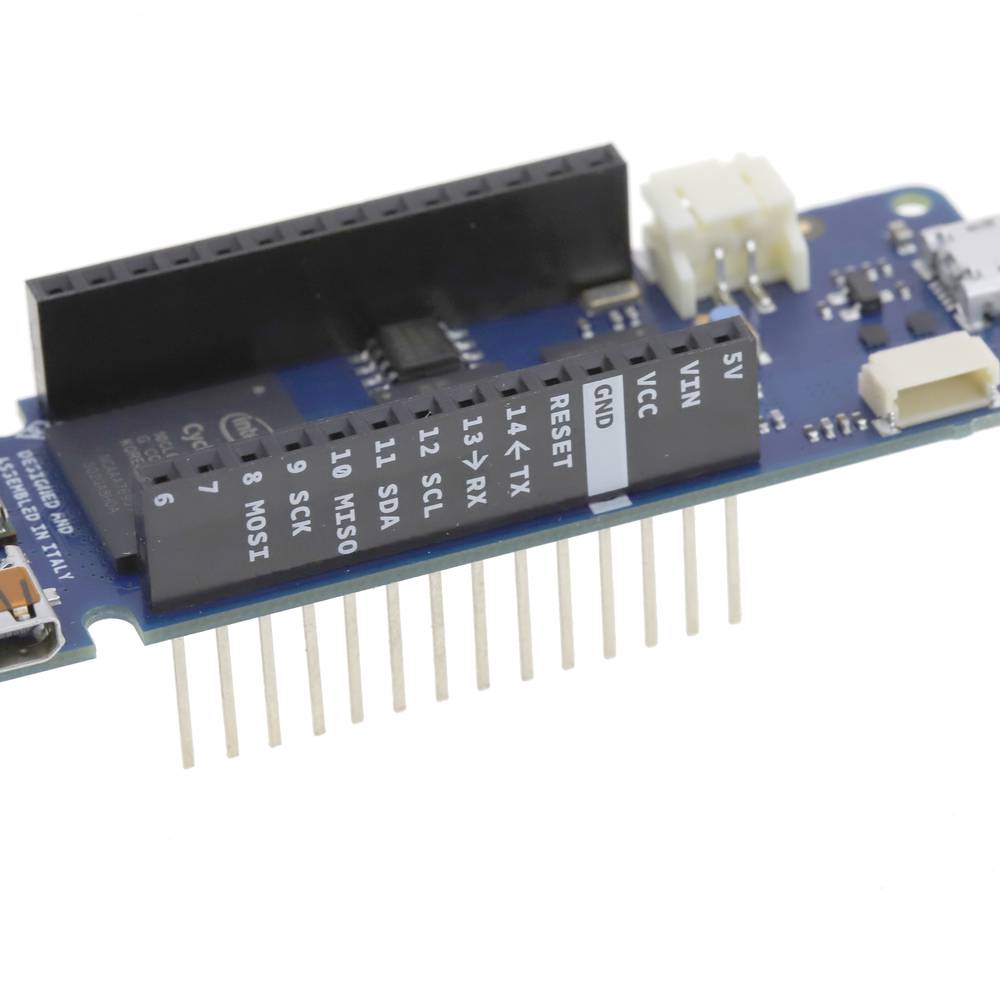

  • It has 22 digital input / output (I / O) ports, 13 analog ports through PWM (Pulse Width Modulation) conversion.
  • It has a Lipo port for the connection of an external battery.
  • Input voltage: 5V. Operating voltage 3.3V.
  • Terminals for ICSP (In Chip Serial Programmer) connection, includes a reset button.
  • Dimensions: 25 x 21 x 83 mm (width x height x depth).
  • Compatible with our # VF001 power supply.
  • Gross Weight: 26 g
  • Product size (width x depth x height): 2.5 x 8.3 x 2.1 cm
  • Number of packages: 1
  • Packages size: 11.6 x 6.0 x 2.5 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • MicroUSB
  • PCI - MiniPCI
  • PWM
  • Bluetooth
  • Battery charging cycles
MicroUSB
or horizontal. The micro USB with five pins, which pins identification (ID) Micro AB USB connectors special work. AB connectors with pin ID can allow the device to function as a connector A or B to standard USB technology. This gives the new smart phones and other devices the option to act as either a single storage device or as provi
