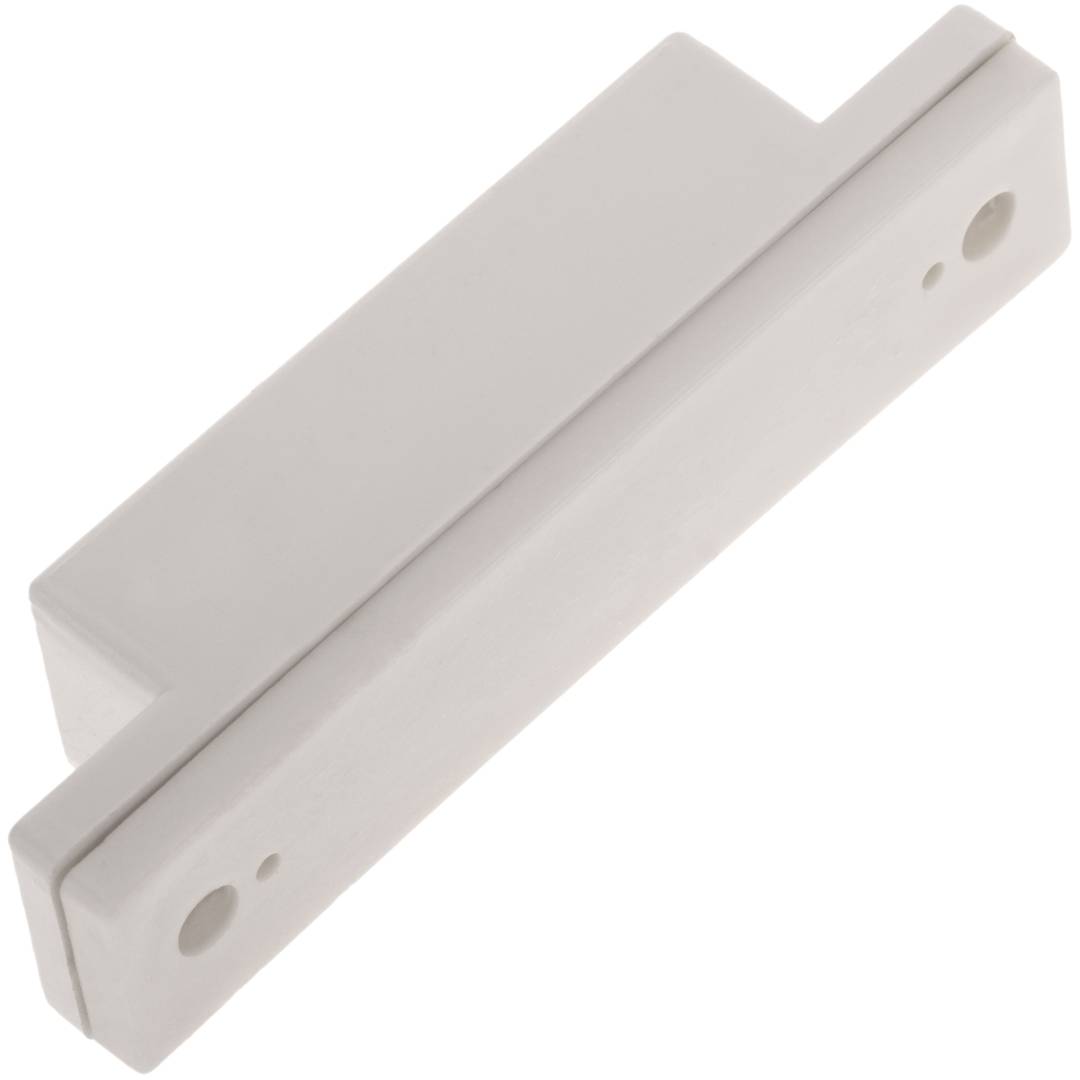

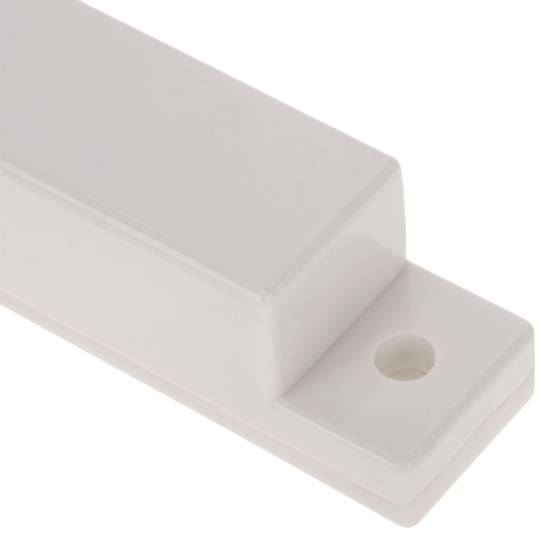

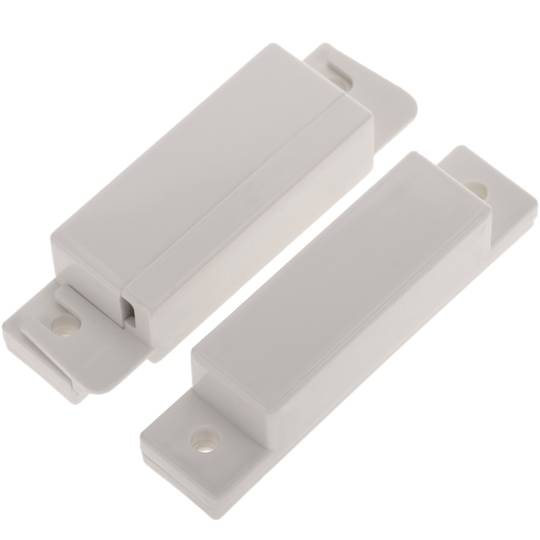

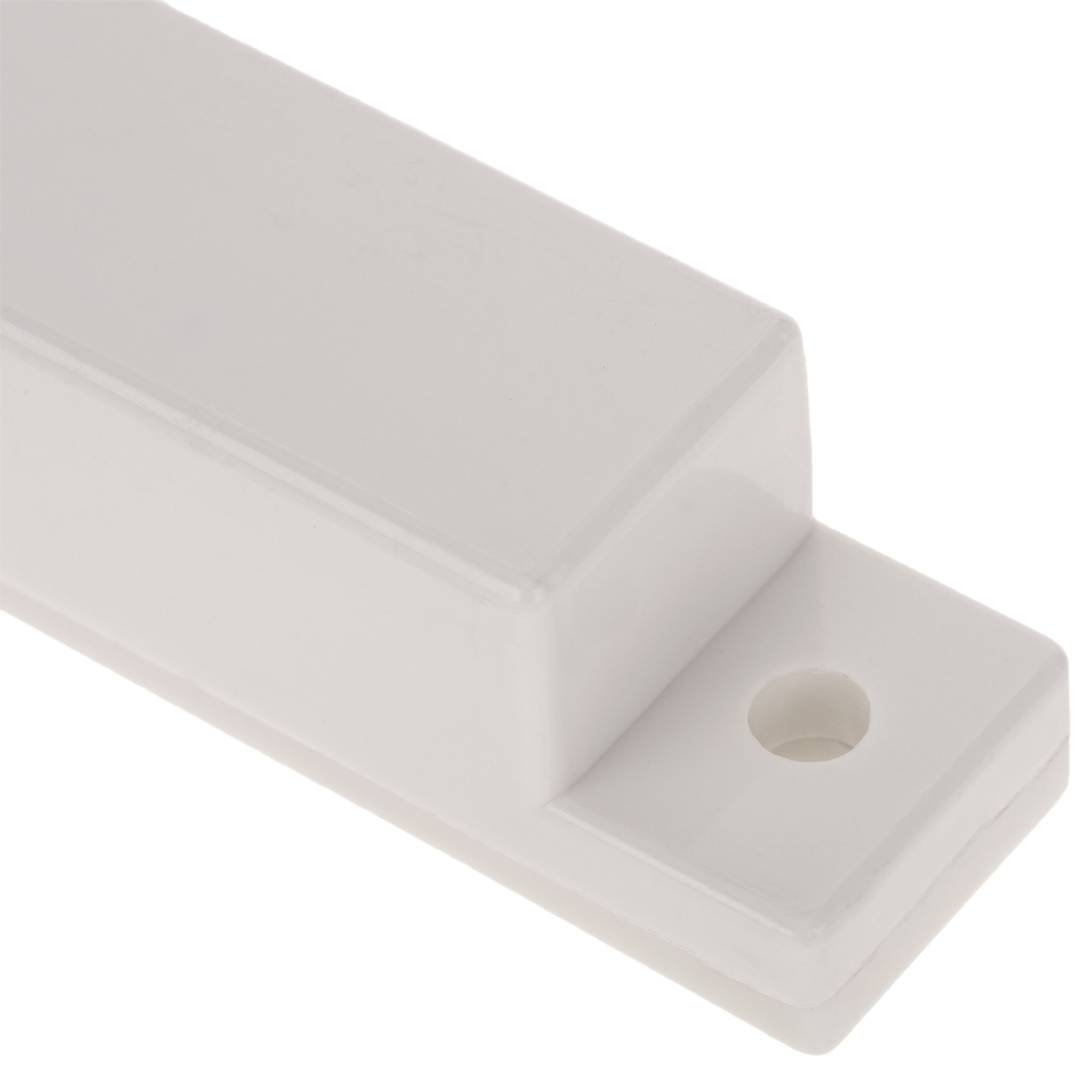

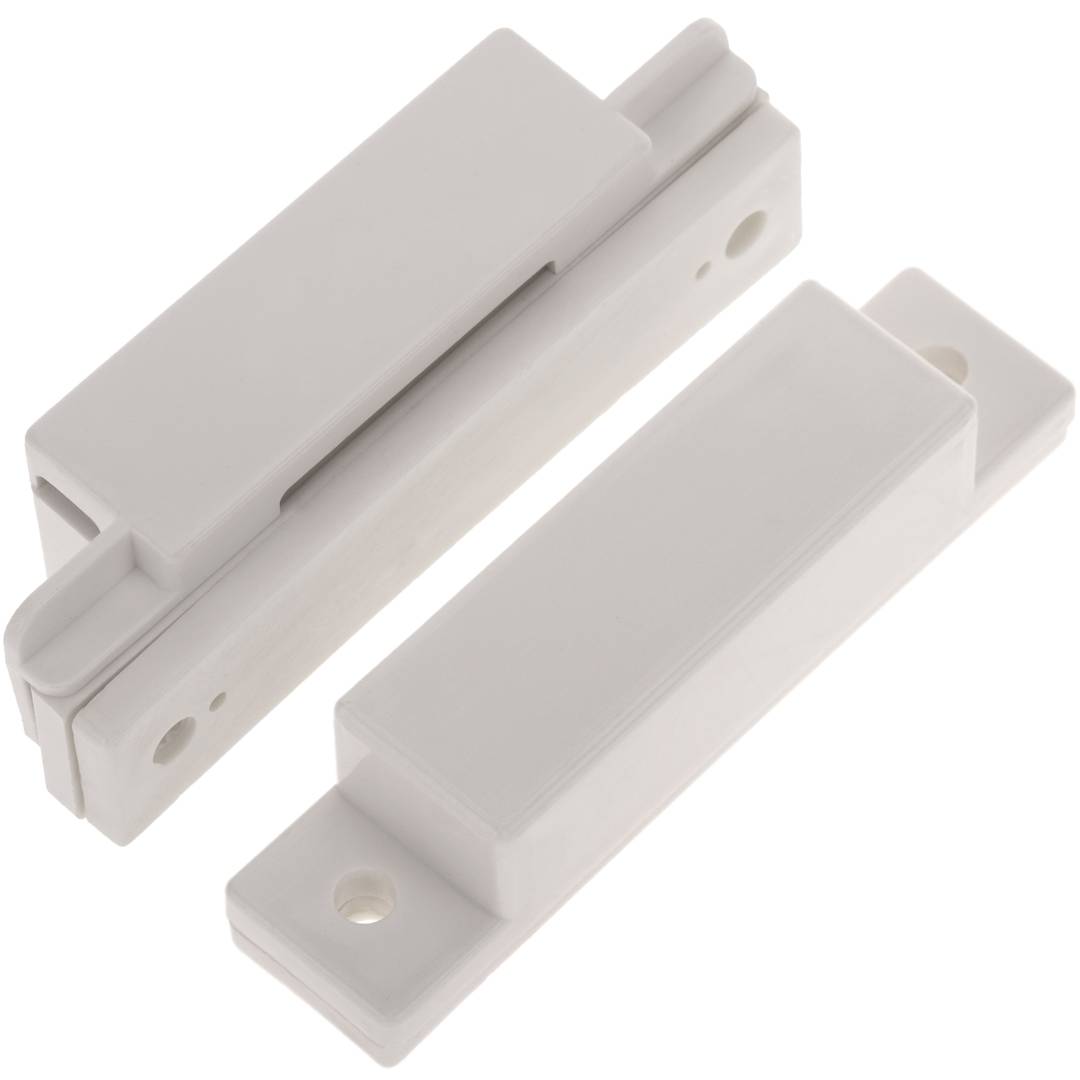

Normally Closed Magnetic Switch
REF: BU102
Specifications
  • Ivory magnetic contact switch operated by a magnetic field.
  • Output type NC (normally closed).
  • Fixation to the ground by screws (includes 4).
  • Ideal for security alarm installations.

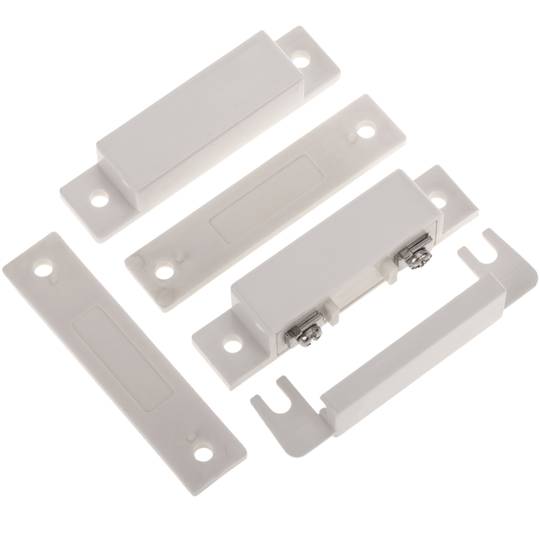

  • Includes two terminals to control use on cabinet doors, windows, etc.
play_button Watch video
Go to technical terms
PVP
8.74
Price including VAT: 8.74
PVD
7.02
Shipping costs: 12,61 *
GB-SE1 1ES
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
14 days
returns
NEW

In stock
Only 3 units

Go to technical terms
Specifications
  • Ivory magnetic contact switch operated by a magnetic field.
  • Output type NC (normally closed).
  • Fixation to the ground by screws (includes 4).
  • Ideal for security alarm installations.
  • Includes two terminals to control use on cabinet doors, windows, etc.

More info

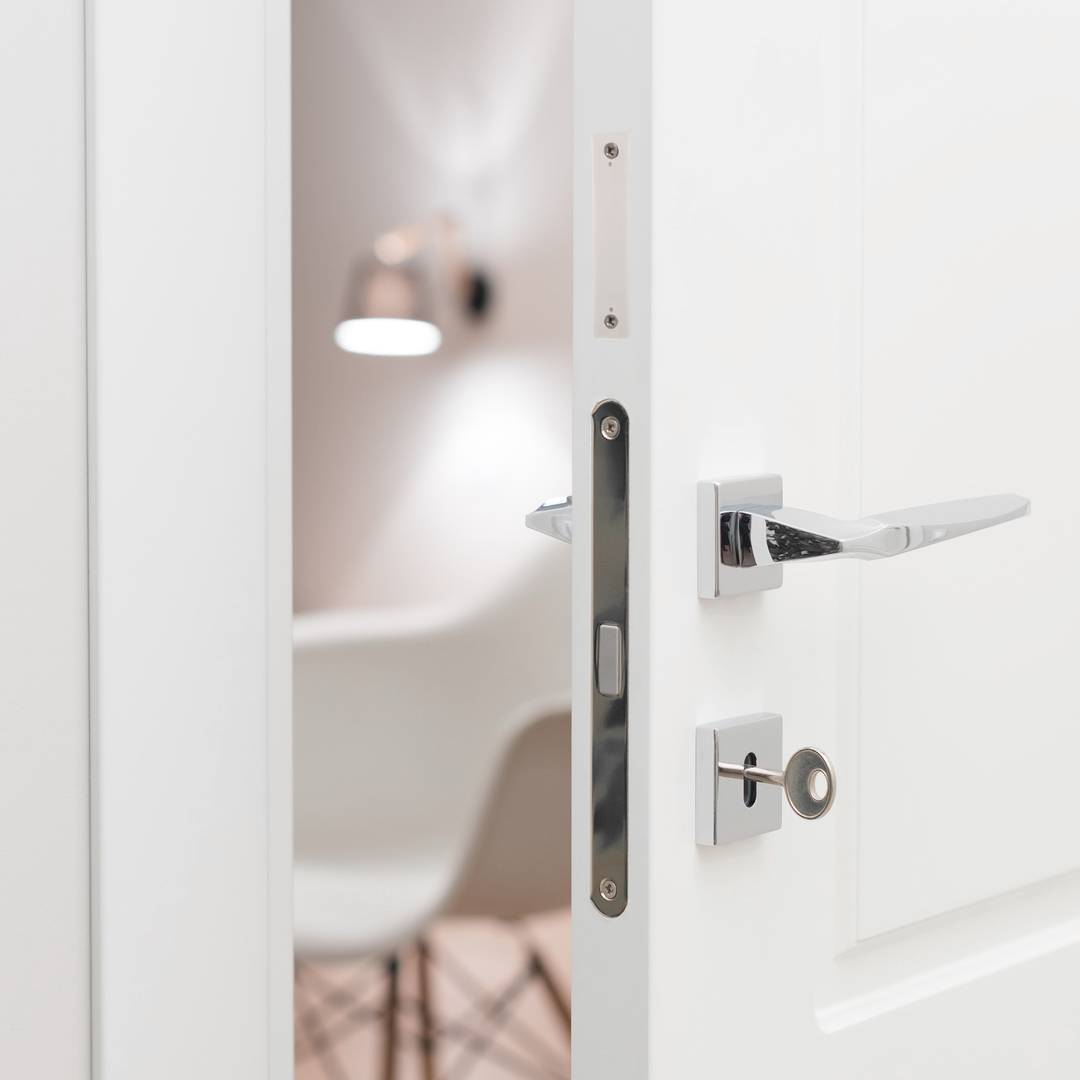

Electrical mechanism for use in alarm systems. Fixing to the floor surface with screws. Ideal for use on doors and windows. If the switch and the magnet exceed a certain range of distance, the switch modifies its state and warns of the change.

specs

  • Ivory magnetic contact switch operated by a magnetic field.
  • Output type NC (normally closed).
  • Fixation to the ground by screws (includes 4).
  • Ideal for security alarm installations.
  • Includes two terminals to control use on cabinet doors, windows, etc.
  • Insulation resistance: 10MΩ.
  • Maximum current: 0.25 A.
  • Maximum voltage: 200 V DC.
  • Maximum contact resistance: 200 mΩ.
  • Maximum separation distance (GAP): 25 mm.
  • Gross Weight: 36 g
  • Product size (width x depth x height): 6.5 x 1.7 x 1.7 cm
  • Number of packages: 1
  • Packages size: 6.6 x 3.6 x 1.8 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Differences between NO and NC
  • Types of mechanisms and functions
  • Movement detector
Differences between NO and NC
These are two types of contacts widely used in electrical installations and circuits. Distinguishing the difference of these two types is very simple.
  • A NO (normally open) type contact is one that does not let the current flow while the same or the device is in standby or standby mode. The most common type NO contact is eg house switches, which remain open (not closedCircuit) until the switch is pressed.
  • The NC contacts (normally closed) are the opposite of the NO contact, they let the current pass while they are in standby or at rest to be actuated. An example would be a thermal protection relay of a motor, which remains closed while there is voltage.
