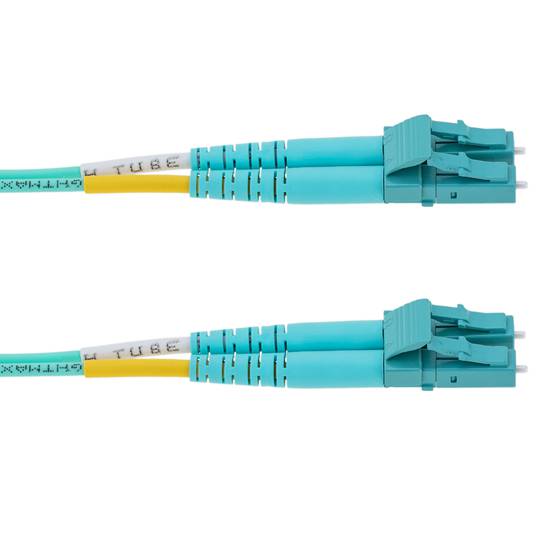

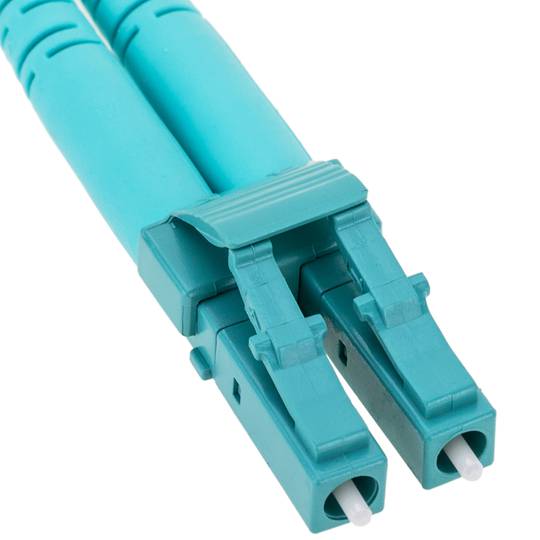

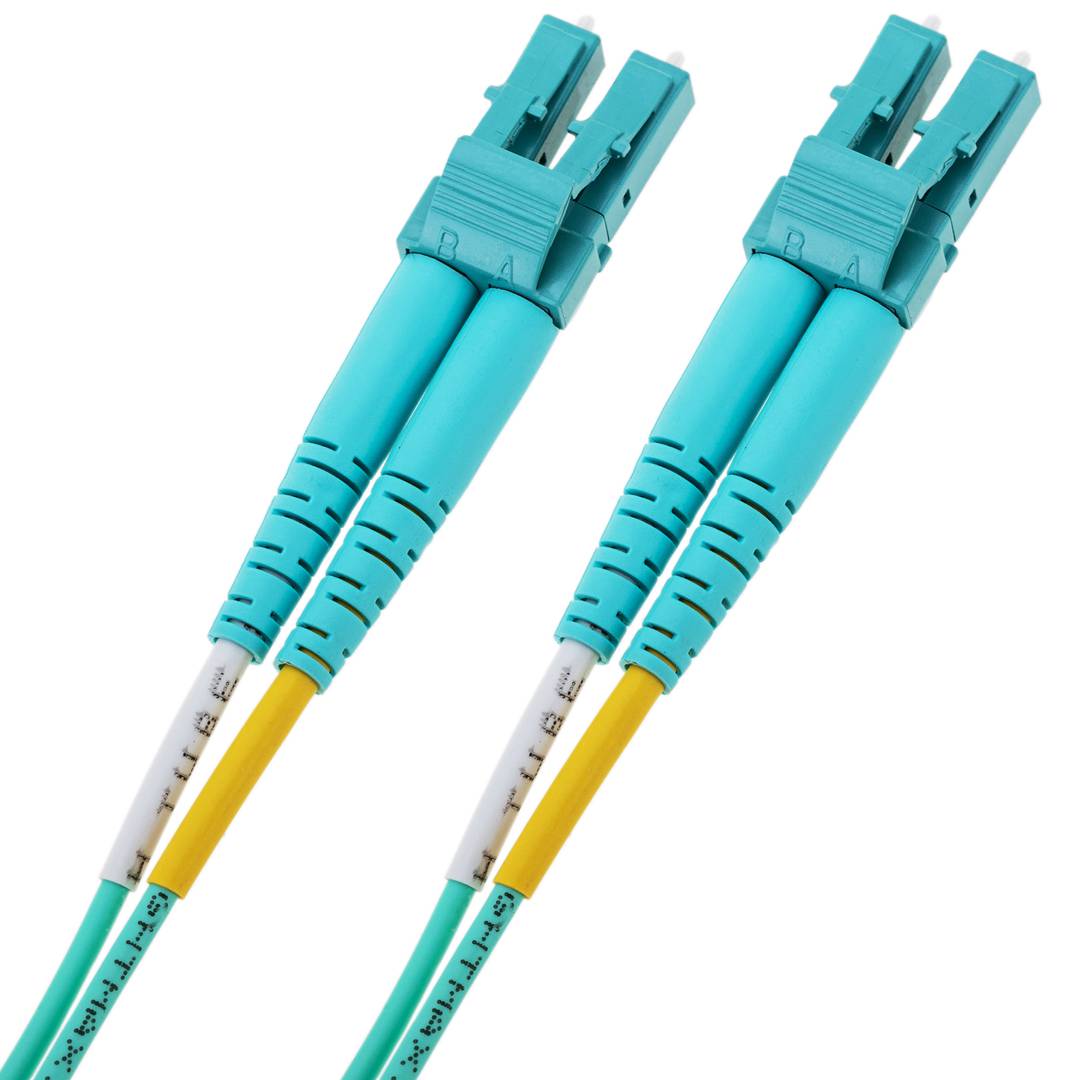

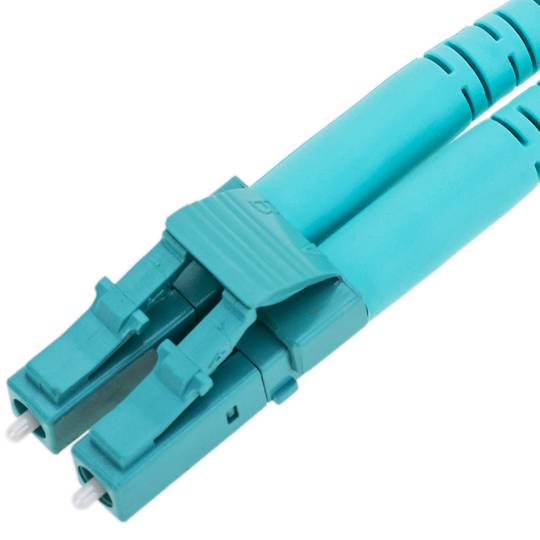

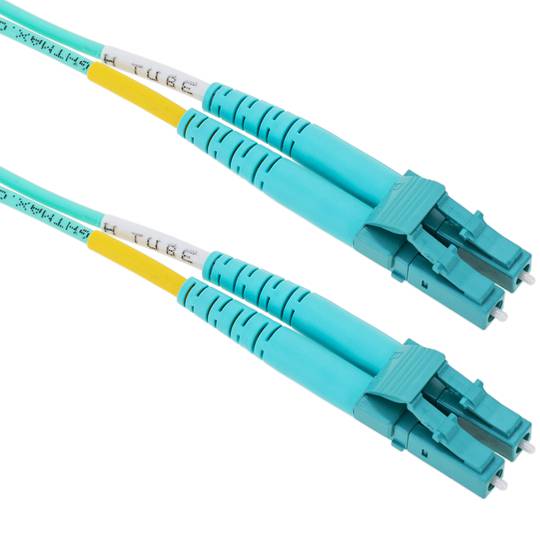

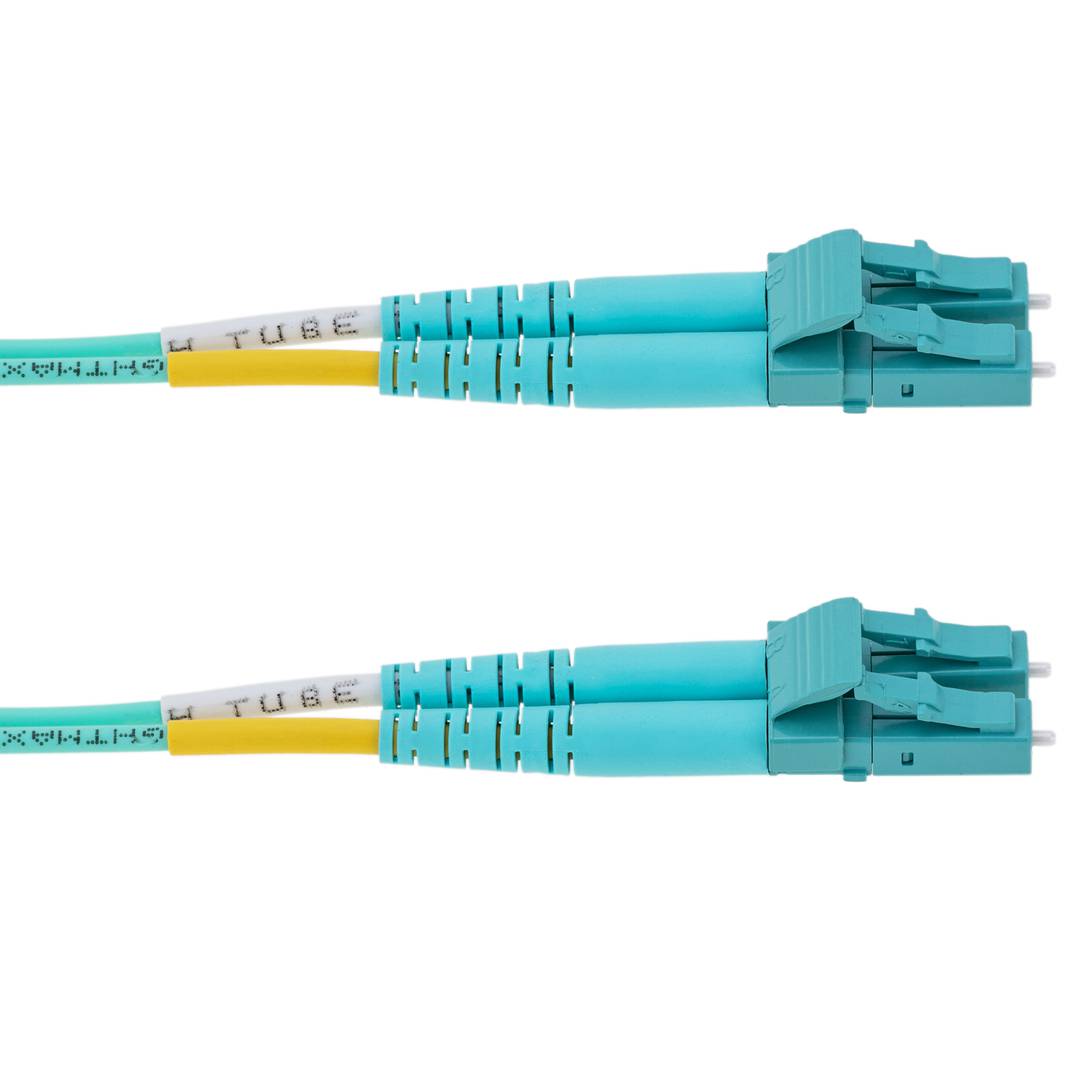

OM3 Fiber Optic Cable LC/PC to LC/PC duplex 50/125 multimode 1m

Gbps (Gigabits per second) is a unit of data transfer rate equal to one billion bits per second.

In telecommunications and network engineering, Gbps defines the bandwidth capacity of fiber optic infrastructures (FTTH) and core backbones. This metric quantifies the effective throughput of a communication channel, enabling massive packet transfer without link saturation. Implementation at the physical layer requires high-speed interfaces like Gigabit Ethernet to manage digital signaling and ensure data flow integrity across the network nodes.

Bandwidth Management and Network Capacity

A 1 Gbps link allows for efficient service segmentation via VLANs and traffic prioritization through QoS, supporting data-intensive real-time protocols without encountering bottlenecks at the hardware level.

Advantages of Gigabit Connectivity

• Significant reduction in latency for critical applications.
• Support for multiple concurrent 4K/8K video streams.
• Enhanced cloud synchronization and backup speeds.
• Seamless scalability for IoT device density.

Gbps is the primary performance indicator in modern broadband and enterprise networking.

• Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
• Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.

• FLAT or plane: It is used in multimode installations and its cut is flat. The return loss oscillates in <-30db.
• PC or Phisical contact: It was usedin single-mode and multi-mode installations. It is the most common polishing in fiber facilities.
  Its polishing is convex and it has the best properties of loss of return, between <-35db.
  Its connector is blue.
• UPC or Ultra Phisical Contact: Used for single-mode fiber installations. It is equal to the polished PC, but it does not reflect as much light as the polished PC.
  Your return loss is around <-55db. It is a polish usedin digital systems and telephony installations.
  Its connector is Blue.
• APC or Angled Physical Contact: This is an 8 degree angular polish. With a loss return of <-65db.
  Its connector is green.
