A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.

The DIN is a standard that was developed by the "Deutsches Institut für Normung" (one might call the national standards organization in Germany). The DIN is facing many sectors, but we have tried to focus on the DIN-oriented electronics and computing. In the case of Enclosures means qualifying under the German legislation on racks and is standardized to DIN 41494-7.

hen we talk about IP code (International Protection) we talk about an international standard (IEC 60529) which classifies the protection against external factors, solid or liquid, that has a component or electronic device; LED strips, controllers, meters, security cameras, etc.

This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.

- Example IP68:

The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.

The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.

We could say that the larger the number is greater IP protection has a device.

In below table, we can see different IP protections levels available.

IPXX	First digit (IPxx)	Second digit (IPxx)
0	Unprotected.	Unprotected.
1	Protection against objects of> 50 mm diameter.	Protection against vertically dripping water.
2	Protection against objects of> 12.5 mm diameter.	Protection against inclined drip water up to 15°.
3	Protection against objects of> 2 mm in diameter.	Protection against water projected from any direction, up to 60°.
4	Protection against objects of> 1 mm in diameter.	Protection against splashing water any direction.
5	Ingress of dust is not entirely revented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment .	Protection against water jets.
6	Dust tight.	Protection against strong jets of water.
7		Protection against complete immersion up to 1 meter for 30 minutes.
8		Protection against complete and prolonged immersion.

There are several cabinet heights according to the needs of the installation, this height can be measured in rack units (U).

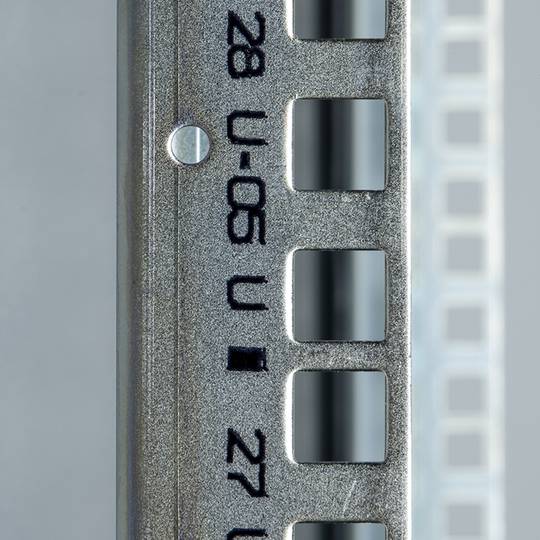

Each rack unit or U is the distance between each horizontal separation to place the different accessories inside the rack. This distance is 1.75 inches that is equal to 4.4445 cm high.

For example, if we say that a rack is 8U we will understand that it has 8 units to install device orAccessories of 4.44 cm in height.

Normally these accessories, like trays, guides, strips, etc. Occupy a unit of U (1U), but we can find that other devices or accessories occupy more units, for example can be a rack box to install a PC, a UPS, etc. It can be said that there is also a half unit of U (0.5U), in this case, two units could be installed in a rack unit.

As far as I knowEndo the units of rack that occupy the devices that we are going to install we will know the height that we need for our rack.

The size of the rack unit (U) is based on the standard specification for racks defined in EIA-310.

When calculating the life of a battery it will be necessary to know the number of charge cycles that can be performed until the battery does not begin to lose its capacity.
Depending on the type of battery these charging cycles can vary, the most common being the mobile batteries, manufactured Li-Ion or Li-Po, which have a duration of between 300 and 500 charging cycles according to model and manufacturer.
Once thisE limit we will notice how the battery loses duration of operation, arriving to lose up to 25% of its capacity of load.
At this point it will be necessary to evaluate a battery change.
It should be noted that usage and charging habits can significantly affect battery life. For example, factors such as heat, charge the battery several times a day without it is almost exhausted, etc. Will be affectedits duration.
Therefore, to get the most out of the battery we must know when a full charge cycle is performed, and try to avoid misuse of charge, to increase its useful life.
A charging cycle is considered when the battery has been discharged or its 100% charge has been used.
The manufacturers advise that the charge is never made below the 58% battery, since the battery voltage would not fall so lowTo, so you could end up winning up to 4000 charge cycles.
Tips to increase the life of a battery.

• Avoid extreme heat or cold or very long applications of the device.
• Charge the battery as often as you can.
• Fully discharge the battery from time to time.
• Do not let the battery run out completely before charging.

Below is a table with theDifferent voltages (V), charge cycles (C) and battery percentage (B).
