PDU strip 18 way with 2 electrical wires for server rack 19" surge protected

REF: RE023

Specifications

  • Strip of 18 female Schuko sockets (DIN49440) distributed in two independent segments of 9 sockets each
  • 250V / 16A per segment.
  • Frequency: 50/60 Hz.
  • Includes surge protection (720 joules).
  • UL 1449 (500 Amps): 330 Volts.

PVP

70.78

18 "rack plug socket, 18 schuko with surge protection and 2 cables


Your price

PVP

101.11

17.19

Price including VAT: 17.19

PVD

88.87

15.11


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES
02/24/2020 10:57 p.m.
https://cablematic.com/en/products/pdu-strip-18-way-with-2-electrical-wires-for-server-rack-19-surge-protected-RE023/

PDU strip 18 way with 2 electrical wires for server rack 19" surge protected

REF: RE023

PVP

70.78

18 "rack plug socket, 18 schuko with surge protection and 2 cables


Your price

PVP

101.11

17.19

Price including VAT: 17.19

PVD

88.87

15.11


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • Strip of 18 female Schuko sockets (DIN49440) distributed in two independent segments of 9 sockets each
  • 250V / 16A per segment.
  • Frequency: 50/60 Hz.
  • Includes surge protection (720 joules).
  • UL 1449 (500 Amps): 330 Volts.

More info

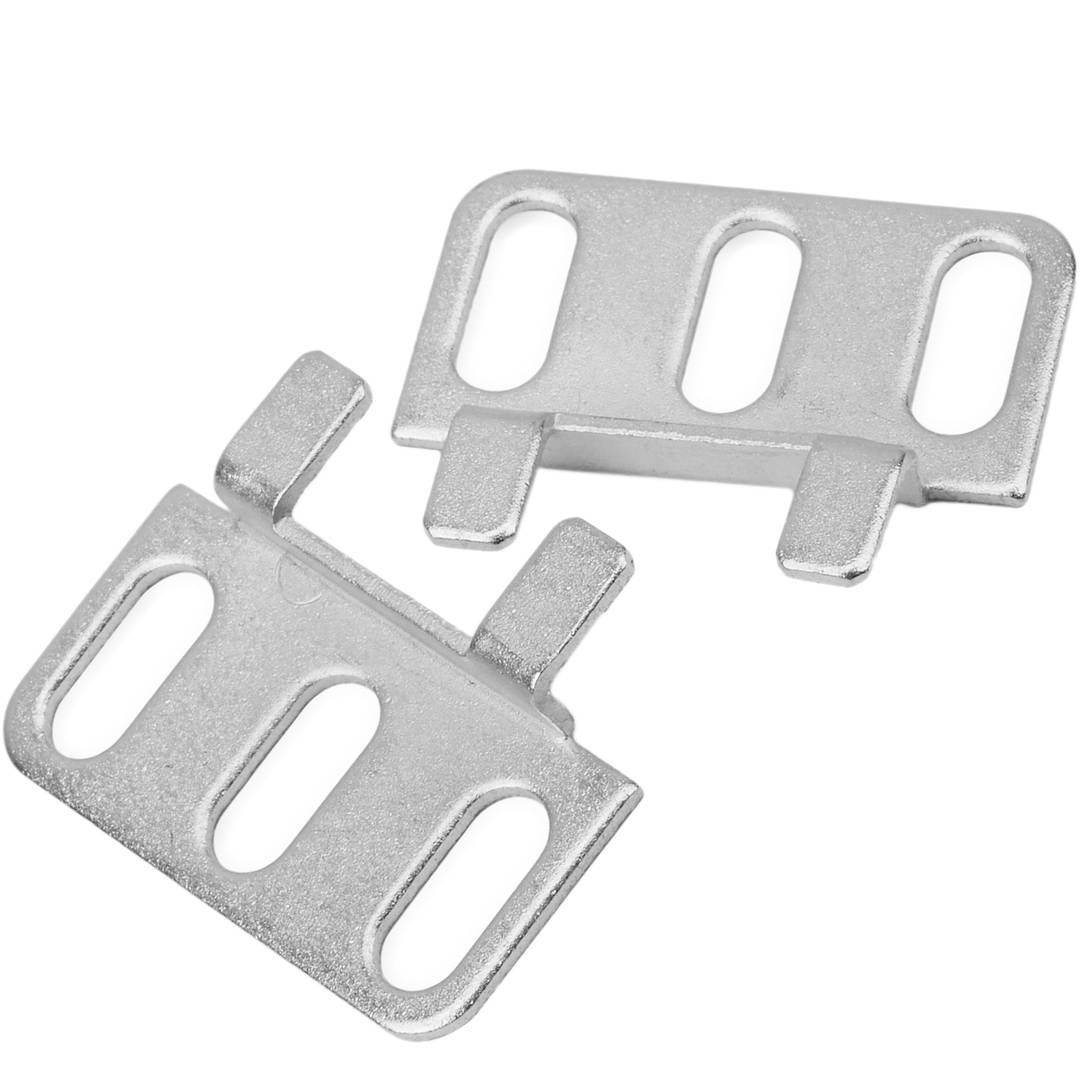

Power strip specially designed to be mounted in a 19 "rack cabinet but can also be used as a standard strip not installed in a rack cabinet. Structure mounted in an extruded aluminum housing. The strip occupies 1U high in a rack cabinet. It includes two metal tabs that attach to the strip without using screws or tools.These tabs can be coupled in 4 different ways so the plugs can be oriented towards the front, back, up or down. Model to be installed vertically in the rack cabinet, because the width is more than 19 ".

specs

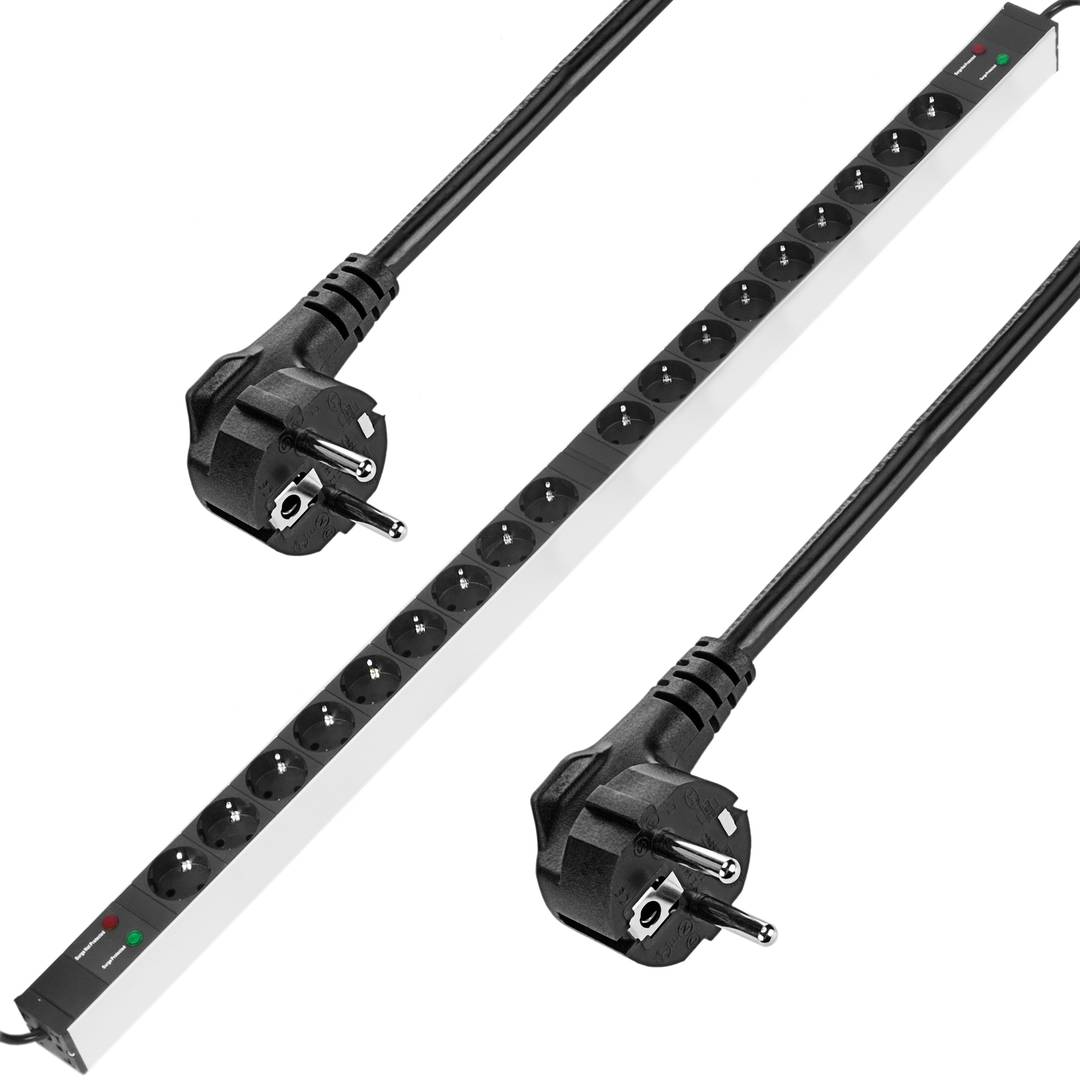

  • Strip of 18 female Schuko sockets (DIN49440) distributed in two independent segments of 9 sockets each
  • 250V / 16A per segment.
  • Frequency: 50/60 Hz.
  • Includes surge protection (720 joules).
  • UL 1449 (500 Amps): 330 Volts.
  • Clamping level: <315 Volts.
  • Response time: 5 ns.

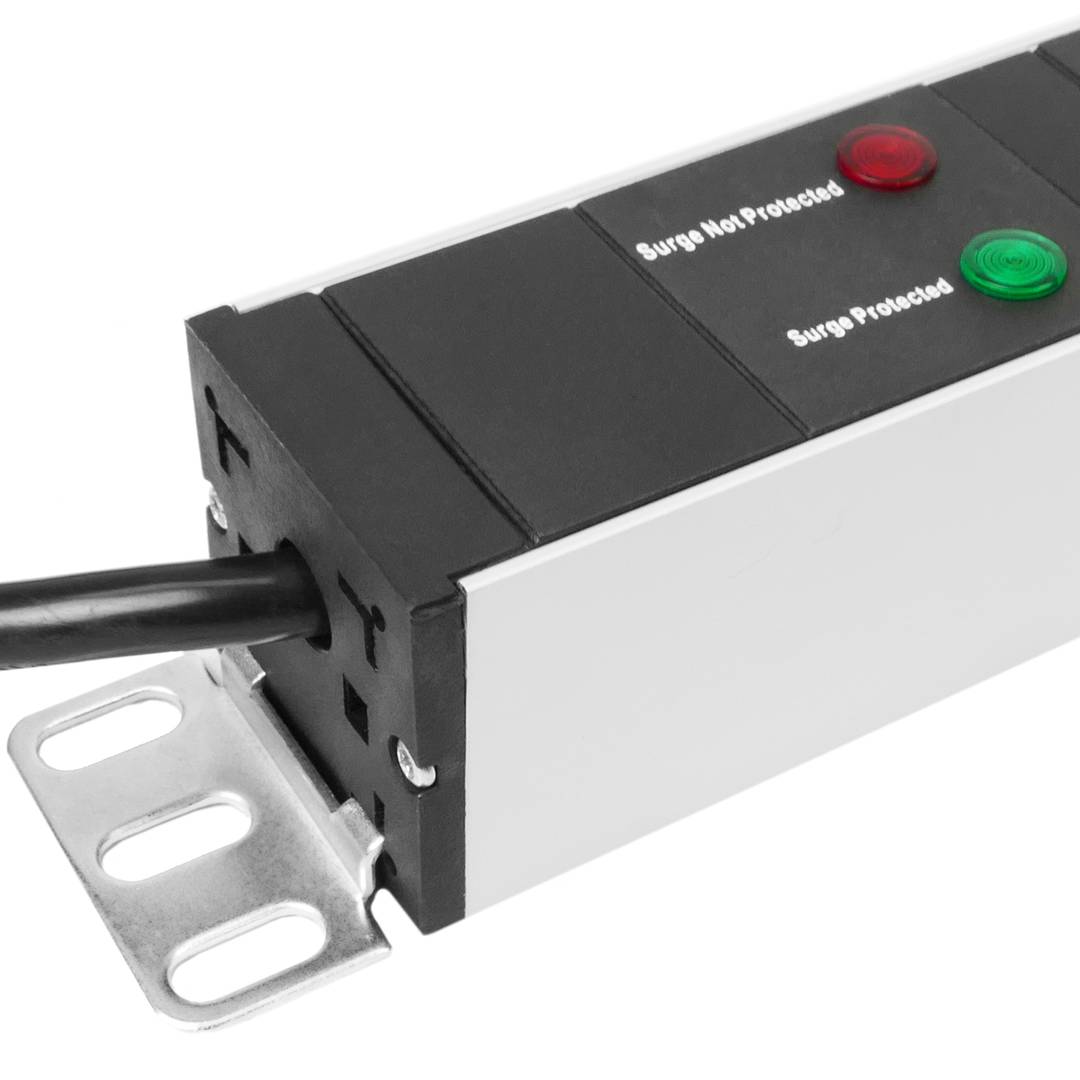

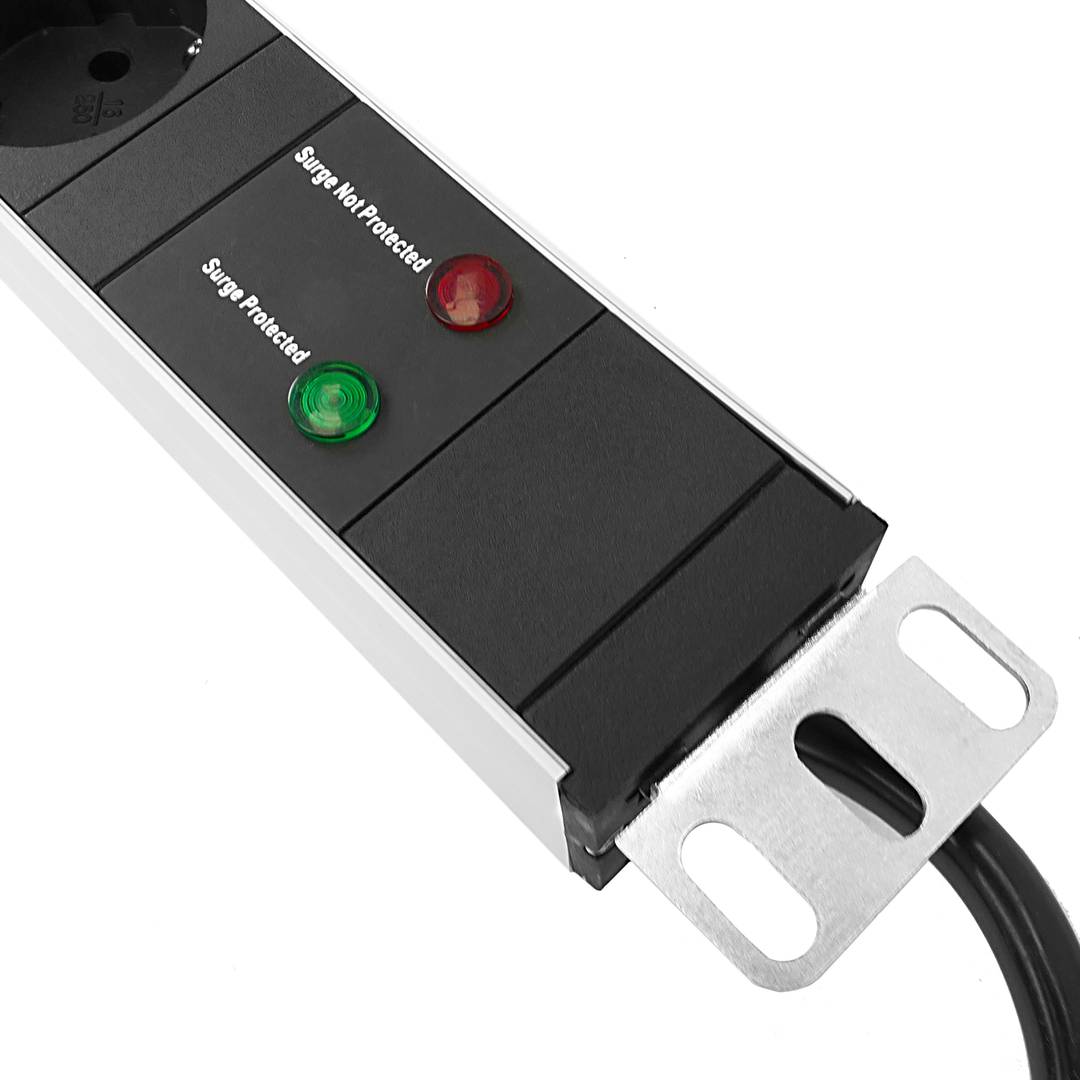

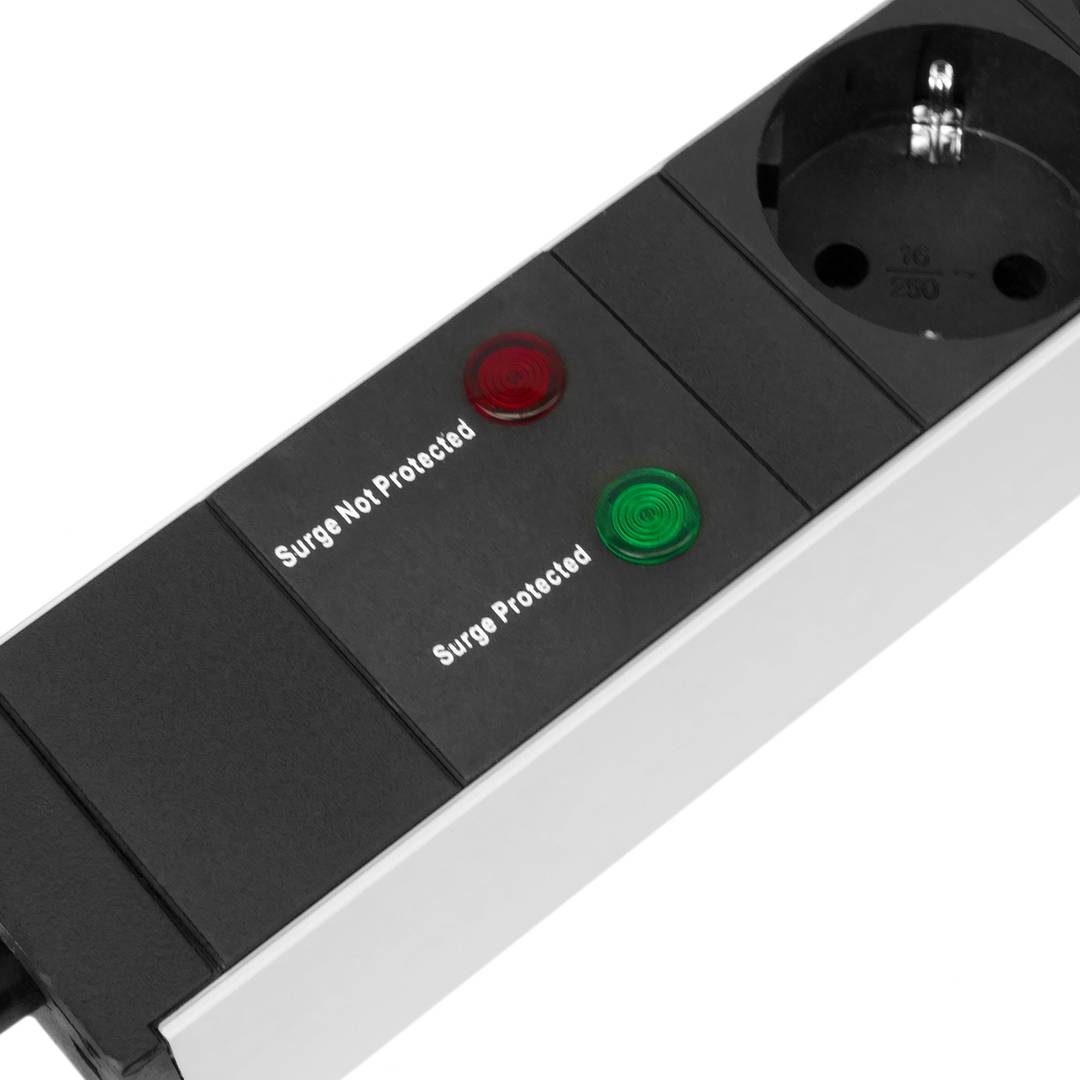

  • It has 2 indicator LEDs (Ground and Surge Protected).
  • It does not have a switch.
  • 16A independent overload protection for each segment. Circuit breaker protection that disconnects when the 16A load is exceeded.
  • Two 3 m electrical cables type H05VV-F 3G1,5mm² and terminated in male schuko (DIN49441). One cable for each segment.
  • Interconnection of female Schuko sockets by rigid inner busbar.

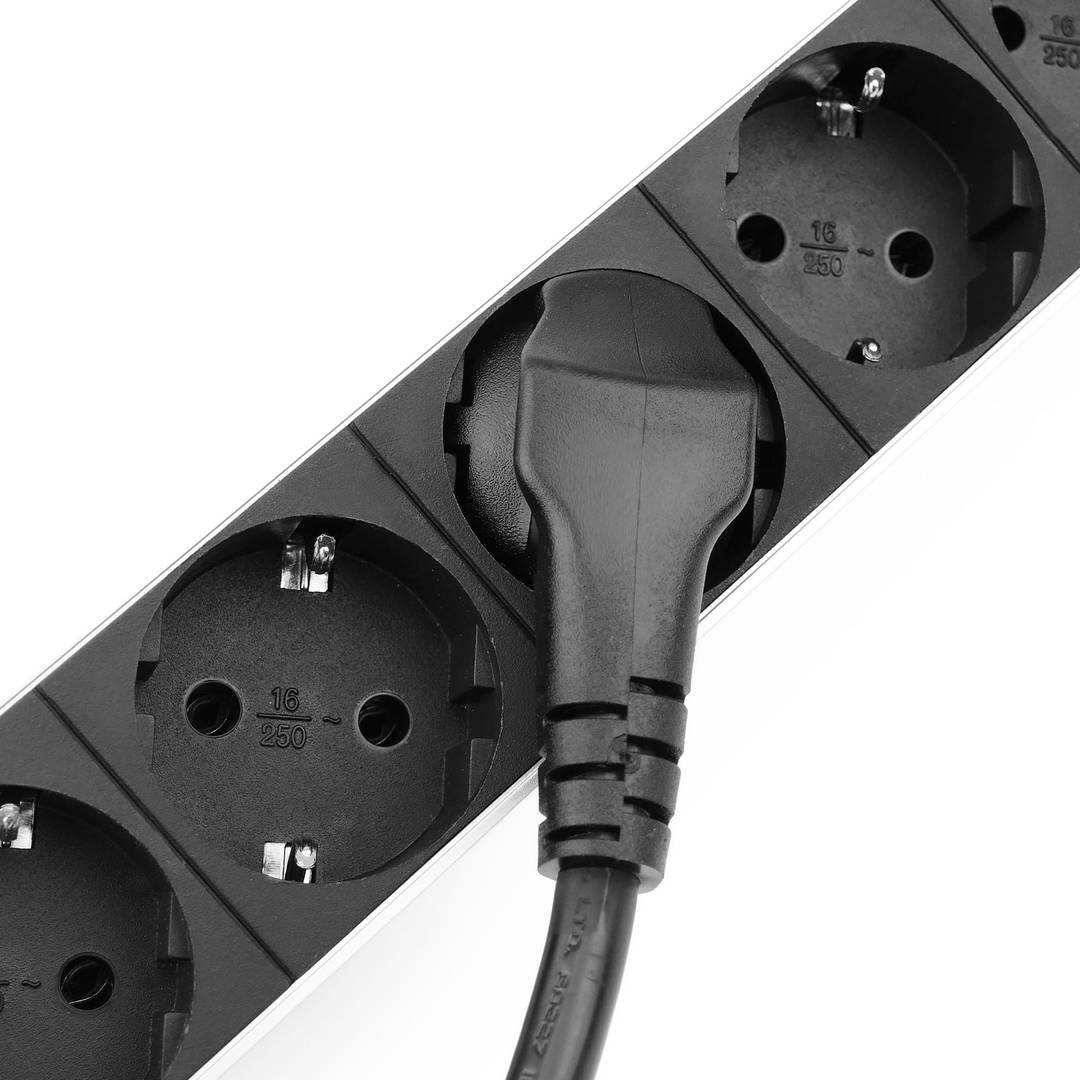

  • Schuko female sockets with 45 degree orientation with respect to the power strip.
  • Size: 44 (height) x 1010 (length without tabs) x 44 (depth) mm.
  • CE, IEC, VDE and GS certifications.
  • Gross Weight: 2.21 kg
  • Product size (width x depth x height): 101.0 x 4.4 x 4.4 cm
  • Number of packages: 1
  • Packages size: 137.0 x 8.5 x 8.0 cm
  • Master-pack: 5

Videos

Technical terms

  • RACK 19
  • Schuko
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
