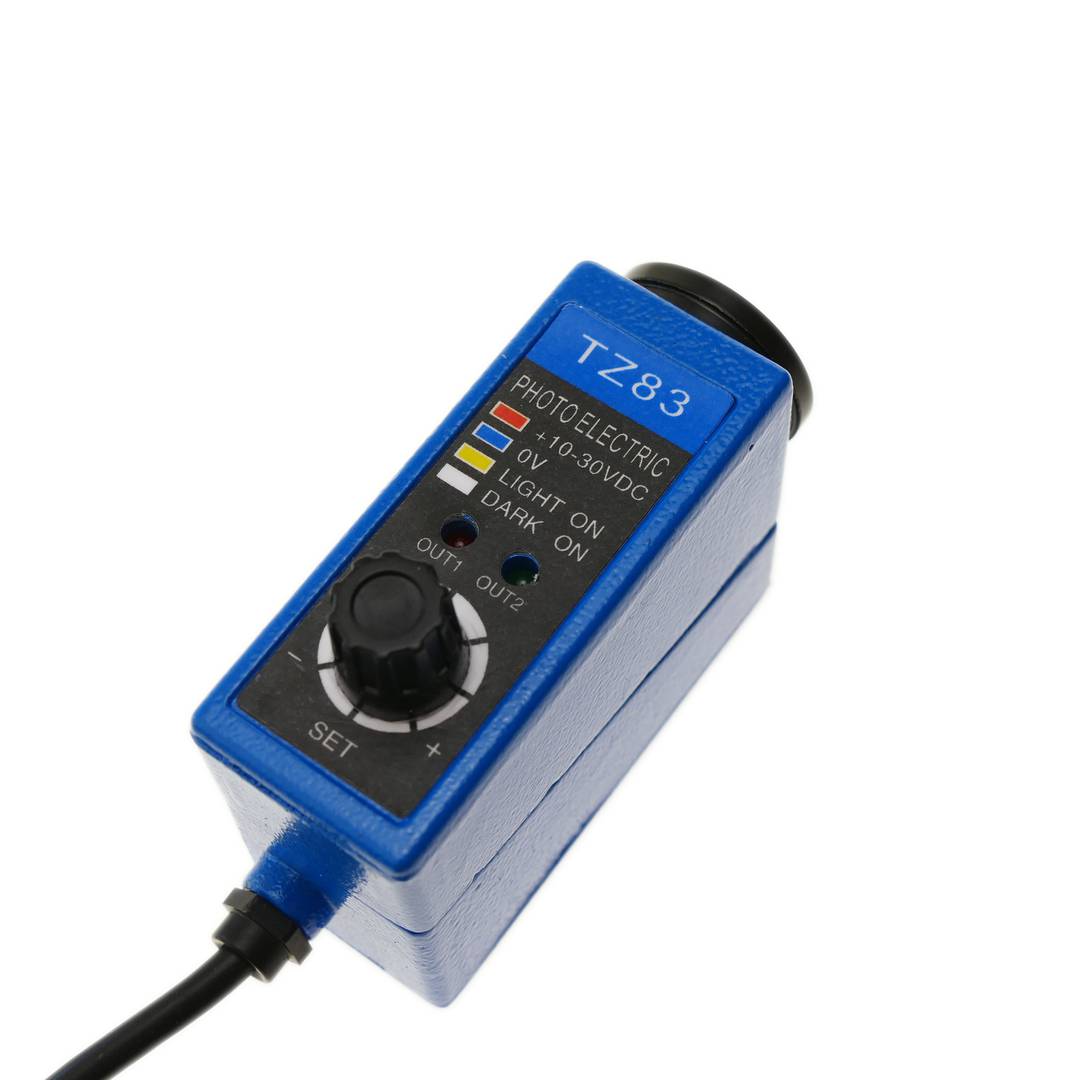

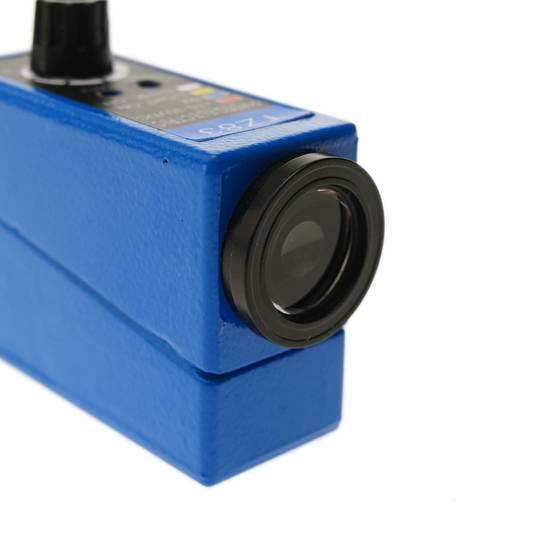

Photoelectric color cell sensor switch 23x40x14mm 10-30VDC autoreflexivo

They are identical to diffuse-reflective photocells, their transmitter and receiver are located in a single device, thus minimizing installation time as it is not necessary to power a transmitter module and a receiver module separately. Another advantage of these types of photocells is that thanks to their reflector, fairly long sensing distances can be achieved; however, they do not reach the range that through-beam types can achieve.

Their operation is simple and you have surely seen them installed in elevators or parking garage doors.

The device emits a beam of light toward a reflector, this reflector bounces the light back toward the transmitter, which will be in charge of performing the action.

Unlike diffuse-reflective sensing cells, they are not guided by the color of the object, but by its degree of opacity. The module emits a beam of light toward a reflector, this reflector bounces the light and the receiver receives it again; if an object crosses between the reflector and the emitter, the light is cut off by the object and the receiver does not receive the light.

If, on the contrary, the object were transparent or translucent, it would let this light beam pass through and the photocell would not detect the object.

The same can happen with shiny or polished objects, as these can act as the reflector, emitting return light; this is why it is necessary to evaluate beforehand which type of photocell to install according to the case and object to be detected. To avoid this, there is a type of cell that has a polarized filter, which helps to attenuate this reflection and minimize potential detection errors.

Thanks to this type of polarized photocell, it is possible to detect almost transparent objects or shiny objects that may emit unwanted reflections.

If we talk about industrial automation we will find different terms related to the design of the internal circuit and the type of transmitter. PNP and NPN are two so-called bipolar or called (BJTs) transistors. These transistors that are controlled by current allow basically the amplification of the same through the circuit. Both PNP and NPN have the same function, provide amplification of the currentAnd/or switching. The only difference between them is the way in which the current or energy is assigned to each of its connectors.

• PNP (sinking or Pointing iN Proudly) is one of the types of transistors most used in electrical circuits, this type of transistor differs in that it receives positive voltage at its emitter terminal and negative voltage at its base terminal. Positive voltage to the transmitter allowsThe current flows from the emitter to the collector, since there is negative current to the base. As the voltage goes down from the base the transistor is on and conducts through the power at the output load.
• NPN (Sourcing or Not Pointing iN) is another transistor, unlike the PNP it is faster in its switching, since it works with reference 0V, it has less immunity to the noise and a smaller fall of tenZion. This type of transistor works in a completely opposite way to PNP. The NPN transistor receives positive voltage at the collector terminal. This positive voltage allows current to flow through the collector to the emitter, as there is enough base voltage to power the transistor. As the current increases at the base, the transistor is activated more and more until it is completely driven from the collector to the emitter and encoderGo the circuit. The opposite happens when the voltage decreases from the base, until the current is so low that the transistor no longer leads through the collector to the emitter and shuts off.

This is one of the most economical models of detectors by photocell, but against is one of the least recommended in situations with high humidity or places with a lot of dust or dirt. The reception distance is also shortened as opposed to the barrier, so they do not have as much detection range. This factor is directly linked to the color of the object, since the light emitted must bounce on it, it will not haveThe same index of reflection an object of black color (that absorbs the light) to a white object (that bounces the light), therefore, objects of light colors will be better detected with a self-reflecting photocell.
This type of sensors unlike those of barrier, its emitter and receiver are in a single device. The emitter emits light on the object, when light reaches the object it bounces and is received by the receiver, qYou will be in charge of executing the action, like stopping a tape, adding a unit, triggering a mechanism, etc.
As it is a single device its installation is minimized, since it is only necessary to feed a point, unlike the barrier that are two points. They are ideal for installations where it is complicated or there is no space to place the receiving device.
This type of photocells can be divided into 3 groups,Standard or self-reflecting photocells, background suppression and autoreflective foreground photocells (FGS, Foreground suppression)

• Self-reflective or non-suppressed photocells (the standards) are those whose detection distance is affected by the color of the detected object. As a result of this small inconvenience,Have improved these sensors by creating two variants, with background suppression and foreground suppression.
• Self-reflective or suppressed photocells work in the same way as the previous ones, but also use several triangulations of the light to calculate the exact position in which the object is. Thanks to these triangulations the sensor is able to ignore any object that may be behind and pUeda interfere in the detection, in such a way that they are not so affected by lighter colors, shapes or brightness of the object.
• Self-reflective photocells with foreground suppression are those that work just like background suppression but focus on the background surface, adjusting the detection zone at that distance. Basically, what the sensor does is focus on the background and will detect any object thatIs placed on said background, for example, is the system used for the detection of objects on a conveyor belt or other surface.

VDC would be the abbreviation for Volt Direct Current which translated would volts direct current. The idea of ??this type is unidirectional current to the load. Direct current is normally produced by batteries, thermocouples, solar cells and a dynamo electric machine type. The direct current can flow in conductors such as wires, but may also flow through semiconductors, insulators ... In the image: 1 - current per pulse 2 - Direct Current (DC) 3 - Alternating Current (AC) 4 - Variable Current

The photoelectric sensors are those sensors that act by closing or opening the circuit depending on the light intensity they receive.
The system consists of an emitter system in charge of emitting light and a receiver system, in charge of managing its function according to the light received.
We can find several types of photoelectric sensors although we can divide them into several more generic groups, barrier photocell (A), Self-reflective (B) and reflective with reflector (C).

A catadioptric is a device composed of a multitude of mirrors capable of reflecting and refracting the light that falls on them.
The catadioptric can be found in vehicles, bicycles, elevators, barriers, etc.
In an industrial environment, tasting is used to reflect a signal or light from a photoelectric emitter.

The barrier sensor is possibly one of the most used sensors due to its simplicity of use, easy installation and reliable operation.
Its operation is simple, the transmitter is placed in line with the receiver being one in front of the other. Thanks to this distribution external aspects such as dirt, dust, humidity affect to a lesser extent its operation.
This type of barrier sensors have a range ofAnd much greater detection to the rest, it is possible to say that being an emitter and a receiver this type of sensors are not able to detect color in objects as other sensors can make and it is necessary to take into account that these sensors emit a light that is captured By the emitter, if when crossing the barrier we do with a transparent or translucent object will not be activated, as the beam of light will get through the object, therefore alone andS valid for objects with a high degree of opacity.
These types of sensors are widely used in security and automation systems, for example opening or closing a barrier or door, activating an alarm, etc.
When faced with, the emitter emits a beam of light to the receiver, if the receiver is receiving the light beam it will be in standby mode to act. When an object passes between the sender and the receiver, cutting the view directlyAnd leaving the receiver without receiving the light this will activate the function for which it is programmed, for example in a security door, the door remains closed while the light beam is received by the receiver, if a person passes between the two transmitters The beam and light will be interrupted by the body of the person, so that the sensor will act by opening the door.
