Queues wireless management calling system base with 10 keys and 20 pagers
REF: QI002
Specifications
  • Automatic system of wireless modules for managing queues in an orderly manner.
  • Base that allows the loading of 20 modules simultaneously.
  • Base that allows the programming and call of up to 20 modules.
  • The modules emit a luminous signal and vibrate, upon receiving the call from the base.
  • The base has a keyboard with 20 buttons from 01 to 20. With a single quick press the receiver is called.
play_button Watch video
More info
PVP
414.91
Price including VAT: 414.91
PVD
374.09
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Automatic system of wireless modules for managing queues in an orderly manner.
  • Base that allows the loading of 20 modules simultaneously.
  • Base that allows the programming and call of up to 20 modules.
  • The modules emit a luminous signal and vibrate, upon receiving the call from the base.
  • The base has a keyboard with 20 buttons from 01 to 20. With a single quick press the receiver is called.

More info

Wireless call system for customer queue management. Customers will no longer have to wait in line to receive your order or be served. The operation is simple, because the customer pays for his order and receives a wireless module with a unique numeric code. When the order is ready to serve, the customer is called by pressing the number assigned to his module. The customer module emits a signal light and vibratestion. At that moment the customer knows that his order is ready to be collected. The client proceeds with the collection of the order and the return of the module.

Specifications
  • Automatic system of wireless modules for managing queues in an orderly manner.
  • Base that allows the loading of 20 modules simultaneously.
  • Base that allows the programming and call of up to 20 modules.
  • The modules emit a luminous signal and vibrate, upon receiving the call from the base.
  • The base has a keyboard with 20 buttons from 01 to 20. With a single quick press the receiver is called.
  • Operating frequency: 433.92 MHz.
  • Ideal to manage queues in an orderly manner, avoiding conflicts between customers.
  • Various applications in hospitals, restaurants, hotels, repair centersnes, etc.
This kit includes
  • Base loader of 20 keys (00 to 20) and 20 sockets for receiver loading.

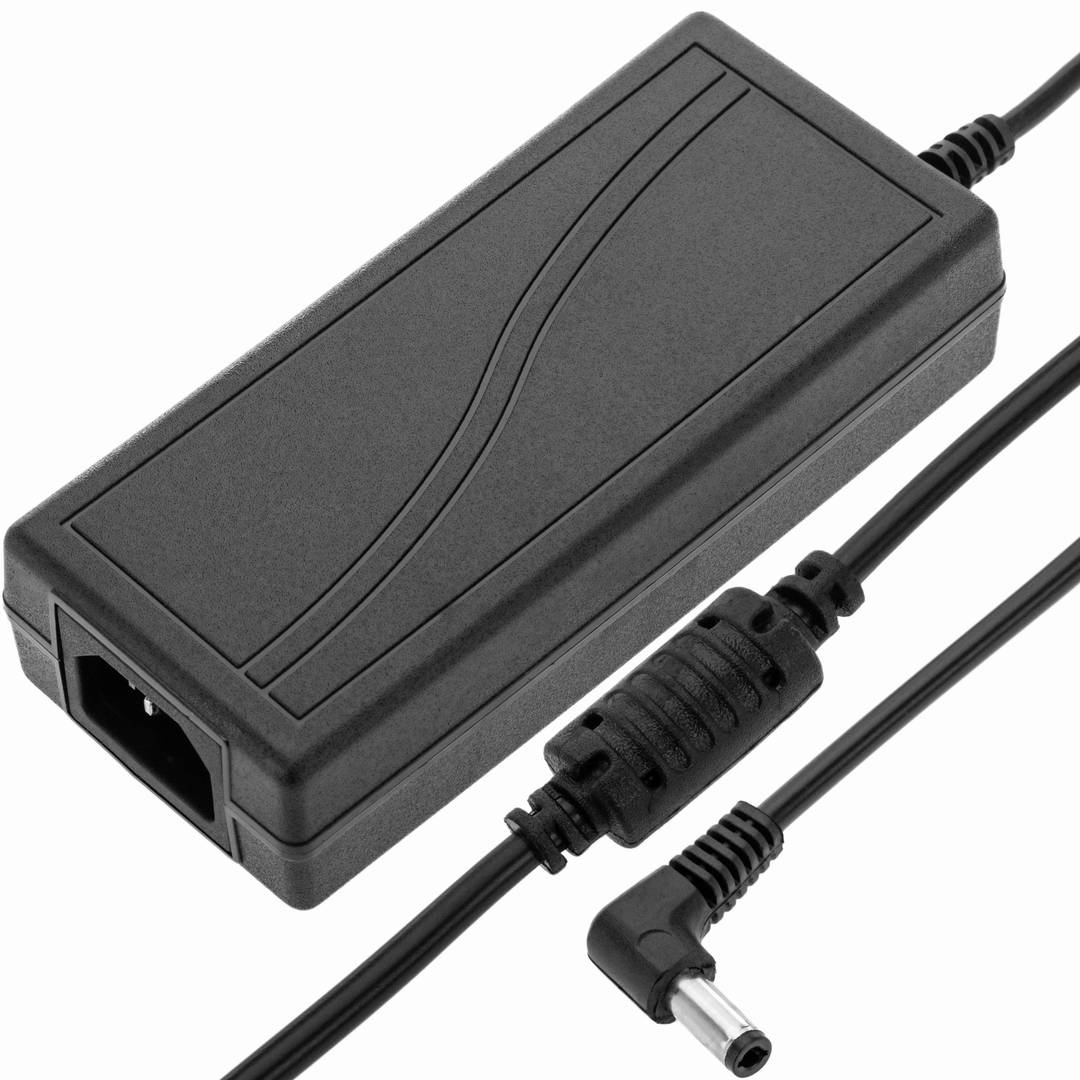

  • Power supply for the charging base (Input: 100-240 VAC Output: 5V to 6A).

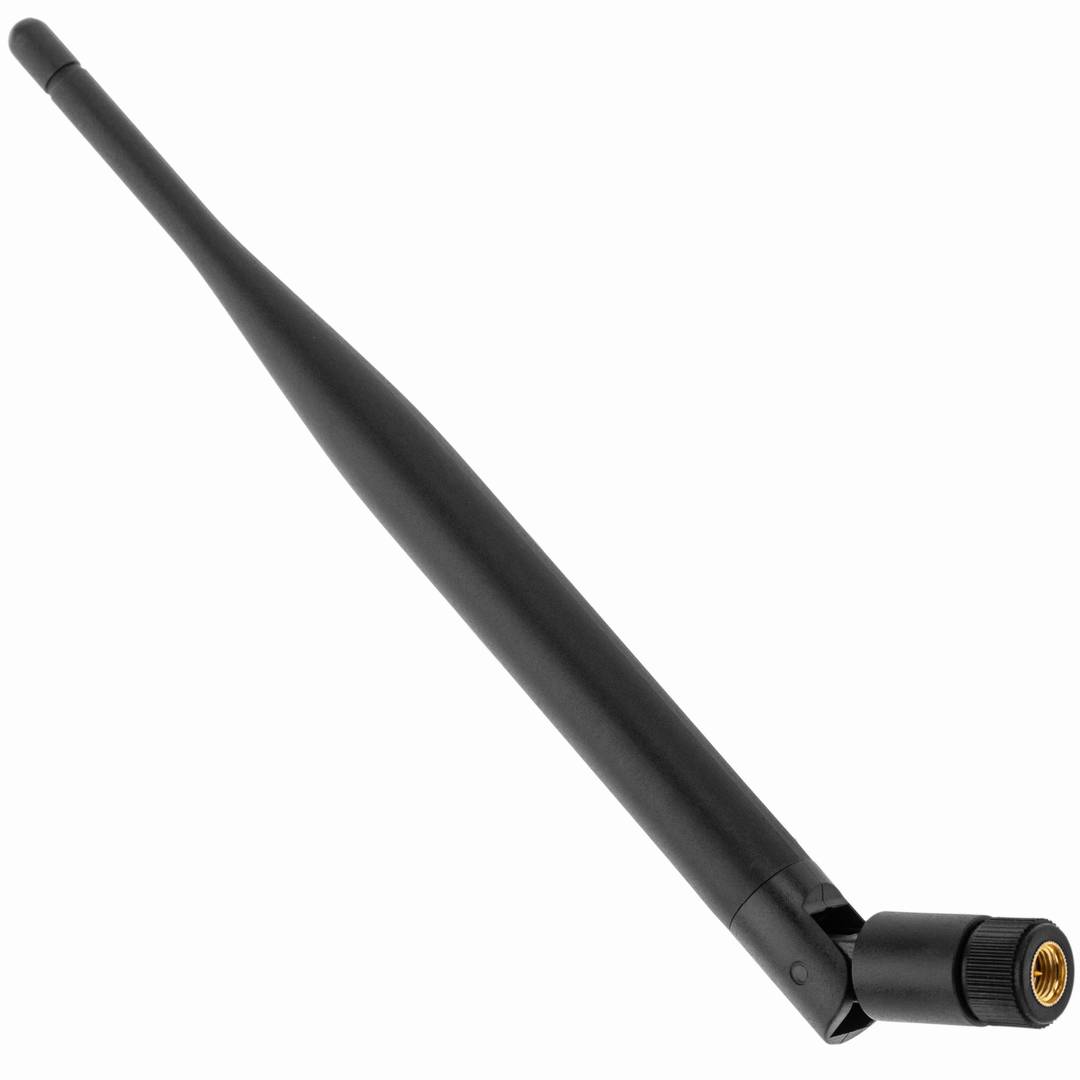

  • Antenna for the loading base.
  • 20 programmable receiver modules.

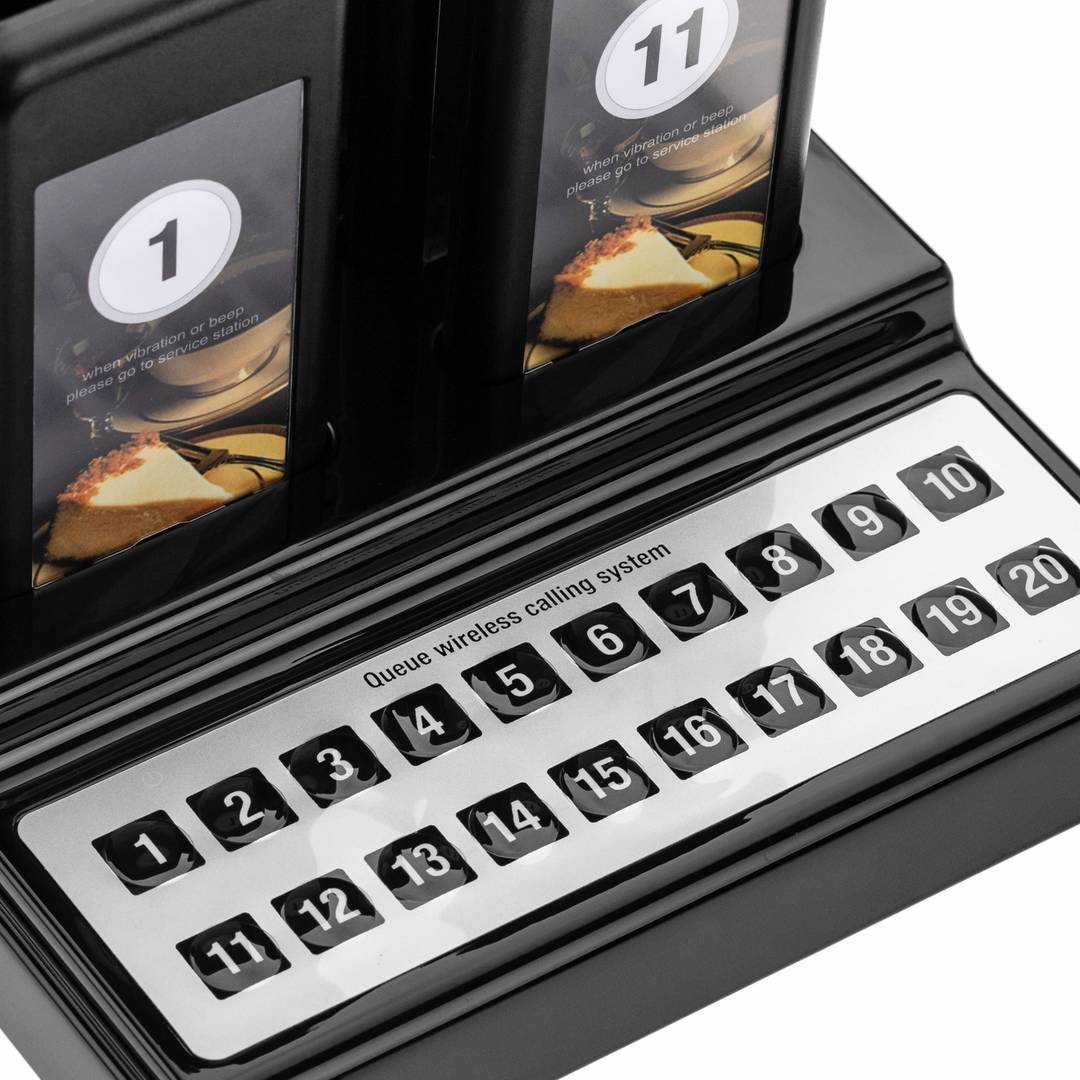

Loader base with 20 keys and 20 sockets
  • 20 sockets for loading the receiver modulestores.
  • 20 quick call keys, marked from 00 to 20. With a single press the wireless receiver module is called.
  • To activate a receiver module, just type your numeric code.
  • Size: 150 x 300 x 33 mm.
  • It is possible to acquire more loader bases and with module calls.
  • It is possible to acquire an LCD viewer to display the module number that has been called. The LCD viewerit is configured as a receiver module. Compatible with our #QI1x viewers.

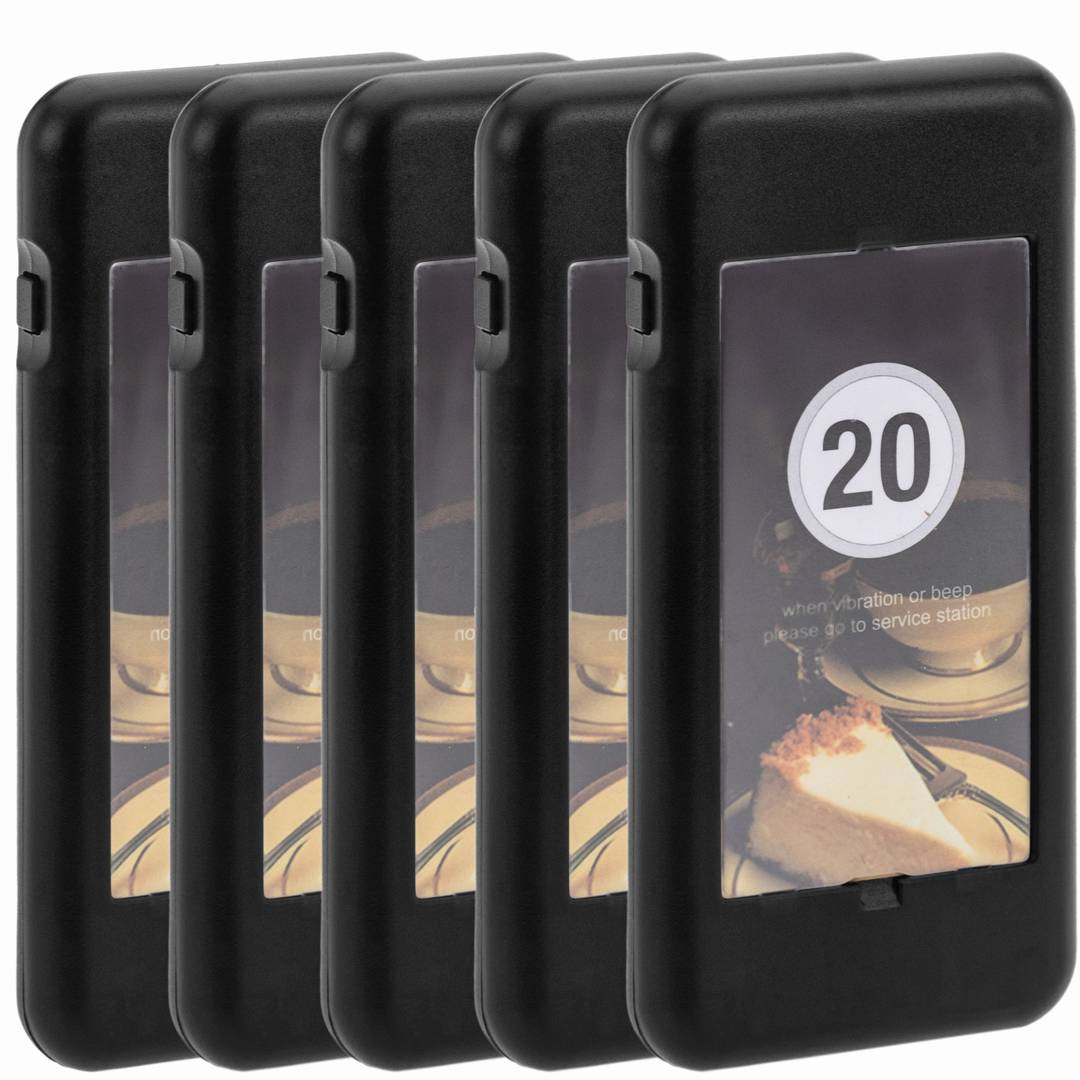

Receiving module (client)
  • Codified module from 000 to 999.
  • To program the module, simply press the PAIR key and type the code in the loading base.
  • MODE key to configure operating modes related to vibration, buzzer and LED lights.
  • It has LED warning and LED charging the binternal ateria.
  • RESET and ON/OFF side key.
  • Standby consumption: approximately 10 mA.
  • Consumption in activated mode: approximately 75 mA.
  • Internal rechargeable battery of 360 mAh.
  • Size: 49 x 101 x 11 mm.
  • It is possible to acquire additional wireless receiver modules (reference #QI05).
  • Gross Weight: 2.33 kg
  • Product size (width x depth x height): 15.0 x 30.0 x 12.0 cm
  • Number of packages: 1
  • Packages size: 31.0 x 31.0 x 9.0 cm
  • Master-pack: 1
