Rack console with 17" display and KVM 32-port switch via Cat.6 UTP cable

REF: RK021

Specifications

  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.
  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).

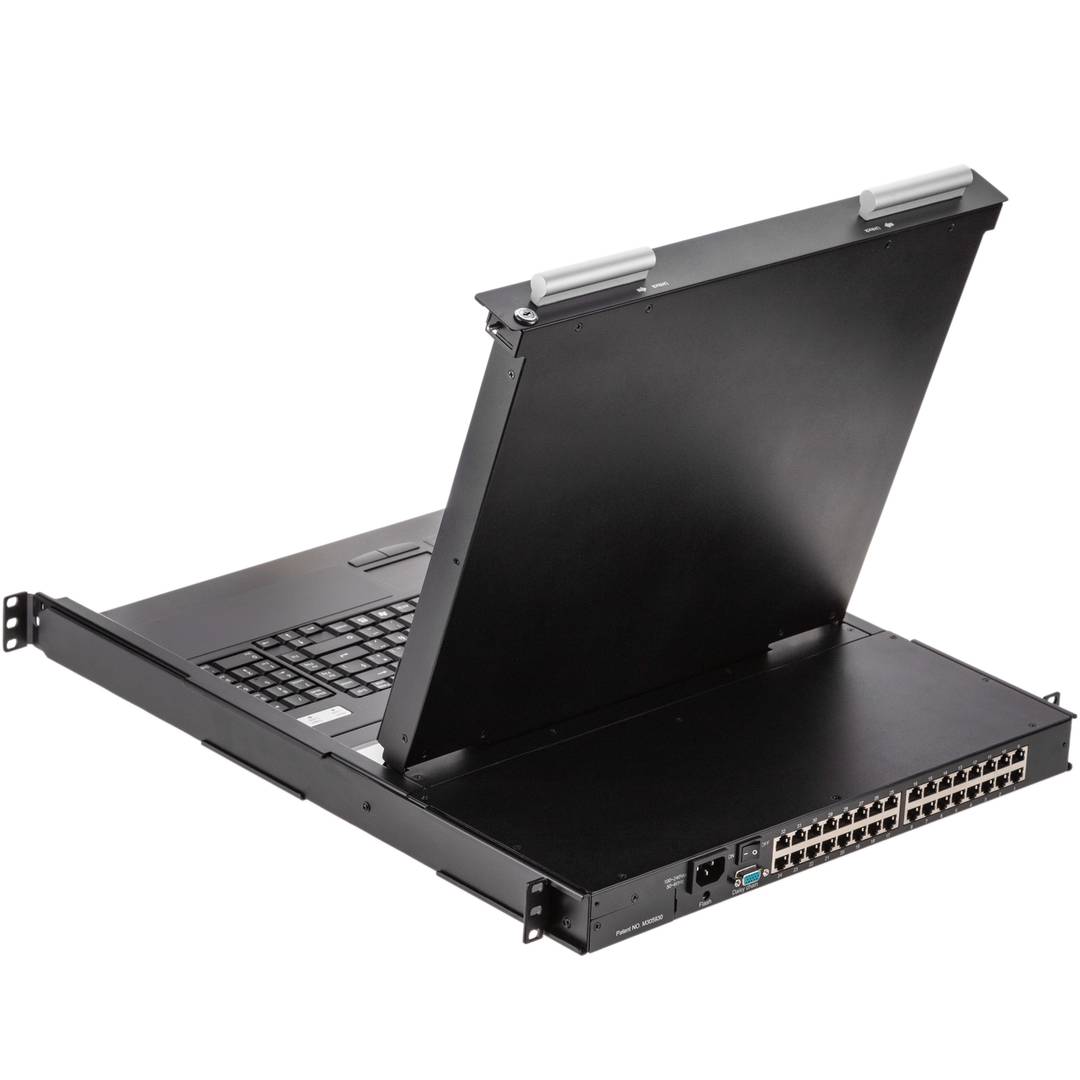

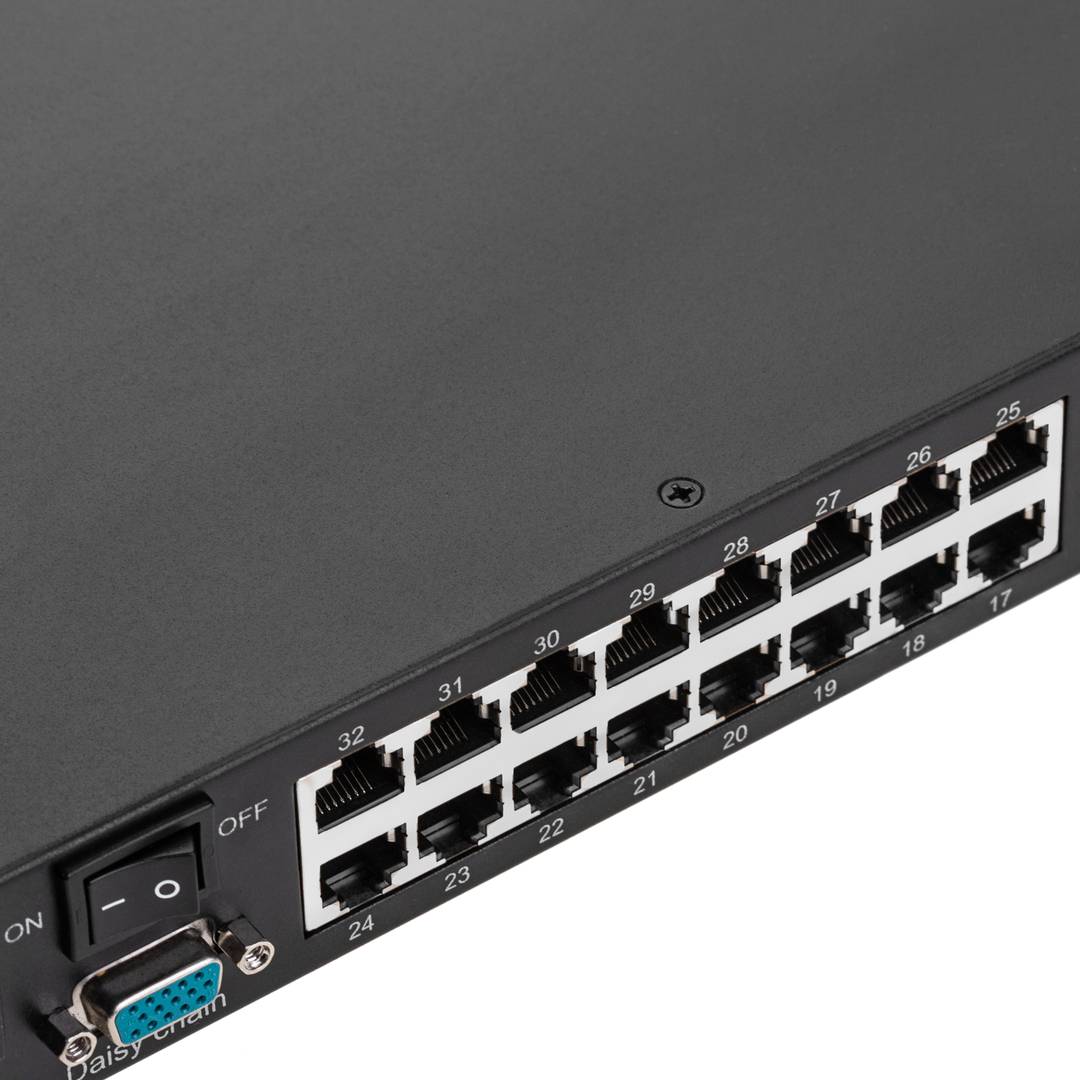

  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.

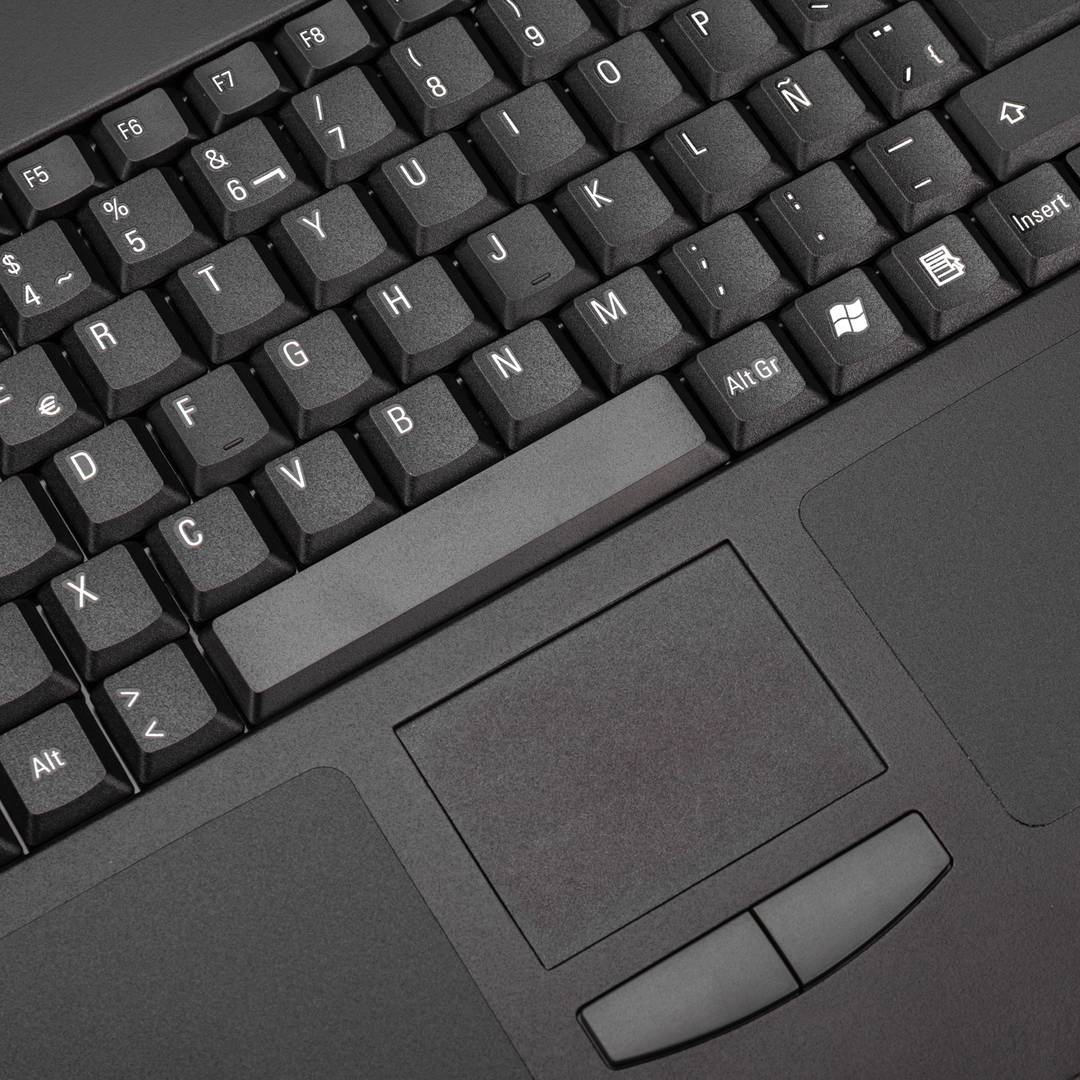

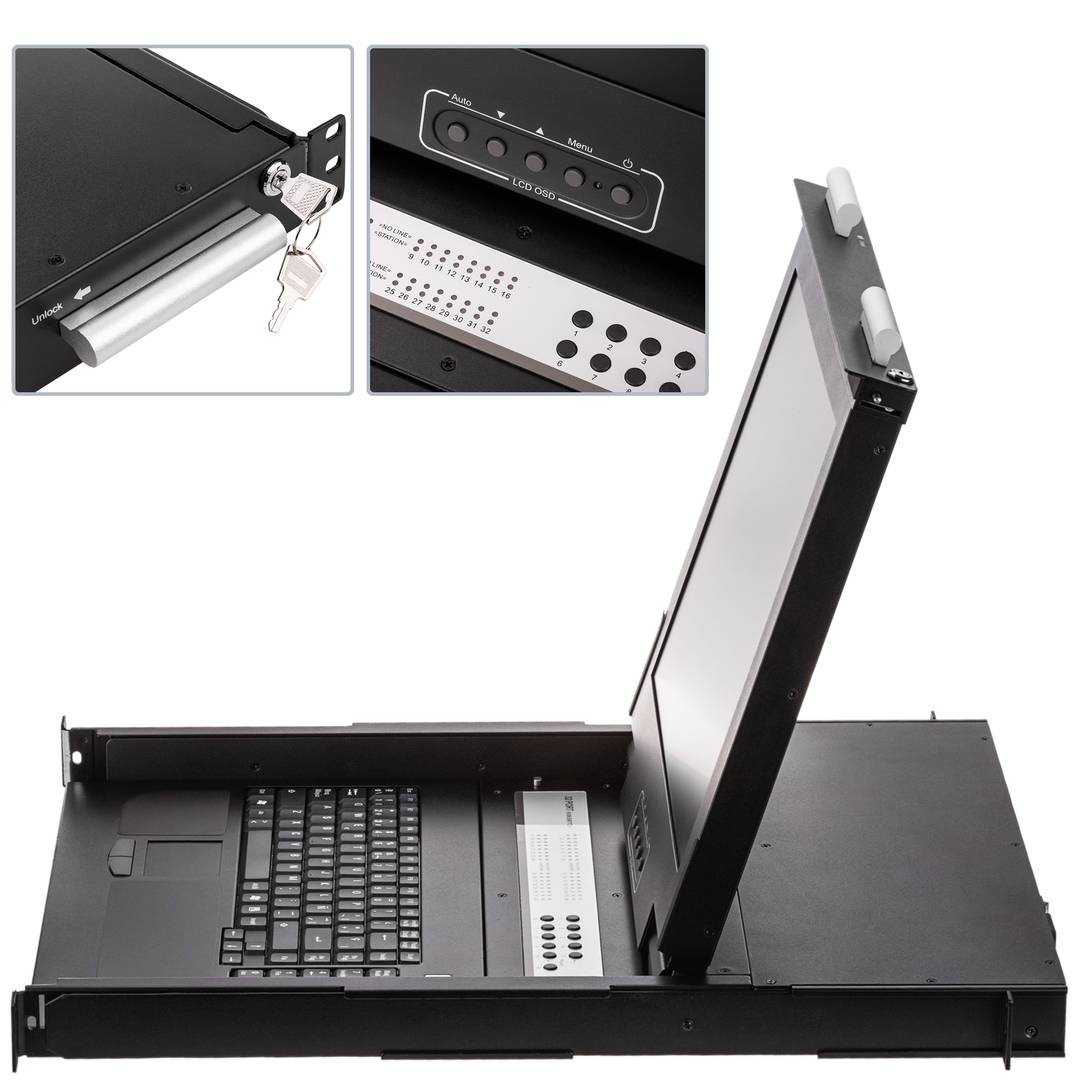

  • 17 "monitor with 1280 x 1024 pixels FHD resolution with DDC2B support for automatic adjustment of VGA resolution. Keyboard and control buttons integrated in the same console.

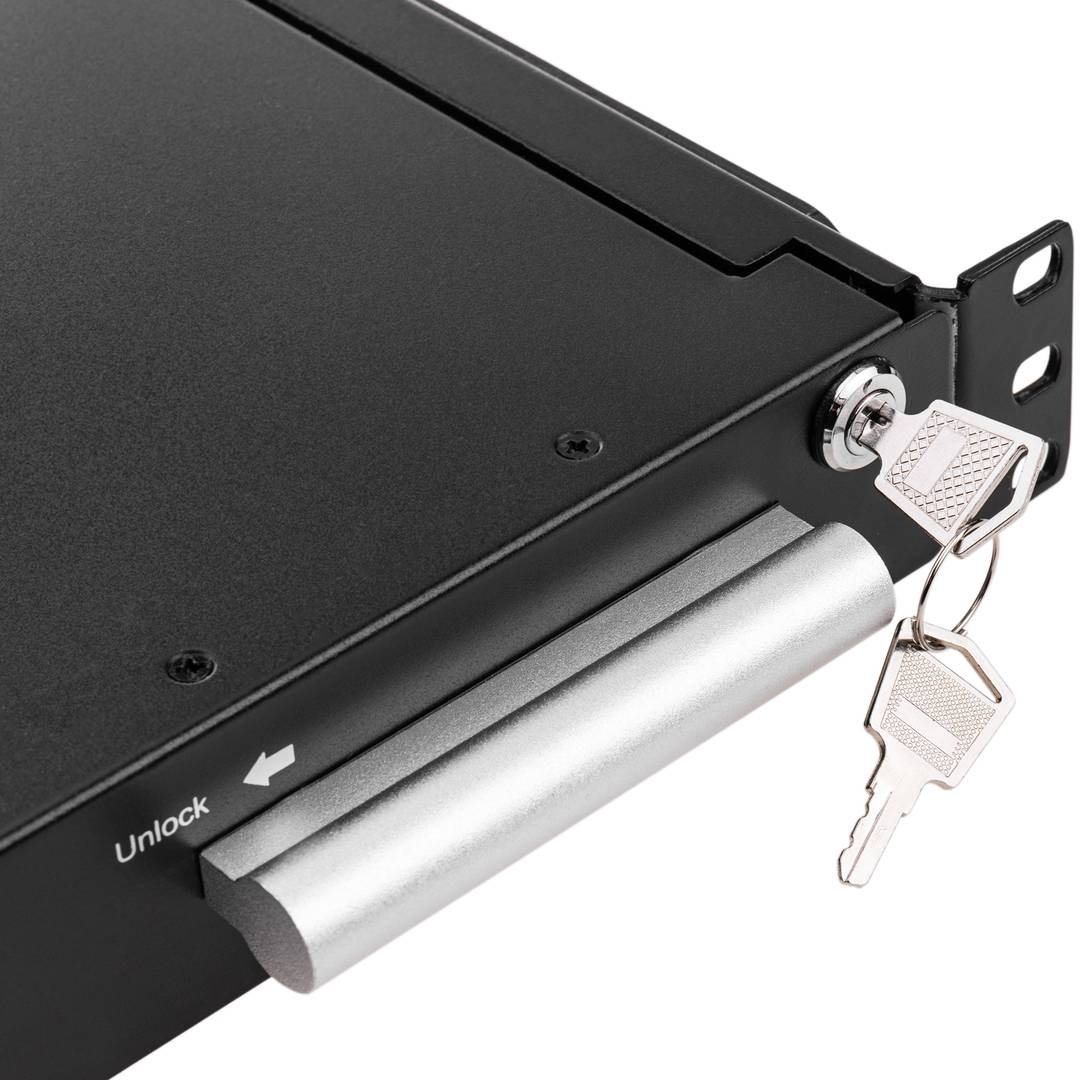

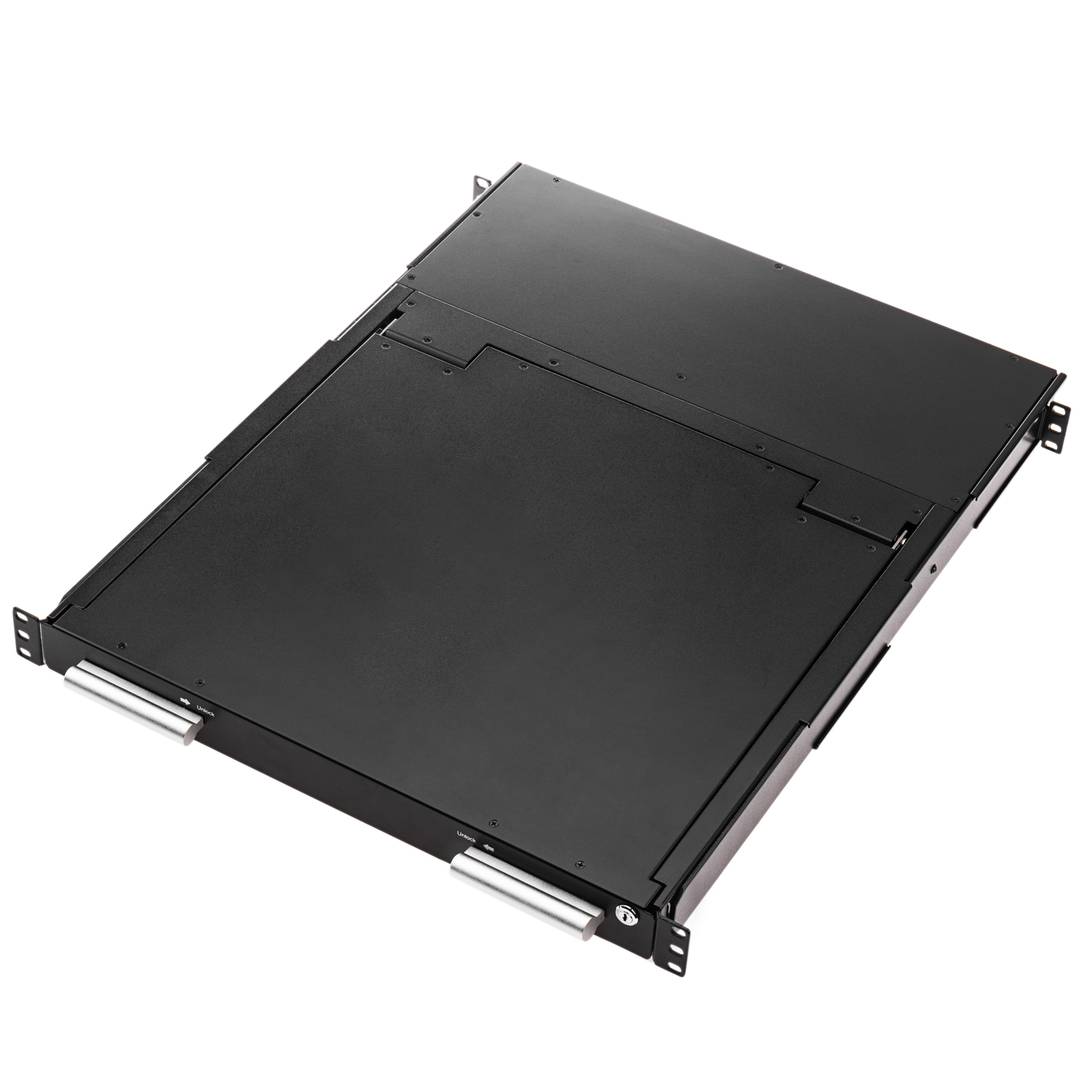

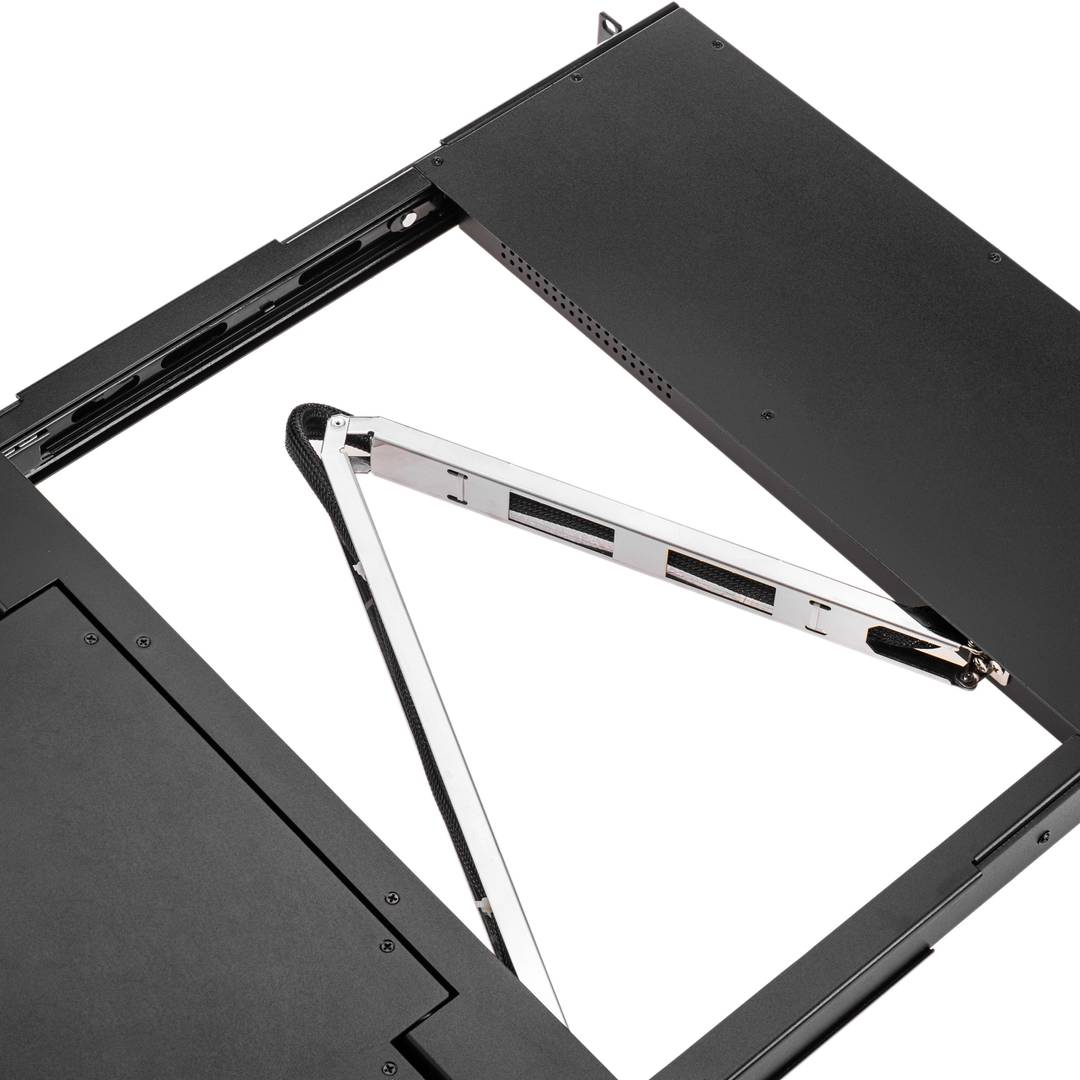

  • It can be installed in a 19 "rack system. Structure based on rails that allow the extraction of the screen and keyboard, to work comfortably, and to control all the computers connected to the switch.

Your price

PVP

1,656.00

Price including VAT: 1,656.00

PVD

1,455.47


Why different prices? Which one is mine? Check rate type

In stock

Related products

Keywords

Did not find what you were looking for? These topic could help you

12/06/2019 12:23 p.m.
https://cablematic.com/en/products/rack-console-with-17-display-and-kvm-32-port-switch-via-cat6-utp-cable-RK021/

Rack console with 17" display and KVM 32-port switch via Cat.6 UTP cable

REF: RK021

Your price

PVP

1,656.00

Price including VAT: 1,656.00

PVD

1,455.47


Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.
  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).
  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.
  • 17 "monitor with 1280 x 1024 pixels FHD resolution with DDC2B support for automatic adjustment of VGA resolution. Keyboard and control buttons integrated in the same console.
  • It can be installed in a 19 "rack system. Structure based on rails that allow the extraction of the screen and keyboard, to work comfortably, and to control all the computers connected to the switch.

More info

Console with 17 "display and 32-port CPU switch to be used independently or to chain to console # RK021 as additional switches to add more ports (up to a maximum of 232 ports). The switches are chained to each other up to a maximum of 8 units (including the KVM console or main switch) They can also function as stand-alone KVM switches to be connected to a keyboard, mouse and monitor.

KVM Switch Specifications
  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.
  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).
  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.
  • 17 "monitor with 1280 x 1024 pixels FHD resolution with DDC2B support for automatic adjustment of VGA resolution. Keyboard and control buttons integrated in the same console.
  • It can be installed in a 19 "rack system. Structure based on rails that allow the extraction of the screen and keyboard, to work comfortably, and to control all the computers connected to the switch.
  • For each computer connected to the switch via UTP Cat.6 network cable, a UTP conversion module to VGA, keyboard and mouse is required (reference # KV040). These modules are compatible with USB / PS2 keyboard / mouse. Maximum UTP cable length of 40m.
  • Compatible with Windows, NetWare, OS / 2, Mac, iMac, Sun, Linux and Unix environments.

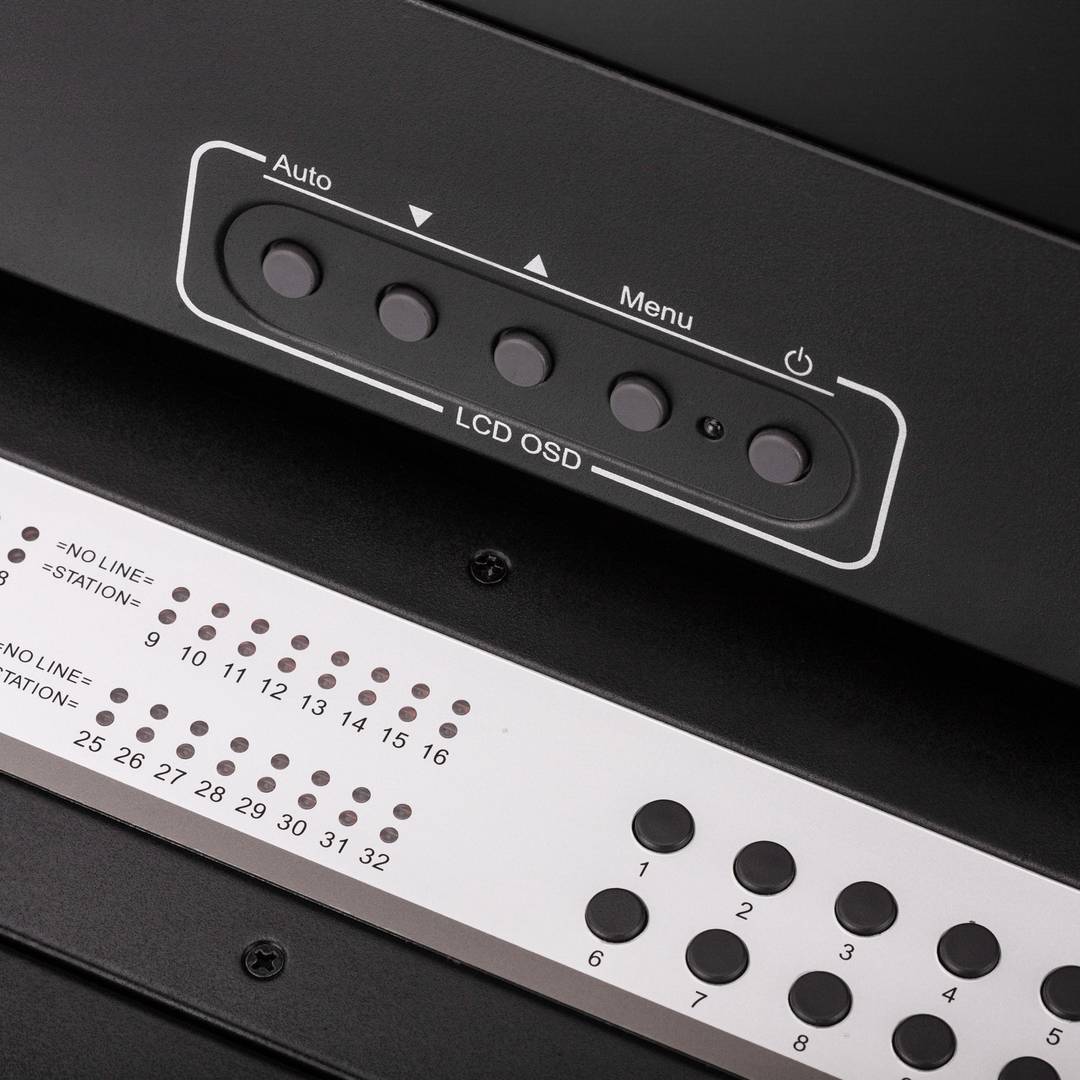

  • Add 32 direct port selection buttons, each with two status LEDs (OnLine and Station).
  • Possibility of selecting an active PC by means of a combination of keys from the keyboard of the console, by means of the direct pressing buttons or through the OSD menu (On Screen Display)
  • ACL (Access Control List) support for security functions that allow you to create groups of computers to control access for authorized users.
  • Multi-language: English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
  • Automatic programmable port scanning from 5 to 99 seconds.
  • It allows the chaining of more compatible KVM switches (references # KV00x) to obtain more controllable ports from the main console (up to 8 chained switches and a maximum of 240 ports).
  • It has female HD15 connectors for the chaining of KVM switches. To make the chaining a VGA cable type HD15 male to HD15 male is required with all the pins connected, as our reference # VS040.
  • 19 "1U rack format that allows installation in a rack or desktop cabinet.
  • Mounted in black metal housing of size 480 x 630 x 43 mm.
  • It connects directly to 220 VAC power grid. It has an ON / OFF switch.
Expansion Modules
  • It has a socket on the back to add remote console expansion modules through UTP and remote console through TCP / IP. It is a socket that by default has a metal cover. Simply open the lid and insert the expansion module, leaving the new ports in sight at the back. Our reference # KV032.
  • Gross Weight: 17.35 kg
  • Product size (width x depth x height): 48.0 x 63.0 x 4.3 cm
  • Number of packages: 1
  • Packages size: 78.0 x 70.5 x 13.8 cm
  • Master-pack: 1

Videos

Technical terms

  • RACK 19
  • Types of network cables (UTP, FTP, STP)
  • KVM
  • Categories network cables
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
