Recessed Infrared Motion Switch/Detector
REF: NG080
Specifications
  • Recessed mechanism, infrared switch / motion detector.
  • 110-240 VAC at 50-60 Hz power supply.
  • It has an on / off switch or motion detection mode to operate the mechanism.
  • Switch-on time (activation time) from 8 seconds to 10 minutes, configurable via potentiometer.
  • Sensitivity to ambient light adjustable by potentiometer.
play_button Watch video
More info
PVP
29.10
Price including VAT: 29.10
PVD
23.80
Shipping costs: 30,75 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Only 2 units

More info
Specifications
  • Recessed mechanism, infrared switch / motion detector.
  • 110-240 VAC at 50-60 Hz power supply.
  • It has an on / off switch or motion detection mode to operate the mechanism.
  • Switch-on time (activation time) from 8 seconds to 10 minutes, configurable via potentiometer.
  • Sensitivity to ambient light adjustable by potentiometer.

Keywords

Did not find what you were looking for? These topic could help you

More info

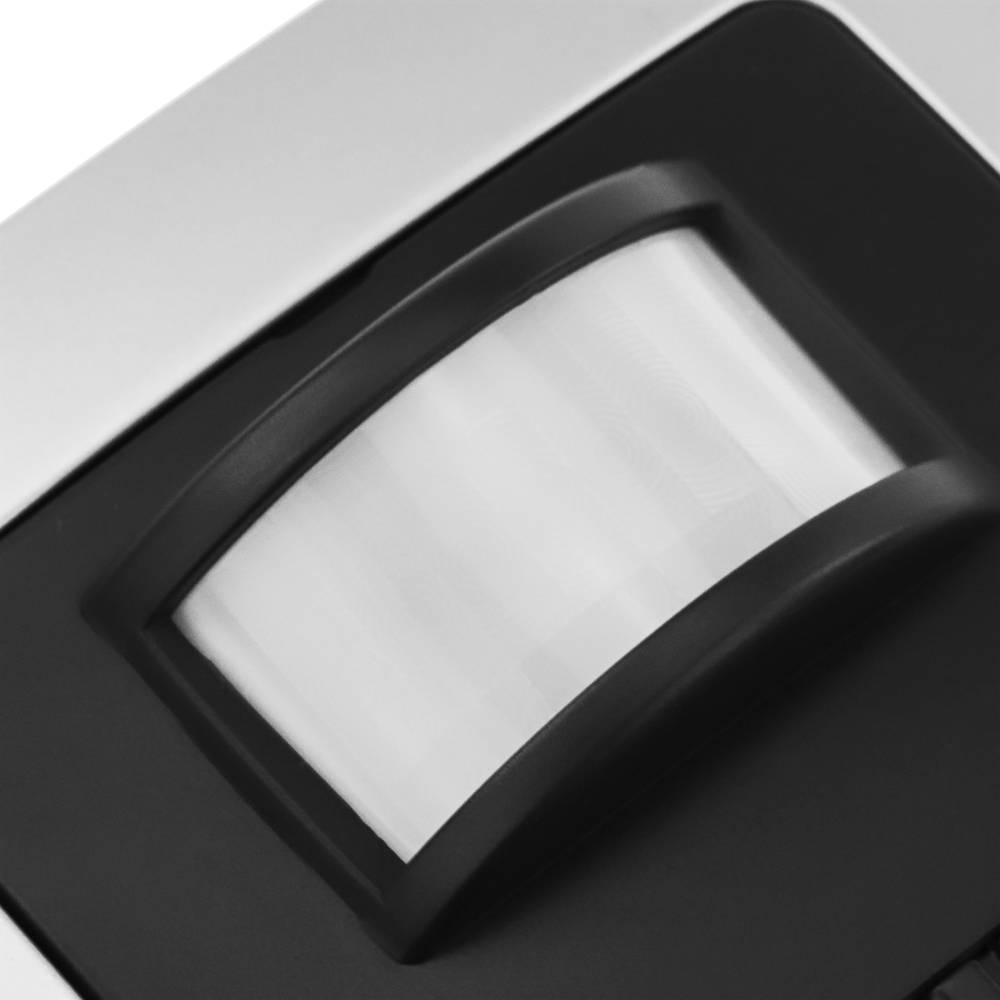

Infrared motion detector / switch. Recessed mechanism. Accurate detection of any movement in the detection area. It acts as a switch, so that when a movement is detected, it closes the circuit (activates the switch). The applications can be many (activation of lighting, security, doorbells, etc.).
specs
  • Recessed mechanism, infrared switch / motion detector.
  • 110-240 VAC at 50-60 Hz power supply.

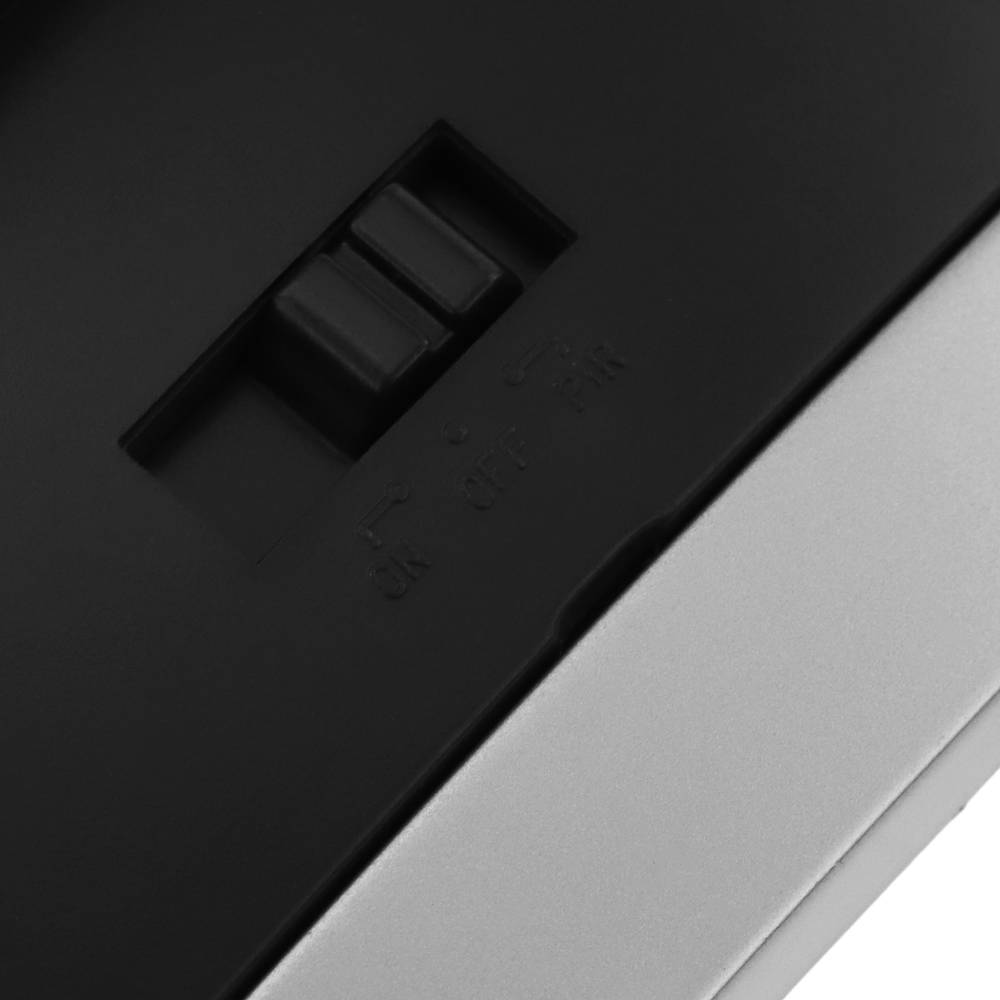

  • It has an on / off switch or motion detection mode to operate the mechanism.
  • Switch-on time (activation time) from 8 seconds to 10 minutes, configurable via potentiometer.
  • Sensitivity to ambient light adjustable by potentiometer.
  • Working temperature: -20ºC to 40ºC.
  • Detection distance configured at minimum height 40 cm to 180 cm.

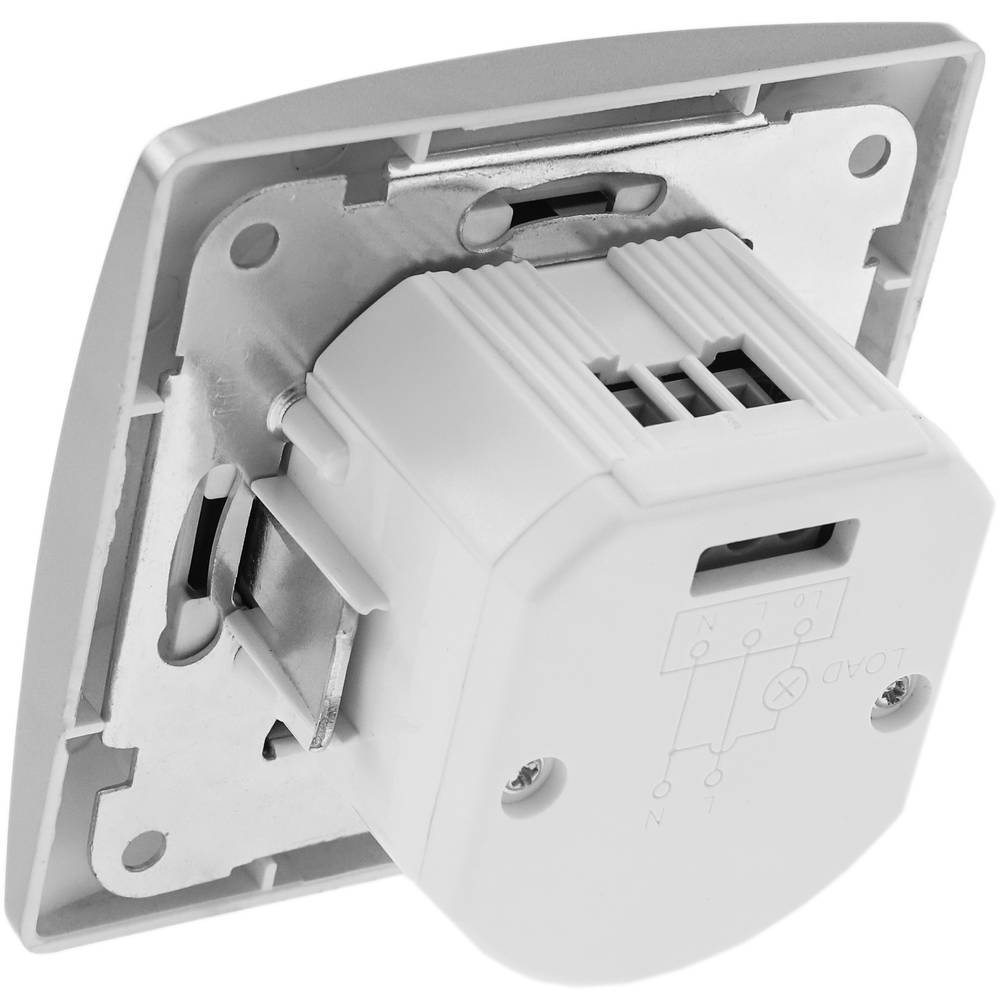

  • Internal 3-terminal connection (2 for L input and 1 for L output).

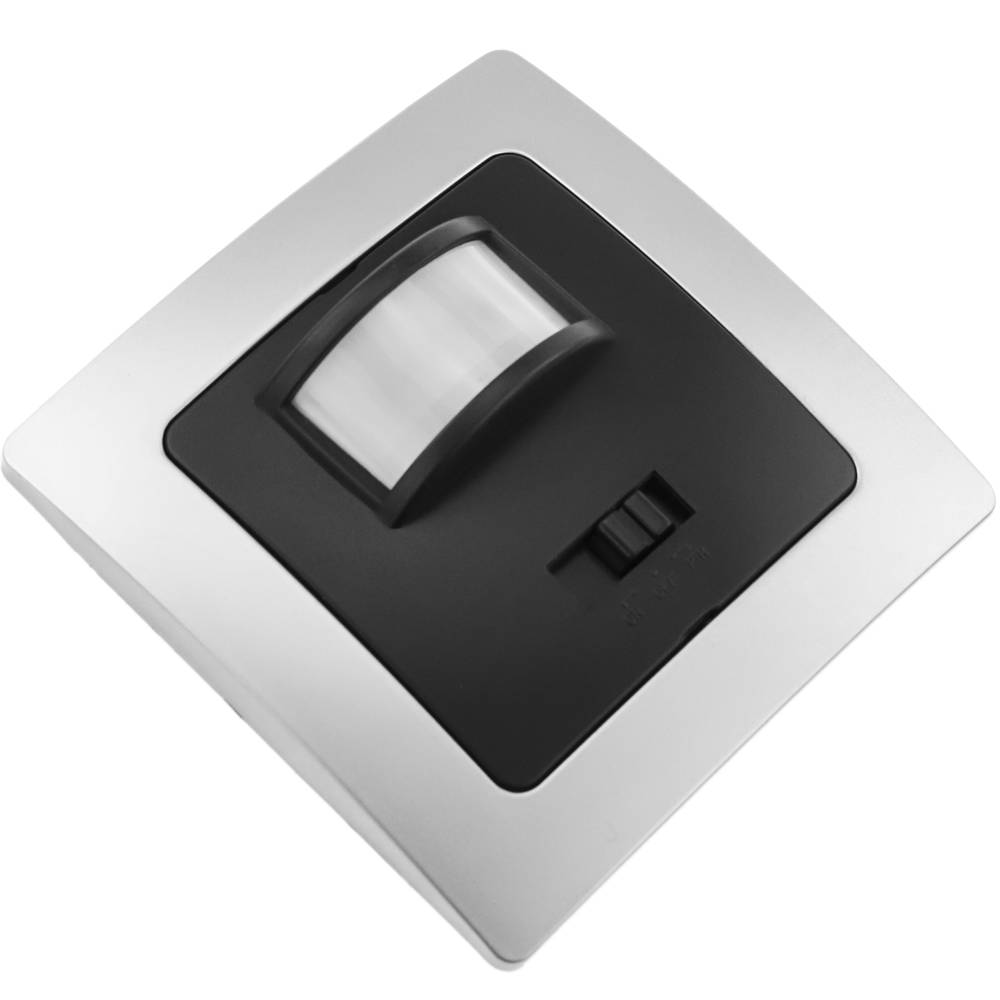

  • Detector presented in an aluminum frame and front in black.

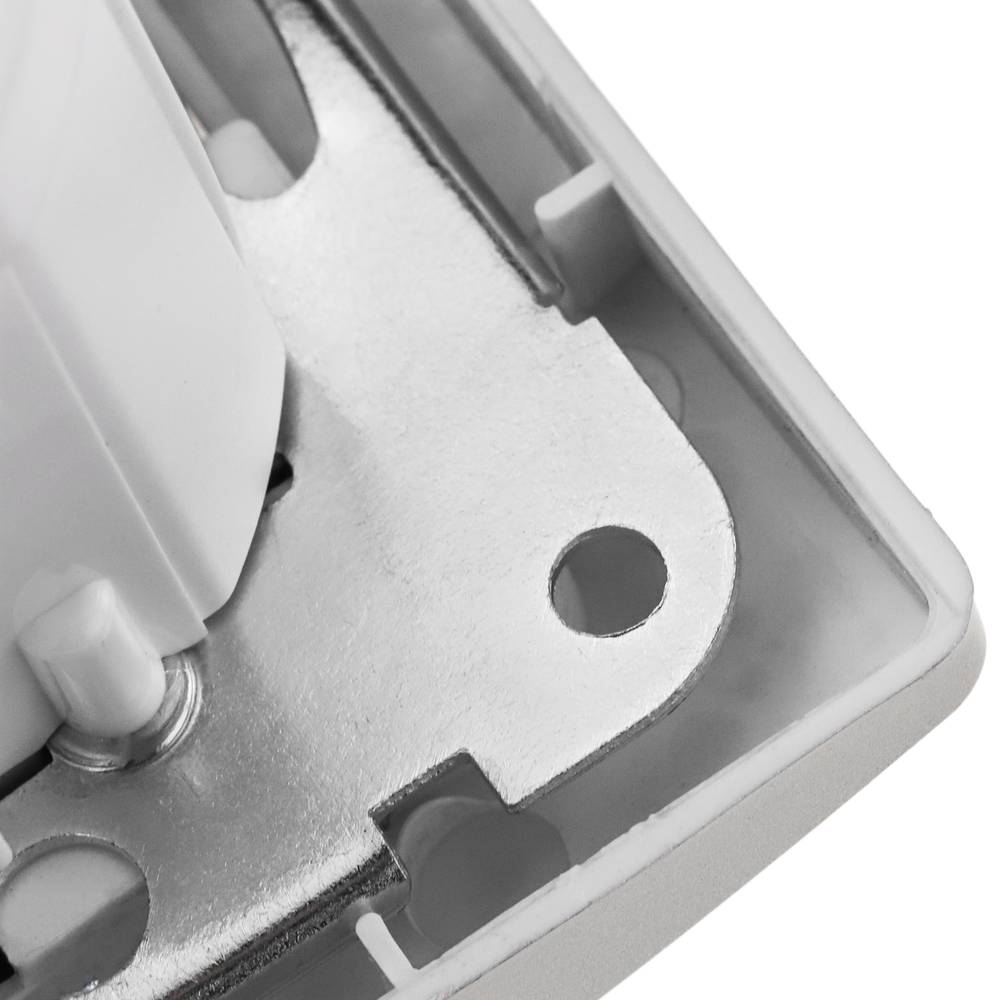

  • Dimensions: 80 x 80 x 52 mm (width x height x depth). Includes metal frame for fixing the mechanism to the wall.
  • Gross Weight: 120 g
  • Product size (width x depth x height): 8.0 x 5.2 x 8.0 cm
  • Number of packages: 1
  • Packages size: 10.1 x 8.2 x 5.1 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Hz
  • VAC
  • Movement detector
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
