Roof rail kit for studio lighting with pantographs 4x2m
REF: JQ003
Specifications

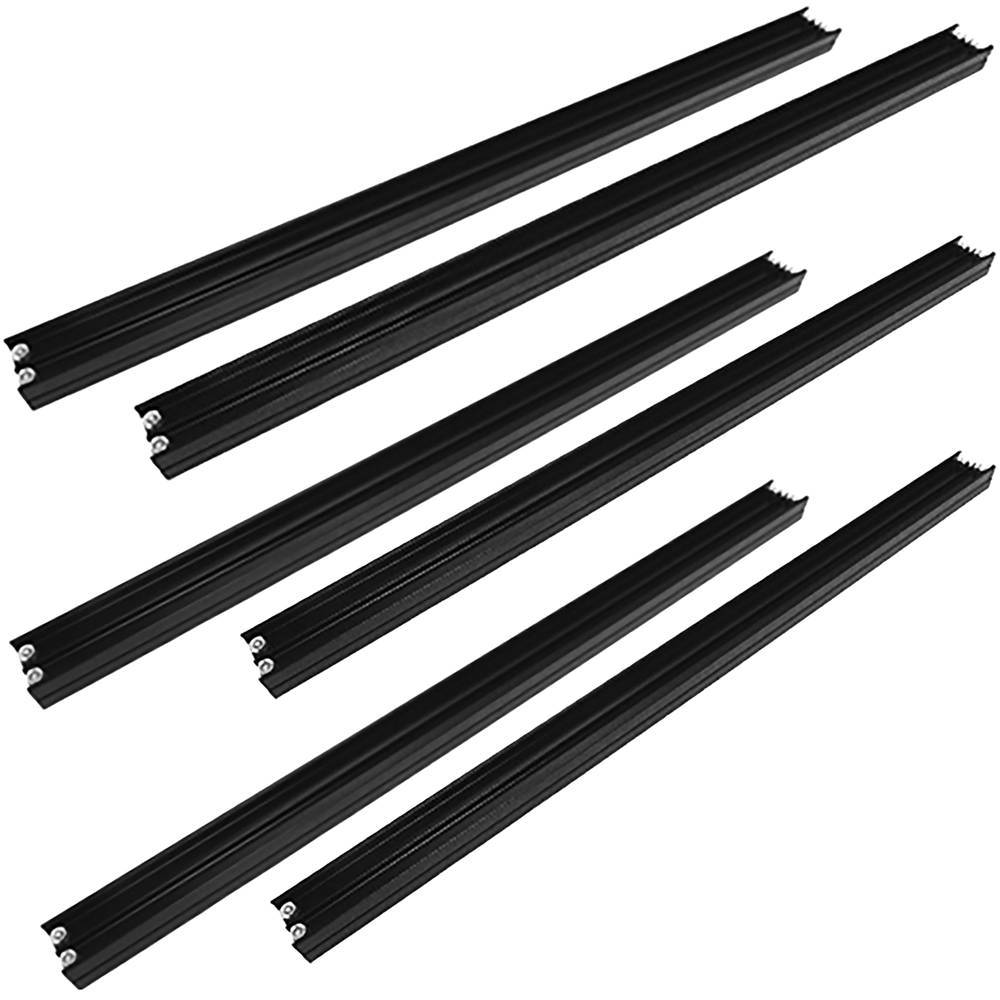

- Roof rails: 2 rails of 4 m and 2 rails of 2 m. Two of these rails are fixed to the roof in parallel. The other two rails are mobile and are connected transversely to the fixed rails by means of an articulated joint and with bearings. More rails can be purchased optionally to extend the roof surface with rail system (references # JQ1x). The rails are supplied in 2m sections and must be spliced between them.

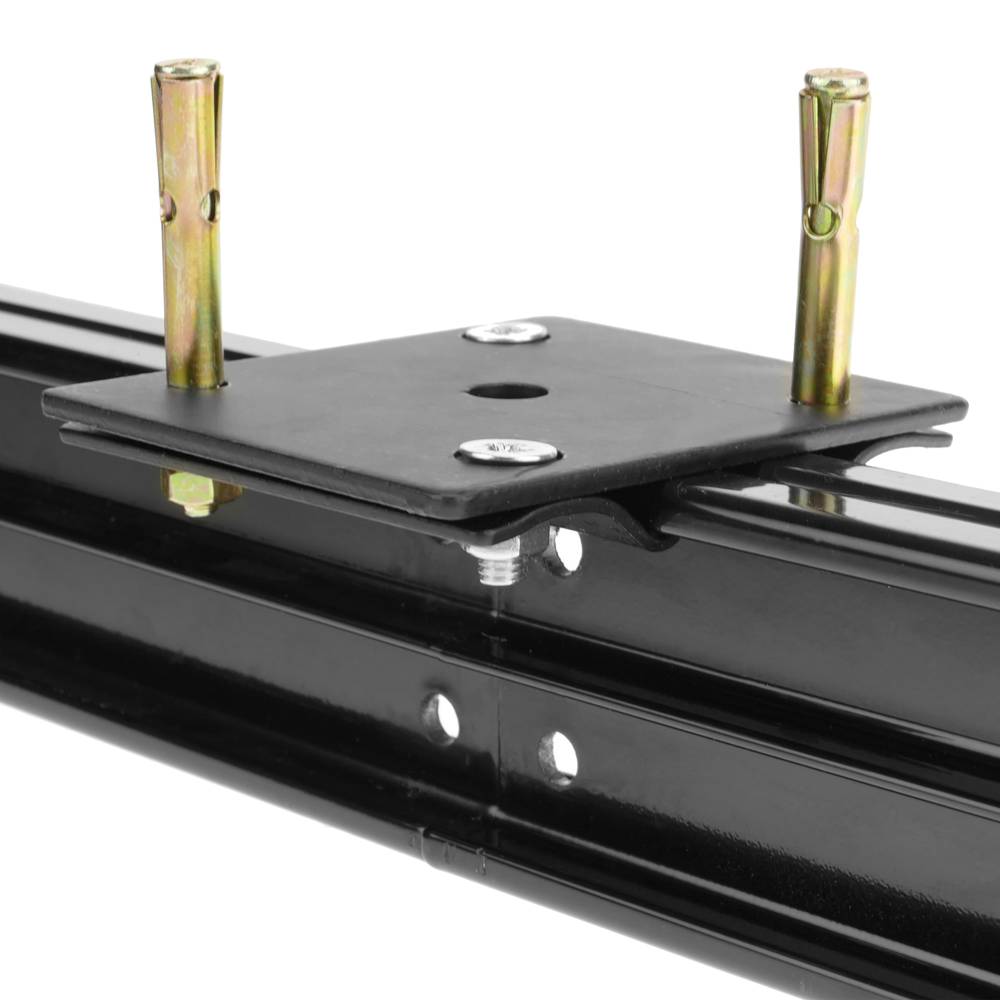

- 8 fixing plates of the rails fixed to the ceiling (4 fittings per rail).

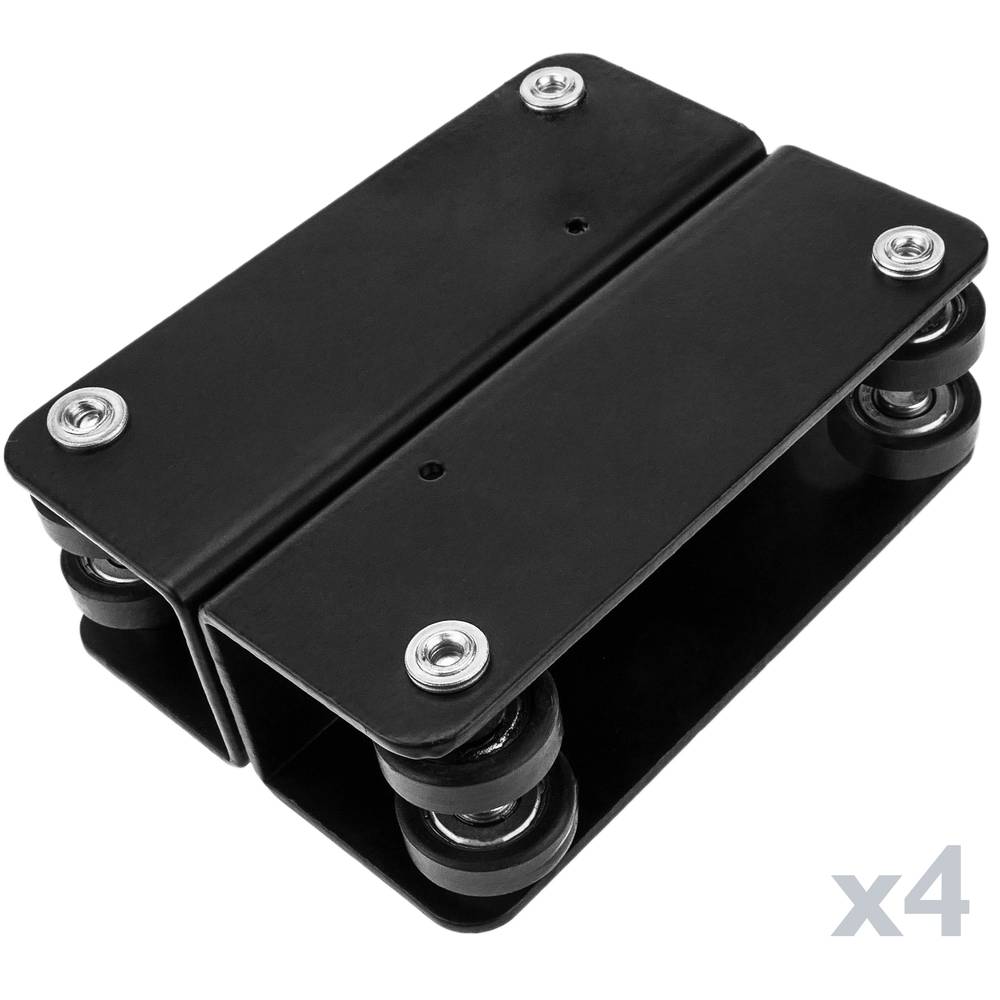

- 4 joints articulated with bearings. These joints serve to connect the fixed rails to the mobile rails. 2 joints are used for each rail. These joints have bearings for the upper rail (the fixed one) and the lower rail (the mobile one). The union between both bearings is fully articulated.

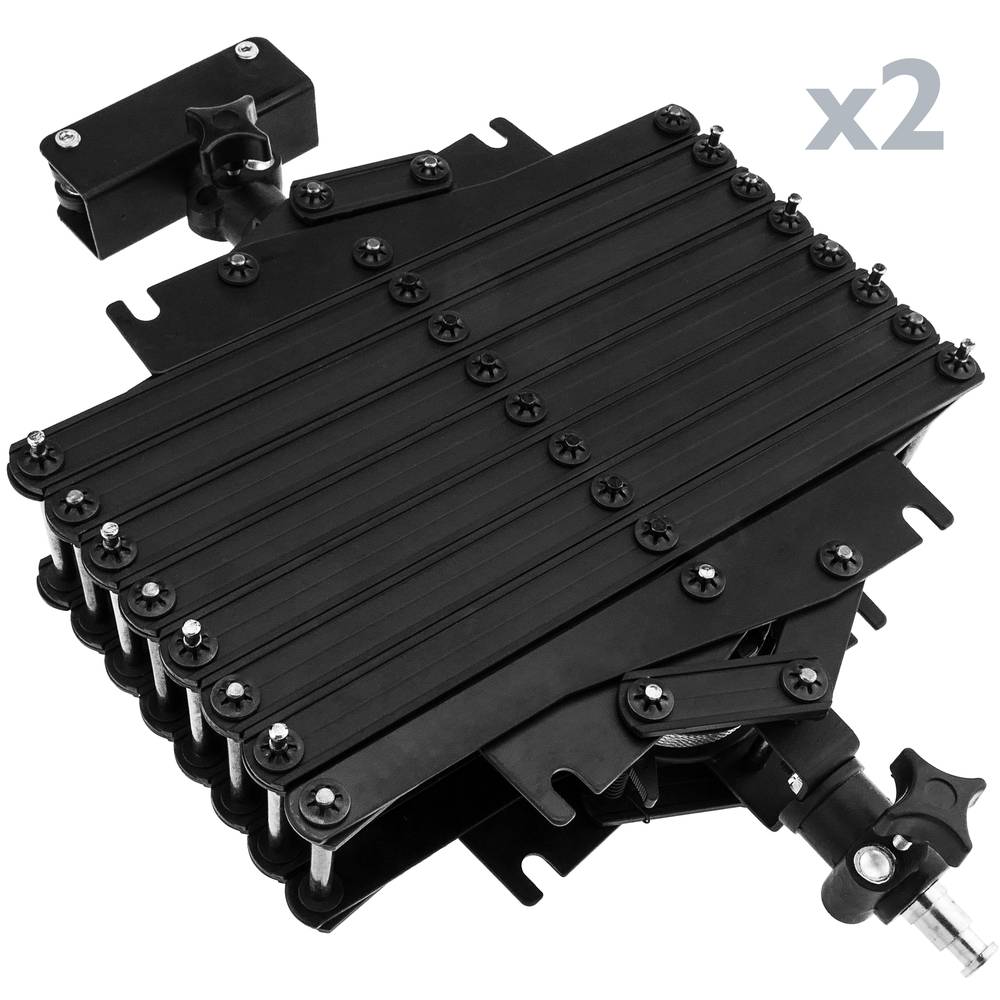

- 2 extensible and retractable pantographs hanging from the ceiling spotlights. These pantographs have a minimum length from the ceiling of 43 cm and a maximum length from the ceiling of 200 cm. They have an elastic system that counteracts gravity, so that lowering or raising a focus is done smoothly. In the upper part it has a rail fixing system based on bearings. In the lower part of the 5/8 "spigot for fixing to focus. The spigot has a universal double thread system of 1/4" and 3/8 ". A stee
- 12 rail stops or ends (screws). Once the mobile elements have been introduced in the rail, these stops close the possible derailment at the ends of all the rails.
