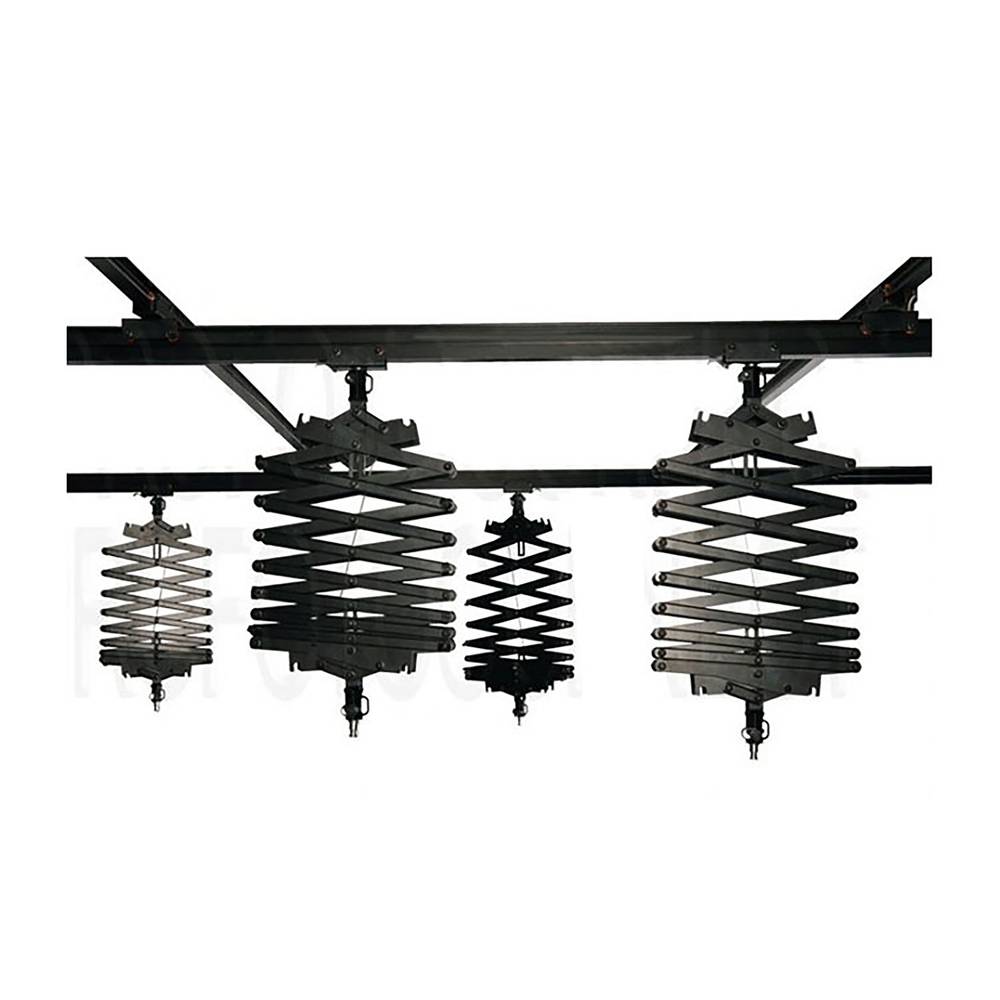

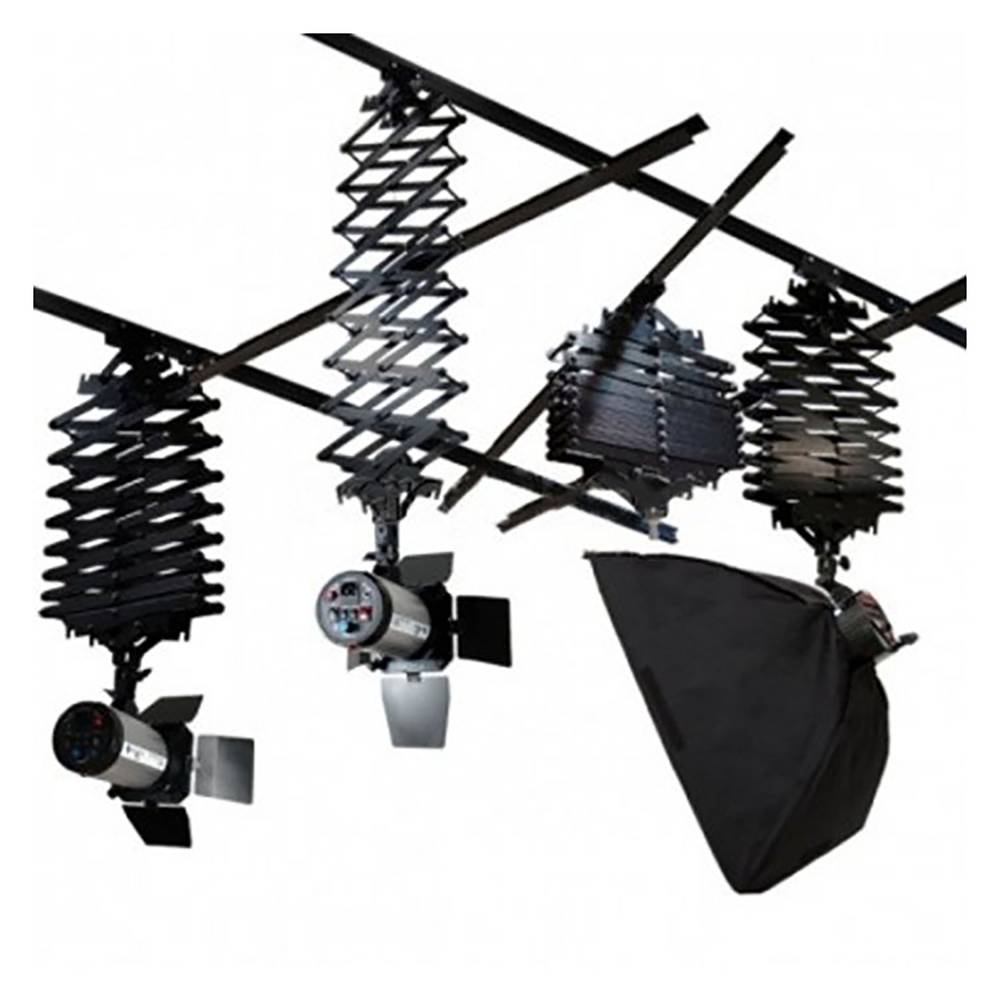

Studio lighting based on roof rail with pantographs. Starter kit to mount a lighting system on the ceiling of professional photo studio. It is a system of rails that allows total mobility of the spotlights hanging from the ceiling. The mobility is total in a square of 4 x 3 m defined by the rails fixed to the ceiling. With this system cables, foot supports, obstructions and possible shadows existing in the studio are eliminated. The system, once assembled, is made up of mobile rails by which we move the supports of the spotlights through the rails, converting the roof into an organized and mobile grid of spotlights, cables and extendable supports. It is also possible to acquire more rails and spotlights supports to expand the roof surface with this lighting system. A ceiling height of 3.2 m and never less than 2.8 m is recommended.

Specifications

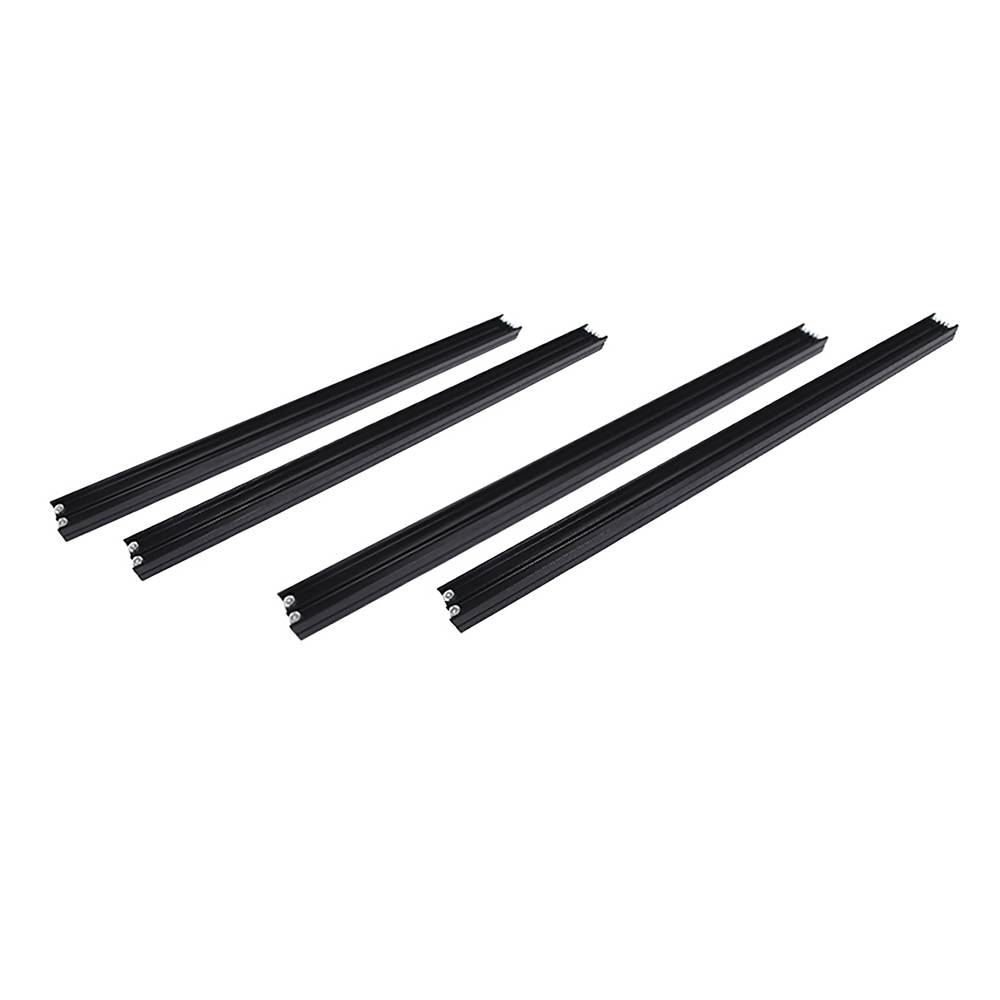

• Roof rails: 2 rails of 4 m and 2 rails of 3 m. Two of these rails are fixed to the roof in parallel. The other two rails are mobile and are connected transversely to the fixed rails by an articulated joint and with bearings. More rails can be purchased optionally to extend the roof surface with rail system (references # JQ1x).

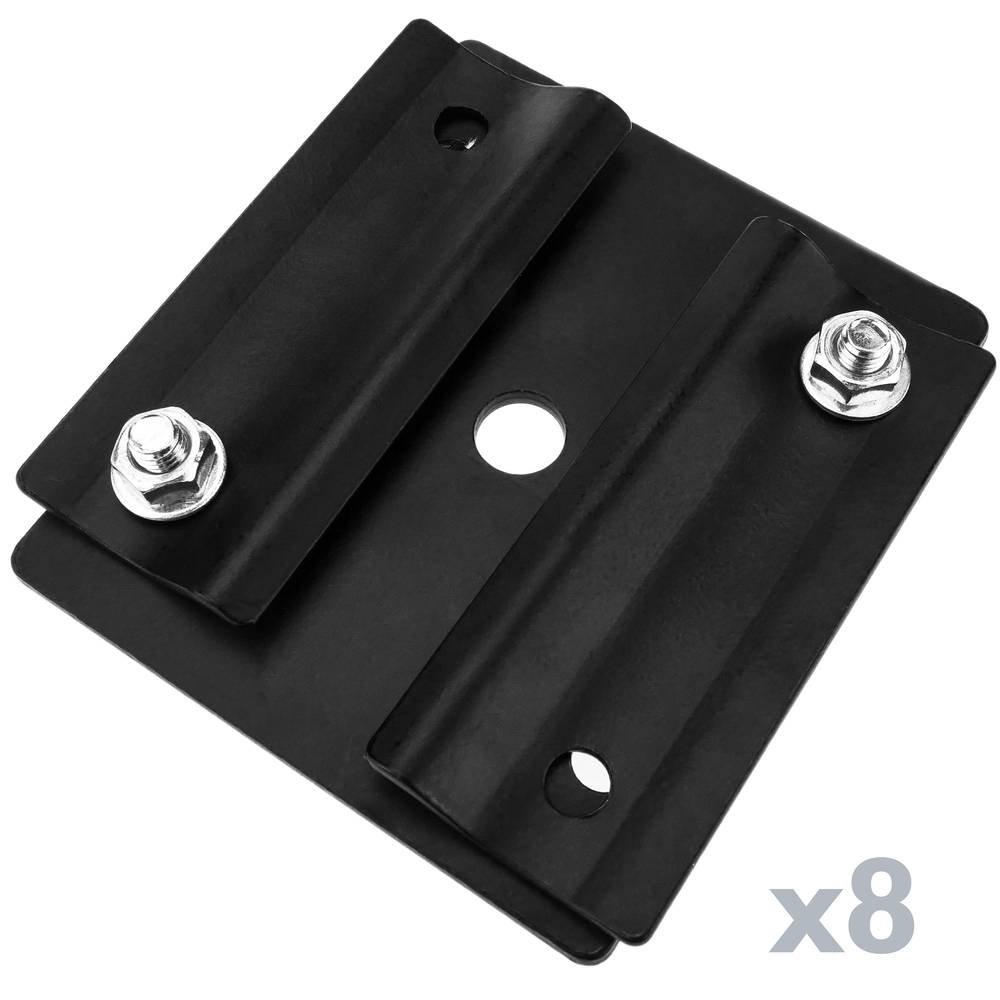

• 10 fixation plates of the fixed rails to the ceiling (5 fittings per rail).

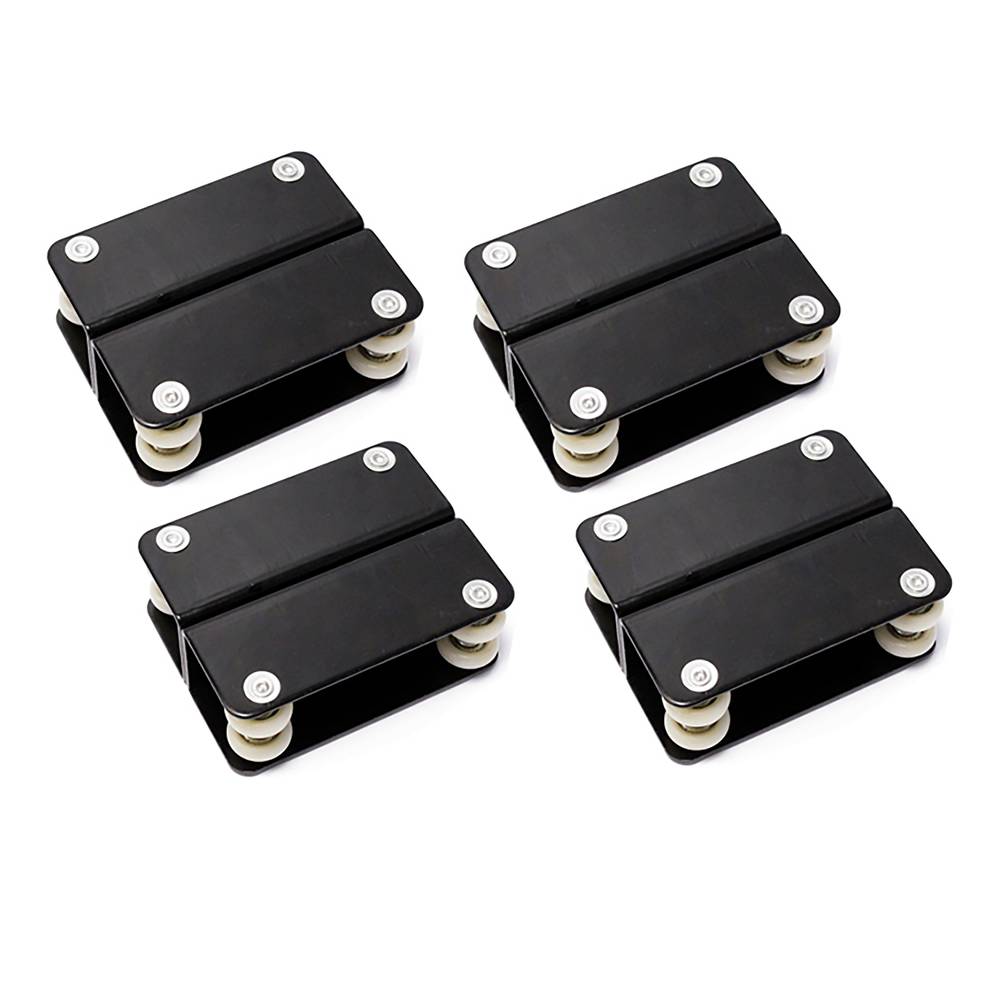

• 4 articulated joints with bearings. These unions serve to join the fixed rails to the mobile rails. 2 unions are used for each rail. These joints have bearings for the upper rail (the fixed rail) and the lower rail (the mobile rail). The union between both bearings is fully articulated.

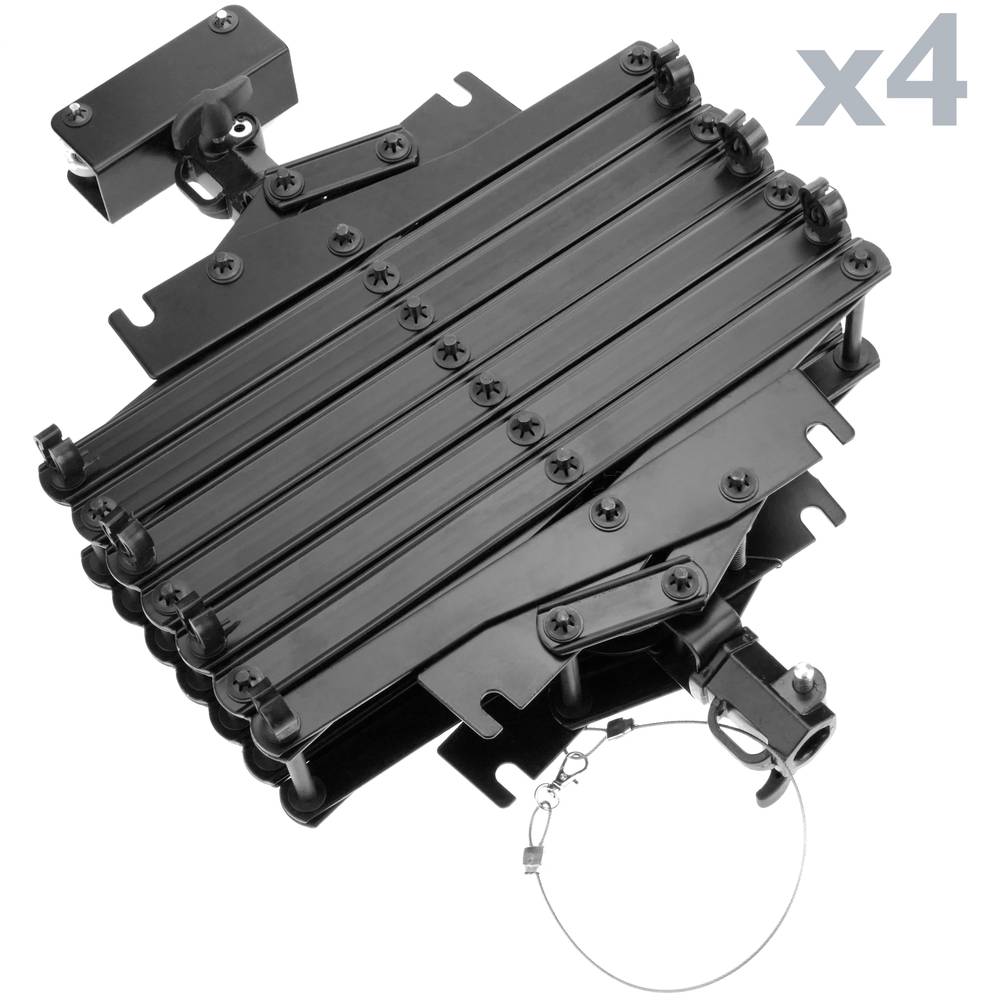

• 4 extensible and retractable pantographs hanging from the ceiling spotlights. These pantographs have a minimum length from the ceiling of 43 cm and maximum from the ceiling of 200 cm. They have an elastic system that counteracts gravity, so that lowering or raising a focus is done smoothly. In the upper part it has a rail fixing system based on bearings. At the bottom of the spigot 5/8 "for fixation to focus, the spigot has a universal double thread system of 1/4" and 3/8 ", with the pantograph a steel cable is supplied as a security fix between the focus and the pantograph (double fixation system) Each pantograph holds 10 kg of weight.
• 12 stops or ends of rail (screws). Once the mobile elements have been introduced into the rail, these stops close the possible derailment at the ends of all the rails.

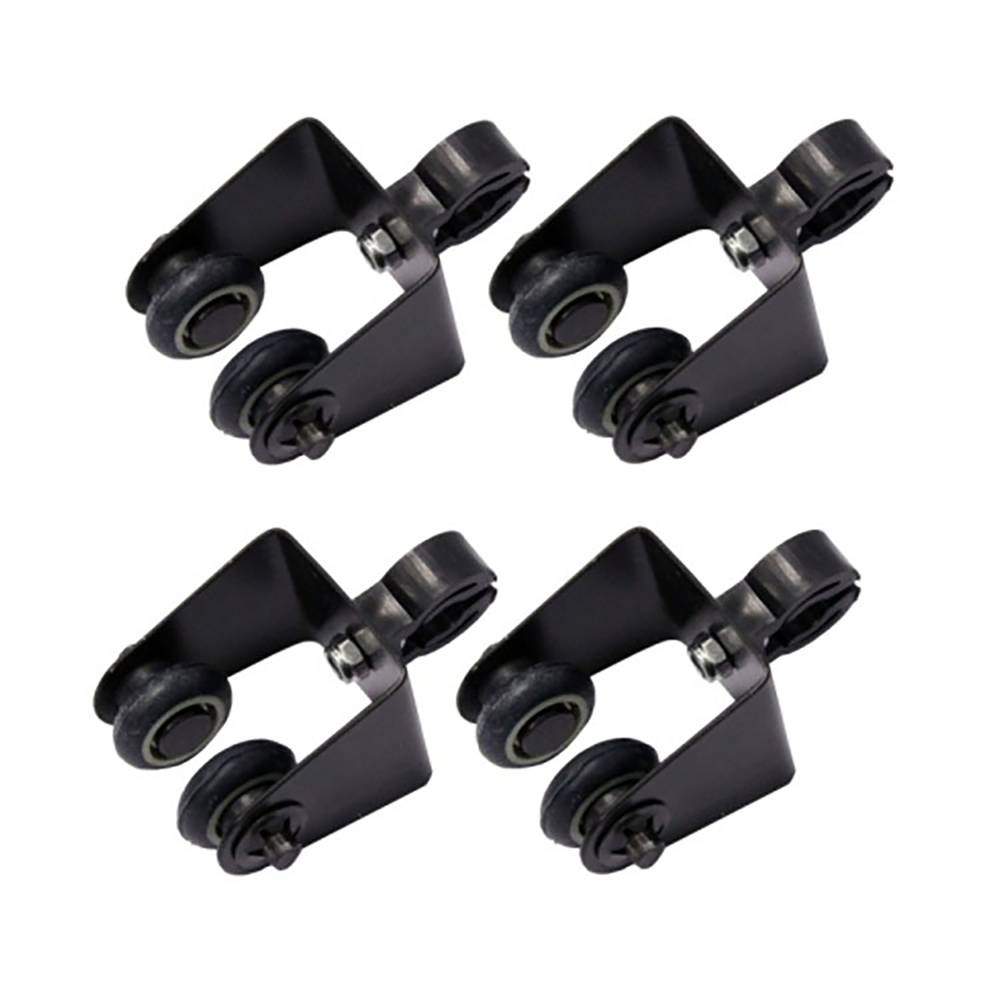

• 4 cable conveyors. It is about bearings that move along the rails. In the lower part they have a cable gland. The cables are arranged in an orderly manner by the roof and move freely along the rails when moving a spotlight. Avoid wires hanging. Possibility of acquiring more (reference # JQ27).

• Gross Weight: 39.0 kg
• Number of packages: 2
