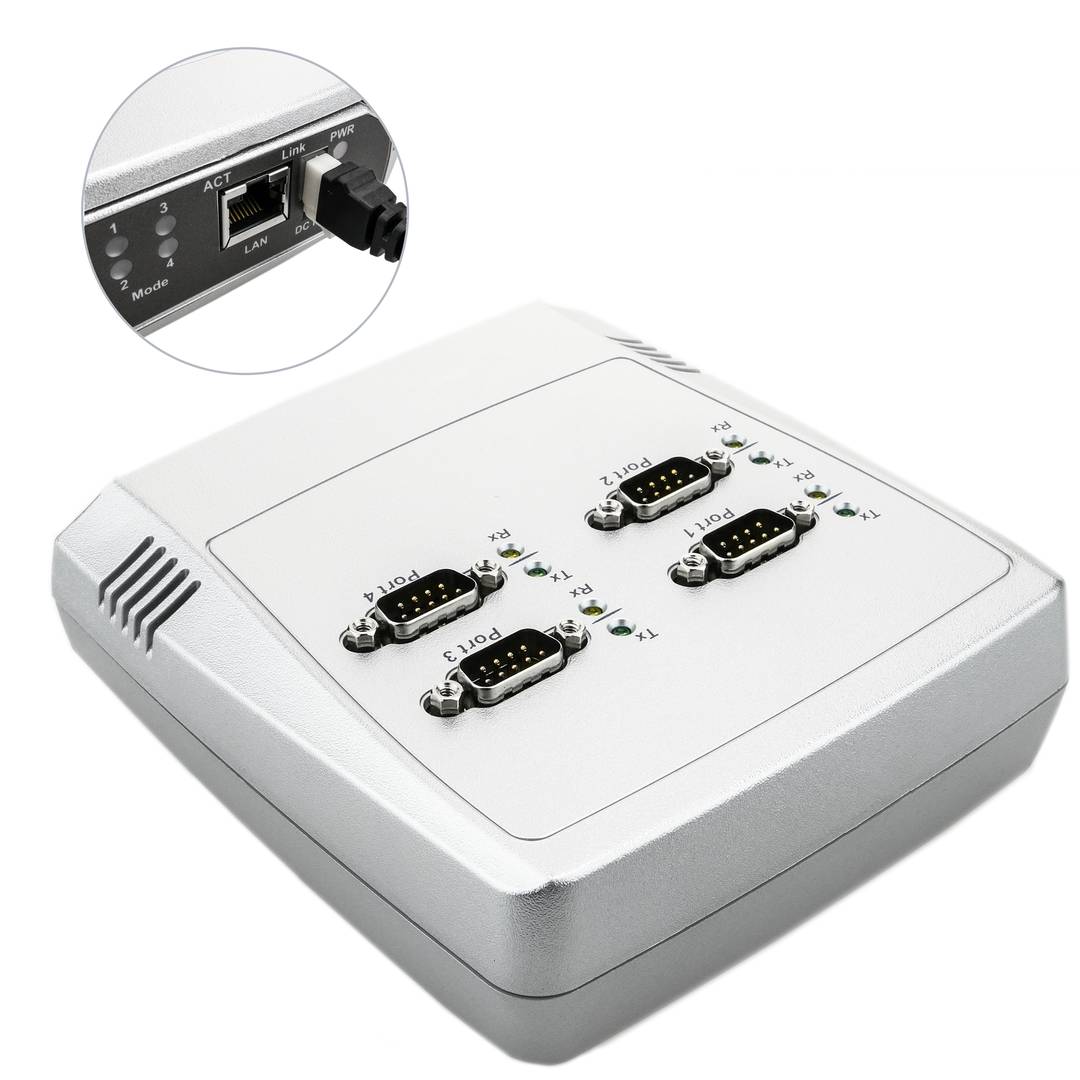

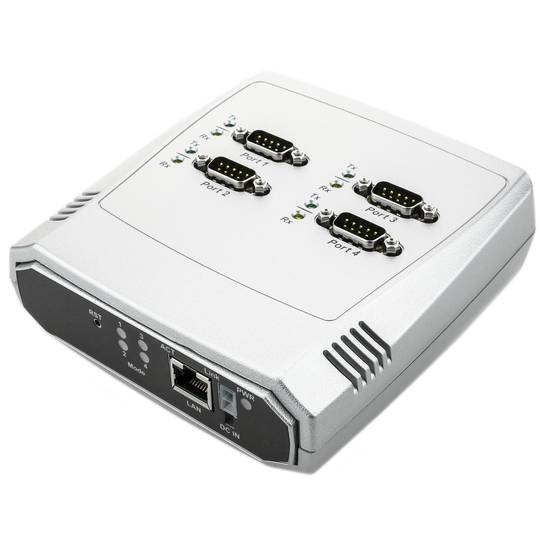

Serial server 4 x RS232 RS422 RS485 to ethernet TCP IP UDP RJ45 10/100 Mbps NCOM-413
REF: RS046
Specifications
  • Serial RS232 serial port RS422 RS485 via ethernet network. Se is a compact device that connects to an ethernet network and virtually maps a COM port to the different computers that have access to the network.
  • Compatible with TCP/IP ethernet protocol and UDP client/server. Connection speed of 10/100 Mbps.

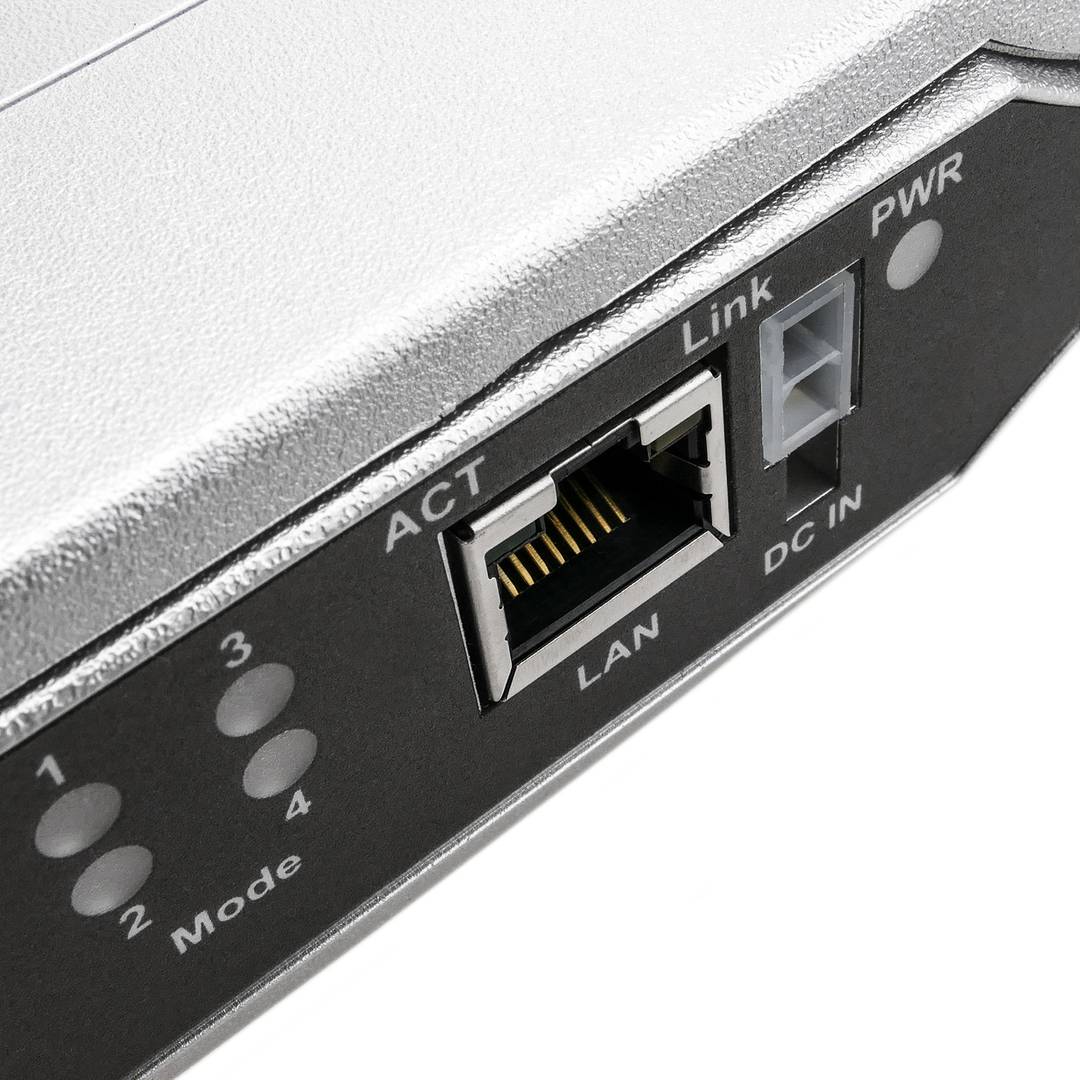

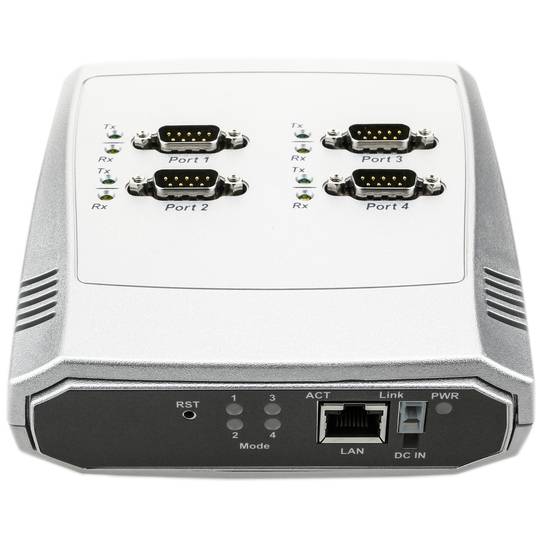

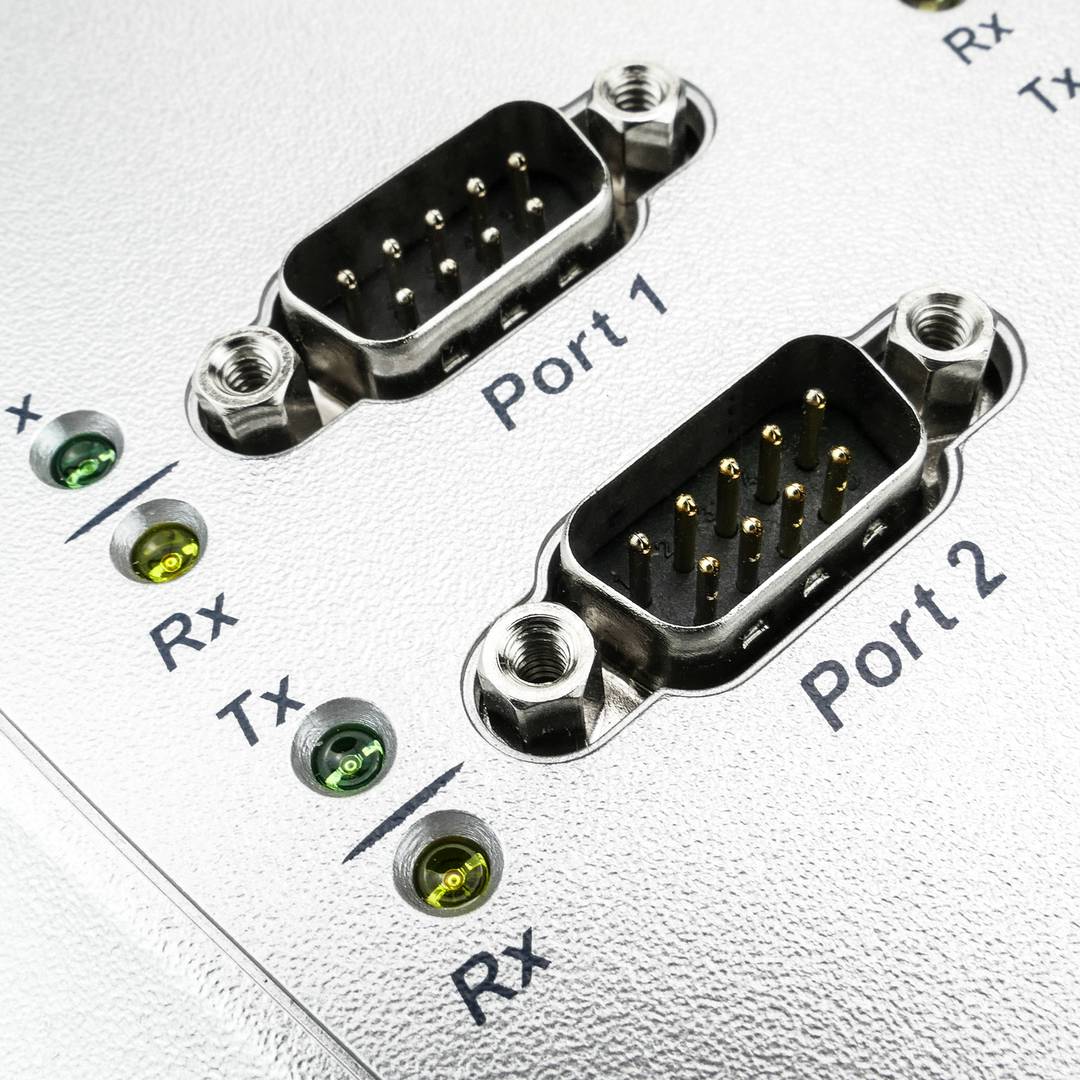

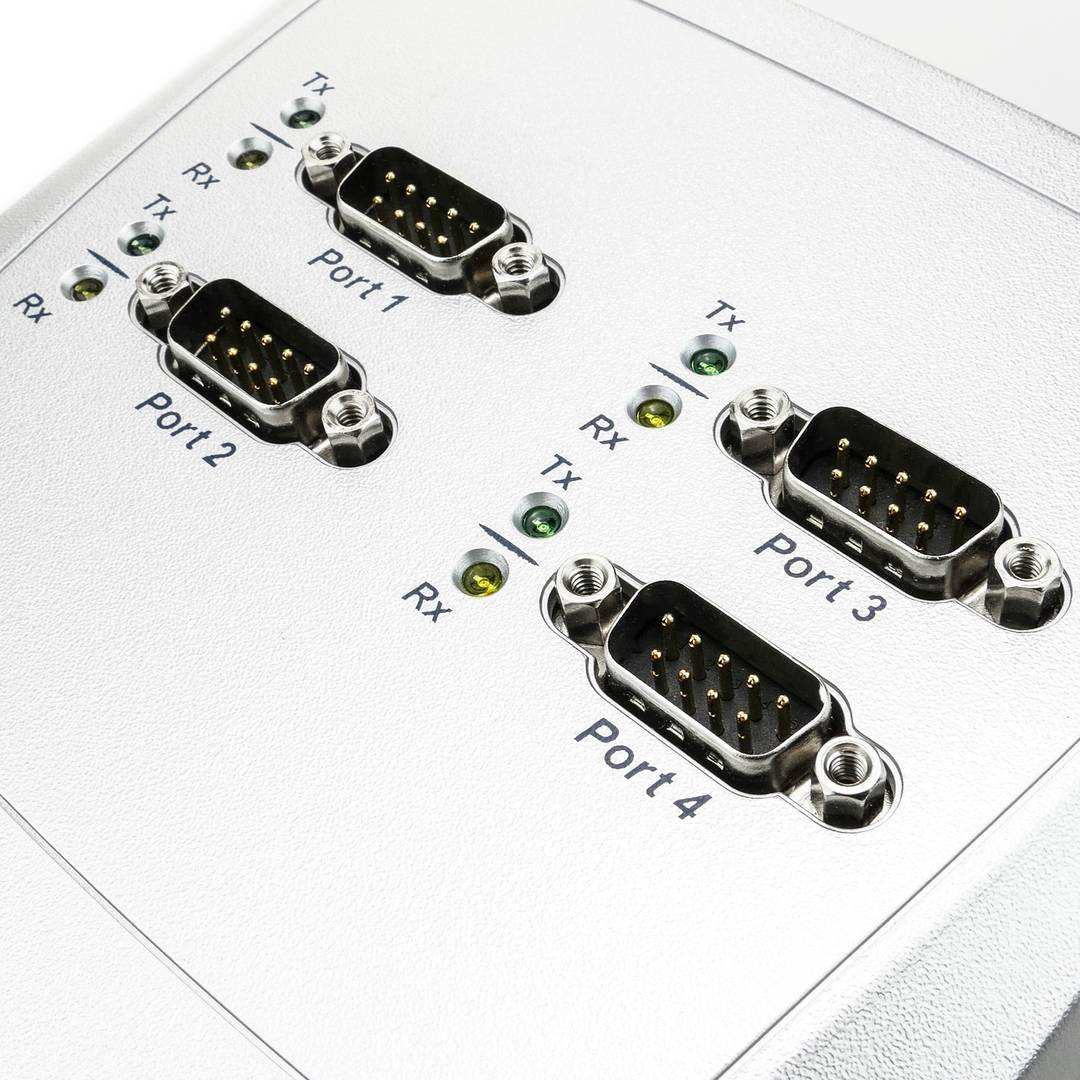

  • The module has 4 serial ports RS232 RS422 RS485 (DB9 male) and an ethernet port (RJ45 female).
  • Windows management software, specific forthe range of NCOM series servers.
  • Serial data transmission speed: 300 bps to 921.6 Kbps.
play_button Watch video
Go to technical terms
PVP
152.41
Price including VAT: 152.41
PVD
132.74
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
Go to technical terms
Specifications
  • Serial RS232 serial port RS422 RS485 via ethernet network. Se is a compact device that connects to an ethernet network and virtually maps a COM port to the different computers that have access to the network.
  • Compatible with TCP/IP ethernet protocol and UDP client/server. Connection speed of 10/100 Mbps.
  • The module has 4 serial ports RS232 RS422 RS485 (DB9 male) and an ethernet port (RJ45 female).
  • Windows management software, specific forthe range of NCOM series servers.
  • Serial data transmission speed: 300 bps to 921.6 Kbps.

Keywords

Did not find what you were looking for? These topic could help you

More info

Serial RS232 serial port RS422 RS485 via ethernet network. It is a compact device that connects to an ethernet network and virtually maps a COM port to the different computers that have access to the network. Compatible with the TCP/IP protocol among others. Compatible with Windows environment.

Specifications
  • Serial RS232 serial port RS422 RS485 via ethernet network. Se is a compact device that connects to an ethernet network and virtually maps a COM port to the different computers that have access to the network.
  • Compatible with TCP/IP ethernet protocol and UDP client/server. Connection speed of 10/100 Mbps.
  • The module has 4 serial ports RS232 RS422 RS485 (DB9 male) and an ethernet port (RJ45 female).
  • Windows management software, specific forthe range of NCOM series servers.
  • Serial data transmission speed: 300 bps to 921.6 Kbps.
  • It incorporates a 15 kV ESD electric protection system.
  • Support RF2217 protocol for control of COM ports.
  • Compatible with RS232 serial signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS.
  • Compatible with RS422/RS485 serial signals (4 wires): TxD-, TxD +, RxD +, RxD-.
  • Compatiwith the serial RS485 signals (2 threads): Data-, Data +.
  • Terminators and resistors installed in the module itself.
  • Compatible with Windows XP, Windows Vista, Windows 8, Windows 10, Windows Server 2003 to 2016.

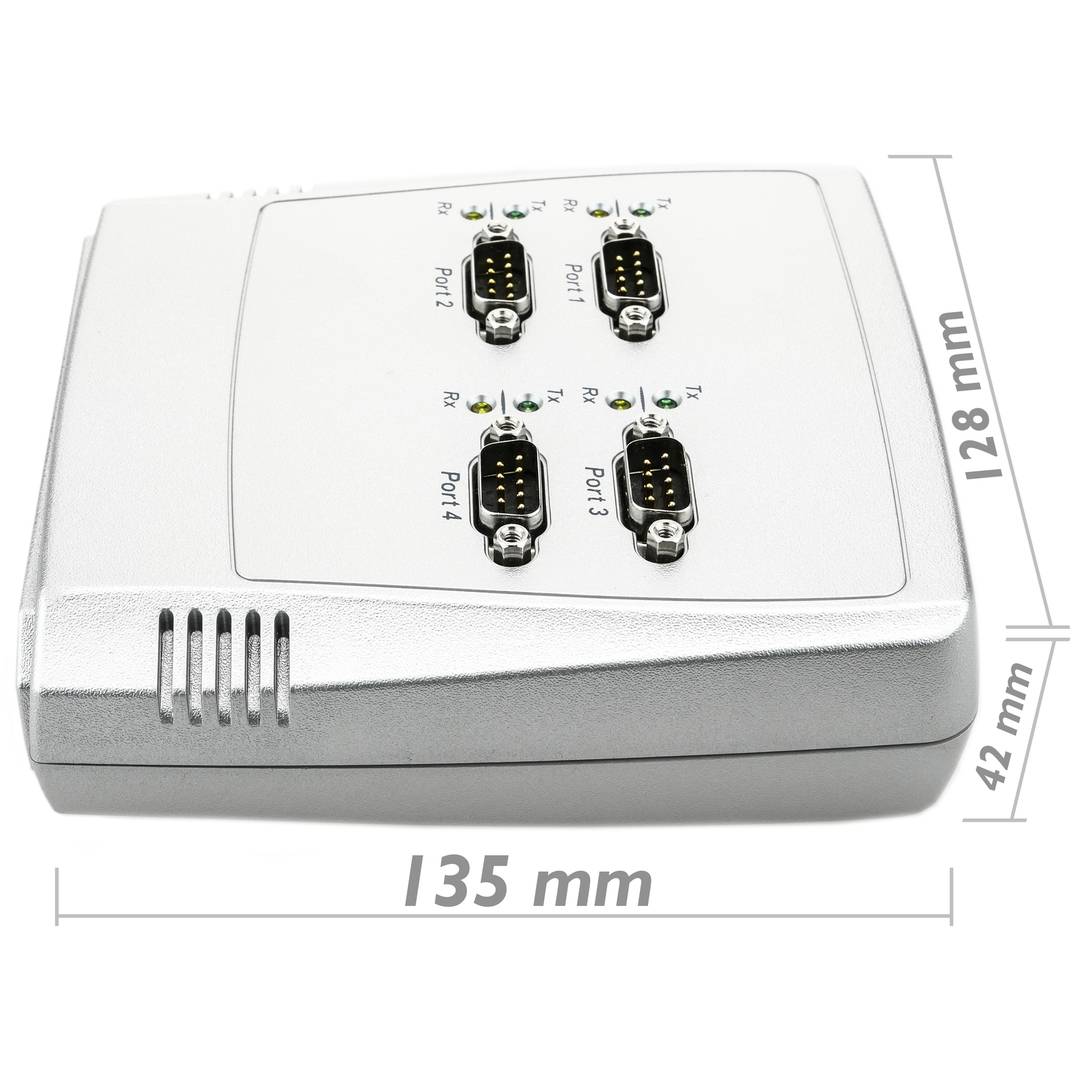

  • Size: 128 x 135 x 42 mm.
  • Gross Weight: 510 g
  • Product size (width x depth x height): 13.0 x 13.8 x 4.2 cm
  • Number of packages: 1
  • Packages size: 28.7 x 14.7 x 6.1 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Communication Series
  • RS232
  • RS485
  • RJ45
  • Categories network cables
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
