Shower drain linear channel 50x7 cm stainless for tile insert
REF: KS121
Specifications
  • Shower drain channel made of high quality stainless steel, to avoid any type of corrosion. Designed to be embedded in the shower floor.

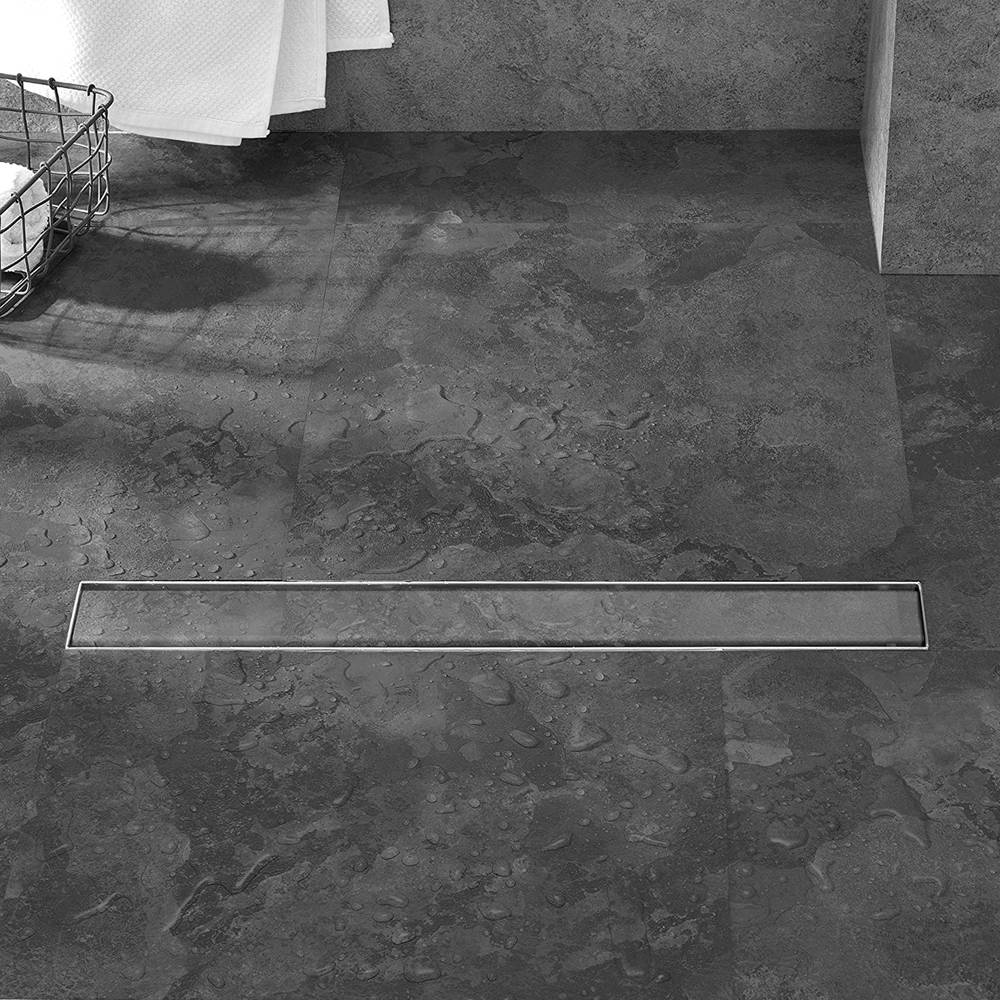

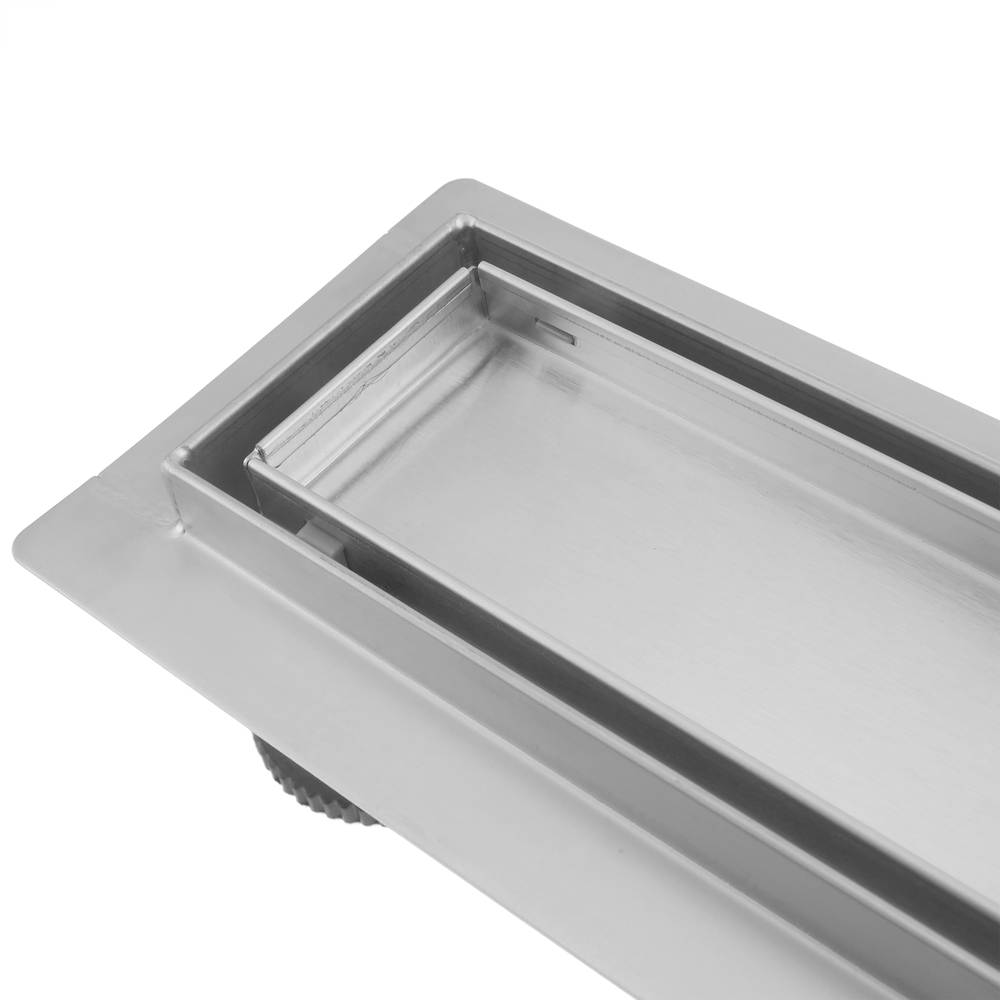

  • Central tray in which the same type of floor is mounted as the rest of the shower, being fully integrated. Maximum floor height of 14 mm (tile, tile, micro-cement, etc.).

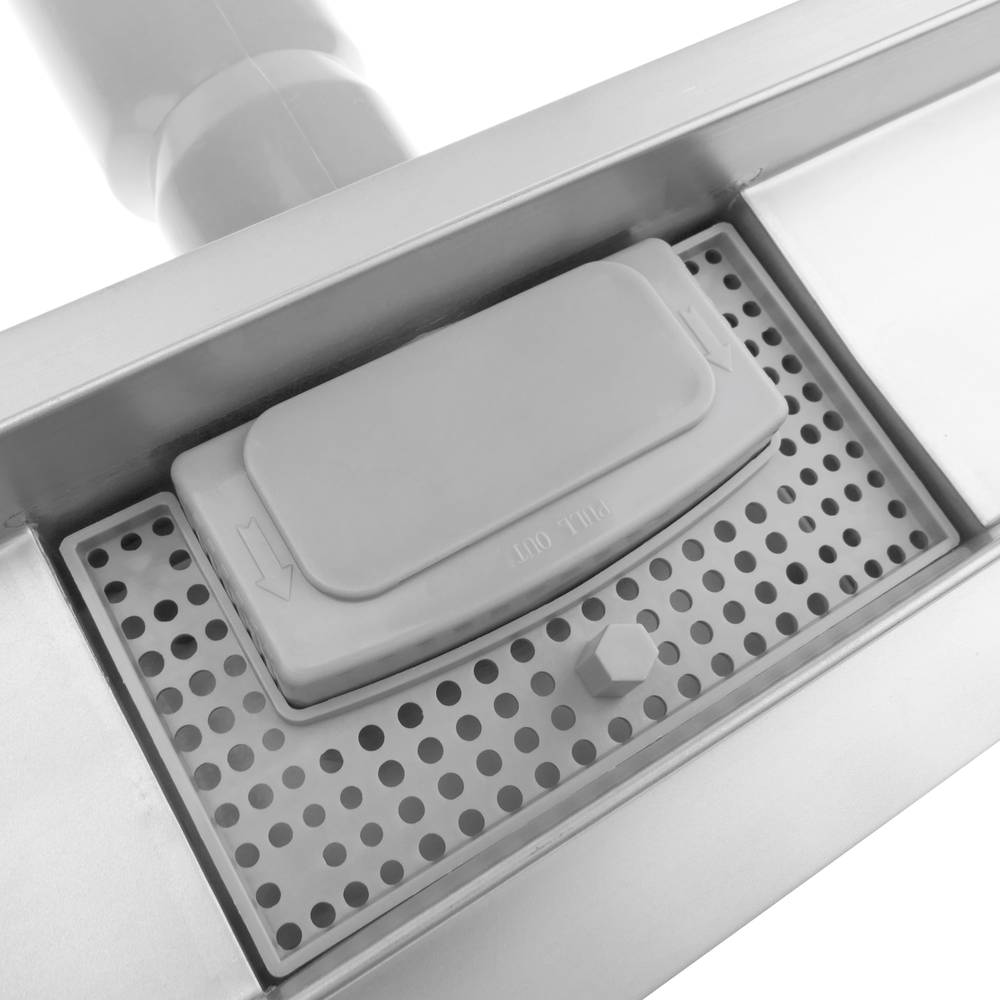

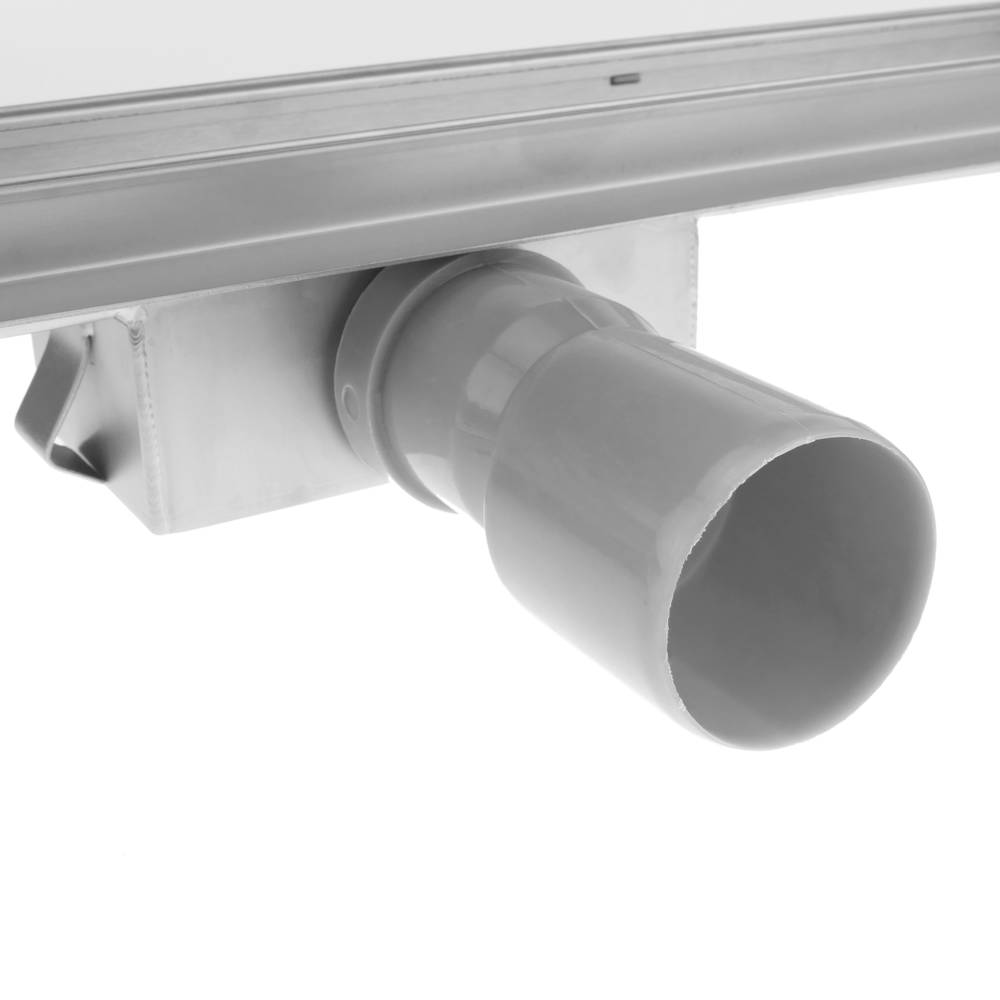

  • All components are supplied for connection to the drain pipe (40-50 mm PVC pipe adapter). It integrates a siphon system to prevent bad odors coming from the sewer.

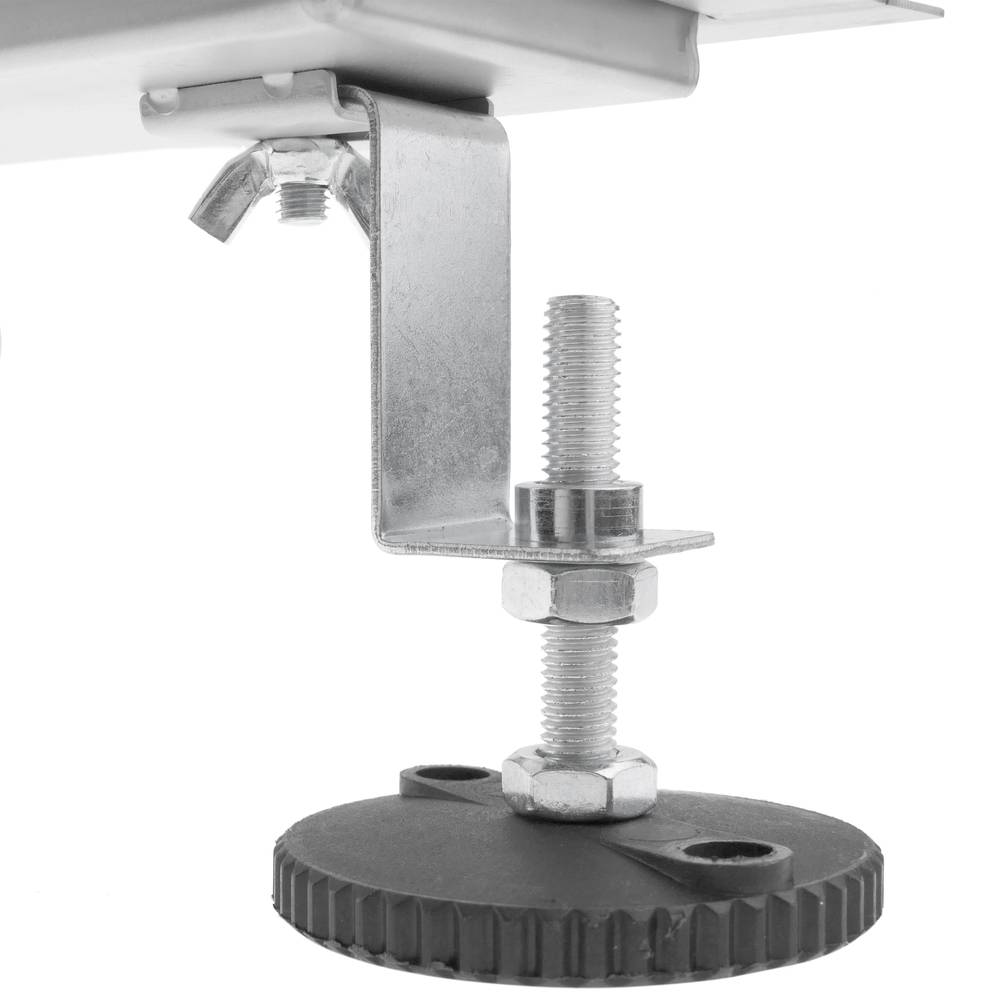

  • System of support legs that allow the regulation of the height and inclination with respect to the shower floor.
  • Total size without legs (width x depth x height): 540 x 110 x 67 mm. Visible surface: 500 x 70 mm.
play_button Watch video
More info
PVP
48.66
Price including VAT: 48.66
PVD
43.87
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Shower drain channel made of high quality stainless steel, to avoid any type of corrosion. Designed to be embedded in the shower floor.
  • Central tray in which the same type of floor is mounted as the rest of the shower, being fully integrated. Maximum floor height of 14 mm (tile, tile, micro-cement, etc.).
  • All components are supplied for connection to the drain pipe (40-50 mm PVC pipe adapter). It integrates a siphon system to prevent bad odors coming from the sewer.
  • System of support legs that allow the regulation of the height and inclination with respect to the shower floor.
  • Total size without legs (width x depth x height): 540 x 110 x 67 mm. Visible surface: 500 x 70 mm.

Keywords

Did not find what you were looking for? These topic could help you

More info

Shower drain channel made of high quality stainless steel. Designed to be embedded in the shower floor. It even has a central tray on which the same type of floor is mounted as the rest of the shower, being fully integrated. All components are supplied for connection to the drain pipe. It integrates a siphon system to prevent bad odors coming from the sewer.

specs
  • Shower drain channel made of high quality stainless steel, to avoid any type of corrosion. Designed to be embedded in the shower floor.
  • Central tray in which the same type of floor is mounted as the rest of the shower, being fully integrated. Maximum floor height of 14 mm (tile, tile, micro-cement, etc.).
  • All components are supplied for connection to the drain pipe (40-50 mm PVC pipe adapter). It integrates a siphon system to prevent bad odors coming from the sewer.
  • System of support legs that allow the regulation of the height and inclination with respect to the shower floor.
  • Total size without legs (width x depth x height): 540 x 110 x 67 mm. Visible surface: 500 x 70 mm.
  • Gross Weight: 2.05 kg
  • Product size (width x depth x height): 54.0 x 11.0 x 6.7 cm
  • Number of packages: 1
  • Packages size: 58.2 x 15.6 x 9.0 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • PVC (Polyvinyl chloride)
PVC (Polyvinyl chloride)
PVC (Polyvinyl chloride) is extracted from the polymerization of vinyl chloride monomer. We can classify PVC into two large groups, rigid PVC and flexible PVC.

Rigid: used for the construction of tubes, pipes, containers, tool accessories, parts of parts, blinds, windows, etc.
Flexible: Corrugated tube, traffic signs as cones. irrigation hoses, curtains for refrigerators, footwear, medicine, etc.

This material begins to soften at 80 ° C and melt at 140 ° C. Thanks to these and other properties, PVC is a recyclable material.

Among the main characteristics of PVC we find:
  • Different degree of hardness.
  • Waterproof.
  • It does not corrode.
  • It is moldable if it is subjected to high temperatures.
  • Good electrical insulator.
  • It is a very resistant material.
  • Stable and inert.
  • Good mechanical and impact resistance.
  • High resistance to abrasion.
  • Strong and lightweight.
  • Good thermal insulation.
  • It is odorless, tasteless and harmless.
