Square LED Wall Light IP54 1x35W GU10 220V

REF: NP065

Specifications

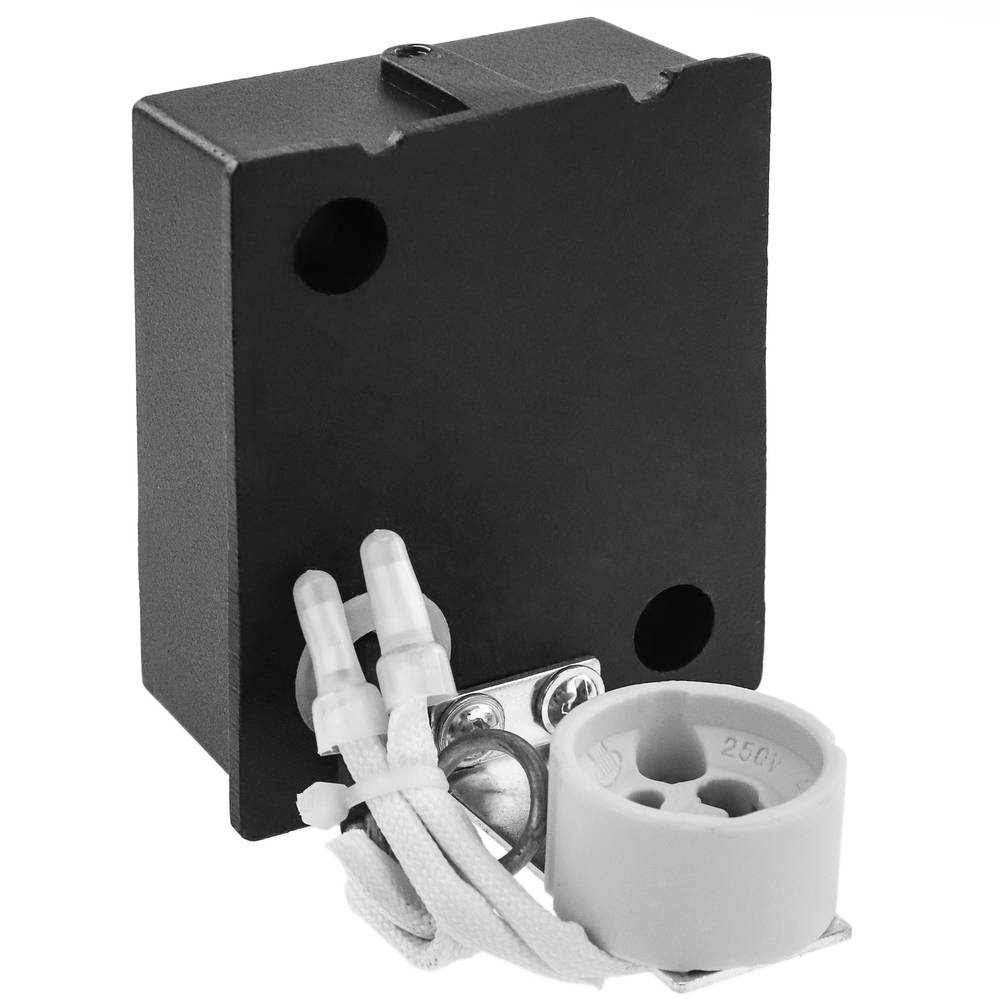

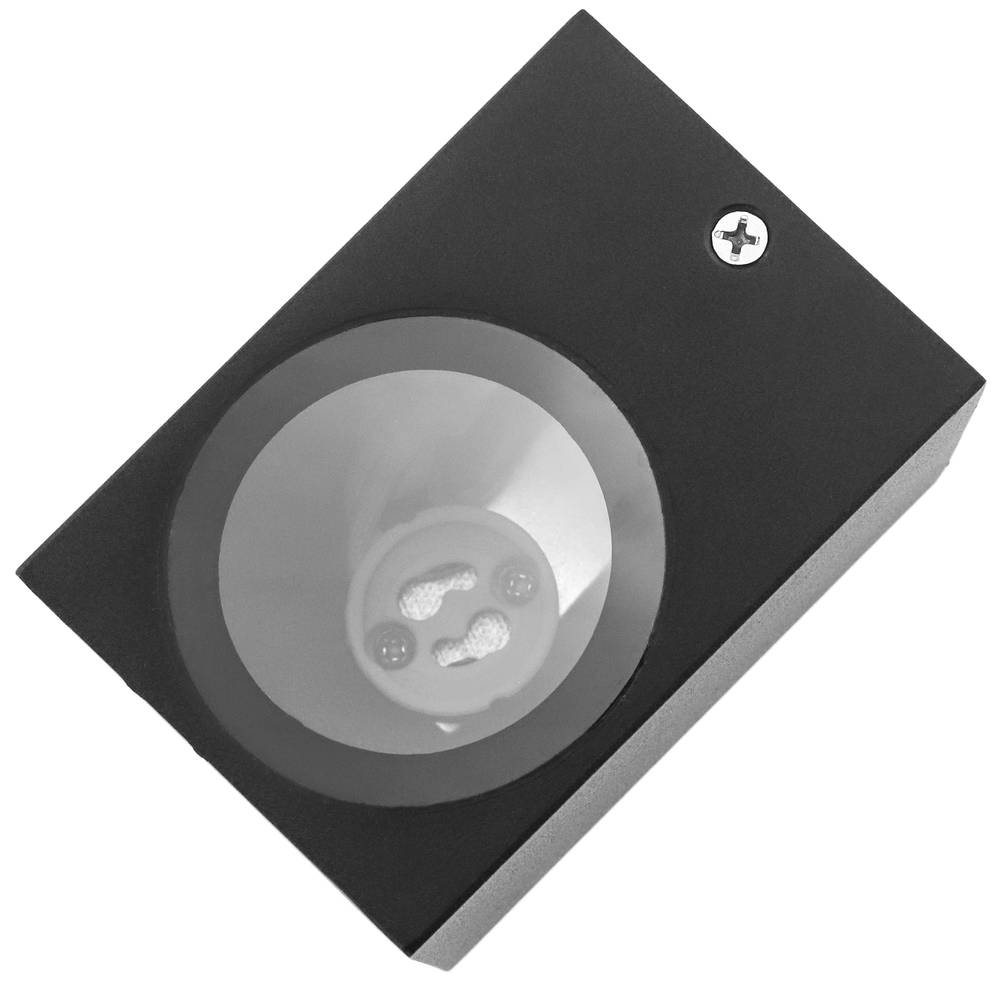

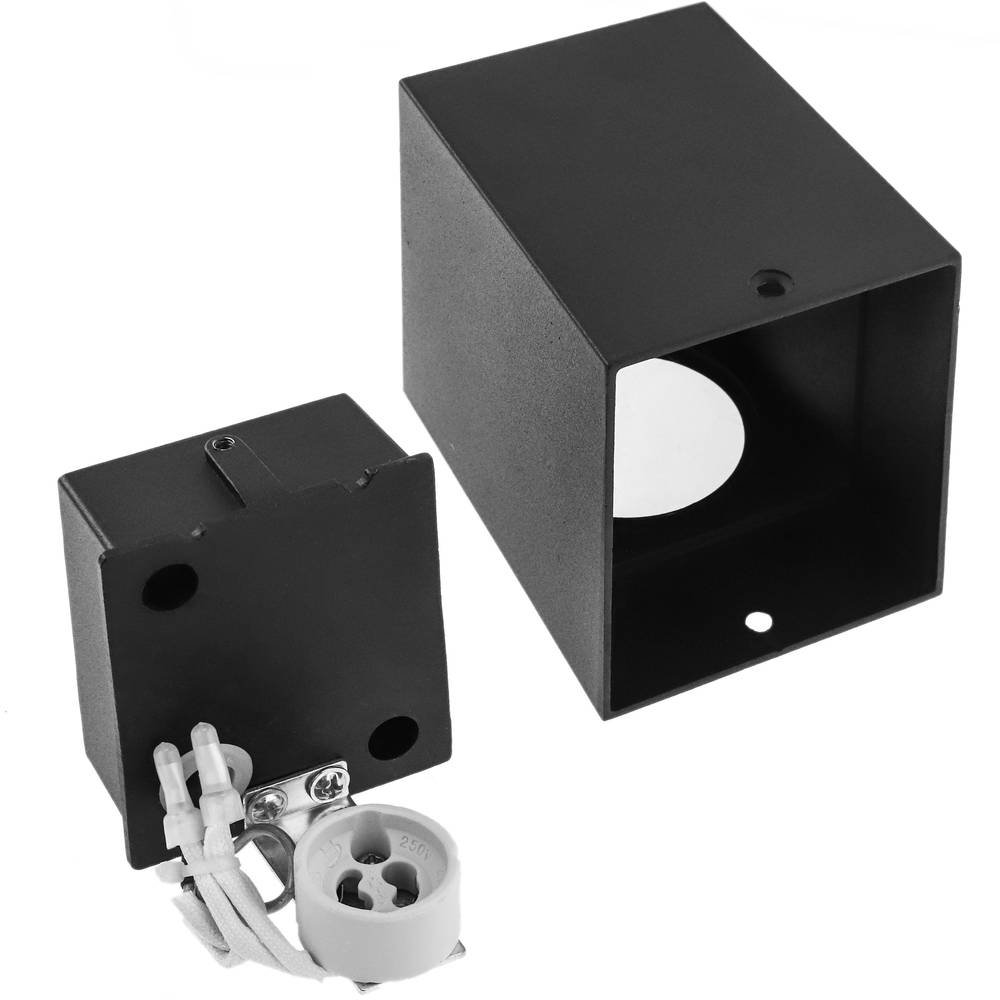

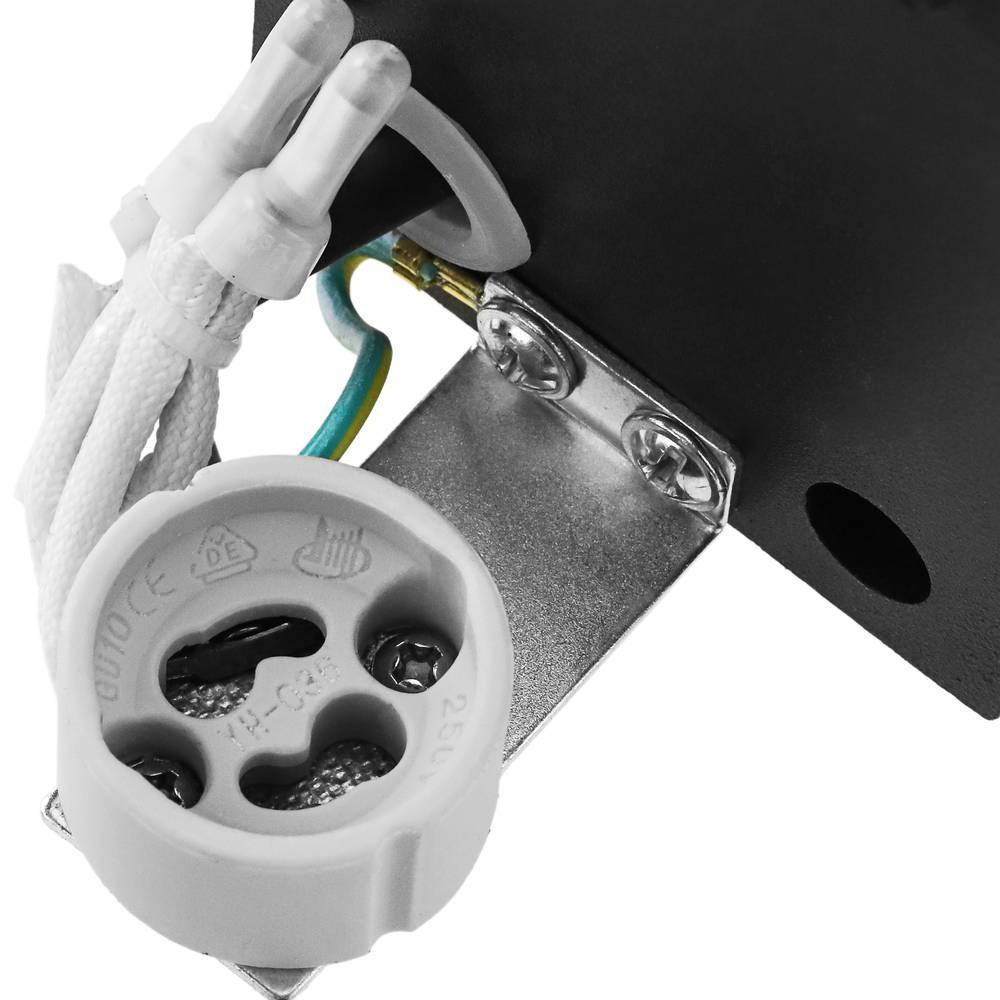

220VAC 1x35W Square aluminum Alumínio LED wall light in black. It has a GU10 connector for the bulb.
IP54 protection, guarantees protection against water and dust.
Rectangular wall light format that allows to emit light in different positions depending on the mounting of the wall light.
It is connected to the 220 VAC 50 Hz electrical network, it includes a 21 cm L, N 220V electrical cable with ground connection.

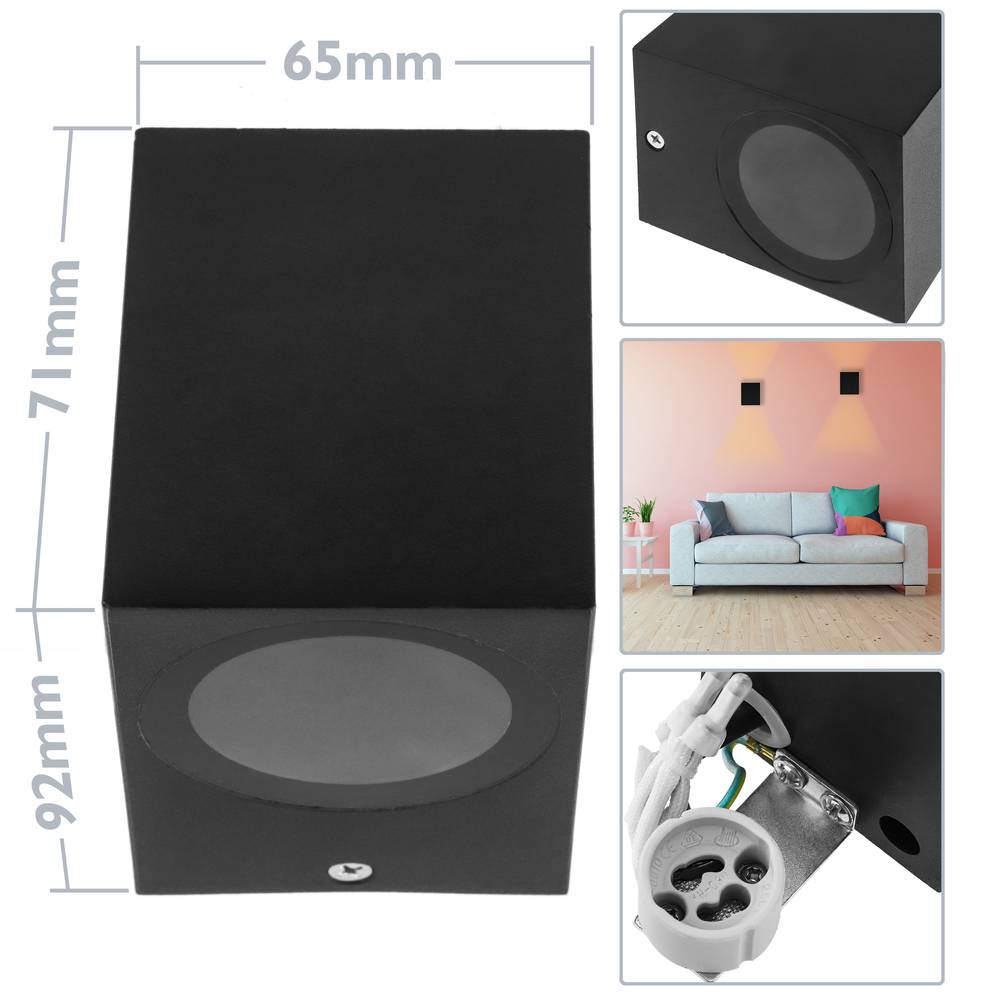

Dimensions: 65 x 71 x 92 mm (width x height x depth). Includes screws to fix the Wall Lamp.

Watch video

More info

PVP

€16.98

Price including VAT: €16.98

PVD

€13.78

Why different prices? Which one is mine? Check rate type

PVP: Retail price. Check conditions.

PVP: Sale price to distributors. Check conditions.

Shipping costs: 30,75€ *

GB-SE1 1ES

Select your direction

Buy before: Receive it: Friday 26

Delivery times are approximate. Cablematic is not responsible for delays.

2 years
warranty

14 days
returns

100%
safe

In stock

Quantity

Only 3 units

More info

Specifications

220VAC 1x35W Square aluminum Alumínio LED wall light in black. It has a GU10 connector for the bulb.
IP54 protection, guarantees protection against water and dust.
Rectangular wall light format that allows to emit light in different positions depending on the mounting of the wall light.
It is connected to the 220 VAC 50 Hz electrical network, it includes a 21 cm L, N 220V electrical cable with ground connection.
Dimensions: 65 x 71 x 92 mm (width x height x depth). Includes screws to fix the Wall Lamp.

Keywords

Did not find what you were looking for? These topic could help you

light lamp thread LED lighting

More info

Description

LED wall light is a very special type of lighting, creating truly unique atmospheres in any room, producing light indirectly and decoratively, they have an elegant, innovative and modern design.

Specifications

220VAC 1x35W Square aluminum Alumínio LED wall light in black. It has a GU10 connector for the bulb.
IP54 protection, guarantees protection against water and dust.
Rectangular wall light format that allows to emit light in different positions depending on the mounting of the wall light.
It is connected to the 220 VAC 50 Hz electrical network, it includes a 21 cm L, N 220V electrical cable with ground connection.
Dimensions: 65 x 71 x 92 mm (width x height x depth). Includes screws to fix the Wall Lamp.

Measurements and weights

Gross Weight: 343 g
Product size (width x depth x height): 6.5 x 9.2 x 7.1 cm
Number of packages: 1
Packages size: 10.0 x 10.0 x 7.2 cm
Master-pack: 1

Documentation

Product file 1

Classification

Opinions

Videos

Watch video

Technical terms

LED
Hz
IP54
IP Protection
Electrical cable sections
Types of bulb socket
Colors of electric cables
Colors insulating tape
VAC

LED

Types of bulb socket

The socket is the part that allows connecting the bulb to the socket. There is a wide selection of bushings for different types of bulbs. The nomenclature for each type includes 1 or more letters (type of lampholder), followed by 1 or more numbers (diameter of lampholder).
Example: The bush E27 would correspond to the type of thread E (Edison) of 27mm in diameter.

E12: Diameter of 12mm, this is a tamYear smaller than the most commonly used standard E27.
E14: It is the second most common cap, only varies a little of the E27, with a diameter of 14 to 17 mm. It is normally used for bulbs or lamps.
E27: This is the most common cap. It has a thick cup shape with thread to be able to adapt to the connector. It measures 27mm wide.
E40: Has a diameter of 40 mm, it is the largest thread of this tIpo.
G4: With a distance between pins of 4.0 mm. It is a type of cap that is frequently used in appliqués, ceiling lamps and hanging lamps.
G5.3: With a distance between pins of 5.33 mm. The GU 5.3 socket format is a format widely used in small led floodlights with transformer. Usually used in halogen lamps and dichroic halogens.
GY6.35: With a distance between pins of 6.35 mm, trOf a model similar to the previous one.
G9: With a ditancia between pins of 9,0 mm. Usually used for ceiling lamps and hanging lamps.
G13: With a distance between pins of 12,7 mm. It is used in fluorescent tubes.
GX53: With distance between pins of 53 mm. Its most common use is the installation in light bulbs to illuminate furniture or unusual places. It does not need transformer.
GU10: With a distance between10 mm pins. The GU10 bushing shape is a widely used format in small transformerless LED spotlights. Usually used in dichroic halogen lamps.
B22: Type of bayonet connector used in countries such as Africa, India and Ireland.
MR16: Its use is normally limited to 12V halogen lamps.

IPXX	First digit (IPxx)	Second digit (IPxx)
0	Unprotected.	Unprotected.
1	Protection against objects of> 50 mm diameter.	Protection against vertically dripping water.
2	Protection against objects of> 12.5 mm diameter.	Protection against inclined drip water up to 15°.
3	Protection against objects of> 2 mm in diameter.	Protection against water projected from any direction, up to 60°.
4	Protection against objects of> 1 mm in diameter.	Protection against splashing water any direction.
5	Ingress of dust is not entirely revented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment .	Protection against water jets.
6	Dust tight.	Protection against strong jets of water.
7		Protection against complete immersion up to 1 meter for 30 minutes.
8		Protection against complete and prolonged immersion.
