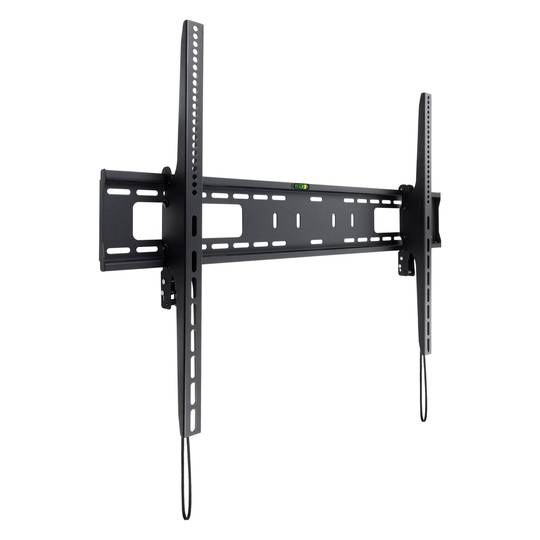

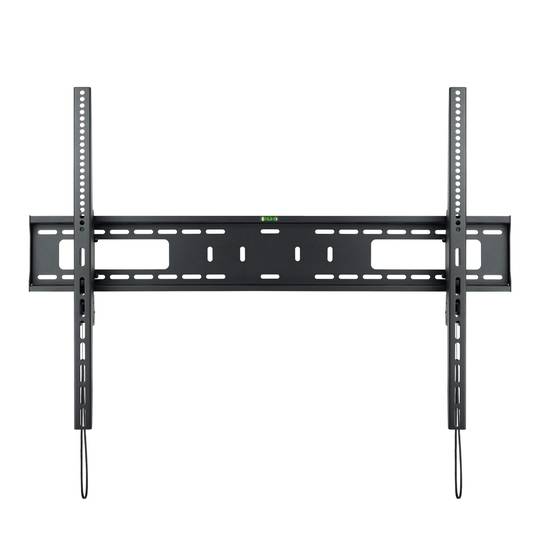

Tilting wall mount for TV screen from 60" to 100" 75 Kg up to VESA 900x600
REF: TQ263
Specifications
  • Tilting wall mount for flat screen or TV from 60" to 100".
  • Compatible with VESA mounting pattern: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 600x600, 800x600 and 900x600 mm.
  • Supported screen weight up to 75 Kg.
  • Allows +5º/-10º inclination.
  • Distance between wall and screen of 85 mm.
More info
PVP
39.96
Price including VAT: 39.96
PVD
37.80
Shipping costs: 0,00 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Available more than 10

More info
Specifications
  • Tilting wall mount for flat screen or TV from 60" to 100".
  • Compatible with VESA mounting pattern: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 600x600, 800x600 and 900x600 mm.
  • Supported screen weight up to 75 Kg.
  • Allows +5º/-10º inclination.
  • Distance between wall and screen of 85 mm.

More info

Metal support that provides a strong grip and ideal stability for screens such as a television or computer monitor in a high and stable position. Made of resistant materials. It has a structure that is fixed to the wall, achieving a reliable and safe installation. Perfect to be installed on walls of rooms, meeting rooms, offices, classrooms, etc.

Specifications
  • Tilting wall mount for flat screen or TV from 60" to 100".
  • Compatible with VESA mounting pattern: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 600x600, 800x600 and 900x600 mm.
  • Supported screen weight up to 75 Kg.
  • Allows +5º/-10º inclination.
  • Distance between wall and screen of 85 mm.
  • Includes bubble level for installation.
  • Gross Weight: 5.13 kg

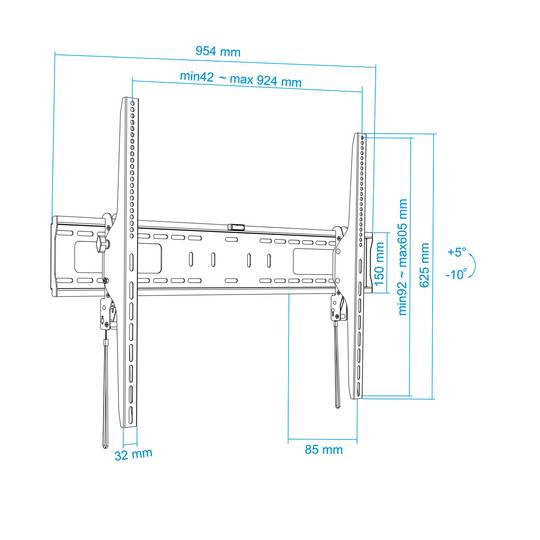

  • Product size (width x depth x height): 95.4 x 8.5 x 62.5 cm
  • Number of packages: 1
  • Packages size: 98.0 x 15.6 x 5.3 cm
  • Master-pack: 1

Technical terms

  • VESA
VESA
The standard VESA (Video Electronics Standards Association) is a standard that regulates the type of fastening enen the monitor, which is by screws 12-16 mm., Forming a square, which is divided into 3 groups. MIS-D 75x75 mm. or 100x100 mm. - These are the measures most commonly used in monitors, depending on their size, with a maximum weight of 14 kg MIS-E, 200 x 100 mm.. used in TVs up to 23.7 kg. MIS-F, 200 x 200 mm. or 300 x 300 mm. - Used in TVs with a maximum weight of 113.6 kg There are some sizes, and in increments of 200 x 200 mm.. for large screens.
