Tube fan for 200 mm diameter. In line duct extractor for industrial ventilation
Tube fan for 200 mm diameter. In line duct extractor for industrial ventilation
REF: KH055
Specifications
- Industrial smoke and air renewal extractor. Mounted on a solid black painted steel structure. Designed to be installed coupled to an in-line tube (200mm diameter tube).
- Single-phase 220/230 VAC (50 Hz) motor. Consumption: 0.70 A. Power: 50 W.
- Rotation speed: 2510 RPM. Air flow: 900 m3 / h.
- Structure size: 382 x 214 x 355 mm. Weight: 5.7 Kg.
- IP54 environmental protection against dust, humidity and water.
![play_button]()
Watch video
More info
Watch video
PVP
€122.07
Price including VAT:
€122.07
PVD
€97.24
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Industrial smoke and air renewal extractor. Mounted on a solid black painted steel structure. Designed to be installed coupled to an in-line tube (200mm diameter tube).
- Single-phase 220/230 VAC (50 Hz) motor. Consumption: 0.70 A. Power: 50 W.
- Rotation speed: 2510 RPM. Air flow: 900 m3 / h.
- Structure size: 382 x 214 x 355 mm. Weight: 5.7 Kg.
- IP54 environmental protection against dust, humidity and water.
Purchased together regularly
More info
Industrial extractor to be installed coupled to an in-line tube. It includes a high-power indoor fan, mounted on a steel structure. It forces the extraction of fumes and the renewal of the air. To be used in industrial premises, shops, warehouses, etc. Equipped with a single-phase asynchronous motor based on ball bearings. Product of solid manufacture, high resistance and reliability.
specs
- Industrial smoke and air renewal extractor. Mounted on a solid black painted steel structure. Designed to be installed coupled to an in-line tube (200mm diameter tube).
- Single-phase 220/230 VAC (50 Hz) motor. Consumption: 0.70 A. Power: 50 W.
- Rotation speed: 2510 RPM. Air flow: 900 m3 / h.
- Structure size: 382 x 214 x 355 mm. Weight: 5.7 Kg.
- IP54 environmental protection against dust, humidity and water.
- Motor based on a steel ball bearing system. Noise level: 64 dBa.

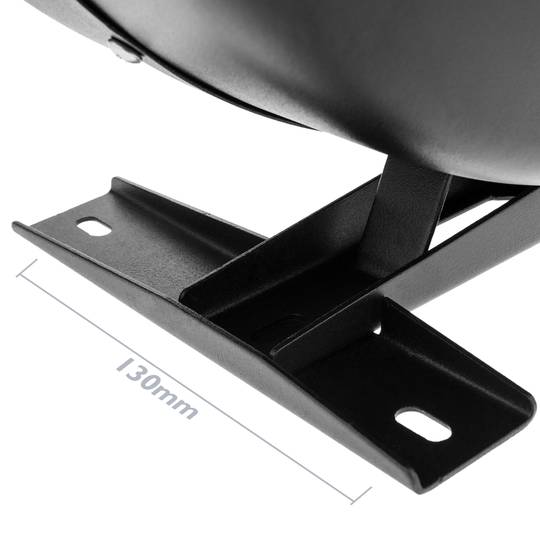

- It is supplied fixing system to wall, ceiling or flat surface.
- Ideal for use in shops, industrial buildings, premises, offices, data rooms, etc.
- Extractor for air renewal, smoke extraction, etc.
- Gross Weight: 5.85 kg
- Product size (width x depth x height): 38.2 x 21.4 x 35.5 cm
- Number of packages: 1
- Packages size: 36.5 x 34.0 x 24.0 cm
Technical terms
- Hz
- Single-phase
- IP Protection
- VAC
- Revolutions per minute (rpm)
- IP54
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
