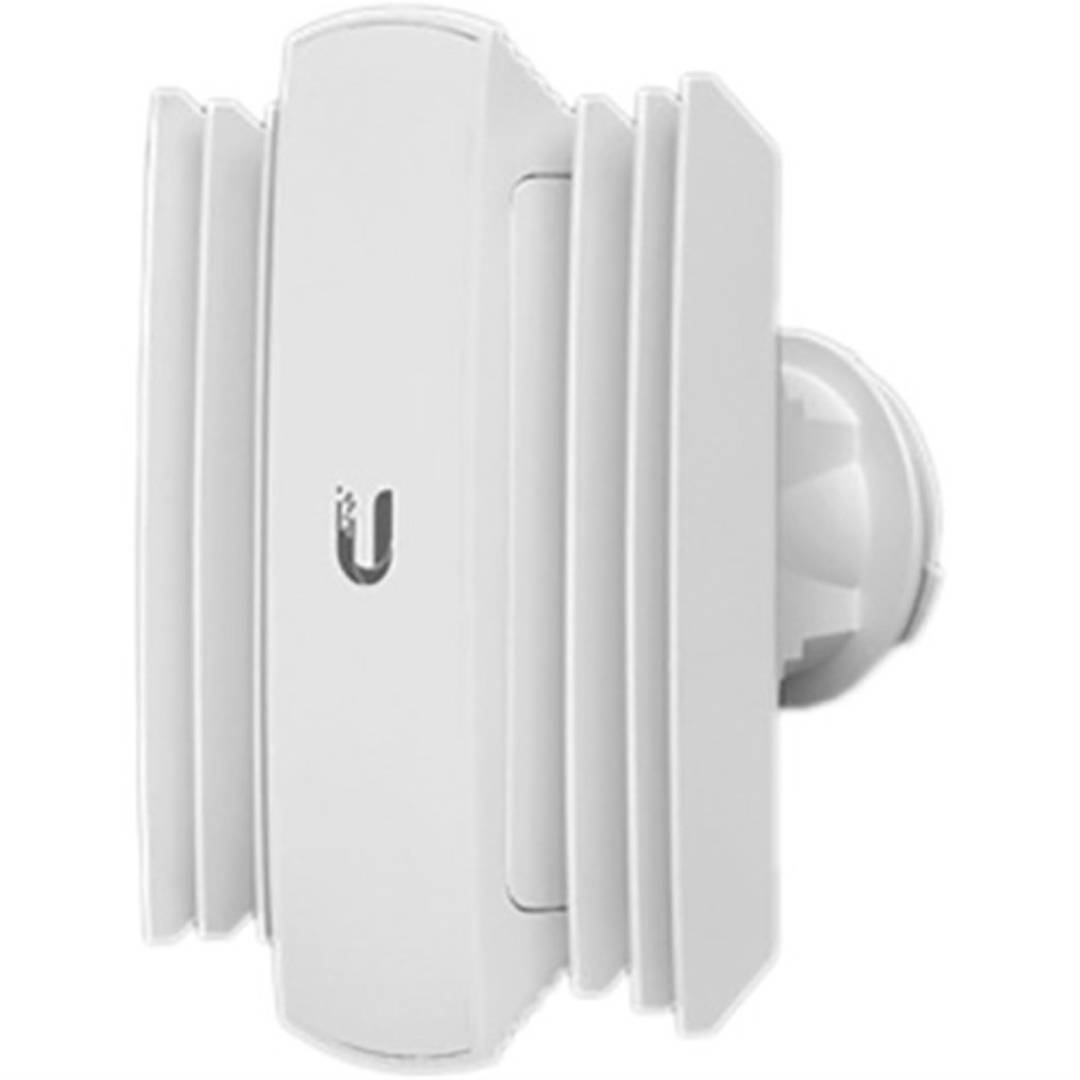

Ubiquiti Airmax antenna for Isostation and Prismstation HORN-5-90
REF: UI194
Specifications
  • Ubiquiti Networks HORN-5-90
  • Antenna gain (max): 13 dBi
  • Band frequency: 5.15 - 5.85 GHz
  • Horizontal Beam Width: 90°
  • Antenna Type: Horn Antenna
More info
PVP
78.13
Price including VAT: 78.13
PVD
75.13
Shipping costs: 98,75 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Only 4 units

More info
Specifications
  • Ubiquiti Networks HORN-5-90
  • Antenna gain (max): 13 dBi
  • Band frequency: 5.15 - 5.85 GHz
  • Horizontal Beam Width: 90°
  • Antenna Type: Horn Antenna

Keywords

Did not find what you were looking for? These topic could help you

More info

Dual polarized Ubiquiti horn antenna with a maximum gain of 13 dBi. It is designed to operate in a frequency range between 5.15 and 5.85 GHz, with a horizontal beam angle of 90° and a Voltage Standing Wave Ratio (VSWR) of 2:1. Its size is 152.1 mm wide, 113.2 mm deep and 186.8 mm high. These antennas are sold individually. Manufactured by Ubiquiti with reference HORN-5-90.

Specifications
  • Ubiquiti Networks HORN-5-90
  • Antenna gain (max): 13 dBi
  • Band frequency: 5.15 - 5.85 GHz
  • Horizontal Beam Width: 90°
  • Antenna Type: Horn Antenna
  • Polarization: Dual Polarization
  • Voltage Standing Wave Ratio (VSWR): 2:1
  • Width: 152.1mm
  • Depth: 113.2mm
  • Height: 186.8mm
  • Quantity per package: 1 pc(s)
  • Ubiquiti manufacturer reference: HORN-5-90
  • Ideal for improving the wireless signal in open environments, high-gain wireless connections, WISP networks, etc.
  • Compatible with Ubiquiti 5GHz wireless radio equipment.
  • RP-SMA connector.
  • High performance horn design, with up to 13 dBi gain.
  • White color.
  • 802.11a/n technology.
  • Gross Weight: 1.0 kg
  • Number of packages: 1
  • Master-pack: 1

Technical terms

  • Hz
  • dBi
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
