USB to RS-232 Titan PRO (1-Port DINRAIL)
REF: UB082
Specifications
  • Maximum speed of 921.6Kbps.
  • No power supply required.
  • 128-byte FIFO.
  • RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
  • Driver compatible with Windows and Linux environments.
play_button Watch video
More info
PVP
113.83
Price including VAT: 113.83
PVD
95.30
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Maximum speed of 921.6Kbps.
  • No power supply required.
  • 128-byte FIFO.
  • RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
  • Driver compatible with Windows and Linux environments.

More info

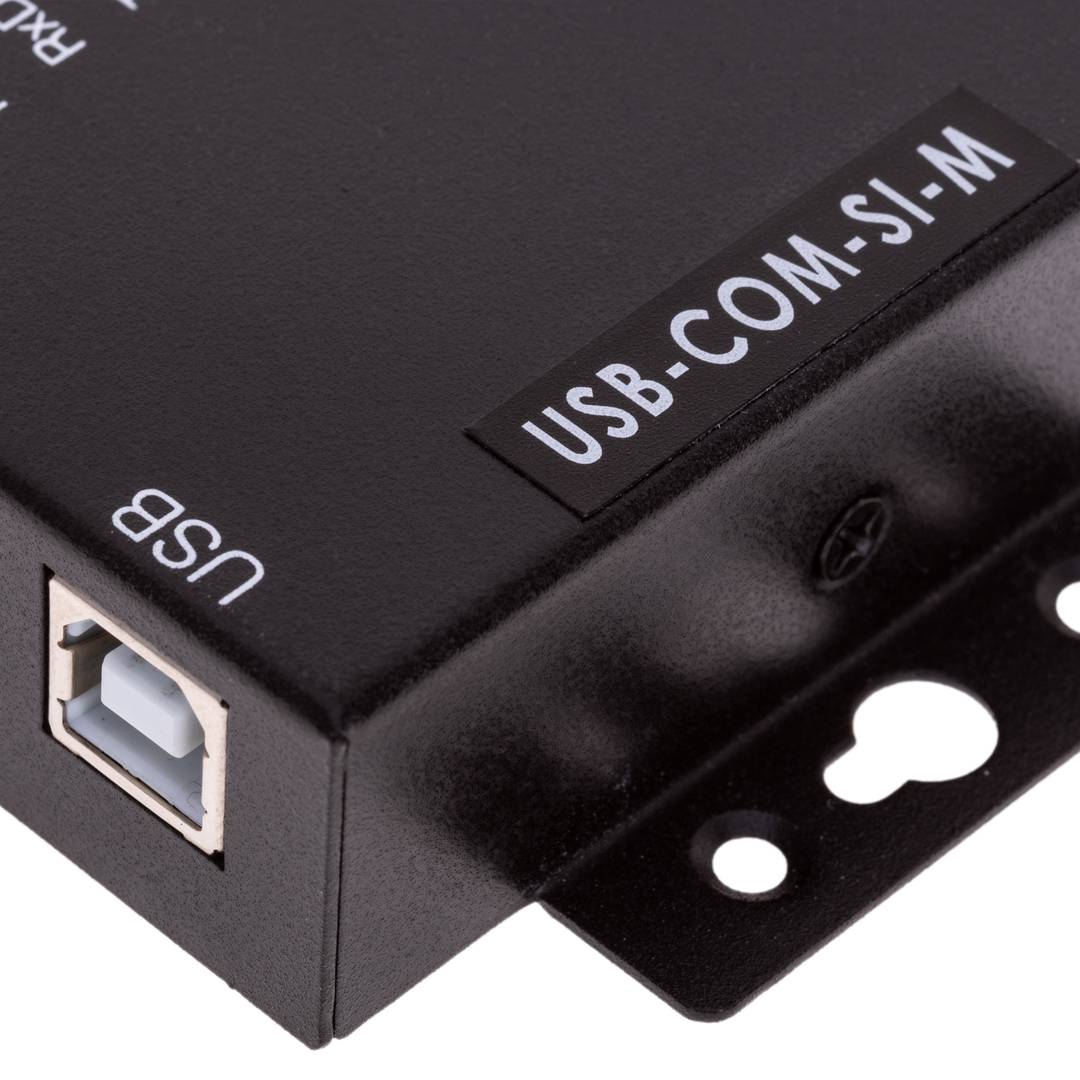

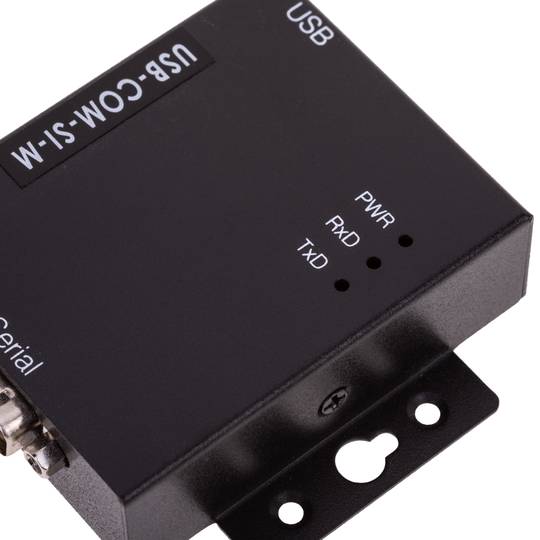

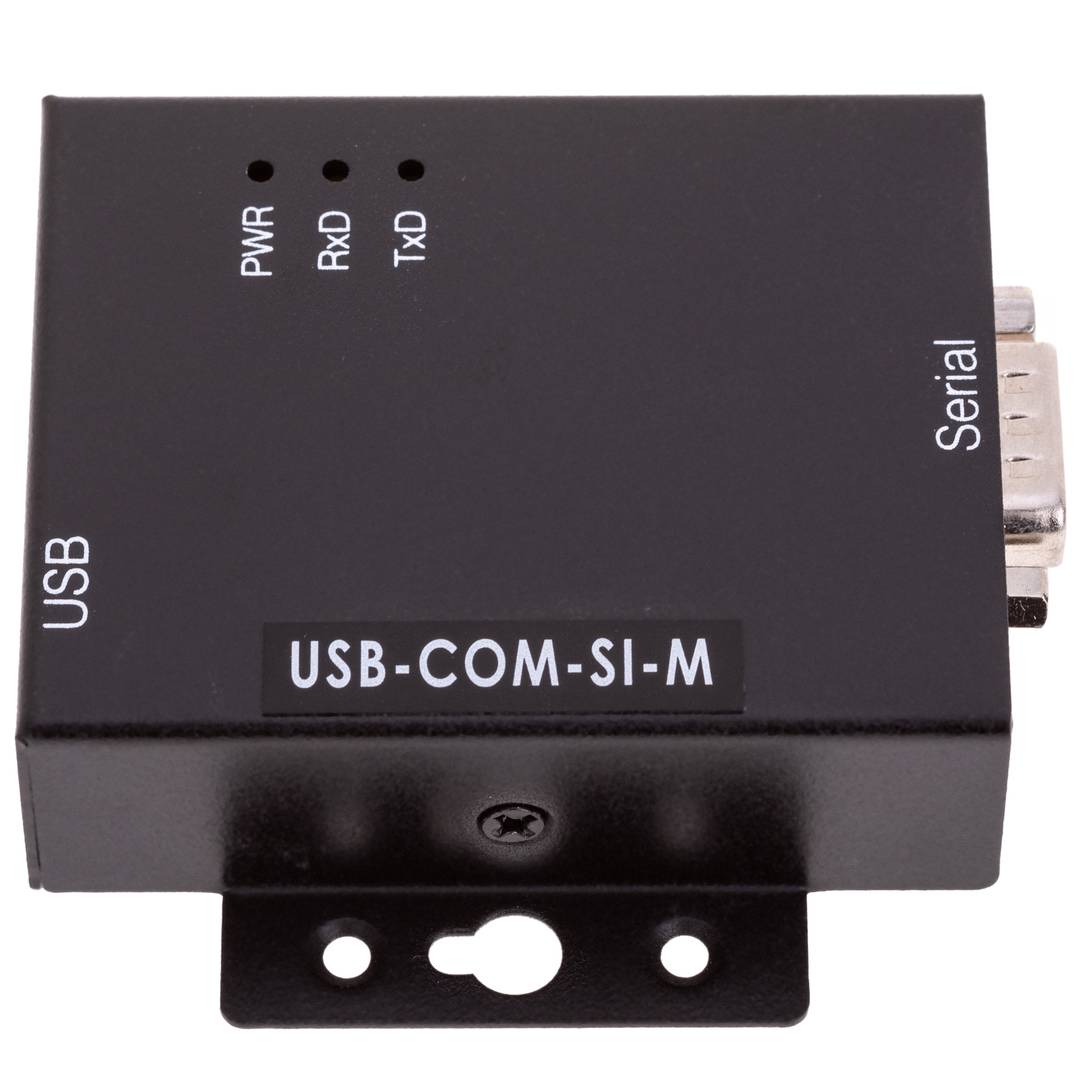

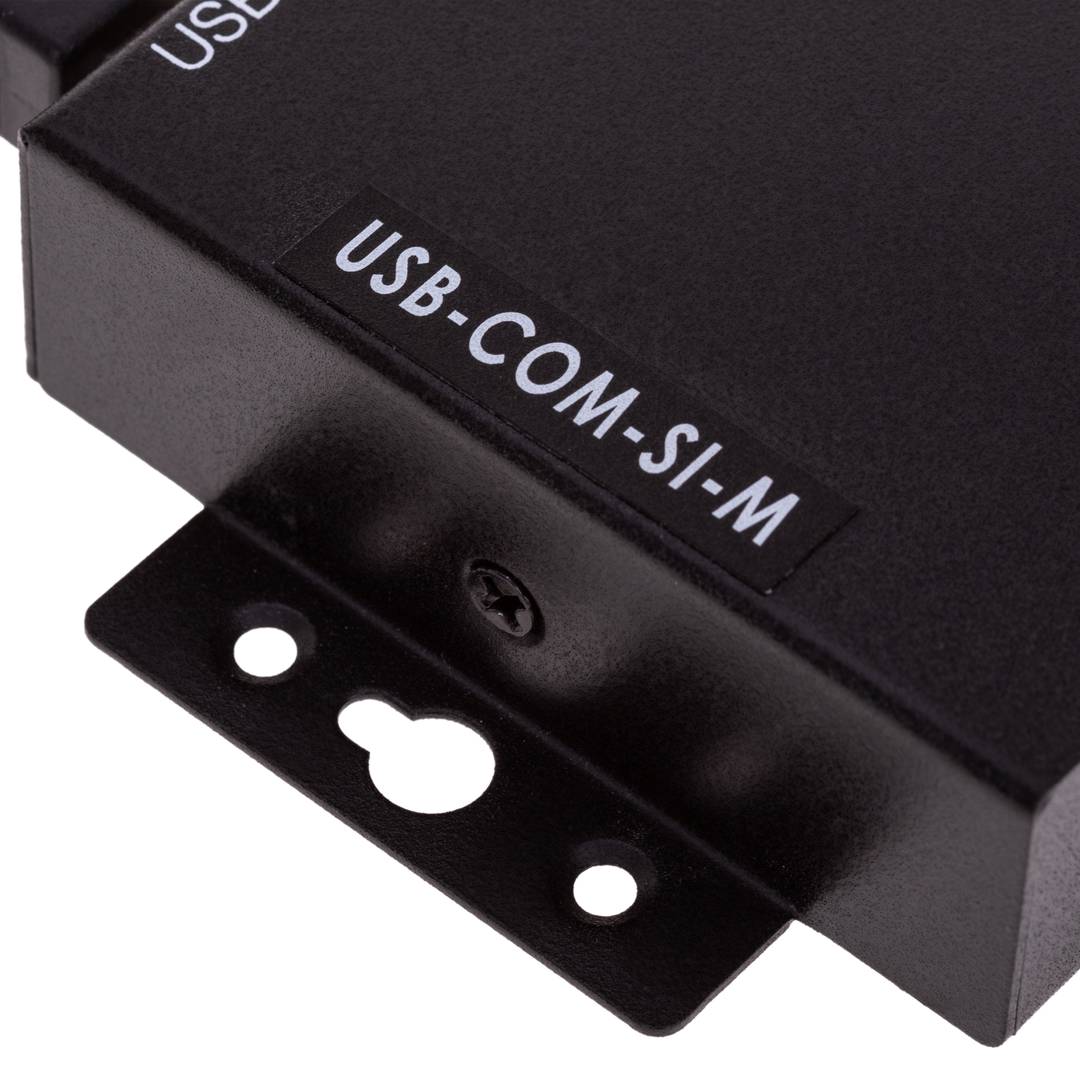

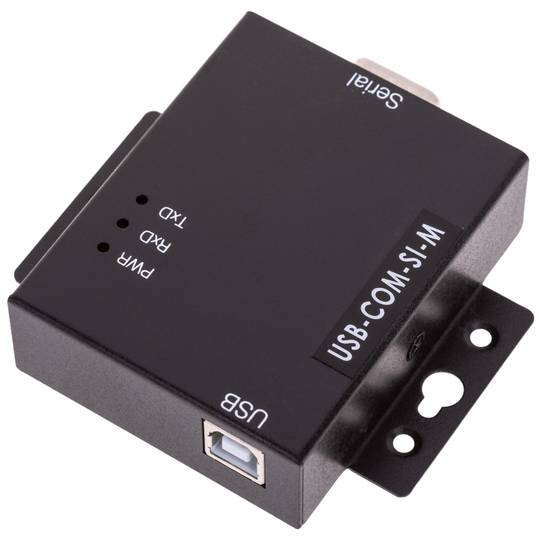

USB to RS232 serial port adapter in industrial DIN rail format. It is a robust converter mounted in a metal case.

Specifications

  • Maximum speed of 921.6Kbps.
  • No power supply required.
  • 128-byte FIFO.
  • RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
  • Driver compatible with Windows and Linux environments.

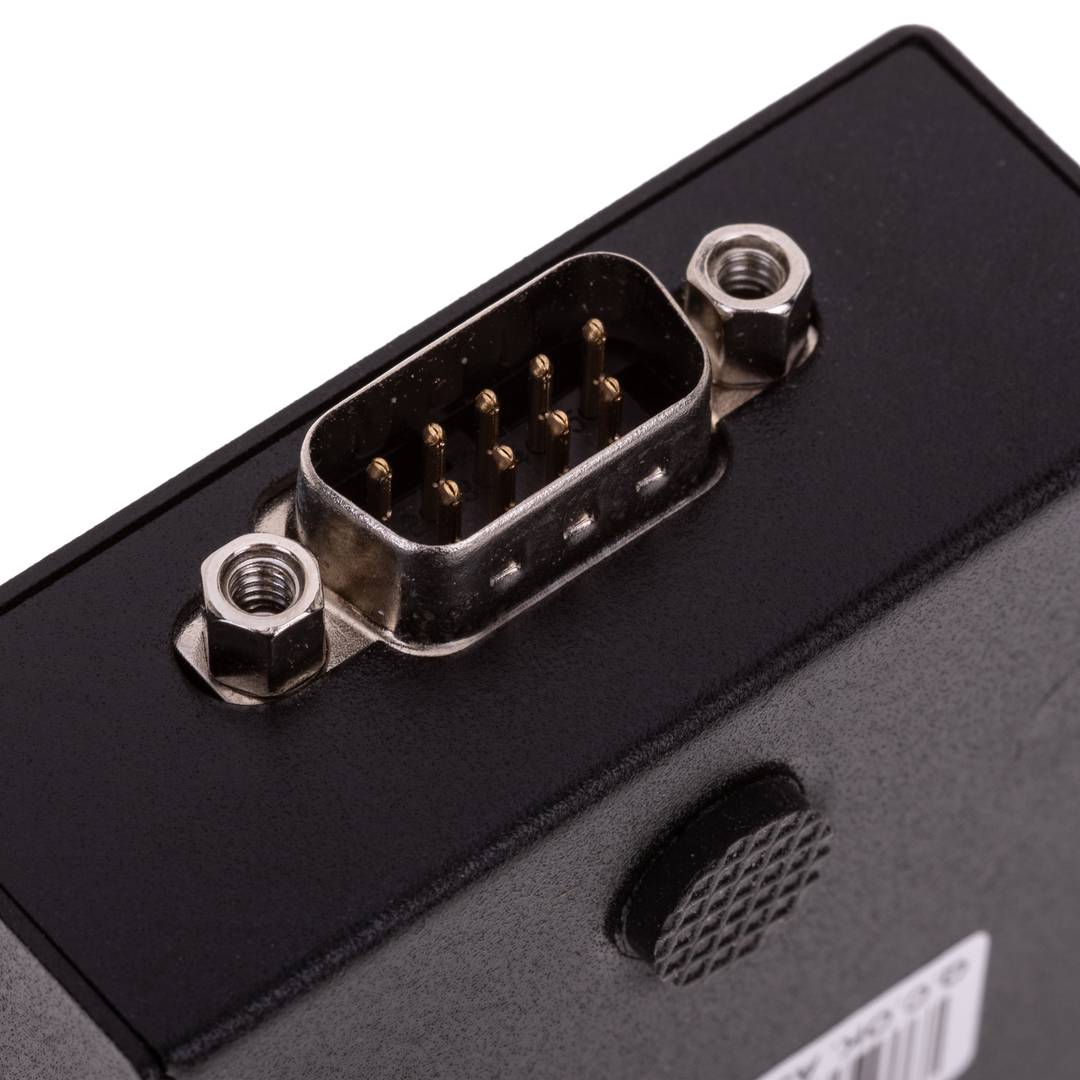

  • It has 1 x DB9-Male.
  • Case size: 57 x 72 x 22 mm.
  • Size with ears and connectors: 82 x 77 x 22 mm.
  • Discharge protection: 25KV.
  • Optical isolation: 2000V.
  • Gross Weight: 270 g
  • Number of packages: 1

Videos

play_button Watch video

Technical terms

  • USB
  • MicroUSB
  • Mini USB
  • Communication Series
  • USB 3.0
  • Reversible USB Type-C
  • RS232
  • DIN
  • DIN Rail
USB
The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)
