Wheelbarrow wheel 210 lbs 16x4" 406x102 mm. Replacement tyre for transport platform
REF: QR104
Specifications
  • Inflatable pneumatic wheel for carts, wheelbarrows and transport platforms. Ideal as a replacement for punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
  • 210 lbs (95 Kg) maximum load at 30 psi (2.07 bar) cold pressure.

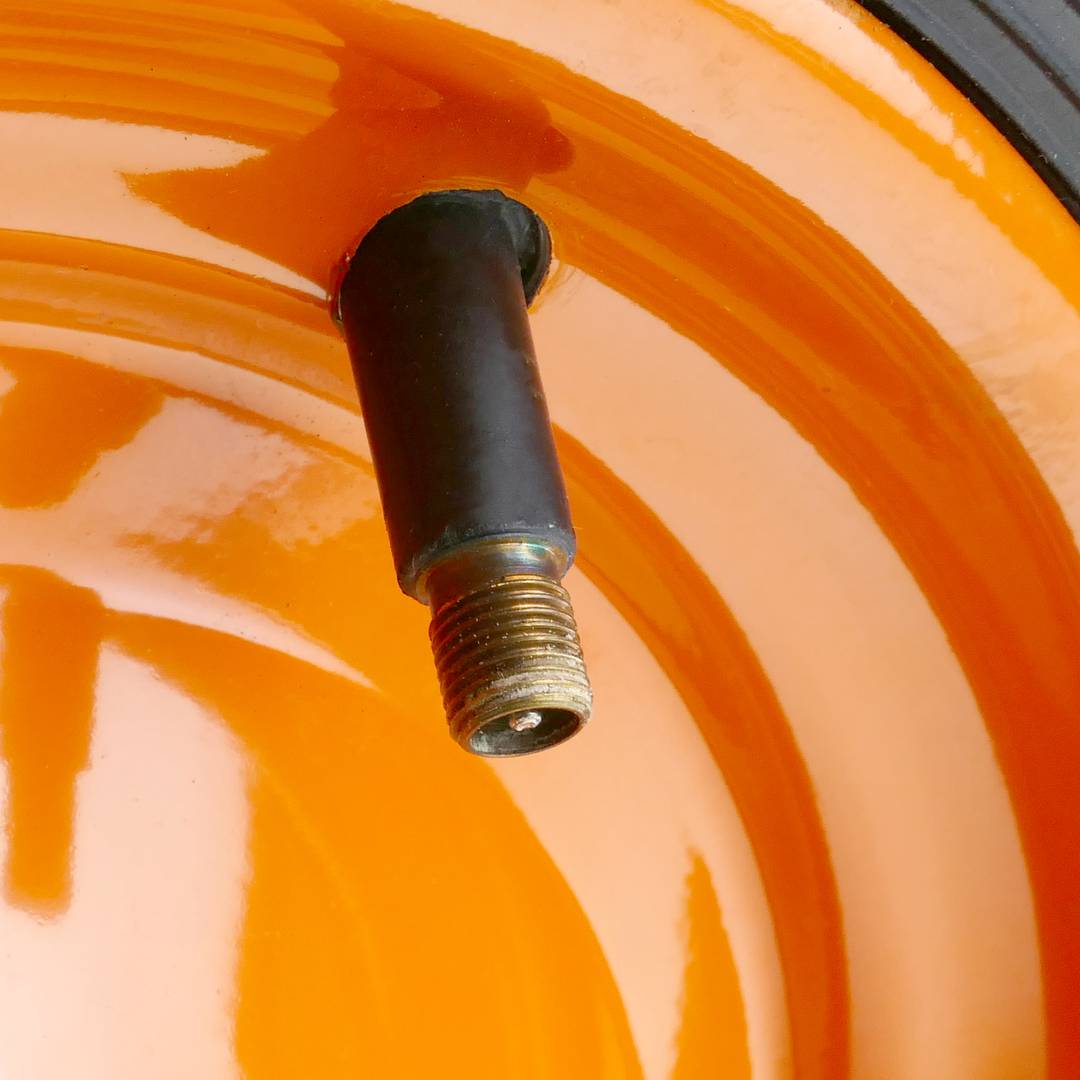

  • Schrader type inflation valve (the same model used by car wheels).

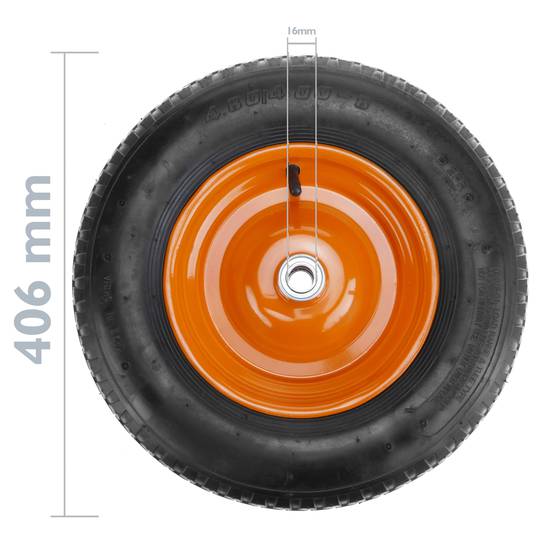

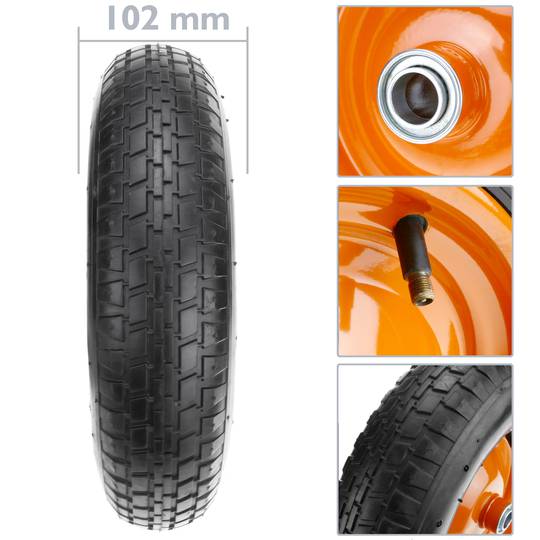

  • Wheel size (diameter x width): 16 x 4 inches (406 x 102 mm).

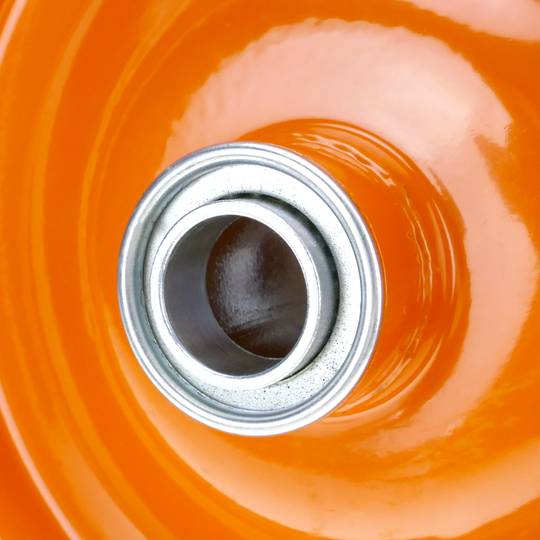

  • Orange metal rim. Hub diameter (center axis): 16 mm. Hub Length: 91mm.
play_button Watch video
More info
PVP
26.46
Price including VAT: 26.46
PVD
23.37
Shipping costs: 32,28 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Available more than 10

More info
Specifications
  • Inflatable pneumatic wheel for carts, wheelbarrows and transport platforms. Ideal as a replacement for punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
  • 210 lbs (95 Kg) maximum load at 30 psi (2.07 bar) cold pressure.
  • Schrader type inflation valve (the same model used by car wheels).
  • Wheel size (diameter x width): 16 x 4 inches (406 x 102 mm).
  • Orange metal rim. Hub diameter (center axis): 16 mm. Hub Length: 91mm.

Keywords

Did not find what you were looking for? These topic could help you

More info

Inflatable pneumatic wheel for carts, wheelbarrows and transport platforms. Ideal as a replacement for punctured or worn wheels.

Specifications
  • Inflatable pneumatic wheel for carts, wheelbarrows and transport platforms. Ideal as a replacement for punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
  • 210 lbs (95 Kg) maximum load at 30 psi (2.07 bar) cold pressure.
  • Schrader type inflation valve (the same model used by car wheels).
  • Wheel size (diameter x width): 16 x 4 inches (406 x 102 mm).
  • Orange metal rim. Hub diameter (center axis): 16 mm. Hub Length: 91mm.
  • Gross Weight: 2.3 kg
  • Product size (width x depth x height): 40.6 x 10.2 x 40.6 cm
  • Number of packages: 1
  • Packages size: 40.6 x 40.6 x 10.2 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Types of fixing for wheels
Types of fixing for wheels
Depending on the need for installation and type of base, trolley or chair, we can find various types of fixation. Among the most common we find:

A - Through hole: It has a hole in which a screw or stem is inserted. It is a very simple installation system. Ideal for wheels that should not support a lot of load.
B - Threaded stem: It has a threaded stem or nut, it is fixed to the surface with a nut. It is usually the most used fastening system.
C - Angular plate: They are usually less used fastening systems, they have lateral plates to fix on the base.
D - Plate: It has a rectangular or square plate on its surface, it includes 4 or more fastening holes to the base, it is one of the most common.
E - Smooth stem: The stem without thread is inserted into the female of the base, we can find it in the typical office chairs with wheels, TV furniture etc ...
