Wireless Microphones with 2-channel receiver UHF 600-920MHz Programmable groups G1 G2 rack
Wireless Microphones with 2-channel receiver UHF 600-920MHz Programmable groups G1 G2 rack
REF: XW001
Specifications
- Two microphones UHF 600-920 MHz range are supplied.
- RF output power: 15 mW.
- Dynamic sound.
- Frequency Response: 50Hz to 15 kHz.
- Built-in antenna inside the micro.
![play_button]()
Watch video
More info
Watch video
PVP
€252.11
Price including VAT:
€252.11
PVD
€209.27
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Two microphones UHF 600-920 MHz range are supplied.
- RF output power: 15 mW.
- Dynamic sound.
- Frequency Response: 50Hz to 15 kHz.
- Built-in antenna inside the micro.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
Professional wireless microphone system with transmission in the UHF band and with 2 microphones. This is a kit that includes the receiving unit and two wireless microphones. Format desktop and rack 19 ".

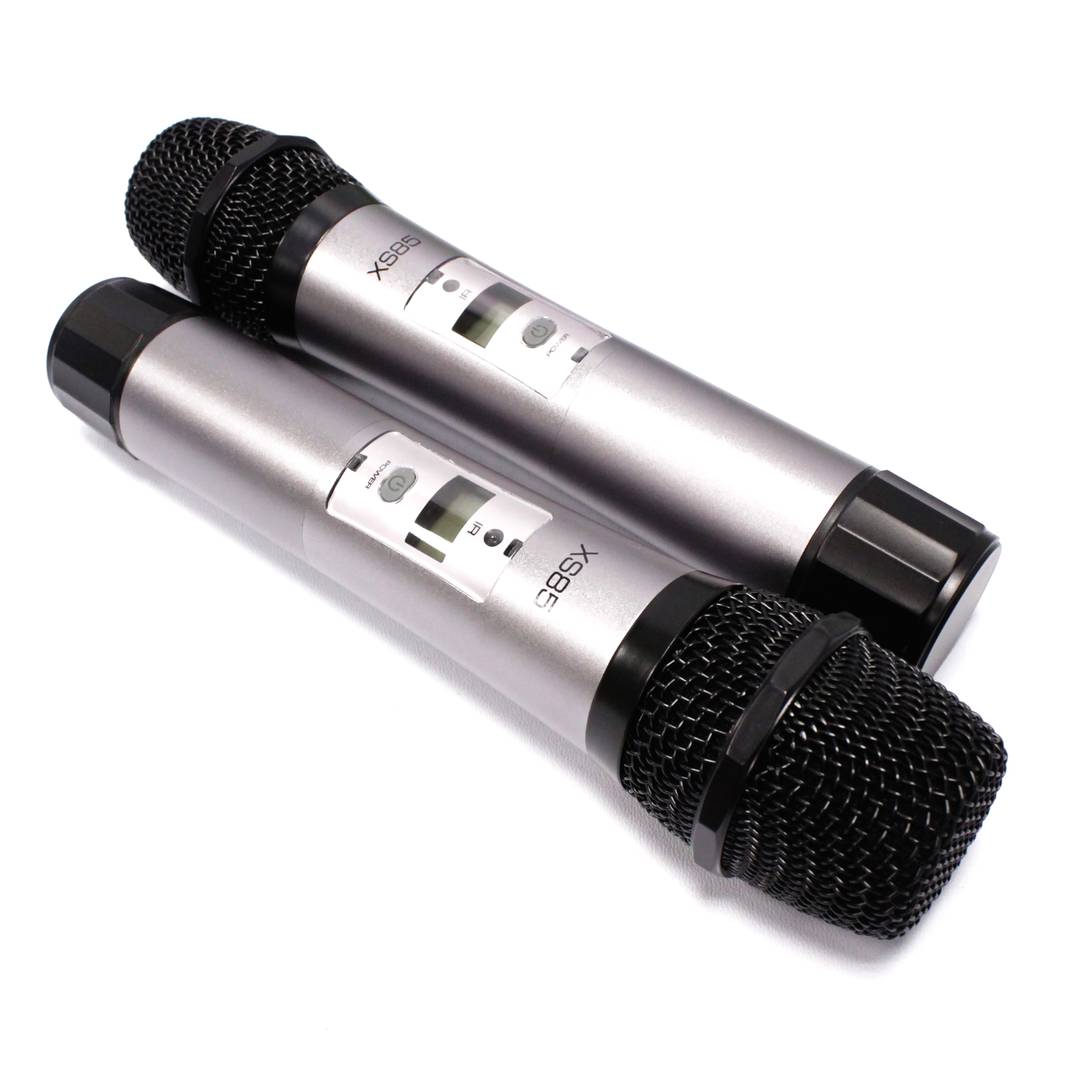

Microphone Specifications
- Two microphones UHF 600-920 MHz range are supplied.
- RF output power: 15 mW.
- Dynamic sound.
- Frequency Response: 50Hz to 15 kHz.
- Built-in antenna inside the micro.
- It Requires 2 AA batteries 1.5 VDC (not included).
- Size in mm: 51 (diameter) x 225 (length).
- Weight: 280 g.
- It has control button and LCD display
- Soft and contoured design lines.
- Consumption: 35 mA.

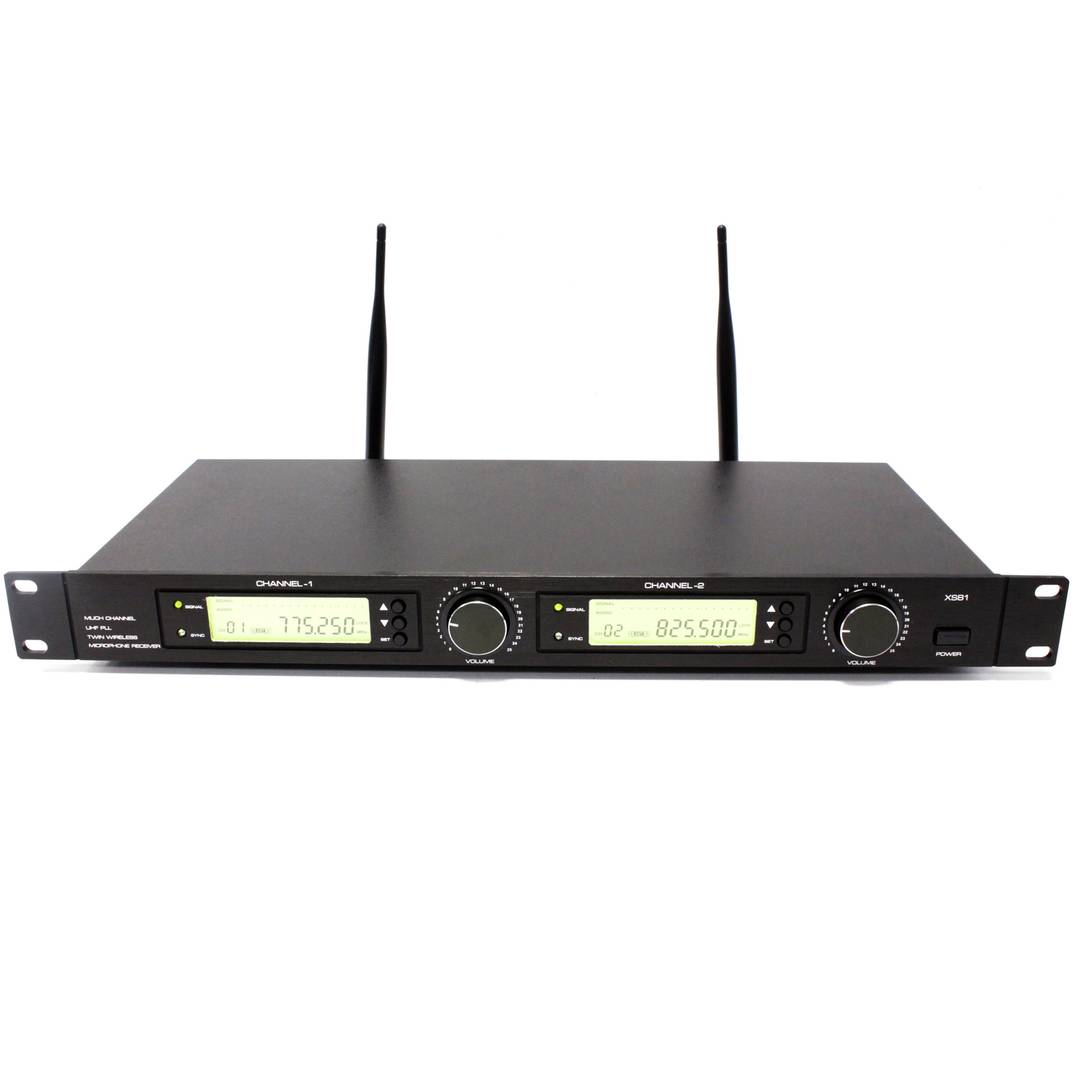

Receiver Specifications
- UHF carrier frequency: 600-920 MHz.
- Oscillation: PLL synthesized.
- Operating channels 100 channels x 2 microphones. Total 200 programmable channels. Compatible with microphones G1 and G2 (models #XW10, XW11 #, #and #XW15 XW14) groups.
- Frequency response: 50 Hz - 15 kHz.
- S/N: 95 dB.
- Modulation: FM bandwidth.
- Maximum deviation range of 50 KHz.
- Radio coverage: approximately 100 m (depends ons environmental conditions).

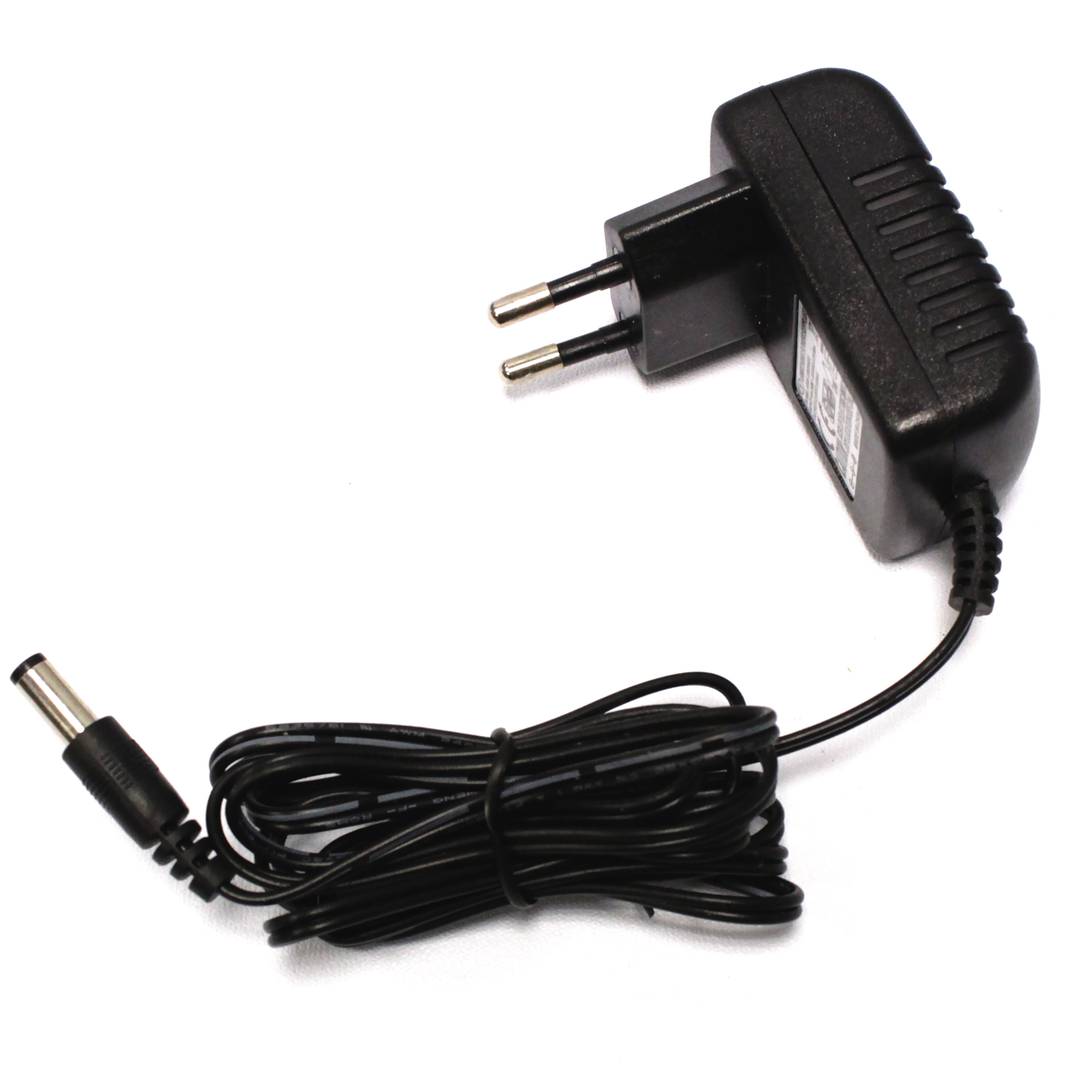

- It includes power supply 12 VDC (500 mA).
- Size: 480 x 240 x 55 mm.
- Front controls for each pickup: UP, DOWN and SET.
- Type potentiometer volume control, separately for each microphone.
- It has front display that shows the status of each of the microphones.

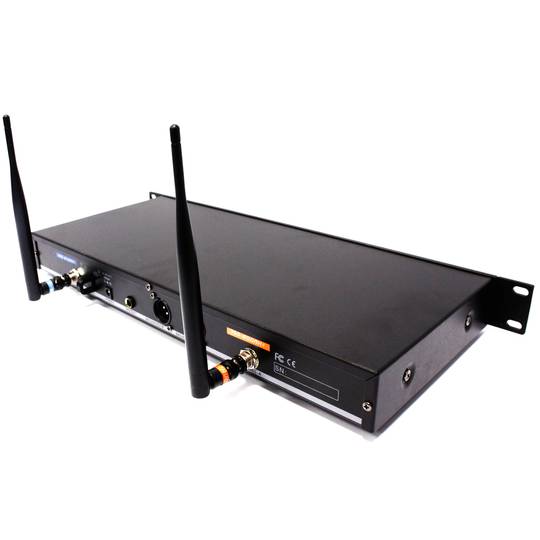

- Rear panel connectors for each pickup: 2 adjustable antennass extensible, 2 XLR 3-pin connectors (balanced audio output), and 1 jack 6.3 "(unbalanced audio output).
- 1 connector 6.3 mm female jack for audio output unbalanced mixed according to the volume of each microphone.
- Tabs supplied rack 19 "for installation in rack cabinet.
- Possibility of acquiring additional microphones (models #XW10, XW11 #, #and #XW15 XW14).
- Gross Weight: 3.8 kg
- Number of packages: 1
Technical terms
- RACK 19
- XLR
- Hz
- UHF
- UHF band
- VDC
- Types of batteries
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
