4U 19" Outdoor Rack Cabinet IP55 White SOHORack GO 600x600x330 mm
4U 19" Outdoor Rack Cabinet IP55 White SOHORack GO 600x600x330 mm
REF: WX070
NEW
Specifications

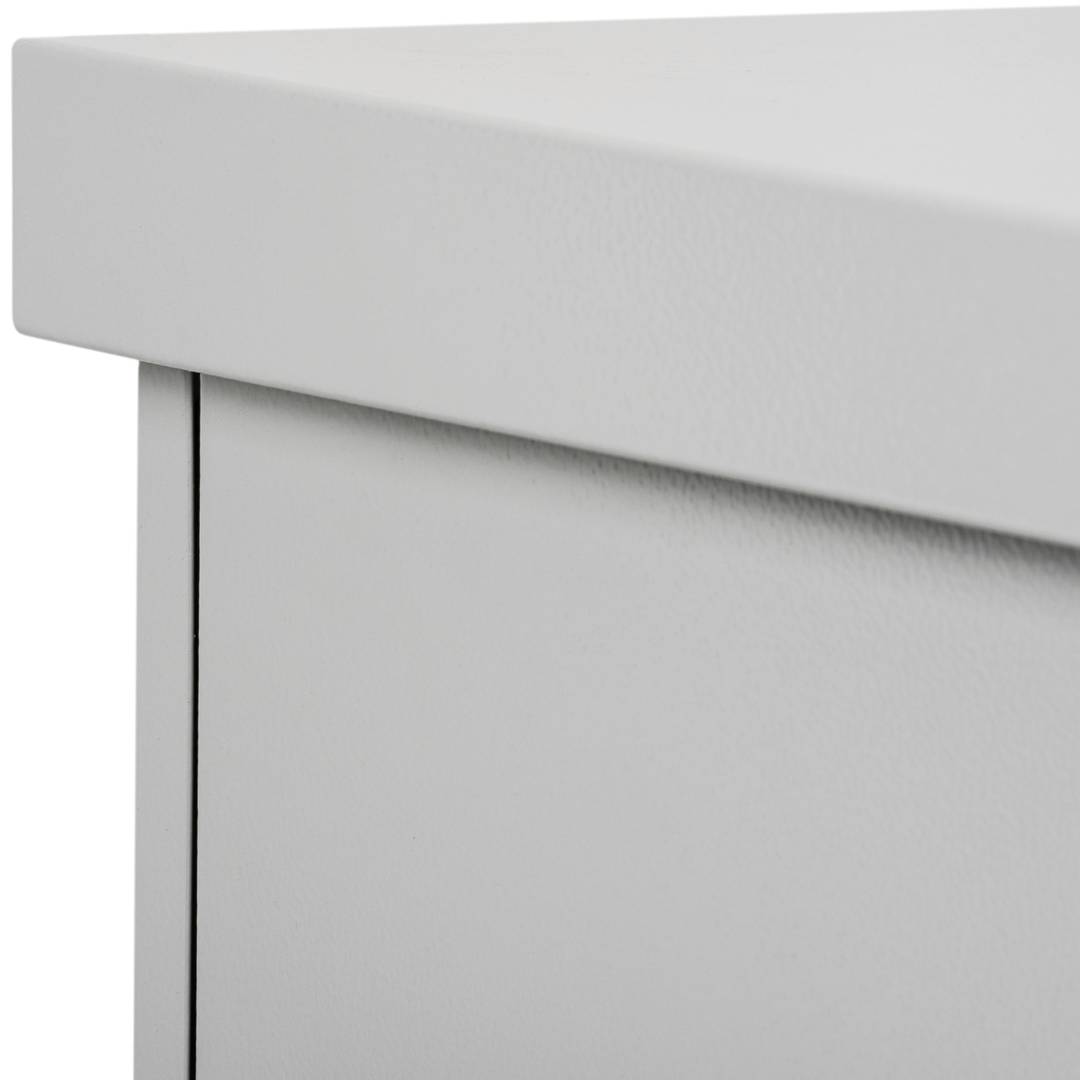

- Cold galvanized SPCC steel structure, 1.5 mm thick, with a polyester paint finish RAL 7035 that is highly resistant to UV rays and corrosion (UNE-EN 62208).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.

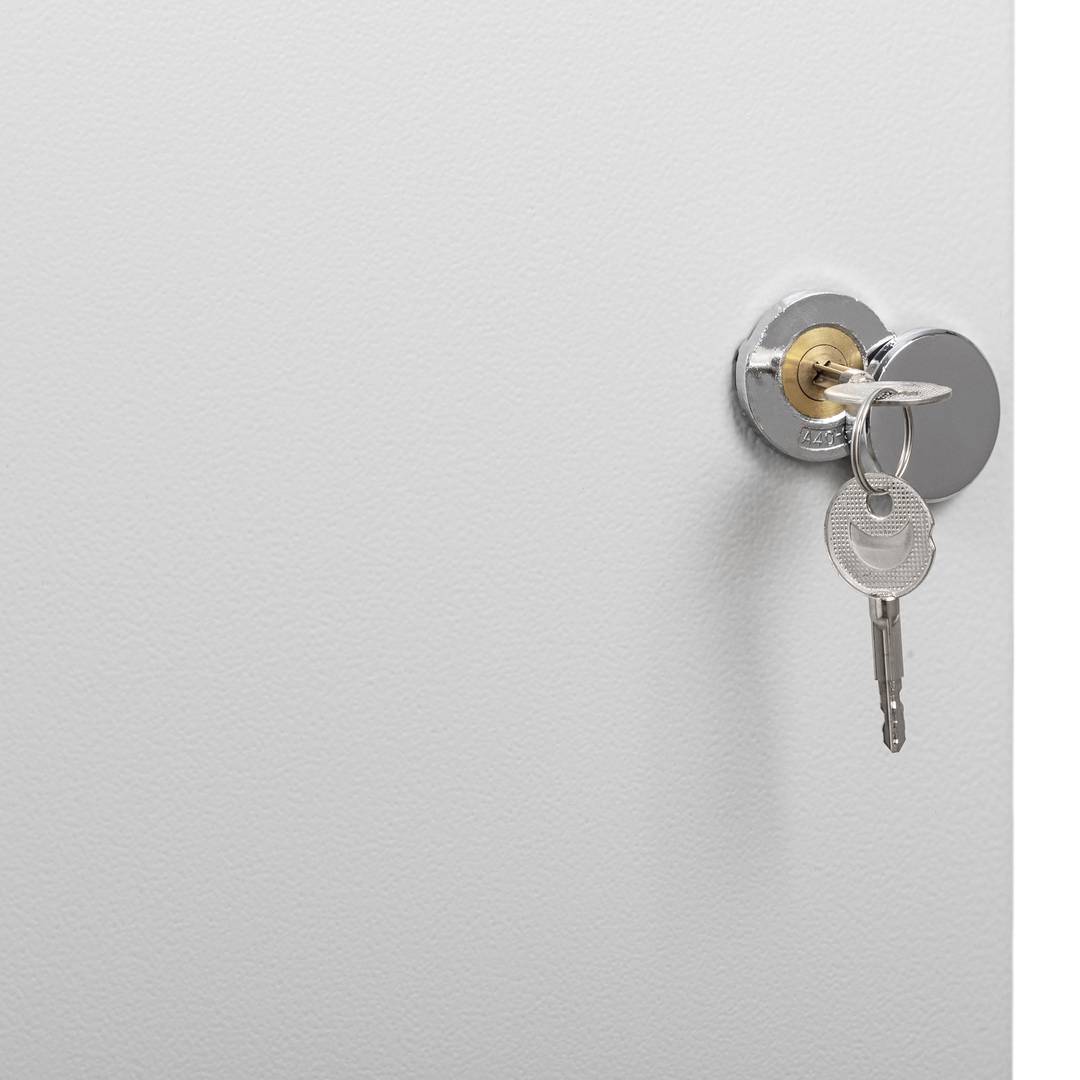

- Reversible opaque door with opening angle greater than 110º, equipped with a keyed security lock and integrated protective cover.
- For cable passage, holes must be made in the desired location and diameter; it is recommended to use cable glands for greater watertightness.

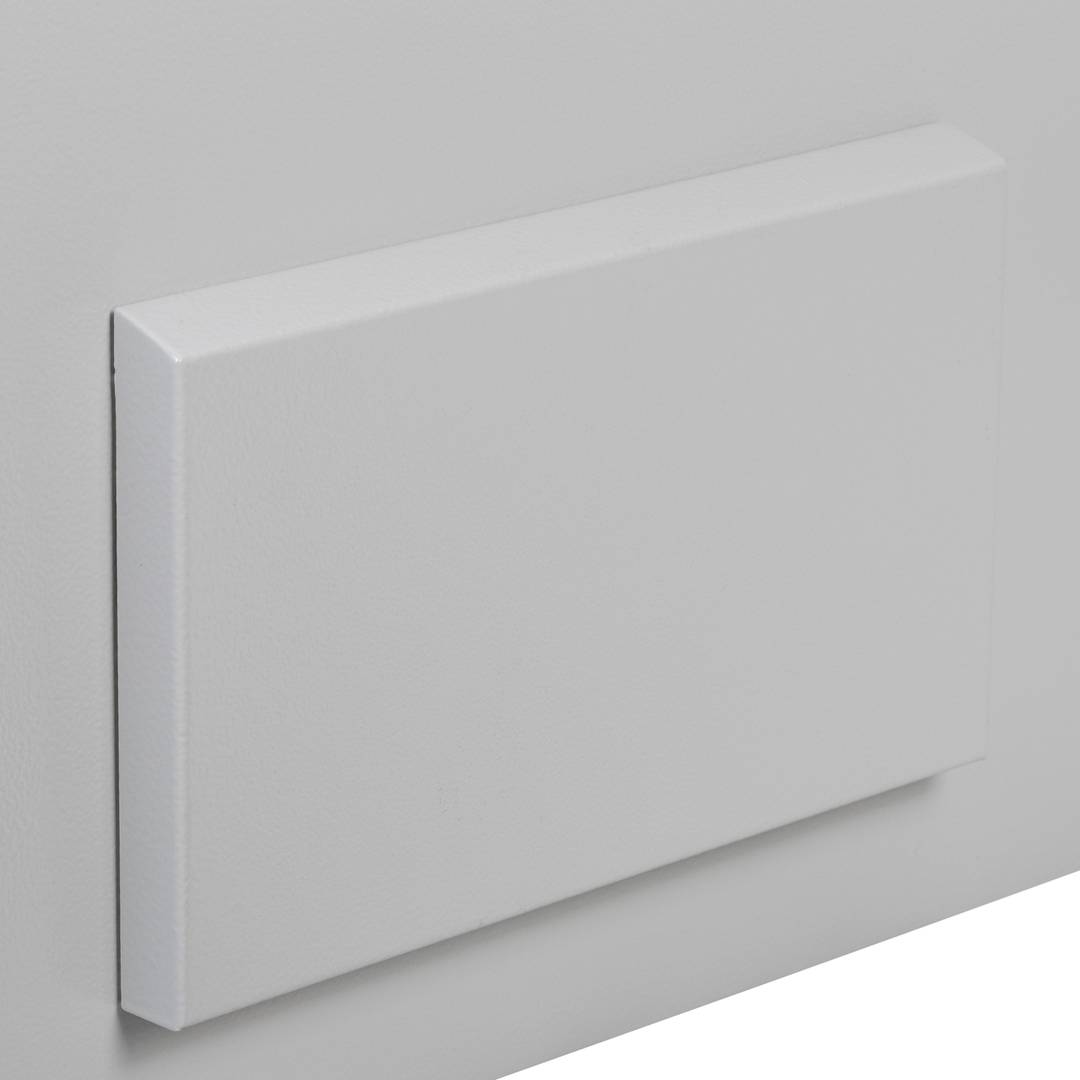

- Ventilation system through side windows with internal protective mesh.
![play_button]()
Watch video
More info
Watch video
PVP
€407.32
Price including VAT:
€407.32
PVD
€318.22
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
NEW
Specifications
- Cold galvanized SPCC steel structure, 1.5 mm thick, with a polyester paint finish RAL 7035 that is highly resistant to UV rays and corrosion (UNE-EN 62208).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.
- Reversible opaque door with opening angle greater than 110º, equipped with a keyed security lock and integrated protective cover.
- For cable passage, holes must be made in the desired location and diameter; it is recommended to use cable glands for greater watertightness.
- Ventilation system through side windows with internal protective mesh.
Related products
More info

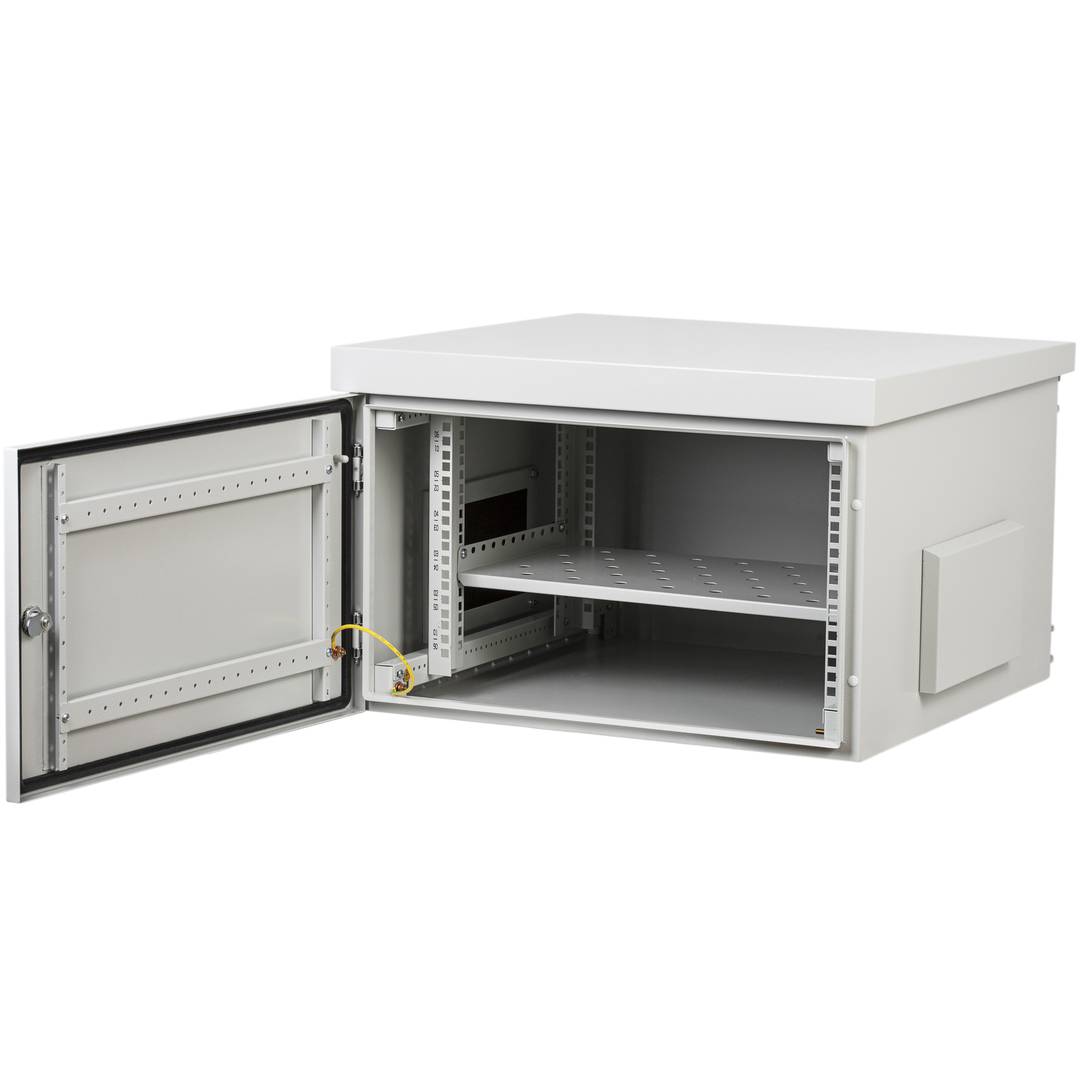

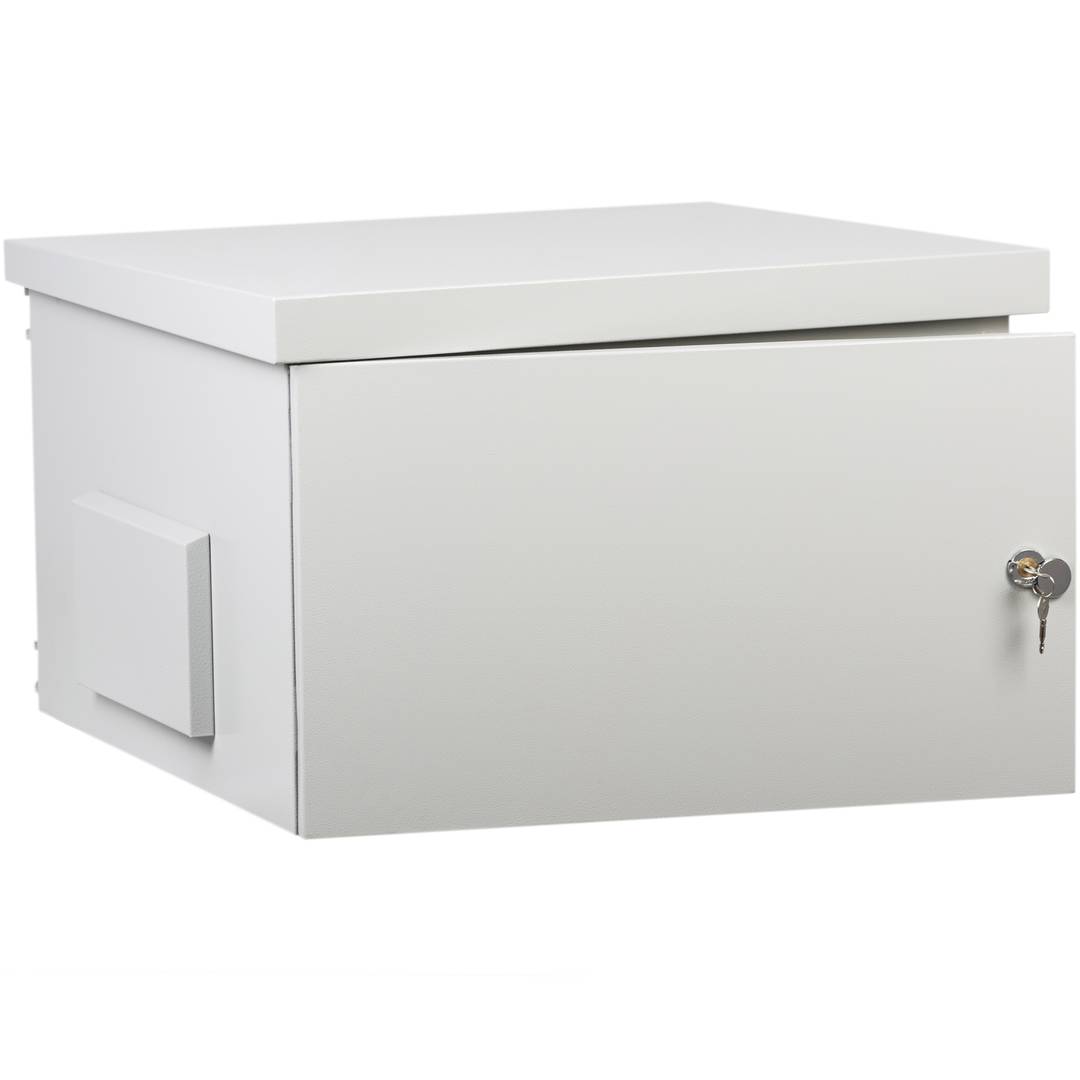

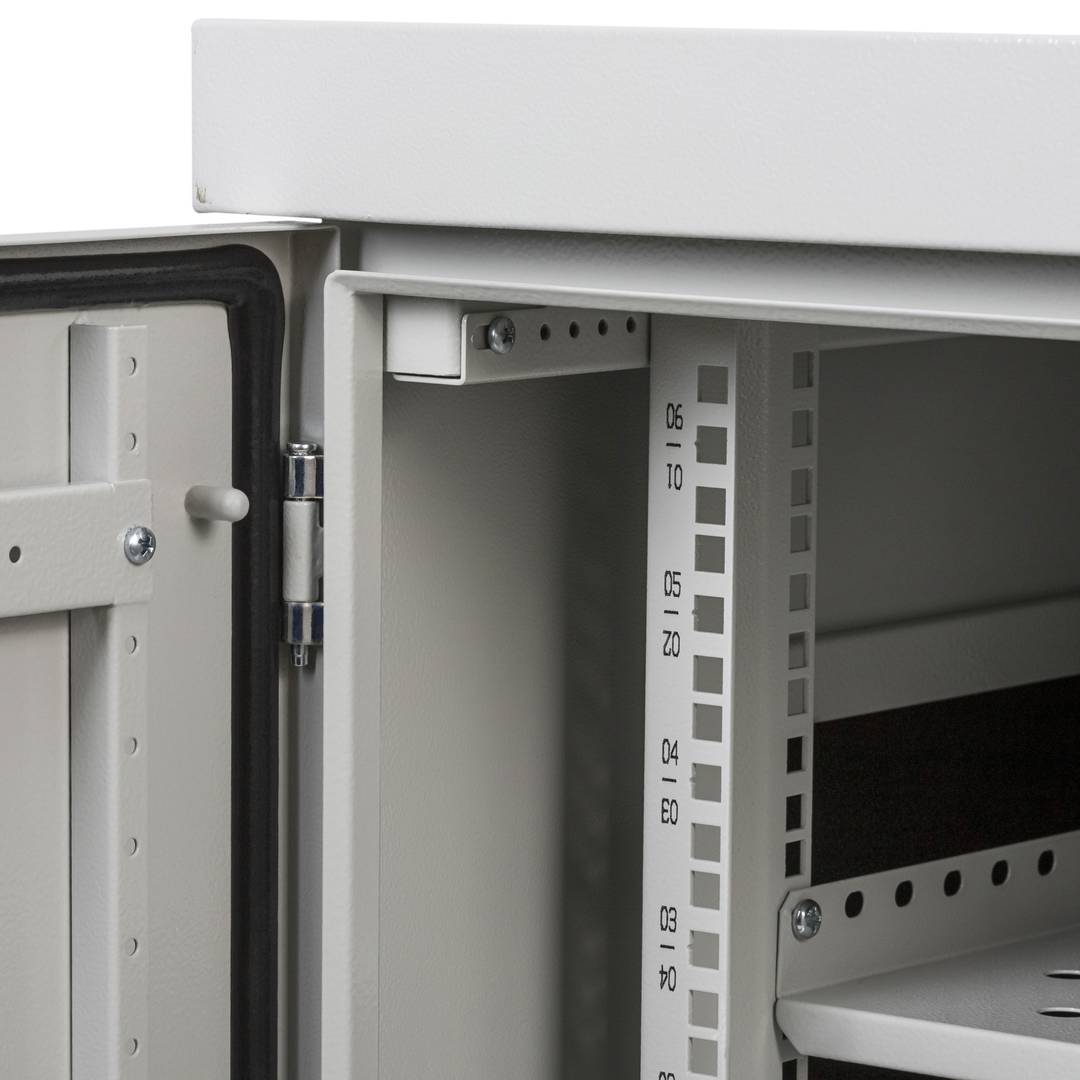

The SOHORack 19" rack cabinet is specifically designed for outdoor installations. This 4U wall-mounted model has external dimensions of 600 x 600 x 330 mm (width x depth x height). Constructed from 1.5 mm thick SPCC galvanized steel, it features a robust welded internal structure capable of supporting up to 800 kg of static load and guaranteeing complete weather protection thanks to its IP55 rating. Designed to house cabling, telecommunications, IT, and industrial equipment in outdoor environments.
Specs- Cold galvanized SPCC steel structure, 1.5 mm thick, with a polyester paint finish RAL 7035 that is highly resistant to UV rays and corrosion (UNE-EN 62208).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.
- Reversible opaque door with opening angle greater than 110º, equipped with a keyed security lock and integrated protective cover.
- For cable passage, holes must be made in the desired location and diameter; it is recommended to use cable glands for greater watertightness.
- Ventilation system through side windows with internal protective mesh.
- Ideal for industrial applications, telecommunications and automation.

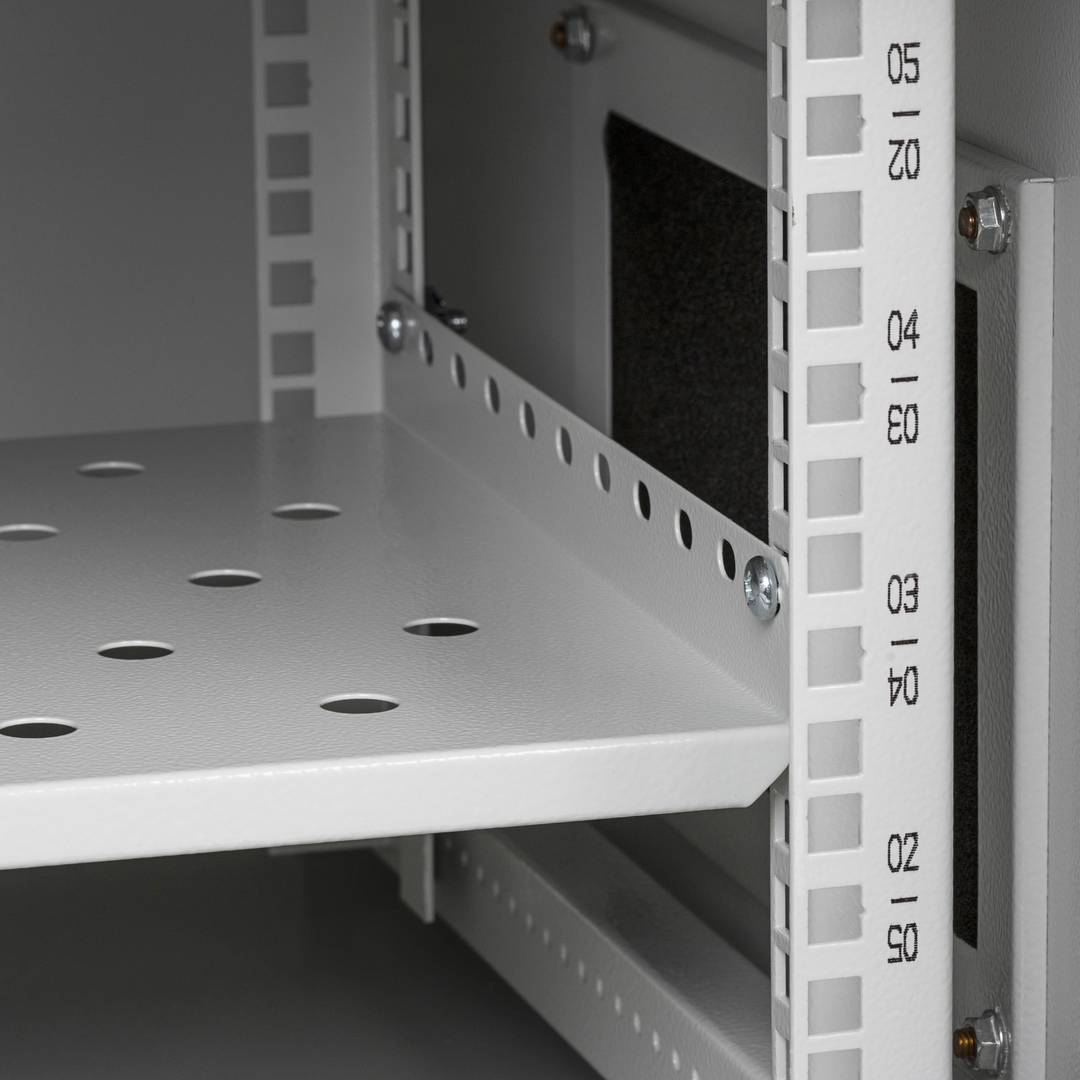

- Highly rigid welded metal internal structure that allows a maximum static load of 800 kg.

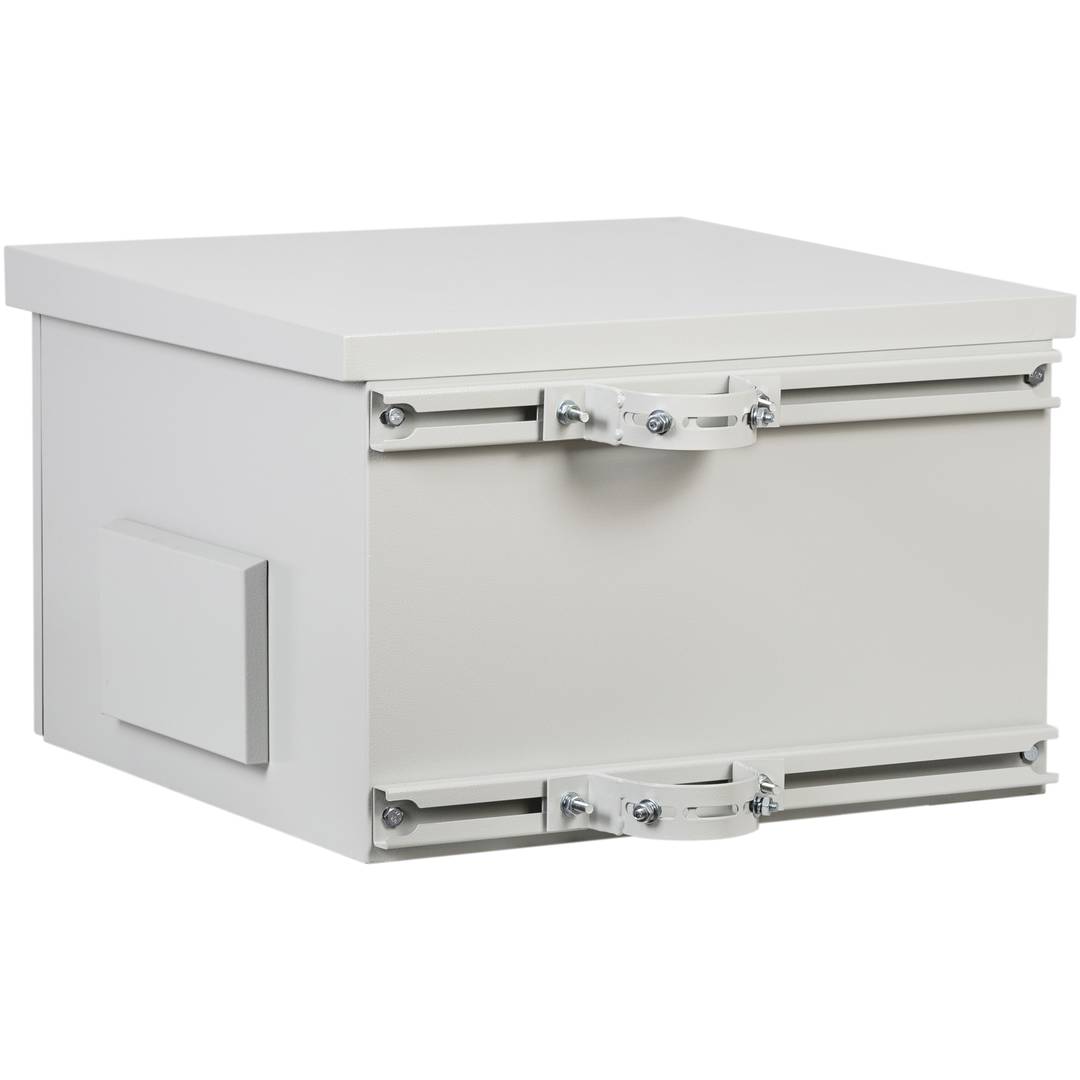

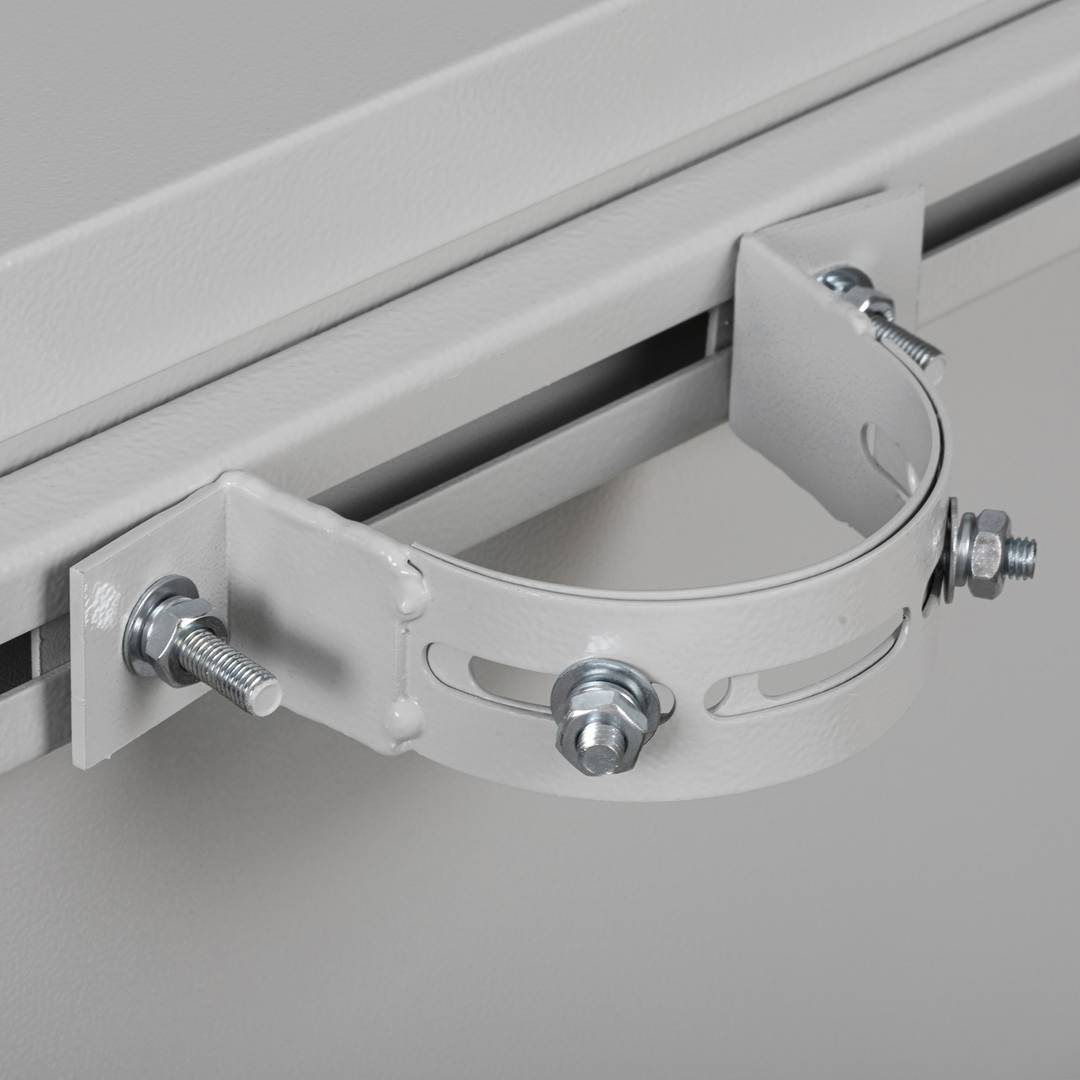

- Secure fixing using mounting hooks integrated into the back panel of the cabinet.
- Overall dimensions: 600 mm (width) x 600 mm (depth) x 330 mm (height).
- It meets international manufacturing and mechanical resistance standards for electrical enclosures.
- Gross Weight: 31.0 kg
- Product size (width x depth x height): 64.0 x 64.0 x 33.0 cm
- Number of packages: 1
- Packages size: 67.0 x 63.0 x 33.0 cm
Technical terms
- RACK 19
- IP Protection
- Rack unit (U)
- Galvanized
- Polyurethane (PU or PUR)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
