Active Extender UTP Video Transmitter Cat.5 for TTA111VT
Active Extender UTP Video Transmitter Cat.5 for TTA111VT
REF: SI033
Specifications

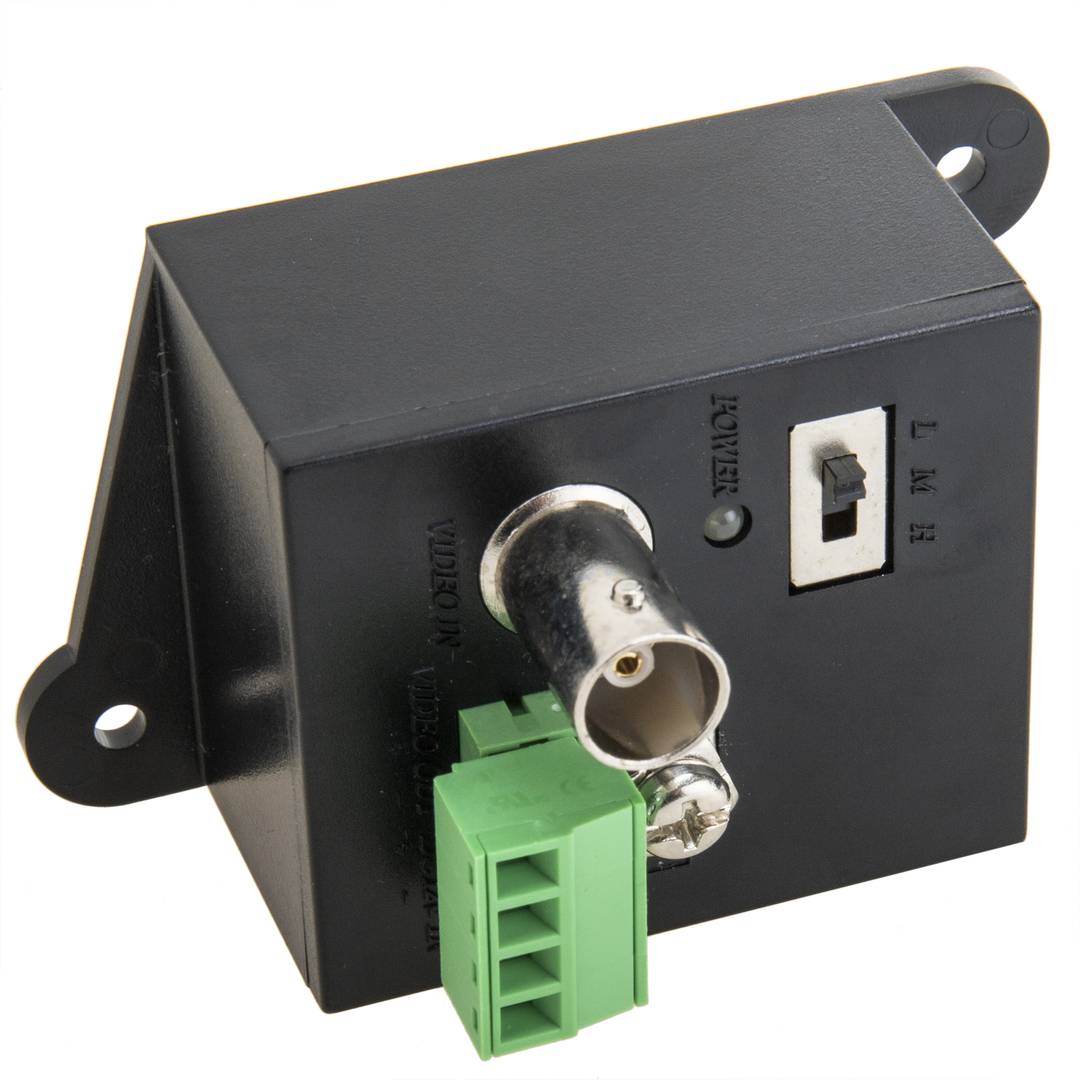

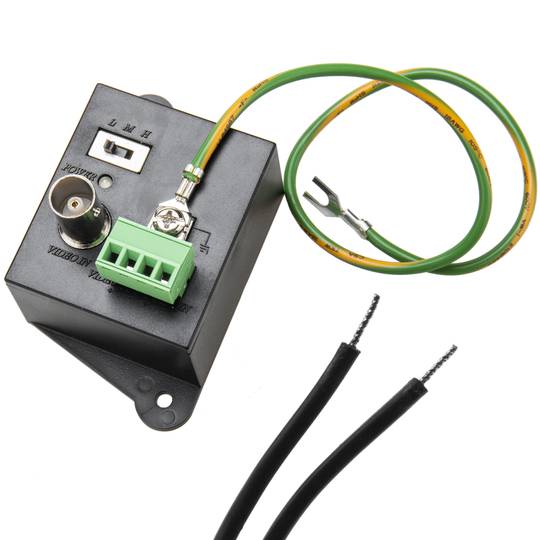

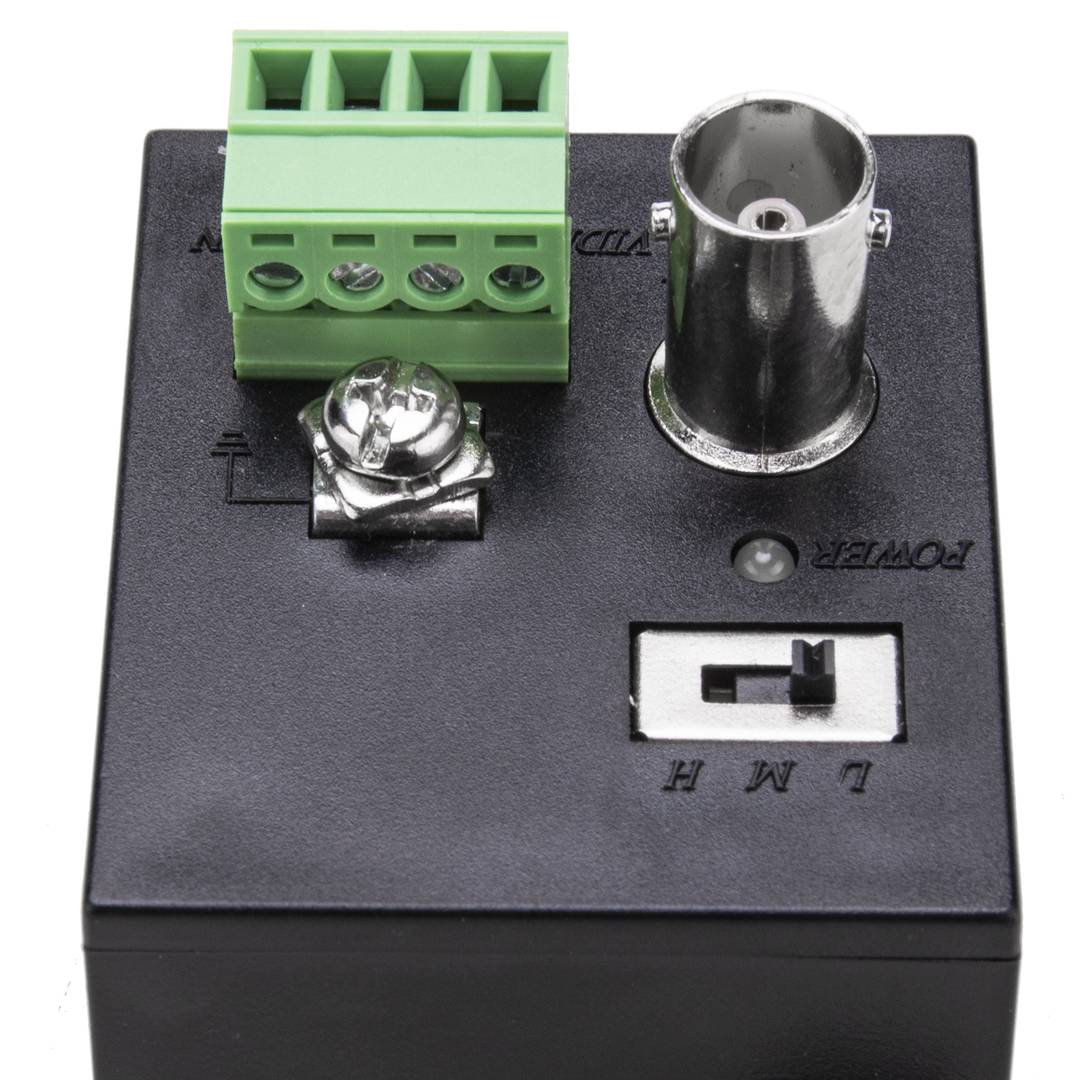

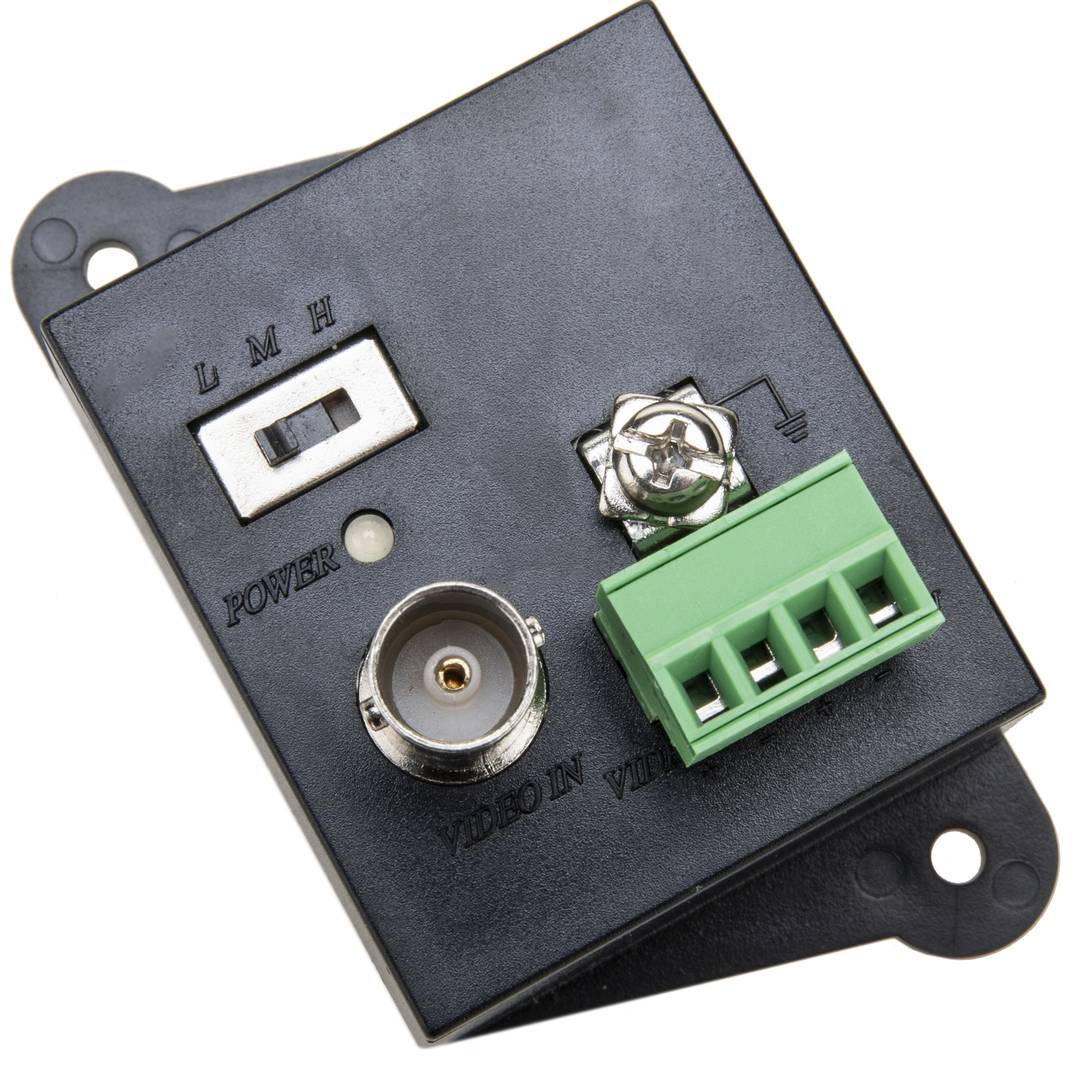

- Active video composite extender
- Small module mounted in plastic housing of size: 49 x 42 x 45 mm.
- Transmitter module (video-IN, UTP-OUT).
- It has a connectorBNC-Female for the composite video input.
- It has a Terminal Block for twisted pair cable connection.
![play_button]()
Watch video
More info
Watch video
PVP
€53.71
Price including VAT:
€53.71
PVD
€48.43
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Active video composite extender
- Small module mounted in plastic housing of size: 49 x 42 x 45 mm.
- Transmitter module (video-IN, UTP-OUT).
- It has a connectorBNC-Female for the composite video input.
- It has a Terminal Block for twisted pair cable connection.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
Active video composite extender through twisted pair cable. Twisted pair cable facilitates installation, is more economical and allows greater transmission distances without loss of quality.
Specifications
- Active video composite extender
- Small module mounted in plastic housing of size: 49 x 42 x 45 mm.
- Transmitter module (video-IN, UTP-OUT).
- It has a connectorBNC-Female for the composite video input.
- It has a Terminal Block for twisted pair cable connection.
- It is supplied with a 12VDC (0.5A) power supply.
- Transmission range through UTP cable: 1500m (color) and 2400m (B/N).

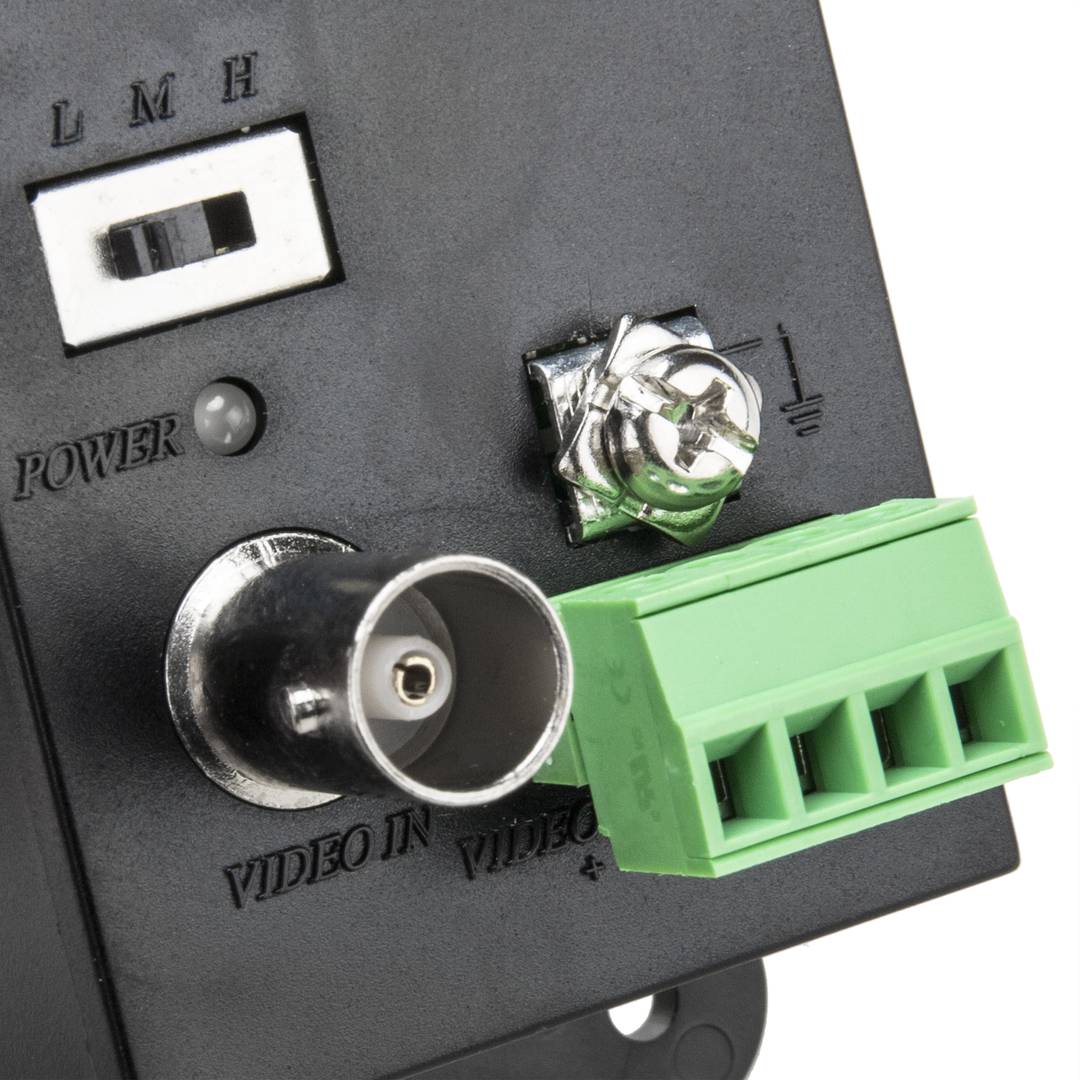

- It has a 3-position gain selector to obtain the best possible image quality (L/M/H).
- Equipped with ground and LED ON indicator.
- Possibility of being used together with models #SI34, #SI35, #SI36 and #SI37.
- Gross Weight: 190 g
- Product size (width x depth x height): 7.3 x 4.6 x 4.2 cm
- Number of packages: 1
- Packages size: 15.0 x 8.8 x 6.7 cm
Technical terms
- LED
- Types of network cables (UTP, FTP, STP)
- BNC
- CVBS
- Categories network cables
LED
The word LED, which is the acronym for Light Emitting Diode, is a passive optoelectronic component characterized by its versatility, taking on many forms and being integrated into many optical elements, from screens to light bulbs and even photographic flashes.
One of its best features is its low energy consumption, as well as its longer lifespan, its durability that perfectly withstands almost any type of vibration, in addition to low heat emission.
In the diagram:
One of its best features is its low energy consumption, as well as its longer lifespan, its durability that perfectly withstands almost any type of vibration, in addition to low heat emission.
In the diagram:
- Anode
- Cathode
- Lens/epoxy encapsulation (plastic capsule).
- Metal contact (conducting wire).
- Reflective cavity (reflective cup).
- Semiconductor termination.
- Anvil.
- Post.
- Anvil and post assembly replacing the filament.
- Flat edge.
