Console KVM rack 19 "16-port keyboard RackMatic USA

REF: RK006

Specifications

  • 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.
  • WithUnited States (US) keyboard layout of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
  • It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).

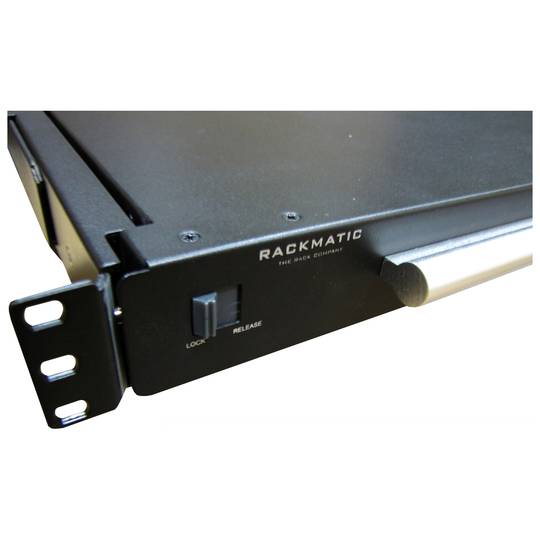

  • Security lock on the front panel to prevent access by unauthorized personnel.
  • Brackets are supplied for fixingions to the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.

Your price

PVP

1,600.54

Price including VAT: 1,600.54

PVD

1,343.73


Why different prices? Which one is mine? Check rate type

Shipping costs: 27,83 *
GB-SE1 1ES

Specifications

  • 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.
  • WithUnited States (US) keyboard layout of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
  • It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).
  • Security lock on the front panel to prevent access by unauthorized personnel.
  • Brackets are supplied for fixingions to the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.

More info

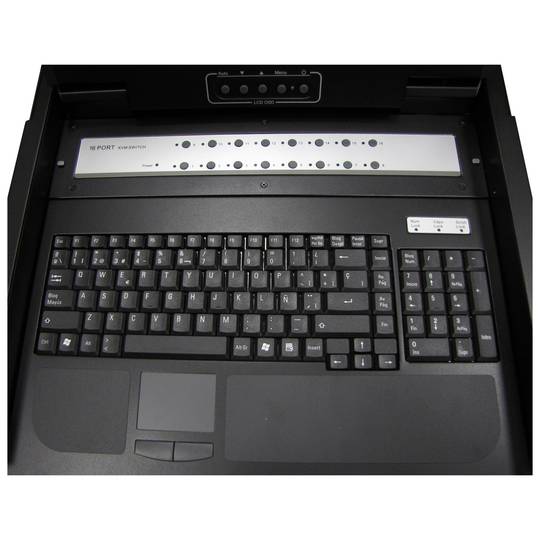

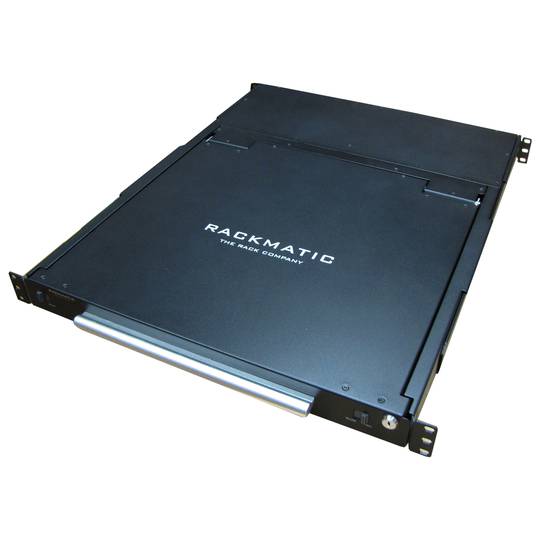

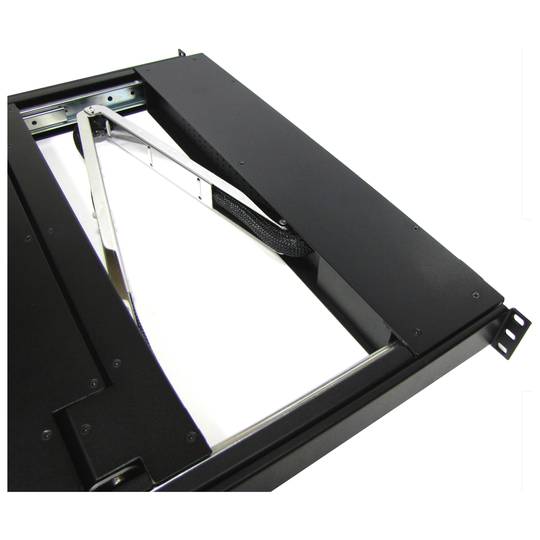

Kit KVM (keyboard, mouse and monitor 17 ") in 19" rack format and 1U height when folded. Model that includes 16-port KVM switch that allows the operation in computers based on keyboard and mouse PS2 or USB. Made of resistant black metal. 19 "device that attaches to the front and rear frames of the rack cabinet, on the front it has a handle to stretch the KVM as a drawer, since it has aDrag slides with high quality bearings. The 17 "TFT monitor can be displayed regardless of whether the guide is retracted or removed.When you open the monitor, the keyboard, touchpad and controls of the console are accessible.

Specifications KVM Rack 19 "
  • 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.
  • WithUnited States (US) keyboard layout of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
  • It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).
  • Security lock on the front panel to prevent access by unauthorized personnel.
  • Brackets are supplied for fixingions to the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.
  • Weight: 16.5 Kg.
  • Bottom: 580 mm (retracted) and 900 mm (extracted).
  • Size: 465 x 580 x 42 mm.

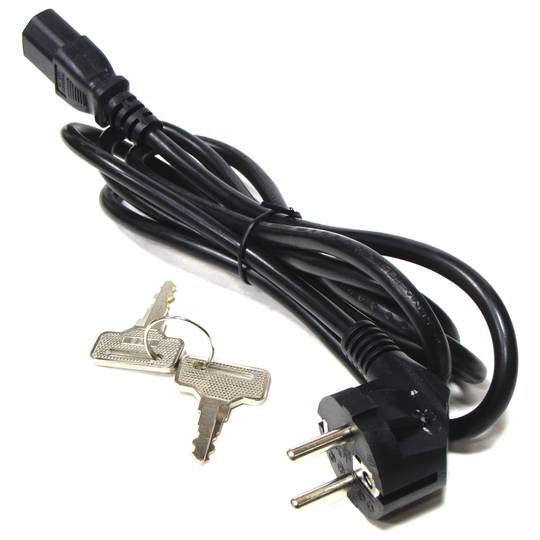

  • Power supply included in the device itself. It connects directlyto the electric network 220 VAC. It is supplied with power cable.
  • ON/OFF switch on the back of the housing.
Specifications KVM switch
  • KVM switch (PS2 keyboard, PS2 mouse and VGA monitor) with 16 ports.

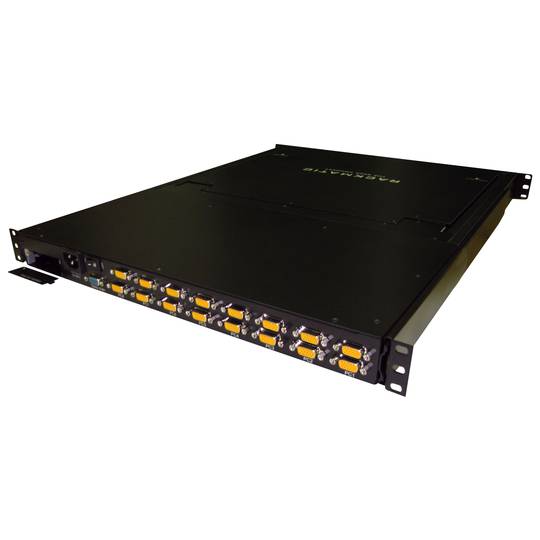

  • On the back it has 16 VGA connectors (HD15 female) through which the VGA, keyboard and mouse signals of the computers are transmittedto the conmuntador. Computers based on keyboard and mouse can coexist via USB or PS2.
  • For PS2 keyboard and mouse-based computers, it is necessary to separately purchase the special 3-in-1 connection cables (1 x HD15 male to 1 x HD15 male + 2 x MiniDIN6 male) corresponding to our references #CC5x.
  • For computers based on USB keyboard and mouse, you need to purchase separately the special connection cablesis 2-in-1 (1 x HD15 male to 1 x HD15 male + 1 x USB A male) corresponding to our references #CC7x.
  • Compatible with Windows, NetWare, OS/2, Mac, iMac, Sun, Linux and Unix environments.
  • It adds 16 direct port selection pushbuttons, each with a two-color status LED (Ready/Active).
  • Possibility of selection of active PC by key combination from the keyboard of the console, by means of the buttonsit is a direct touch or through the OSD (On Screen Display) menu.
  • Support ACL (Access Control List) for security functions that allow creating groups of computers to control the access of authorized users.
  • Multi-language: English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
  • Automatic scanning of ports programmable from 5 to 99 seconds.
  • It allows lto chaining more compatible KVM switches (references #KV0x) to obtain more controllable ports from the main console (up to 8 chained switches and a maximum of 128 ports). It has a female HD15 connector for the chaining with the next KVM switch.
Expansion Modules

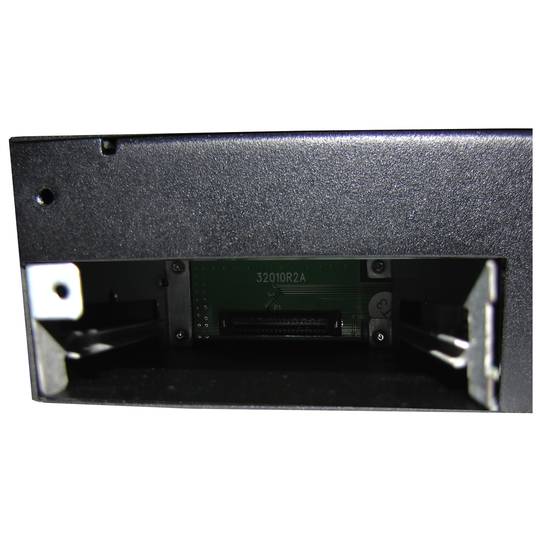

  • It has a socket on the back to add remote console expansion modules to travia UTP and remote console through TCP/IP. It is a socket that by default has a metal lid. Simply open the lid and insert the expansion module, leaving the new ports visible in the back.
  • Supports second remote console extension module through LAN or WAN using TCP/IP protocol. This expansion card allows the connection of the console to the ethernet network.
  • Gross Weight: 22.0 kg
  • Number of packages: 1

Technical terms

  • VGA
  • MicroUSB
  • USB
  • Rack unit (U)
  • Reversible USB Type-C
  • KVM
  • RACK 19
  • Mini USB
  • Types of network cables (UTP, FTP, STP)
  • WAN
  • MiniDin
  • USB 3.0
  • VAC
  • Electrical cables according to number of conductors
  • LED
VGA
The term VGA (Video Graphics Array or Video Graphics Adapter) is a graphics display system for PCs developed by IBM. VGA has become one of the standards for the PC image. In text mode, VGA provides a resolution of 720 by 400 pixels. In graphics mode, the resolution is either 640 by 480 (with 16 colors) or 320 by 200 (with 256 colors). The color palette is 262,144.Unlike earlier graphic standards for PCs - MDA, CGA, EGA and VGA - uses analog signals rather than digital signals. Since its introduction in 1987, several other standards have been developed that offer greater resolution and more colors (SVGA, XGA ...), but VGA remains the denominator used. All personal computers manufactured today still have support VGA, and possibly some other more advanced connection.
