Console KVM rack 19 "8-port keyboard RackMatic USA
Console KVM rack 19 "8-port keyboard RackMatic USA
REF: RK005
Specifications
- 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.
- CoUS keyboard (US) configuration of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
- It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).
- Security lock on the front panel to prevent access by unauthorized personnel.
- Fixed brackets are suppliedto the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.
Watch video
PVP
€1,394.82
Price including VAT:
€1,394.82
PVD
€1,225.92
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.
- CoUS keyboard (US) configuration of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
- It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).
- Security lock on the front panel to prevent access by unauthorized personnel.
- Fixed brackets are suppliedto the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

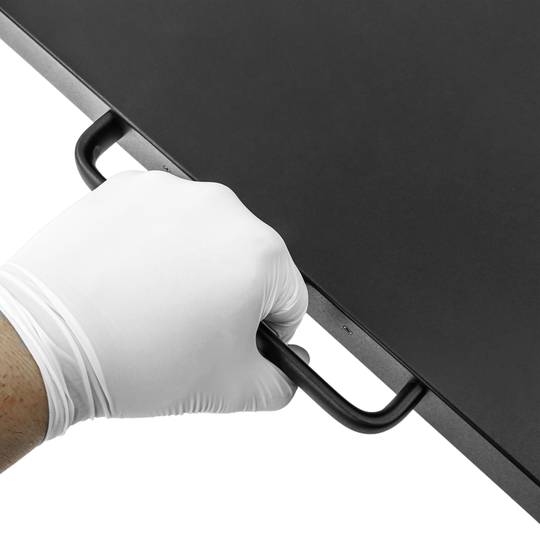

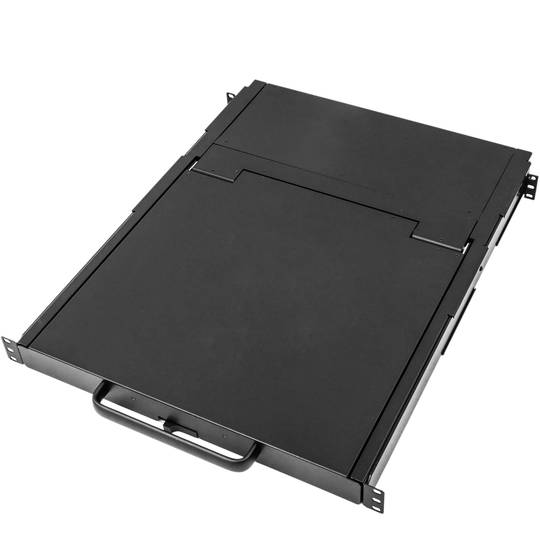

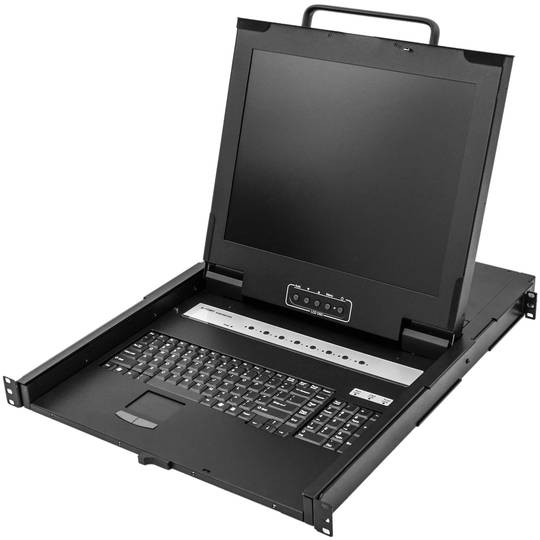

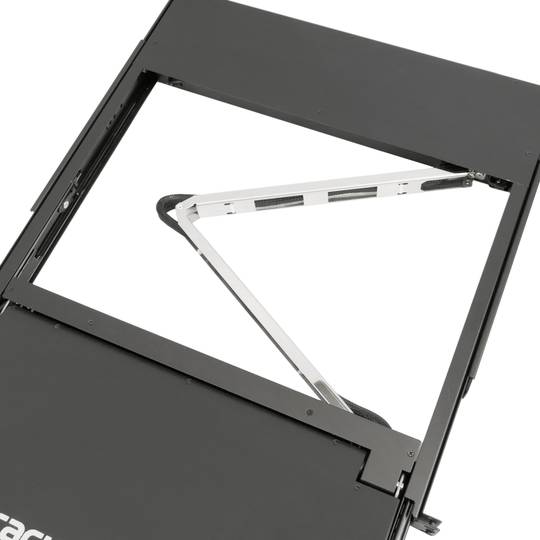

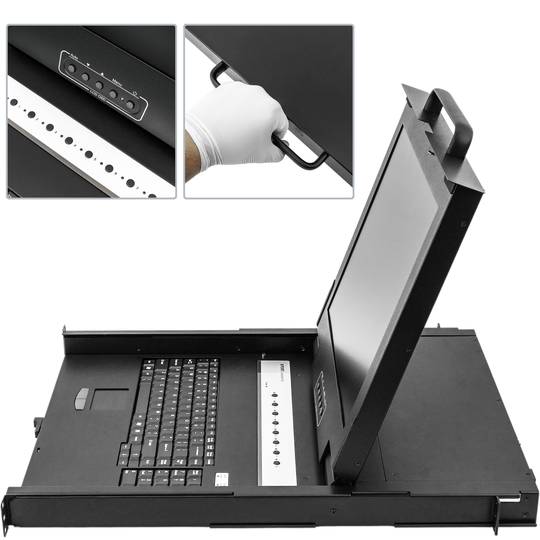

Kit KVM (keyboard, mouse and monitor 17 ") in 19" rack format and 1U height when folded. Model that includes 8-port KVM switch that allows the operation in computers based on keyboard and mouse PS2 or USB. Made of resistant black metal. 19 "device that attaches to the front and rear frames of the rack cabinet, on the front it has a handle to stretch the KVM as a drawer, since it has aDrag slides with high quality bearings. The 17 "TFT monitor can be displayed regardless of whether the guide is retracted or removed.When you open the monitor, the keyboard, touchpad and controls of the console are accessible.
Specifications KVM Rack 19 "
Specifications KVM Rack 19 "
- 17 "TFT monitor with resolution of 1280x1024 pixels with DDC2B support for automatic adjustment of VGA resolution.

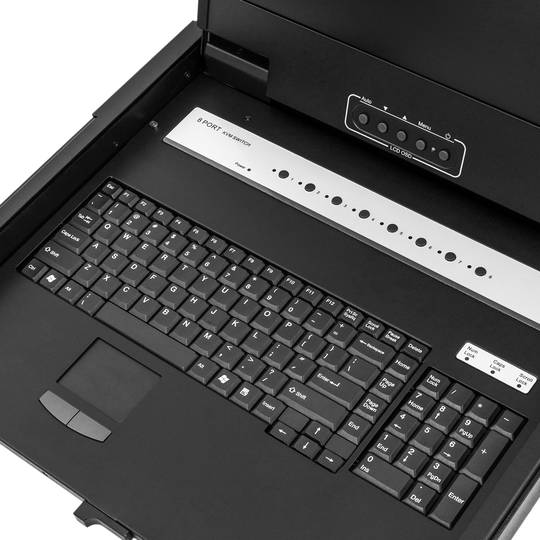

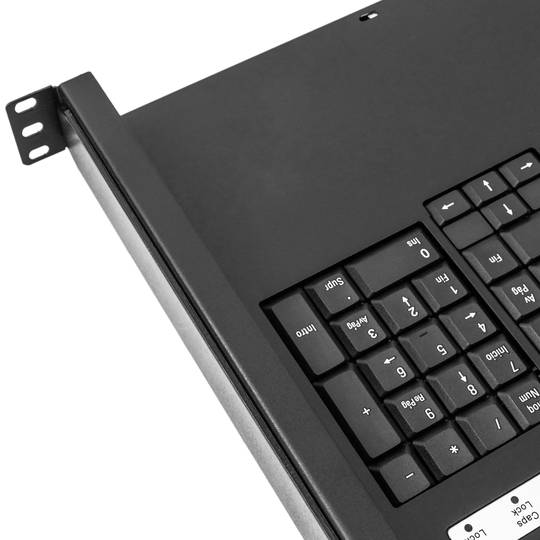

- CoUS keyboard (US) configuration of 105 keys and touch-pad with two buttons to avoid the use of mouse in industrial environments.
- It has OSD controls of the monitor in the front frame, accessible when the monitor is displayed (ON/OFF and monitor configuration).
- Security lock on the front panel to prevent access by unauthorized personnel.
- Fixed brackets are suppliedto the rear frame of the 19 "rack cabinet, which can be configured in depth The minimum distance between the front and rear frames must be 500 mm The maximum distance between frames can be up to 900 mm.
- Weight: 16.5 Kg.
- Bottom: 580 mm (retracted) and 900 mm (extracted).
- Size: 465 x 580 x 42 mm.
- Power supply included in the device itself. It connects directo the 220 VAC electrical network. It is supplied with power cable.
- ON/OFF switch on the back of the housing.
- KVM switch (PS2 keyboard, PS2 mouse and VGA monitor) with 8 ports.

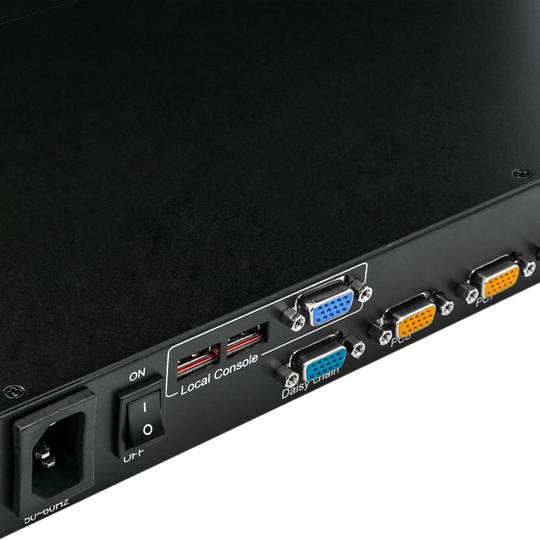

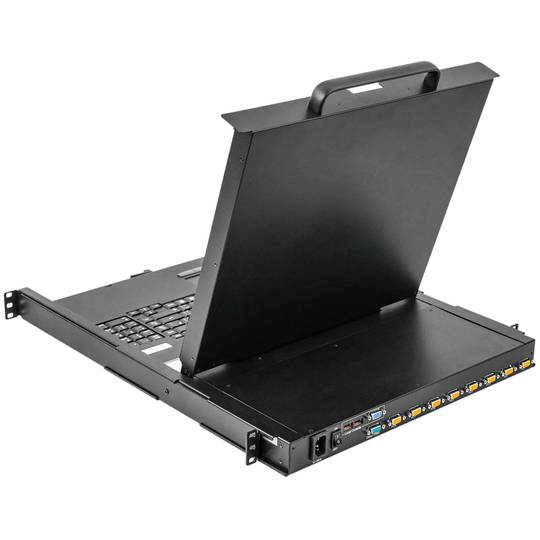

- On the back it has 8 VGA connectors (HD15 female) through which the VGA, keyboard and mouse signals of the computers are transmitted to theconmuntador Computers based on keyboard and mouse can coexist via USB or PS2.
- For PS2 keyboard and mouse-based computers, it is necessary to separately purchase the special 3-in-1 connection cables (1 x HD15 male to 1 x HD15 male + 2 x MiniDIN6 male) corresponding to our references #CC5x.
- For computers based on USB keyboard and mouse, you need to purchase separately the special connection cables2-in-1 (1 x HD15 male to 1 x HD15 male + 1 x USB A male) corresponding to our references #CC7x.
- Compatible with Windows, NetWare, OS/2, Mac, iMac, Sun, Linux and Unix environments.

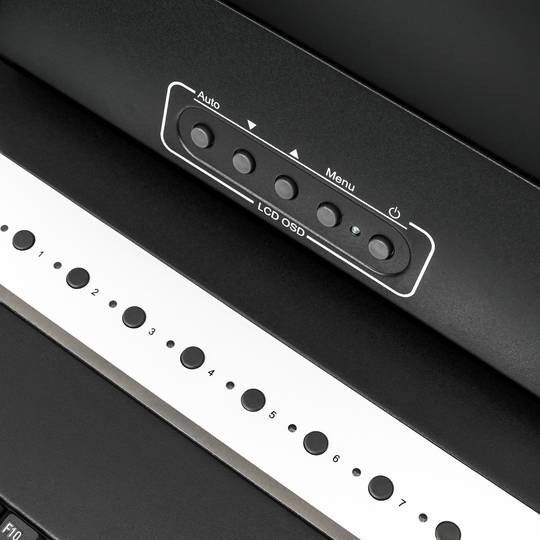

- Adds 8 port direct selection pushbuttons, each with a two-color status LED (Ready/Active).
- Possibility of selection of active PC by key combination from the keyboard of the console, by means of the buttons ofdirect touch or through the OSD (On Screen Display) menu.
- Support ACL (Access Control List) for security functions that allow creating groups of computers to control the access of authorized users.
- Multi-language: English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
- Automatic scanning of ports programmable from 5 to 99 seconds.
- Allows the encaddition of more compatible KVM switches (references #KV0x) to obtain more controllable ports from the main console (up to 8 chained switches and a maximum of 128 ports). It has a female HD15 connector for the chaining with the next KVM switch.
- It has a socket on the back to add remote console expansion modules throughof UTP and remote console through TCP/IP. It is a socket that by default has a metal lid. Simply open the lid and insert the expansion module, leaving the new ports visible in the back.
- Supports second remote console extension module through LAN or WAN using TCP/IP protocol. This expansion card allows the connection of the console to the ethernet network.
- Gross Weight: 20.0 kg
- Number of packages: 1
