Dynamometer PCE-DFG N2.5K
- Digital dynamometer with external 2500 N load cell and USB interface for PC connection.
- Measure tensile and compressive forces with high resolution.
- 1000N, 2500N or 5000N models available.
- Connection with bolts or hooks with M12 thread to adapt different devices.
- USB interface to transfer the measurement values to the PC.
2 yearswarranty
14 daysreturns
100%safe

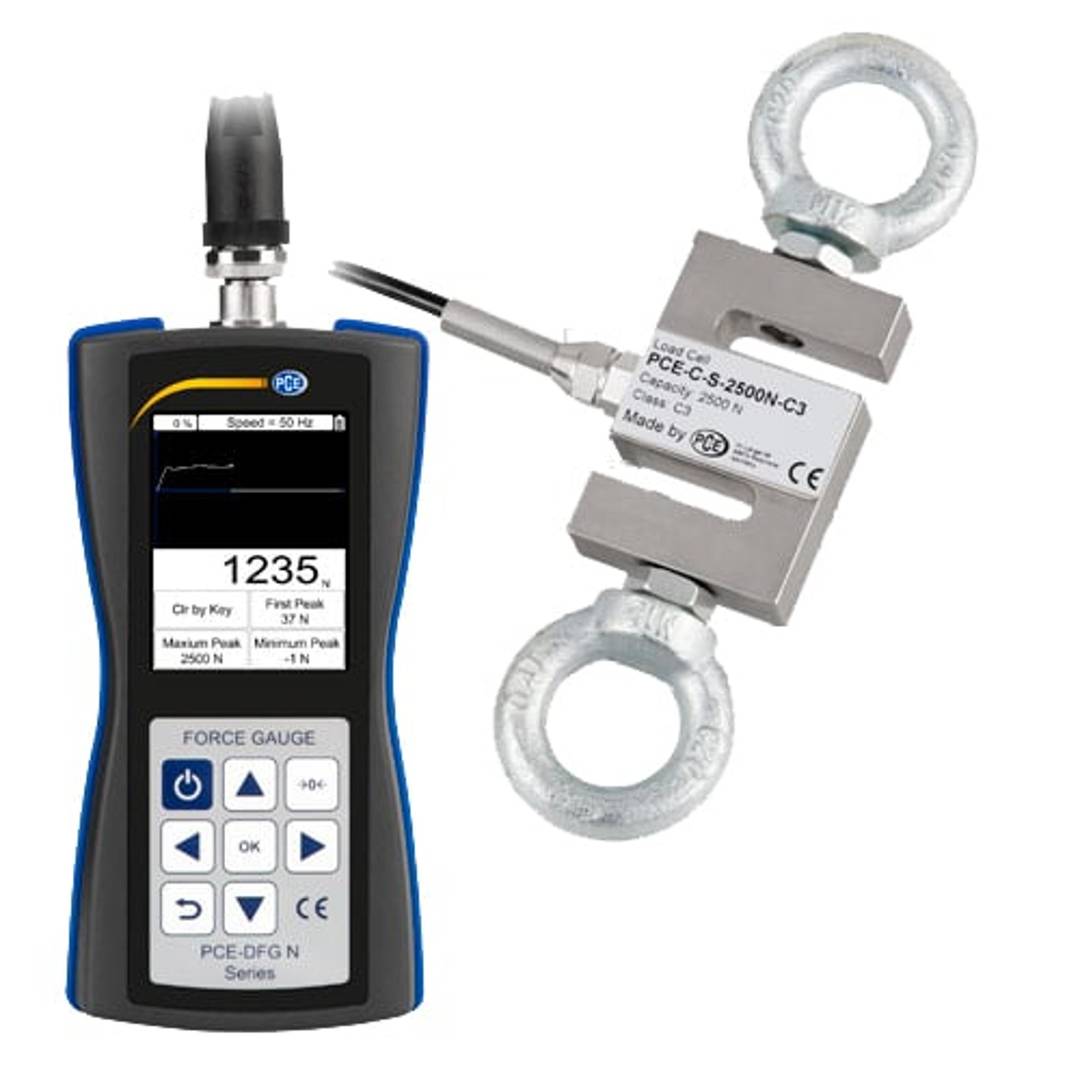

- Digital dynamometer with external 2500 N load cell and USB interface for PC connection.
- Measure tensile and compressive forces with high resolution.
- 1000N, 2500N or 5000N models available.

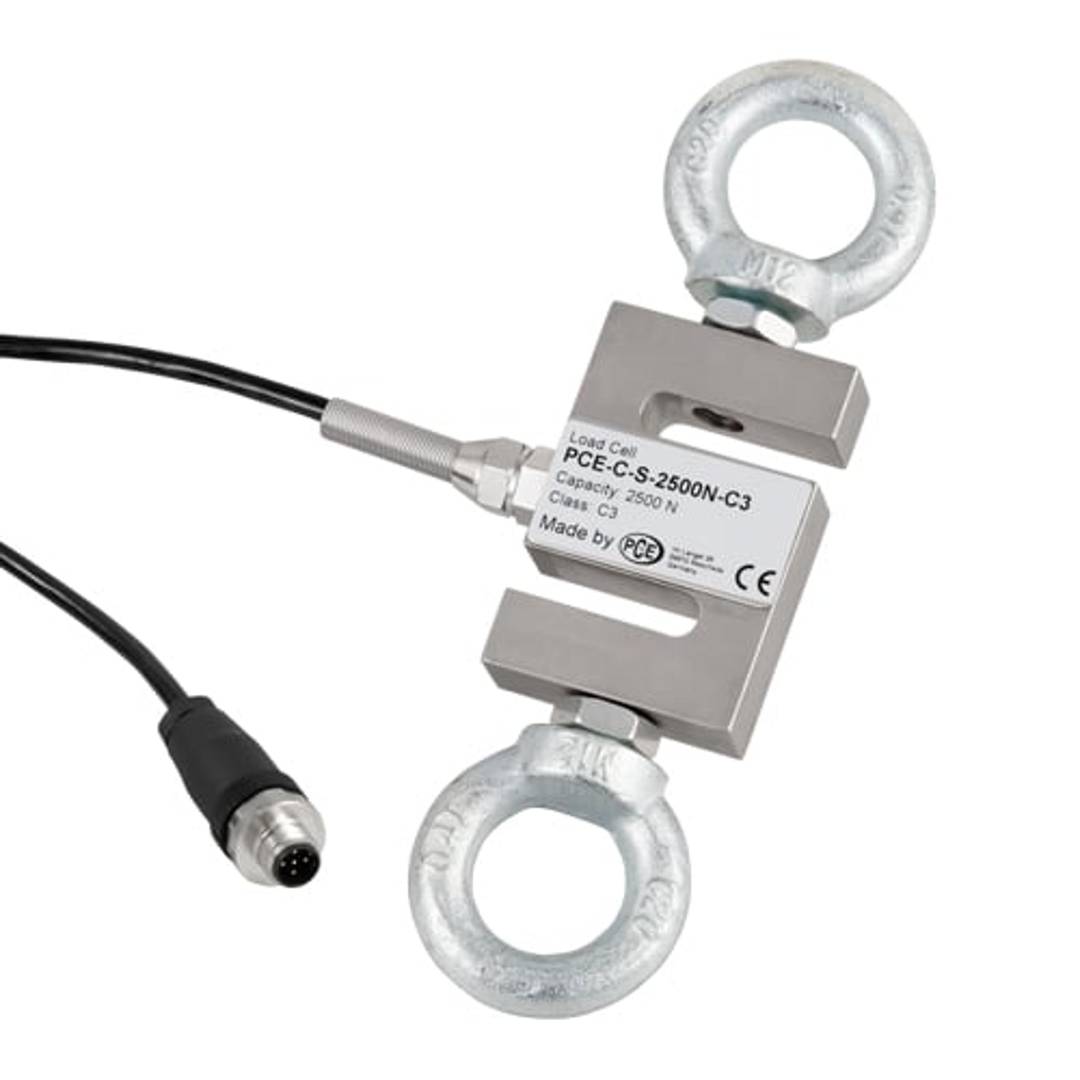

- Connection with bolts or hooks with M12 thread to adapt different devices.

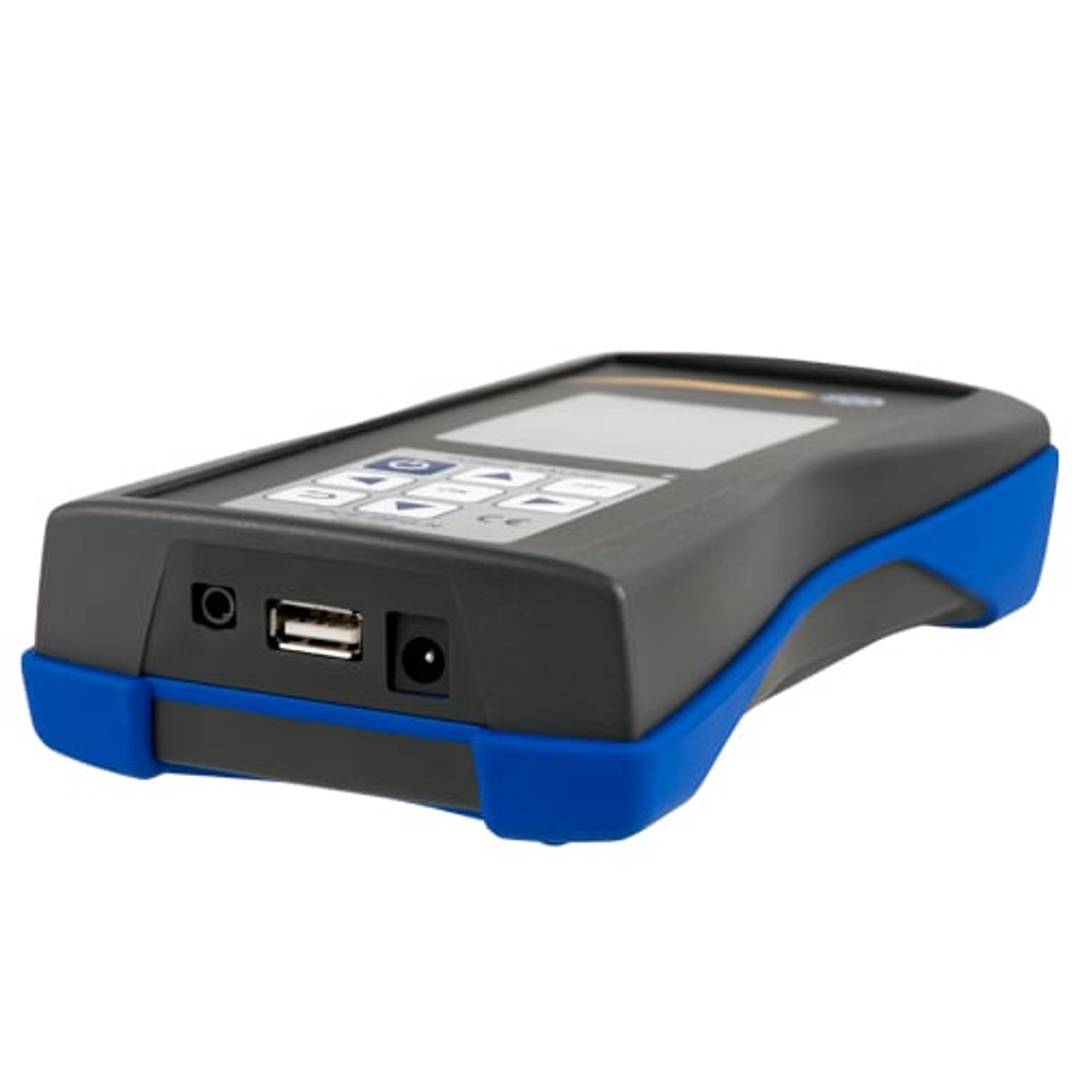

- USB interface to transfer the measurement values to the PC.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
The digital dynamometer is a measuring device designed to accurately measure tensile and compressive forces. This tool is useful in laboratories to determine the force required to press a button or key, as well as breaking or travel limits. The device comes with an external 2500 N load cell and a USB interface to connect it to the PC. Different models are available, with a measuring range up to 10,000 N. Hooks and bolts with M12 thread allow different devices to be connected to the same equipment. The device has an LCD screen that shows numerical and graphic values, and IP54 protection for use in industrial environments. In addition, the dynamometer is resistant to adverse weather conditions. The included software makes it possible to transfer the measurement values to the PC and create records, save and export them. In addition, the dynamometer allows load cells to be exchanged simply by indicating the sensitivity in mV/V. This feature makes it a very useful tool for users, as it allows them to use the same equipment for different measurements. Manufactured by PCE with reference PCE-DFG N 2.5K.
Specifications
- Digital dynamometer with external 2500 N load cell and USB interface for PC connection.
- Measure tensile and compressive forces with high resolution.
- 1000N, 2500N or 5000N models available.
- Connection with bolts or hooks with M12 thread to adapt different devices.
- USB interface to transfer the measurement values to the PC.

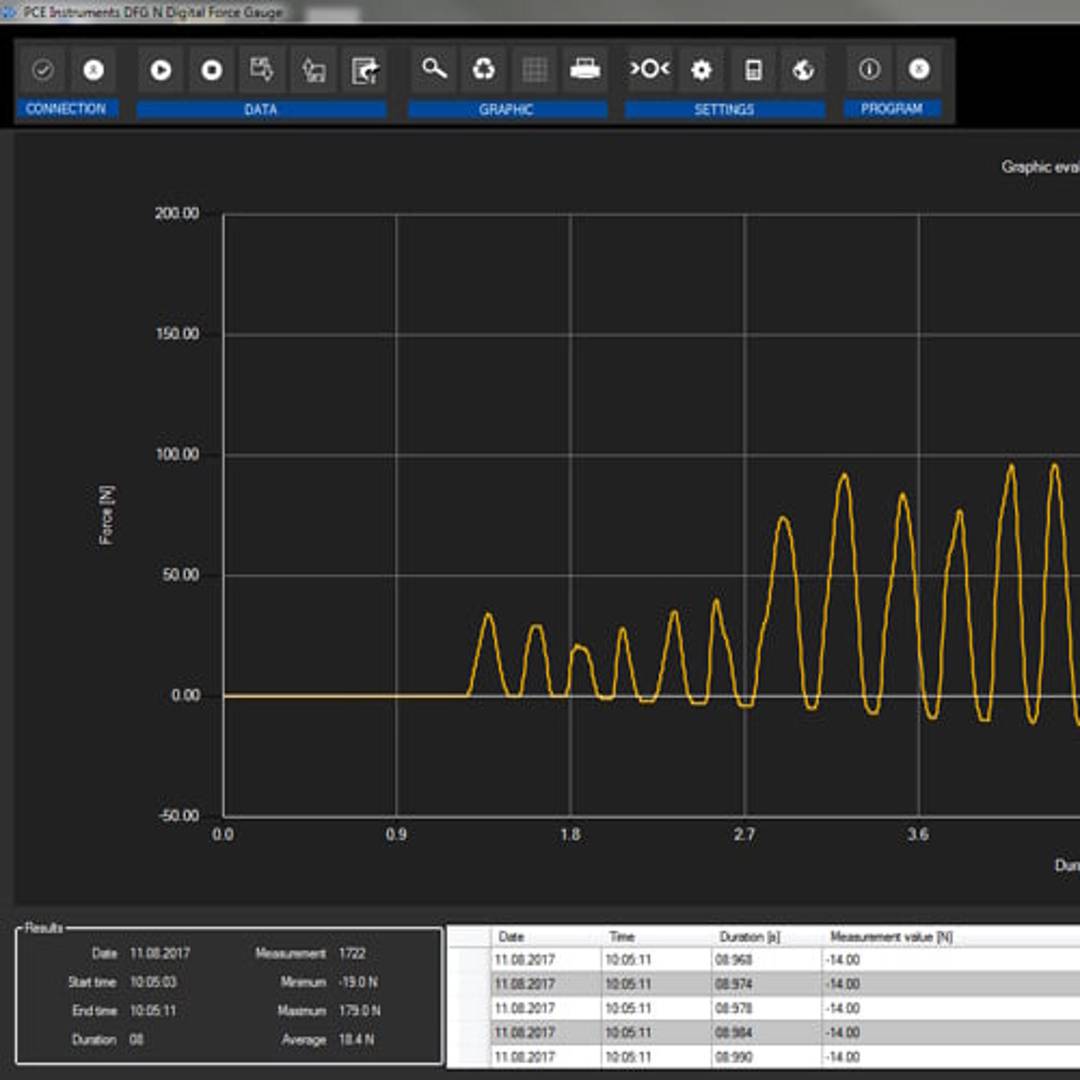

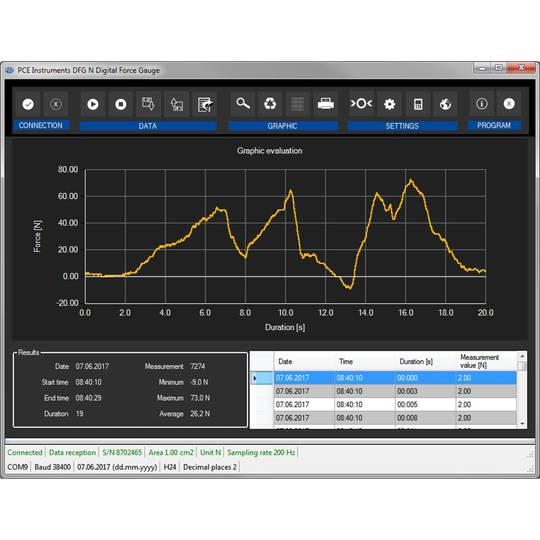

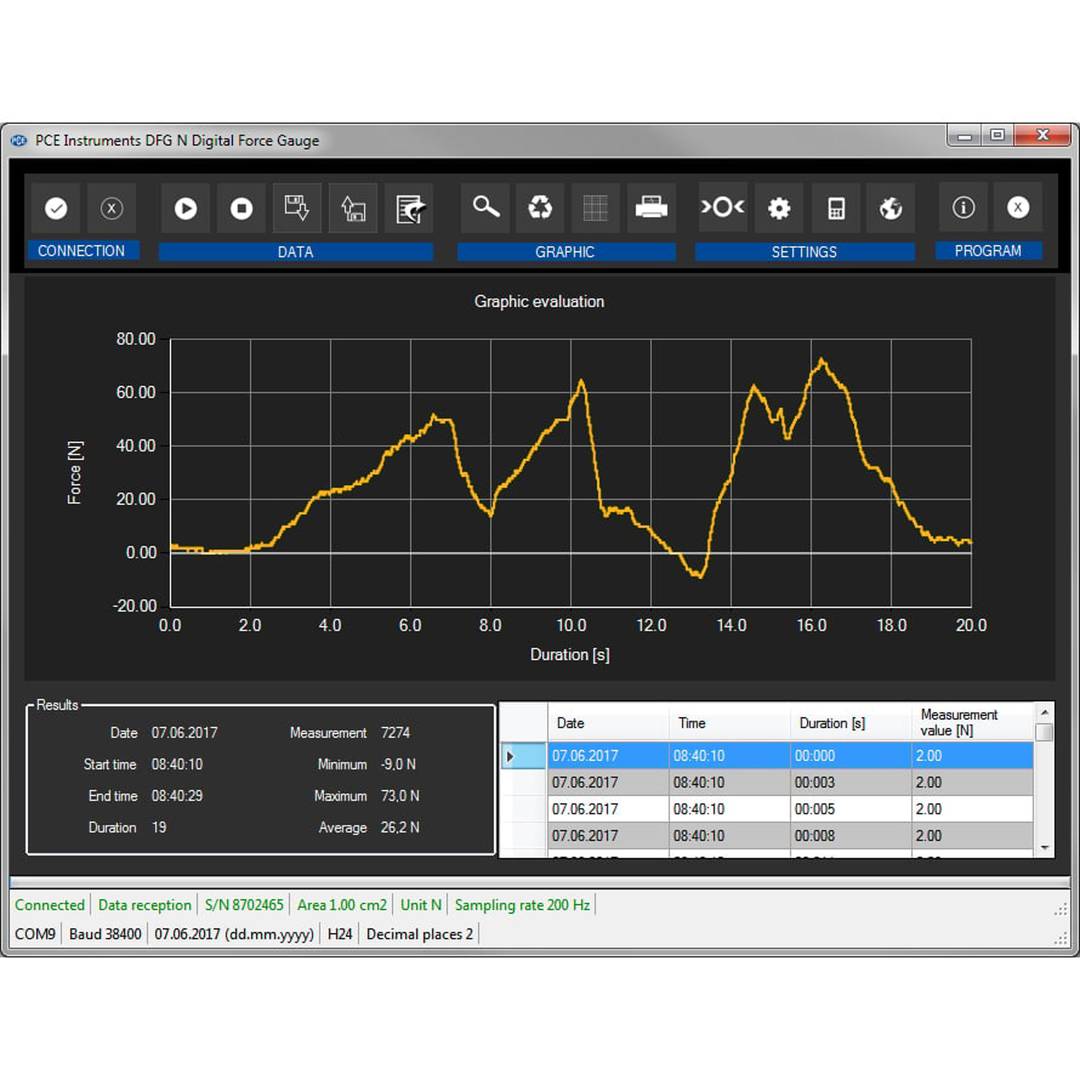

- Software included to create measurement records, save and export them.
- LCD graphic display showing values in numerical and graphical format.
- IP54 protection for use in industrial environments.
- Ideal for performing tensile and compression tests outdoors.
- Allows load cells to be exchanged with each other.
- Gross Weight: 3.04 kg
- Number of packages: 1
Technical terms
- IP54
- USB
- MicroUSB
- Mini USB
- USB 3.0
- Reversible USB Type-C
- IP Protection
The IP54 standard is an international technical rating that specifies the degree of protection for electrical enclosures against external ingress.
This nomenclature is split into two digits. The first digit (5) indicates dust protection: ingress is not entirely prevented, but it must not enter in an amount that interferes with correct operation. The second digit (4) ensures that water splashed from any angle at an average of 10 liters per minute and 80-100kN/m² pressure for at least 5 minutes does not enter the equipment.
| Digit | Level | Technical Protection |
|---|---|---|
| 1st (Solids) | 5 | Protection against harmful dust deposits. |
| 2nd (Liquids) | 4 | Protection against splashing water from any direction. |
In modern hardware design, IP54 is vital for industrial devices and edge computing nodes, providing a balance between environmental shielding and thermal management efficiency.
Technical Verification
Testing protocols ensure that the enclosure prevents ingress that would compromise electrical safety or component performance.
Key Advantages
- Operational stability in dusty environments.
- Resilience against incidental water splashes.
- Extended hardware lifespan in harsh conditions.
Ensures reliability under standard industrial working conditions.
