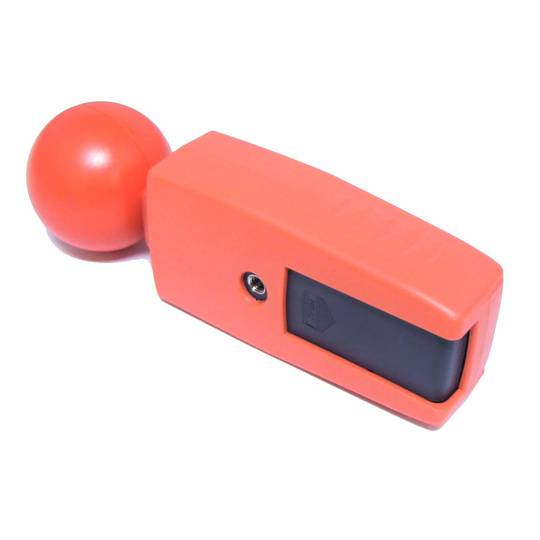

Meter RF field strength 3-axis model TM-195
REF: TM075
Specifications
  • It detects RF-type high frequency electromagnetic fields from 50 MHz to 3.5 GHz.
  • Measurement ranges: 38 mv to 11 v/m.
  • Units of measure: mV/m, V/m, ?A/m, mA/m, ?W/m2, mW/m2 and ?W/cm2.
  • Viewfinder resolution: 0.1mV/m, 0.1?A/m, 0.001?W/m2 and 0.001?W/cm2.
  • 3.75 "4-digit digital viewfinder for easy and easy reading of values with a maximum of 3999 units.
play_button Watch video
More info
PVP
170.97
Price including VAT: 170.97
PVD
146.36
Shipping costs: 30,75 *
GB-SE1 1ES
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
14 days
returns
100%
safe

In stock
Available more than 10

More info
Specifications
  • It detects RF-type high frequency electromagnetic fields from 50 MHz to 3.5 GHz.
  • Measurement ranges: 38 mv to 11 v/m.
  • Units of measure: mV/m, V/m, ?A/m, mA/m, ?W/m2, mW/m2 and ?W/cm2.
  • Viewfinder resolution: 0.1mV/m, 0.1?A/m, 0.001?W/m2 and 0.001?W/cm2.
  • 3.75 "4-digit digital viewfinder for easy and easy reading of values with a maximum of 3999 units.

Keywords

Did not find what you were looking for? These topic could help you

More info

High frequency electromagnetic field strength meter (RF of 50 MHz up to 3.5 GHz). It is a compact device with a large viewfinder and controls that can be manipulated with just one hand. It allows the measurement of the RF intensity produced by an electrical transmission equipment, mobile phones, wireless networks, microwave ovens, telephony antennas, radio antennas, detection of cameras or spy microphones, etc. Very useful to detect possible electromagnetic contaminations in the work or domestic environment.

Specifications
  • It detects RF-type high frequency electromagnetic fields from 50 MHz to 3.5 GHz.
  • Measurement ranges: 38 mv to 11 v/m.
  • Units of measure: mV/m, V/m, ?A/m, mA/m, ?W/m2, mW/m2 and ?W/cm2.
  • Viewfinder resolution: 0.1mV/m, 0.1?A/m, 0.001?W/m2 and 0.001?W/cm2.
  • 3.75 "4-digit digital viewfinder for easy and easy reading of values with a maximum of 3999 units.
  • Overcharge and low battery indicator.
  • Model with sensors for sampling in 3 axes of the magnetic field.
  • Range: 0.010 ~ 2.700 mW/cm2.
  • 3-axis or plane sensor.
  • Accuracy: ± 2 dB at 2.45 GHz.
  • Internal memory that stores 200 samples or registersdata for later reading and treatment.
  • Sampling time: 2.5 samples per second.
  • Lock functions of the maximum and average aricmetric values, blocking of the current reading, zero key, alarm and automatic shutdown.
  • It works with a 9V battery.
  • Size: 195 x 56 x 38 mm.
  • Supplied with carrying case.
  • Gross Weight: 490 g
  • Product size (width x depth x height): 20.0 x 6.0 x 6.0 cm
  • Number of packages: 1
  • Packages size: 23.0 x 13.0 x 8.0 cm
  • Master-pack: 30

Videos

play_button Watch video

Technical terms

  • Hz
  • Battery charging cycles
  • Movement detector
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
