Multiplier splitter 4K 3D video HDMI 1.4a 8-port
REF: HL009
Specifications
- HDMI port multiplier. It has a female HDMI input port and 8 HDMI female output ports.
- The output ports are fully synchronized and replicate the same signal from the input port.
- Signal amplifier up to 30 m that varies depending on the quality of the HDMI cable used and the environment. It supports a maximum of 15 m of cable at the entrance and 15 m of cable at the exits. Total 30 m (based onHDMI cable 26AWG 1080p resolution).
- Possibility of cascading two or more multipliers to extend the system and obtain greater cable distances from the HDMI signal source (an additional 15 m).
- Supported resolution: 4K x 2K.
Watch video
PVP
€54.88
Price including VAT:
€54.88
PVD
€49.48
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 years
warranty
warranty
14 days
returns
returns
100%
safe
safe
We will notify you when it is back in stock.
Specifications
- HDMI port multiplier. It has a female HDMI input port and 8 HDMI female output ports.
- The output ports are fully synchronized and replicate the same signal from the input port.
- Signal amplifier up to 30 m that varies depending on the quality of the HDMI cable used and the environment. It supports a maximum of 15 m of cable at the entrance and 15 m of cable at the exits. Total 30 m (based onHDMI cable 26AWG 1080p resolution).
- Possibility of cascading two or more multipliers to extend the system and obtain greater cable distances from the HDMI signal source (an additional 15 m).
- Supported resolution: 4K x 2K.
Keywords
Did not find what you were looking for? These topic could help you
More info
Multiplier and 8-port HDMI amplifier. From an HDMI input signal this device multiplies the signal into 8 identical outputs. This multiplier has the capacity to store data (buffering), amplify them and distribute them through their output ports. It also amplifies the HDMI signal up to a total cable length of 30 m (HDMI cable 26AWG 15m input and 15m output).
Specifications
Specifications
- HDMI port multiplier. It has a female HDMI input port and 8 HDMI female output ports.
- The output ports are fully synchronized and replicate the same signal from the input port.
- Signal amplifier up to 30 m that varies depending on the quality of the HDMI cable used and the environment. It supports a maximum of 15 m of cable at the entrance and 15 m of cable at the exits. Total 30 m (based onHDMI cable 26AWG 1080p resolution).
- Possibility of cascading two or more multipliers to extend the system and obtain greater cable distances from the HDMI signal source (an additional 15 m).
- Supported resolution: 4K x 2K.
- Compatible with 3D video technology.
- Supported HDTV resolution: 24, 50, 60fs, 1080p, 1080i, 720p, 576p, 576i, 480p and 480i.
- HDMI 4 resolutionK up to 3840 x 2160 (30 Hz).
- Depth of color: 8/10/12 bit.
- Compatible HDMI 1.4by HDCP 1.3.
- Supported audio format: DTS-HD, Dolby-True-HD, LPCM-7.1, DTS, Dolby-AC3 and DSD.
- Maximum bandwidth: 340 MHz.
- Maximum sampling frequency: 3.4 Gbps.
- EDID and CEC compatible.
- Compact size, very small, and mounted in black metal casing.

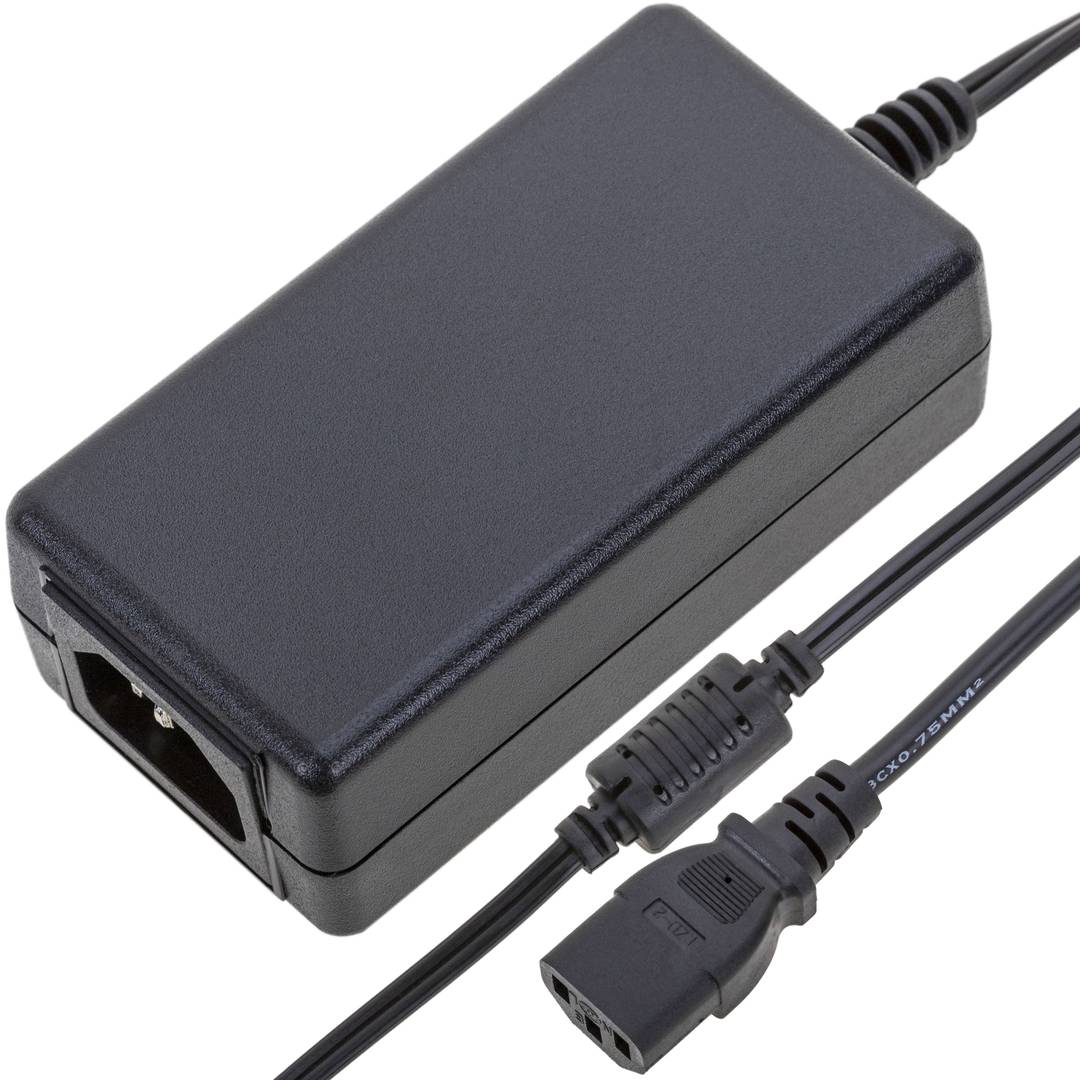

- It is suppliedexternal power supply from 5VDC to 1.5A.
- Status LEDs for all ports.
- Compact size: 250 x 62 x 20 mm.
- Gross Weight: 1.23 kg
- Product size (width x depth x height): 20.0 x 6.0 x 2.0 cm
- Number of packages: 1
- Packages size: 24.0 x 15.0 x 6.0 cm
- Master-pack: 10
Technical terms
- HD High definition
- HDMI
- AWG (Measurement of electrical cables)
- Hz
- 1080p
- HDCP
- Gbps
- HDTV
HD High definition
HD is the term used to differentiate the systems that generate, transmit or support HD content (High Definition) with those of standard definition or low definition (SD).
HD resolutions are usually at least 1280 x 720 pixels by taking the ratio "width x height". Being the height, 720 pixels, which make high resolution.
HD resolutions are usually at least 1280 x 720 pixels by taking the ratio "width x height". Being the height, 720 pixels, which make high resolution.
