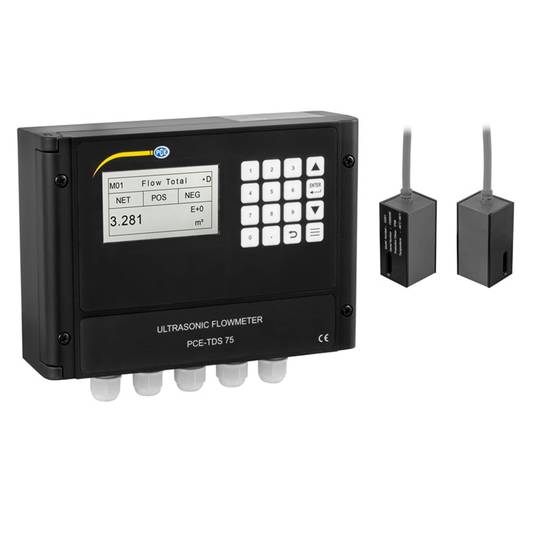

The fixed installation ultrasonic flowmeter is a flow measurement tool specially designed to offer an accurate and non-contact measurement in pipe systems with diameters between 25 and 1200 mm. This tool offers different connection possibilities for processes, with an accuracy of 1%. It allows to measure both the flow and the speed of flow of liquids. The non-contact measuring principle allows the measuring system to be installed without emptying the pipes and is ideal for areas with high hygiene requirements, such as the food industry. It offers different adjustment and consultation options by means of a membrane keyboard and a numerical keyboard for the introduction of numerical values. Furthermore, the tool offers different types of output to transfer the measurement values to other devices. You can also control defined limit values for the minimum and maximum flow. This tool allows you to retrieve the flows measured per year for the last 6 years, monthly for the last 12 months and as a daily total for the last 31 days. Manufactured by PCE with reference PCE-TDS 75.

Specifications

• Non-contact measuring principle
• Pipe diameter from 25 to 1200 mm
• Flow rate and flow rate measurement
• 1% accuracy
• Different types of process connection
• Setting and inquiry menu
• Numeric keypad for quick entry of numerical values
• Ideal for areas with high hygiene requirements
• Process control support via relay output, 4-20 mA analog output, OCT pulse output, RS-232 or RS-485 output
• Limit value monitoring for minimum and maximum flow
• continuous flow recording
• Totalizer by dates to recover measured flows

• Gross Weight: 2.685 kg
• Number of packages: 1
• Master-pack: 1
