PDU strip 3 C13 way for server rack 10'' with switch by RackMatic

REF: RE074

Specifications

  • Strip 3 female sockets IEC 60320 (C13).
  • 250V/16A.
  • Frequency: 50/60 Hz.

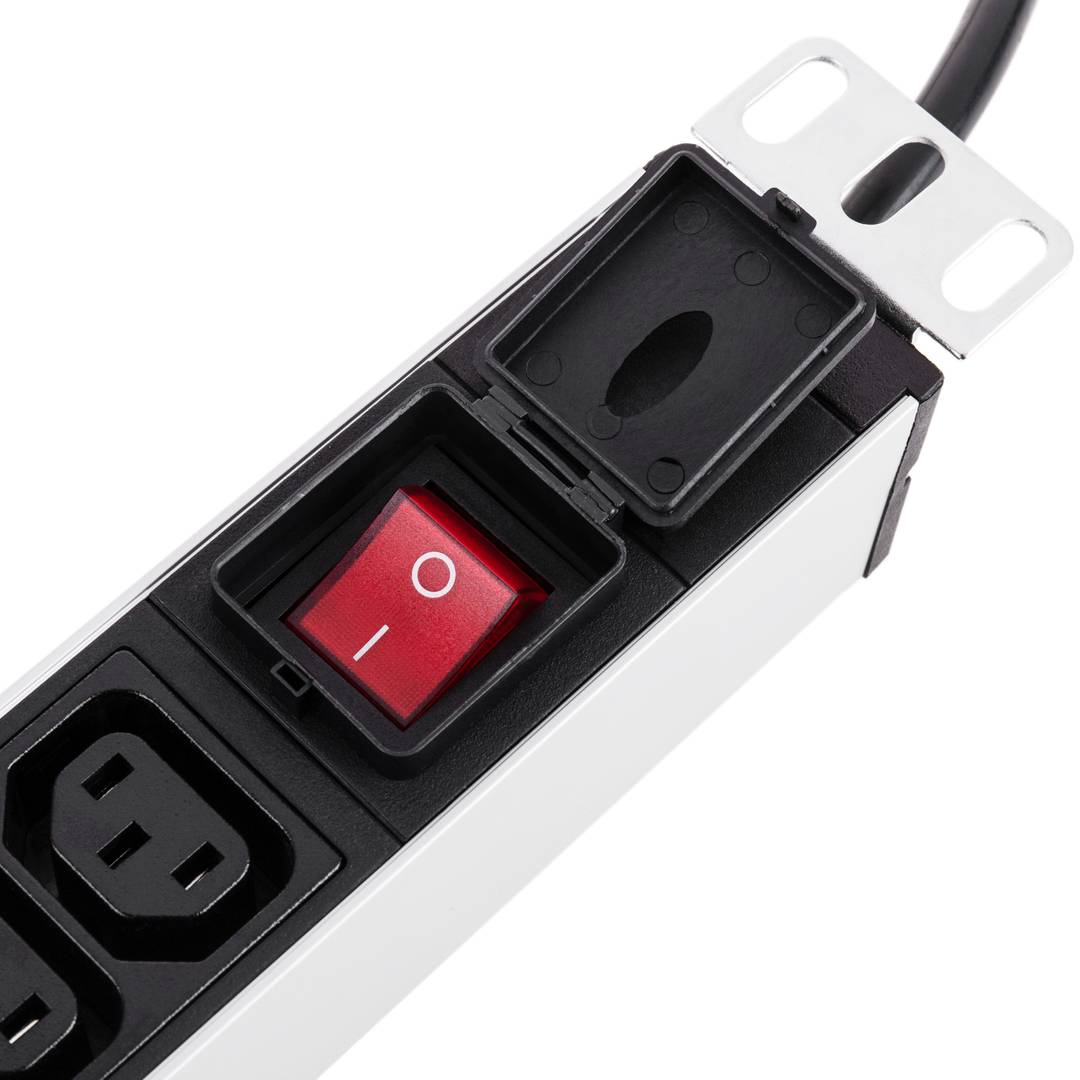

  • It has backlit switch with protective cover.
  • 3m electric cable H05VV-F 3G1,5mm² and completed in Schuko male (DIN49441).

Your price

PVP

24.12

4.10

Price including VAT: 4.10

PVD

21.10

3.59


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES
02/29/2020 2:35 p.m.
https://cablematic.com/en/products/pdu-strip-3-c13-way-for-server-rack-10-with-switch-by-rackmatic-RE074/

PDU strip 3 C13 way for server rack 10'' with switch by RackMatic

REF: RE074

Your price

PVP

24.12

4.10

Price including VAT: 4.10

PVD

21.10

3.59


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • Strip 3 female sockets IEC 60320 (C13).
  • 250V/16A.
  • Frequency: 50/60 Hz.
  • It has backlit switch with protective cover.
  • 3m electric cable H05VV-F 3G1,5mm² and completed in Schuko male (DIN49441).

More info

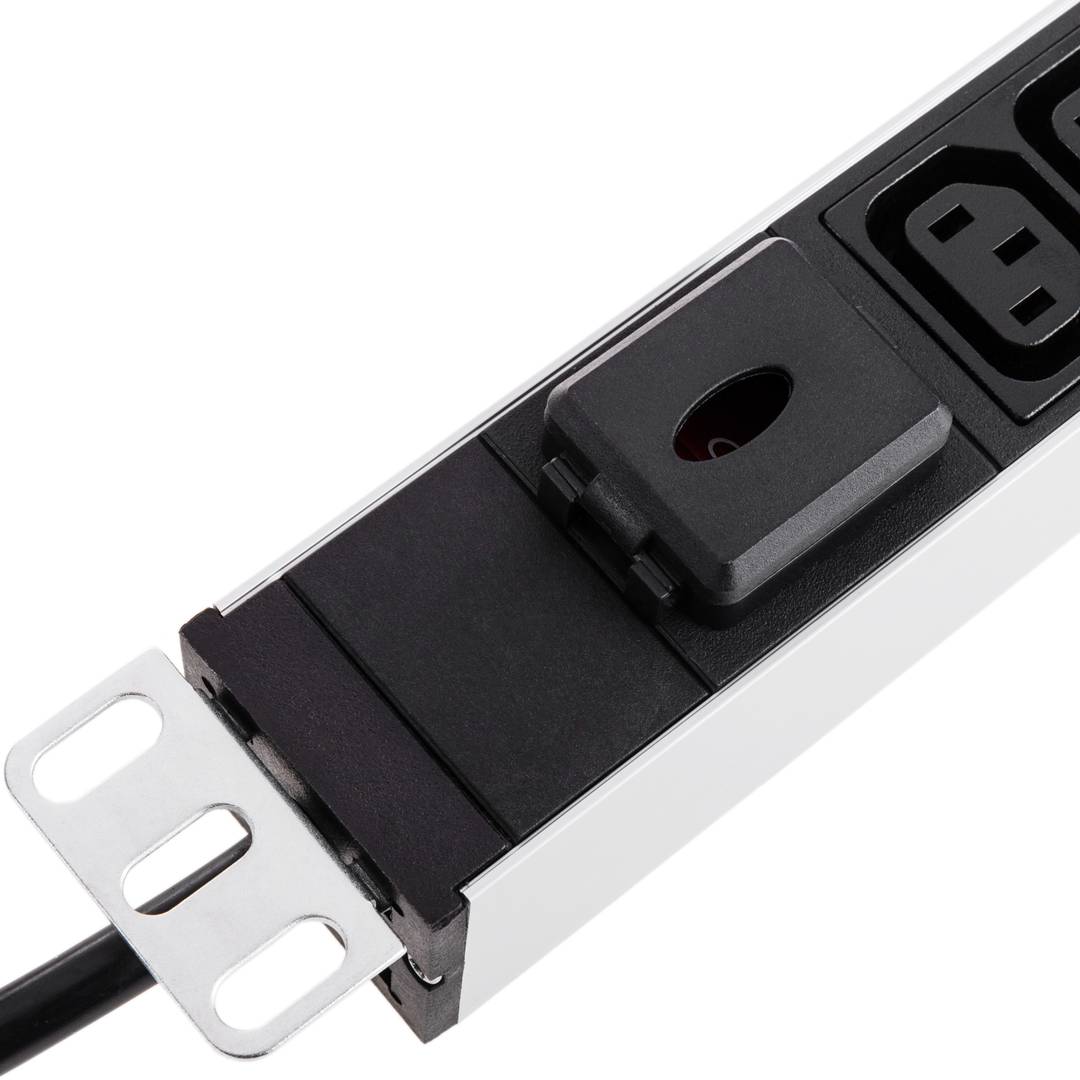

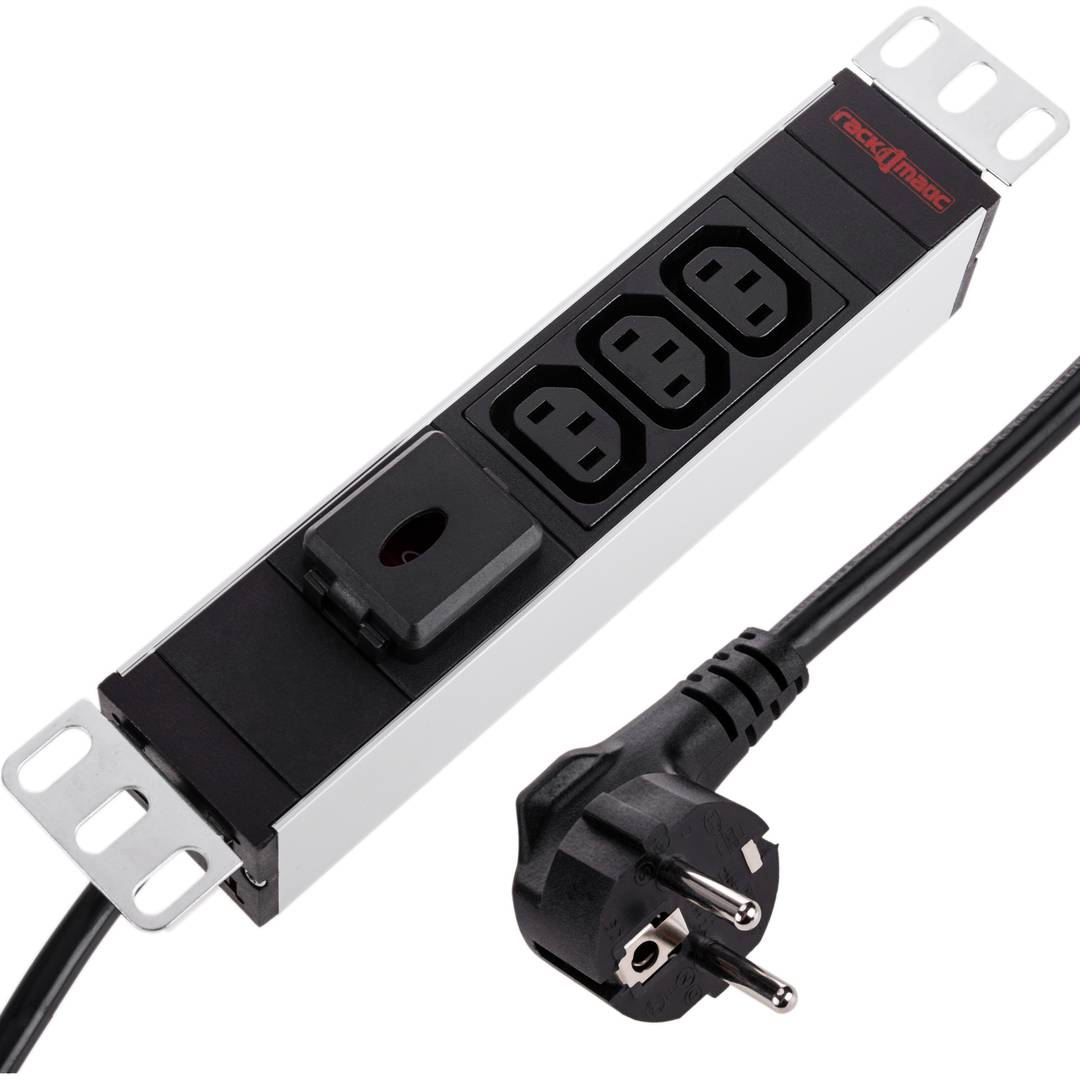

Power strip specially designed to be mounted in a rack 10 "although it can also be used as a standard power strip is not installed in the rack cabinet. Structure mounted on an aluminum extrusion. The terminal occupies 1U height in a rack . it Includes two metal tabs that are attached to the terminal without using screws or tools. These tabs can be coupled form 4so different as the plugs can be oriented toward the front, back, up or down. Model to be installed horizontally or vertically on a rack, then the width matches the frame 10 ".

Specifications
  • Strip 3 female sockets IEC 60320 (C13).
  • 250V/16A.
  • Frequency: 50/60 Hz.
  • It has backlit switch with protective cover.
  • 3m electric cable H05VV-F 3G1,5mm² and completed in Schuko male (DIN49441).
  • Interconnection female Schuko sockets by rigid internal busbar.
  • Size: 44 (height) x 475 (length flangeless) x 46 (depth) mm.
  • CE, IEC, VDE and GS.
  • Gross Weight: 740 g
  • Number of packages: 1
  • Master-pack: 20

Technical terms

  • RACK 19
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
