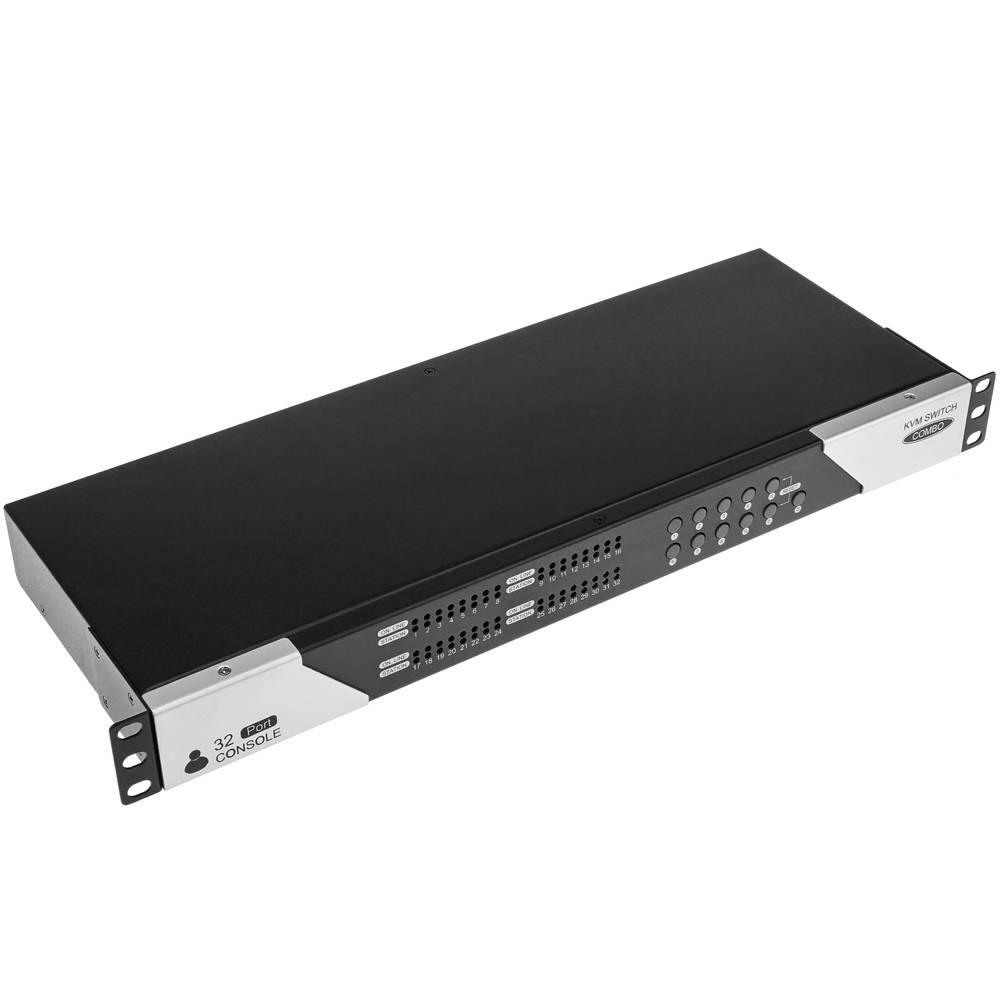

Rack 19" KVM 32-port switch via Cat.6 UTP cable

REF: KV023

Trustpilot

Specifications

  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.
  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).
  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.
  • For each computer connected to the switch via UTP Cat.6 network cable, a UTP conversion module to VGA, keyboard and mouse is required (reference # KV040). These modules are compatible with USB / PS2 keyboard / mouse. Maximum UTP cable length of 40m.
  • Supported video resolution of up to 1280 x 1024 DDC2B compatible.

Your price

PVP

€720.00

Price including VAT: €720.00

PVD

€632.81

Why different prices? Which one is mine? Check rate type

In stock

Related products

Keywords

Did not find what you were looking for? These topic could help you

cabinet rack server network connections
12/06/2019 7:46 p.m.
https://cablematic.com/en/products/rack-19-kvm-32-port-switch-via-cat6-utp-cable-KV023/

Rack 19" KVM 32-port switch via Cat.6 UTP cable

REF: KV023

Trustpilot

Your price

PVP

€720.00

Price including VAT: €720.00

PVD

€632.81

Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.
  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).
  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.
  • For each computer connected to the switch via UTP Cat.6 network cable, a UTP conversion module to VGA, keyboard and mouse is required (reference # KV040). These modules are compatible with USB / PS2 keyboard / mouse. Maximum UTP cable length of 40m.
  • Supported video resolution of up to 1280 x 1024 DDC2B compatible.

More info

32-port CPU switch to be used independently or to chain to console # RK021 as additional switches to add more ports (up to a maximum of 232 ports). The switches are chained together to a maximum of 8 units (including the KVM console or main switch). They can also function as autonomous KVM switches to be connected to a keyboard, mouse and monitor.

Modalities of Use
  • Switches connected to a KVM console type # RK021. These consoles have a female HD15 port to chain up to 7 more switches. The switches are chained together with HD15 male / male cable.
  • Switches connected to a keyboard, mouse and monitor (KVM). Up to 8 KVM switches can be chained using a male / male HD15 cable, as all switches have two female HD15 ports (one input and one output), and USB ports for the keyboard and mouse.
KVM Switch Specifications
  • 32-port KVM switch, which uses Cat.6 UTP cable for interconnecting the switch with computers.

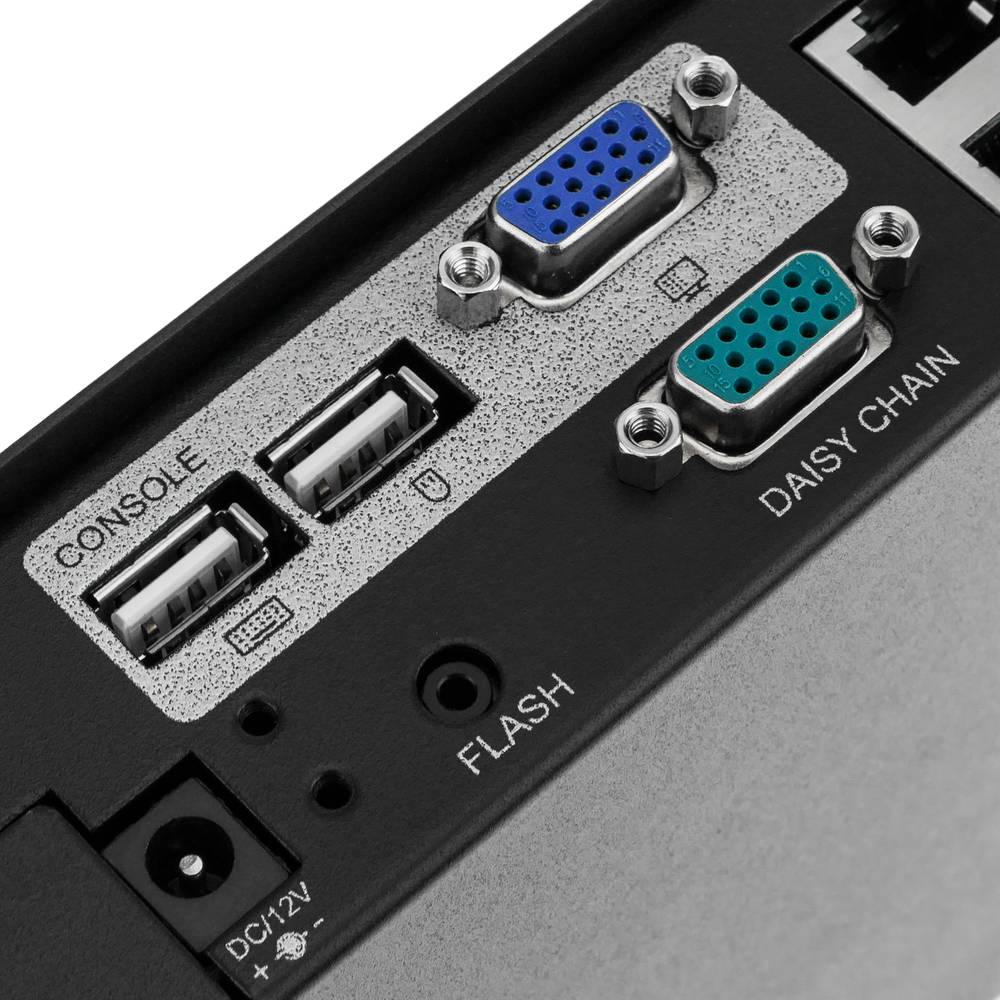

  • Control console based on VGA port (HD15 female), USB keyboard port (type A female) and USB mouse port (type A female).

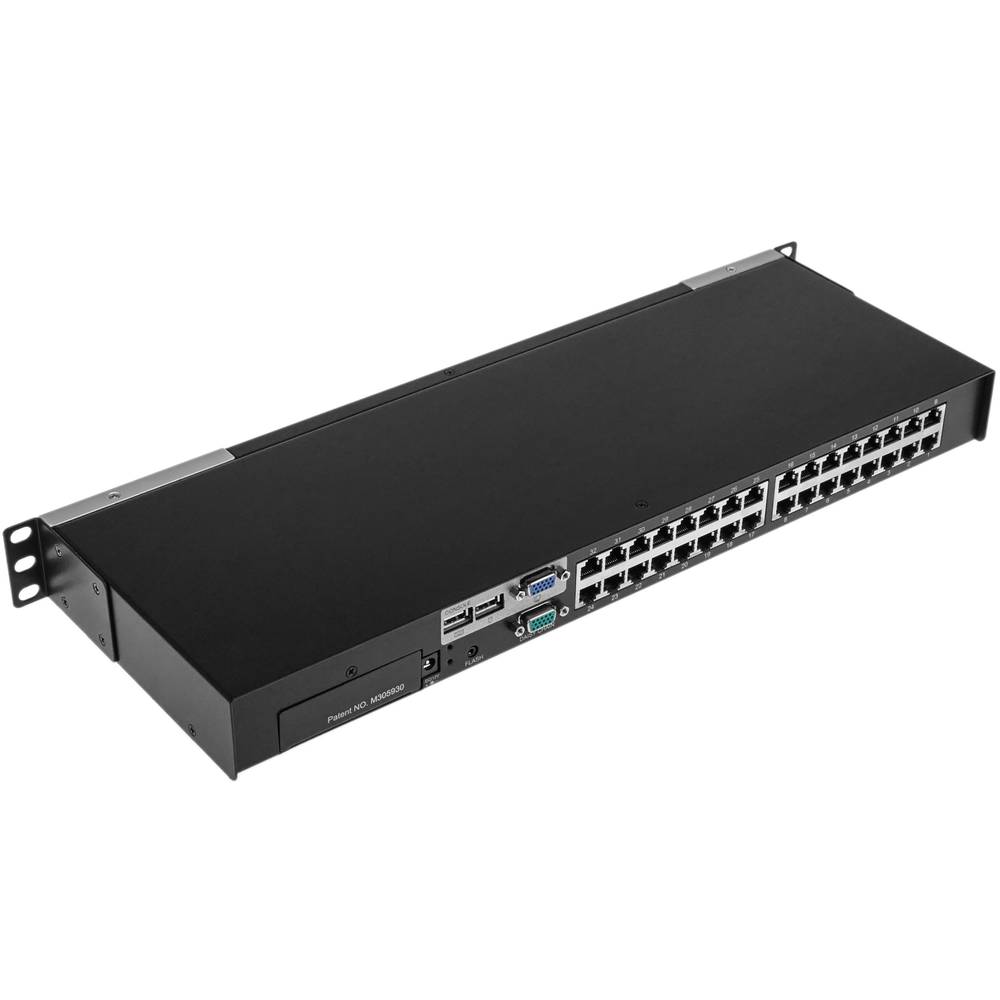

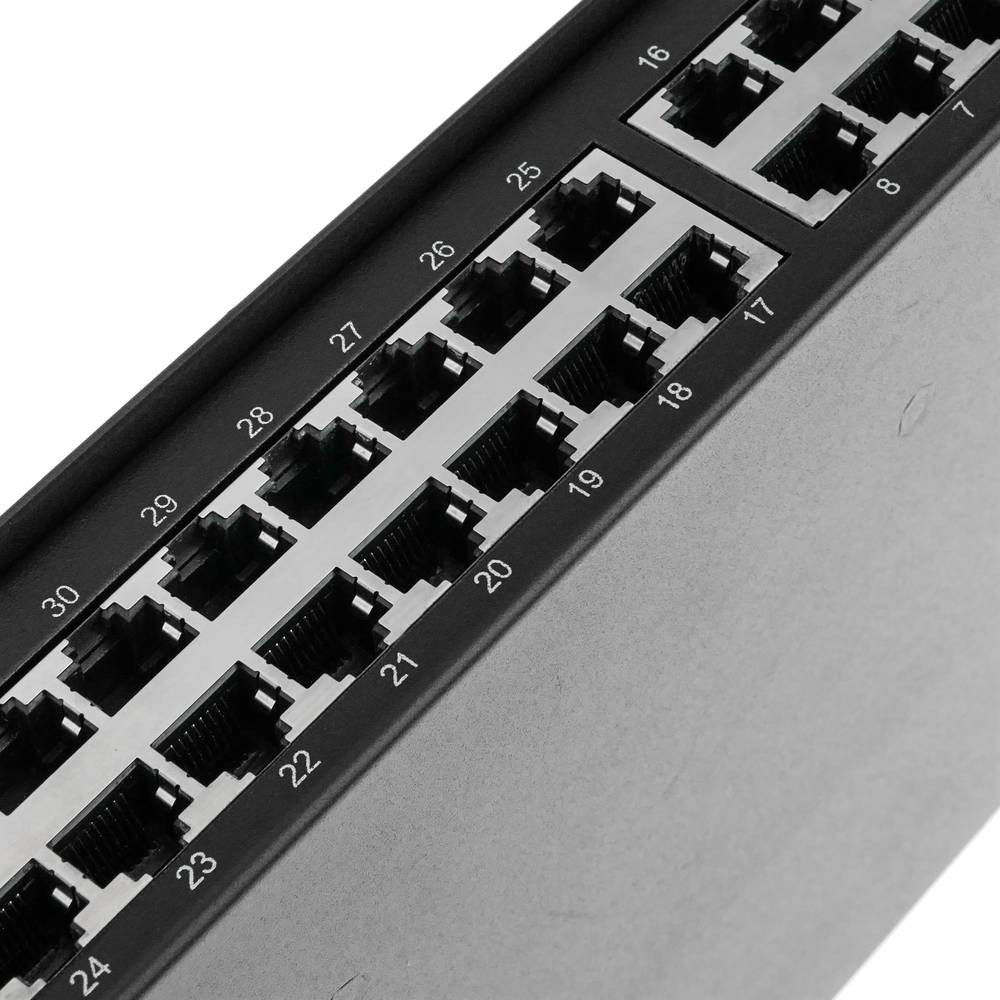

  • On the back it has 32 female RJ45 connectors, through which the VGA, keyboard and mouse signals of the computers are transmitted to the commutator. Computers based on keyboard and mouse can coexist by USB or PS2.
  • For each computer connected to the switch via UTP Cat.6 network cable, a UTP conversion module to VGA, keyboard and mouse is required (reference # KV040). These modules are compatible with USB / PS2 keyboard / mouse. Maximum UTP cable length of 40m.
  • Supported video resolution of up to 1280 x 1024 DDC2B compatible.
  • Compatible with Windows, NetWare, OS / 2, Mac, iMac, Sun, Linux and Unix environments.

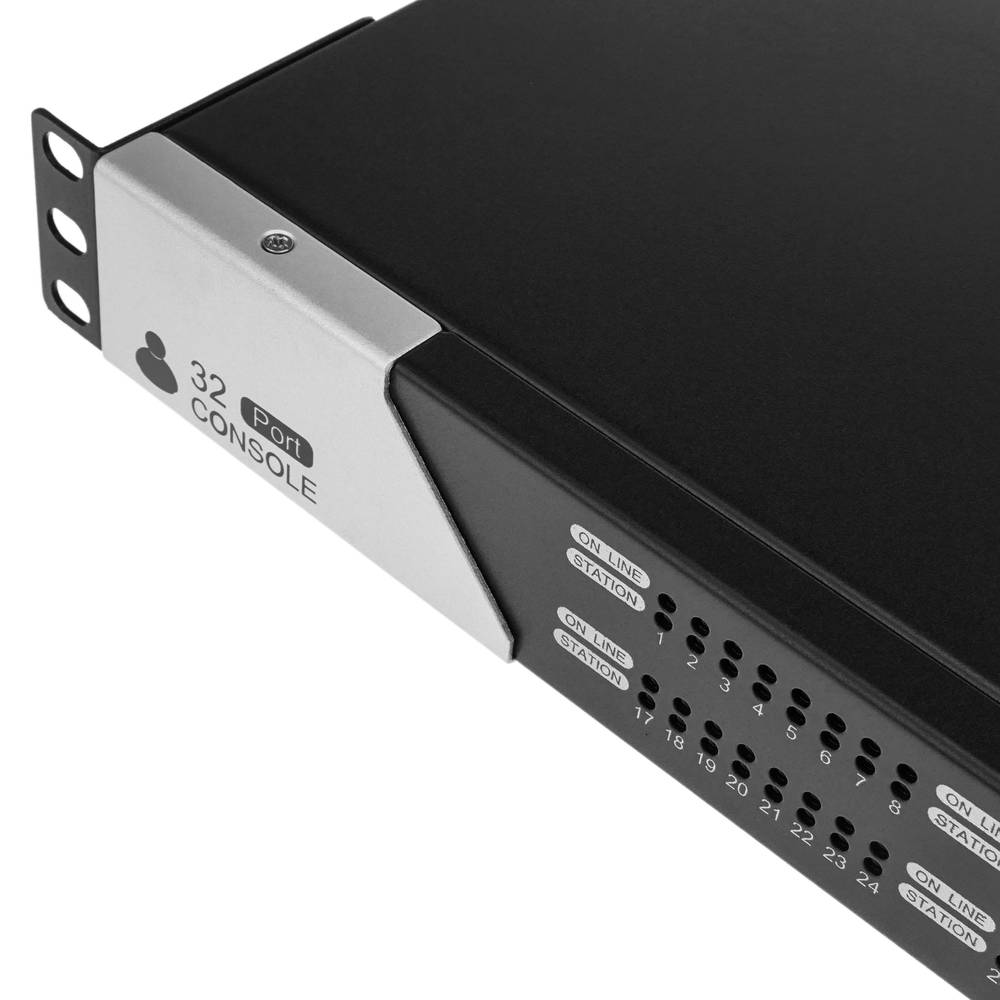

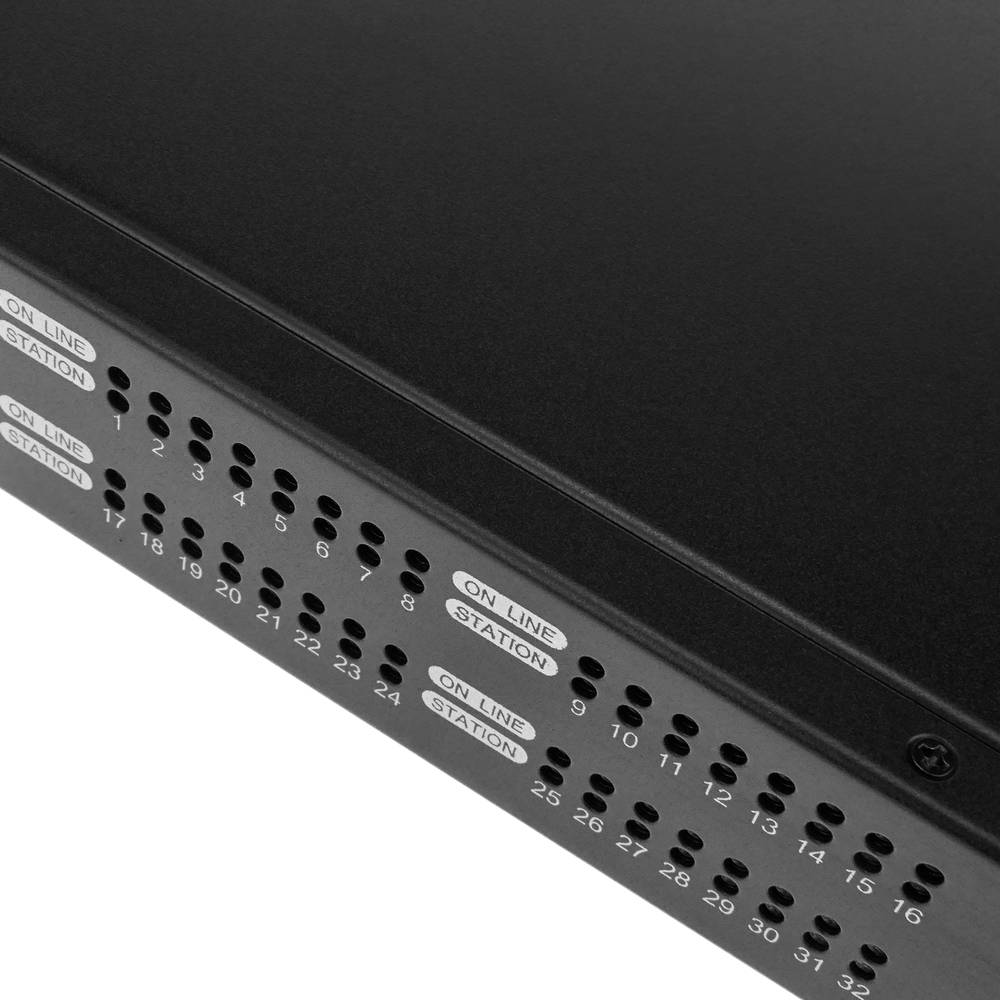

  • Add 32 direct port selection buttons, each with two status LEDs (OnLine and Station).

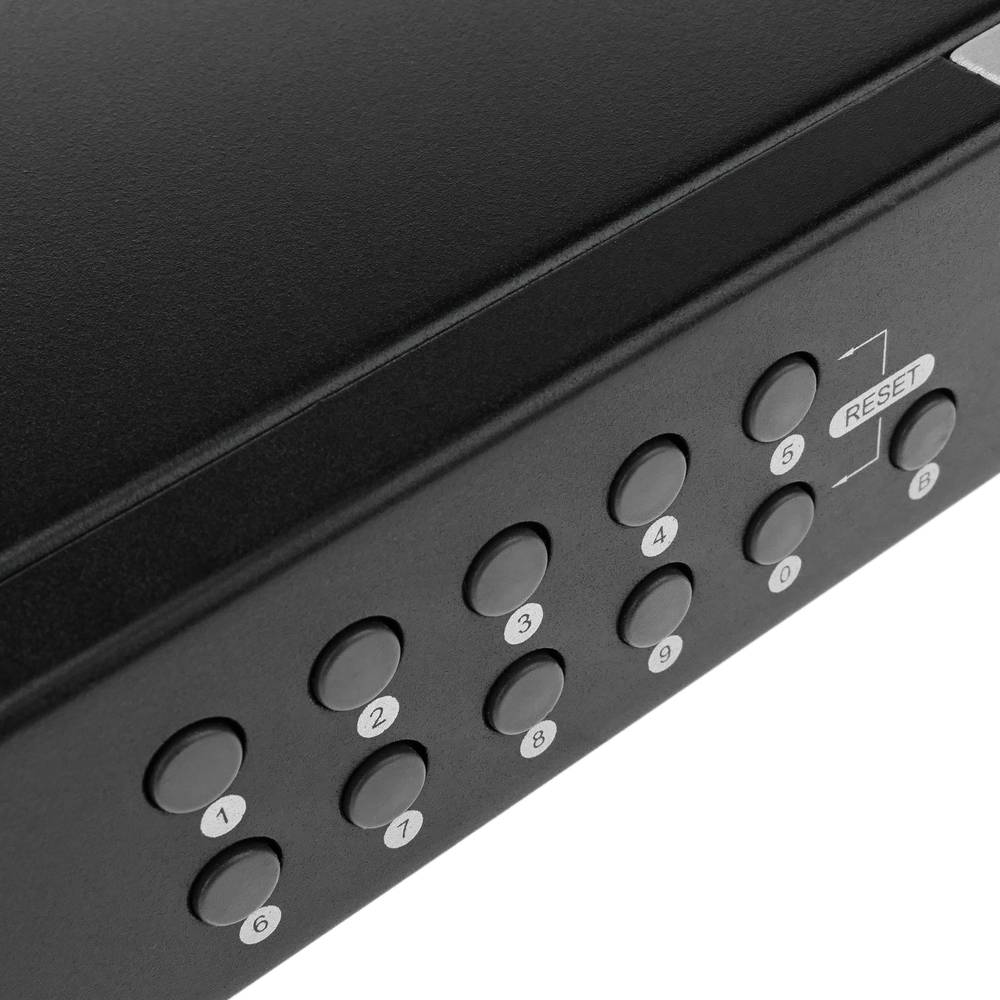

  • Possibility of selecting an active PC by means of a combination of keys from the keyboard of the console, by means of the direct pressing buttons or through the OSD menu (On Screen Display).
  • ACL (Access Control List) support for security functions that allow you to create groups of computers to control access for authorized users.
  • Multi-language: English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
  • Automatic programmable port scanning from 5 to 99 seconds.
  • It allows the chaining of more compatible KVM switches (references # KV00x) to obtain more controllable ports from the main console (up to 8 chained switches and a maximum of 240 ports).
  • It has female HD15 connectors for the chaining of KVM switches. To make the chaining a VGA cable type HD15 male to HD15 male is required with all the pins connected, as our reference # VS040.

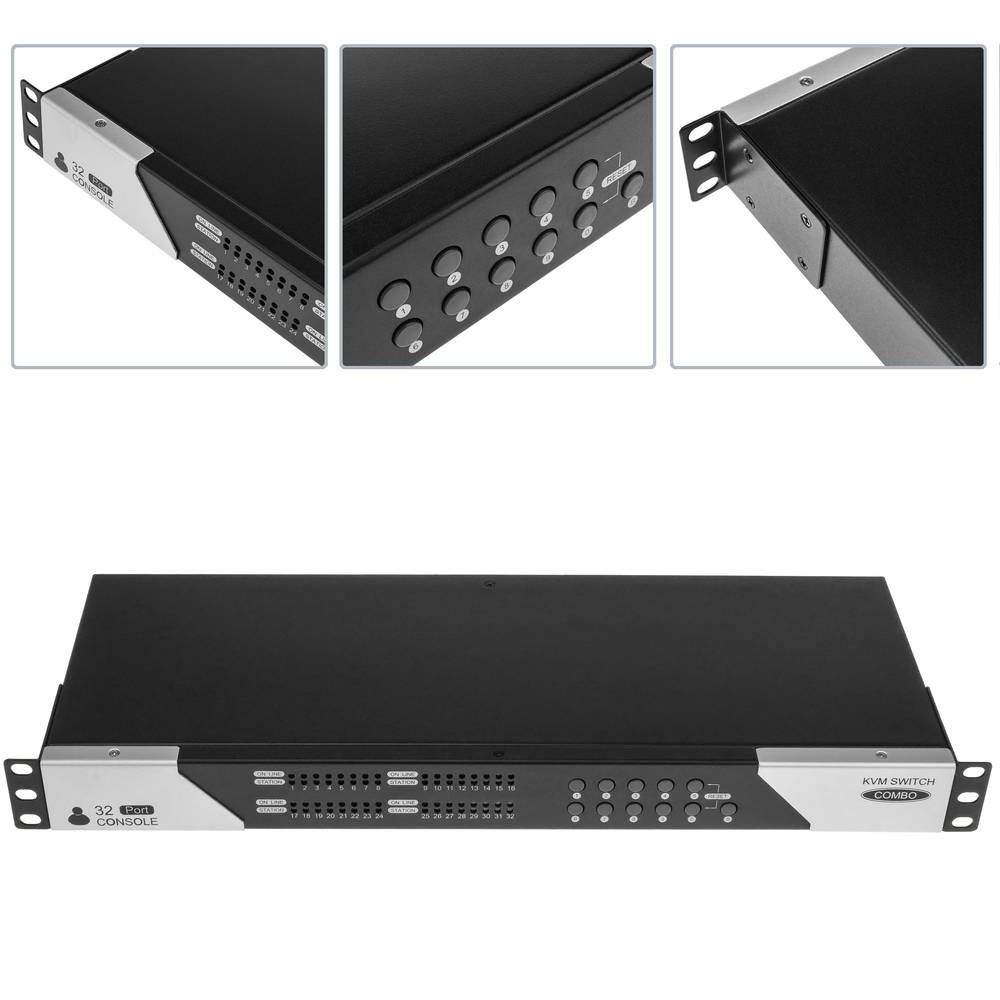

  • 19 "1U rack format that allows installation in a rack or desktop cabinet.
  • Mounted in black metal casing, size 450 x 165 x 44 mm.

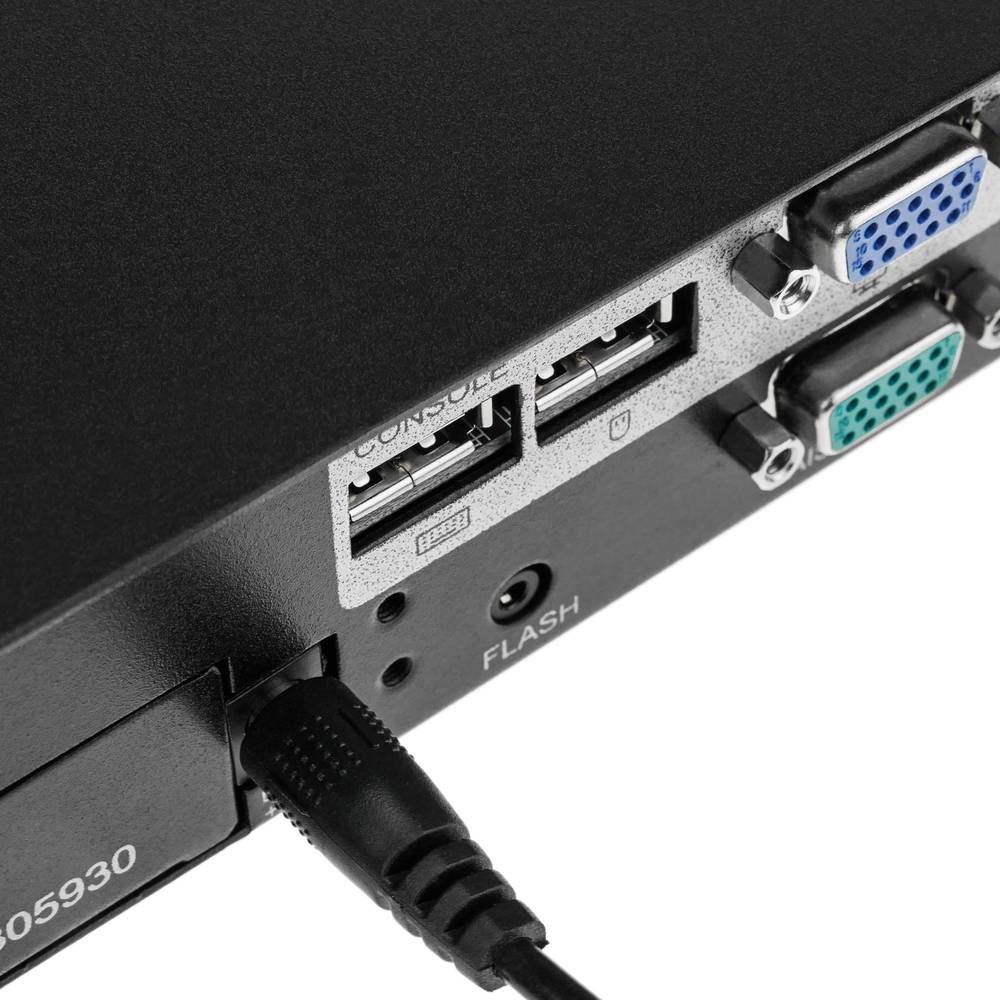

  • Supplied with 12 VDC power supply (1A).
Expansion Modules
  • It has a socket on the back to add remote console expansion modules through UTP and remote console through TCP / IP. It is a socket that by default has a metal cover. Simply open the lid and insert the expansion module, leaving the new ports in sight at the back. Our reference # KV032.
  • Gross Weight: 3.33 kg
  • Product size (width x depth x height): 45.0 x 16.5 x 4.4 cm
  • Number of packages: 1
  • Packages size: 57.0 x 25.5 x 12.5 cm

Videos

Technical terms

  • Types of network cables (UTP, FTP, STP)
  • KVM
  • Categories network cables
Types of network cables (UTP, FTP, STP)
UTP cable is standard twisted pair is referred by its acronym UTP (Unshiedld Twiested Pair/Unshielded Twisted Pair). The major advantages of this cable are its low cost and ease of handling. Its main disadvantages are a higher error rate compared to other cable types and their limitations to work at high distances without regeneration. FTP is a type of cable caracteriza that each twisted pair is uniformly during creation. A comprehensive screening of all pairs is performed by a apantallante outer sheet. This technique allows to have similar characteristics to the shielded cable. STP is characterized by that each pair is covered with a metal mesh, in the same way that the coaxial cables, and the set of pairs is coated with a sheet apantallante. Referenced frequently with their acronym STP (Shield Twisted Pair/Shielded Twisted Pair)
