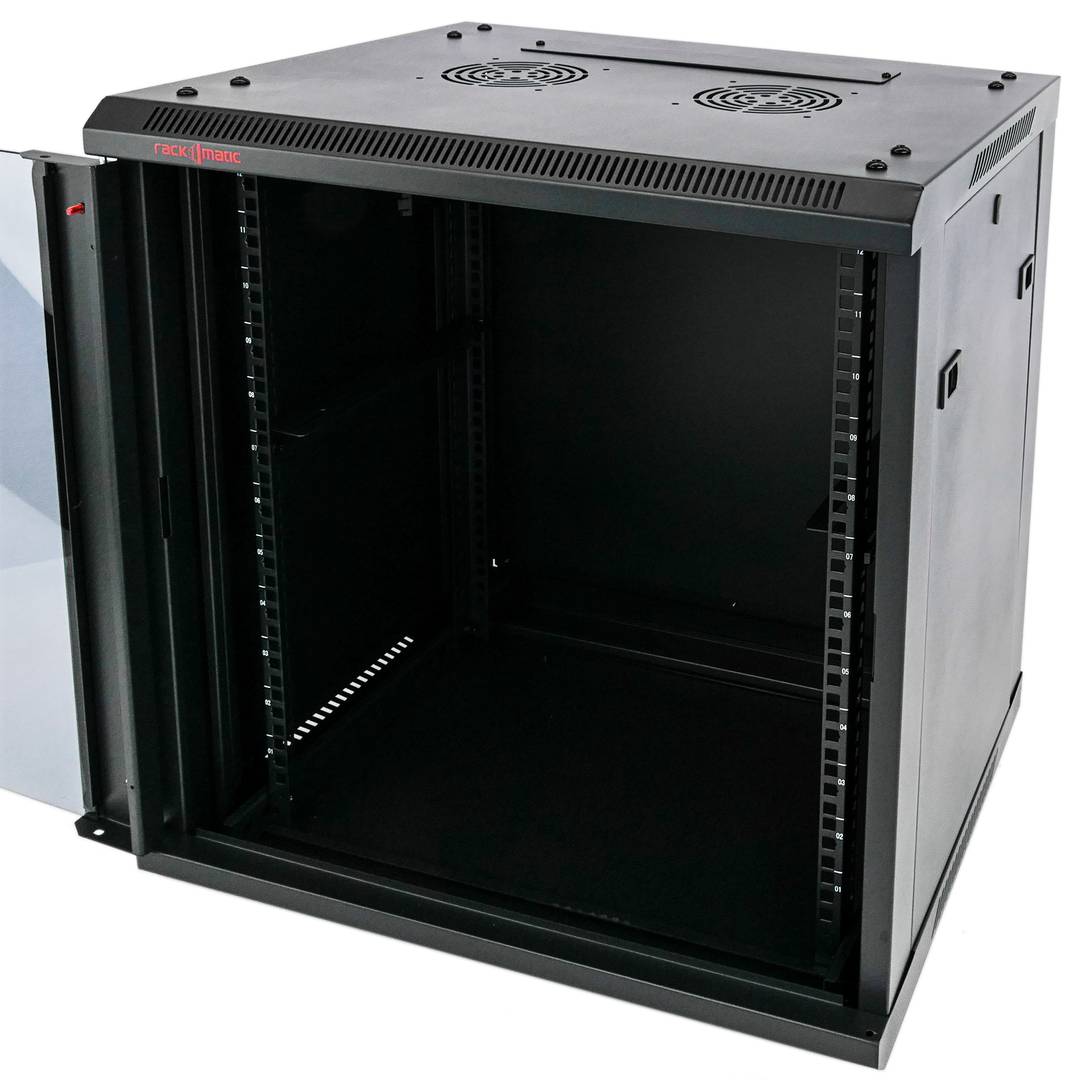

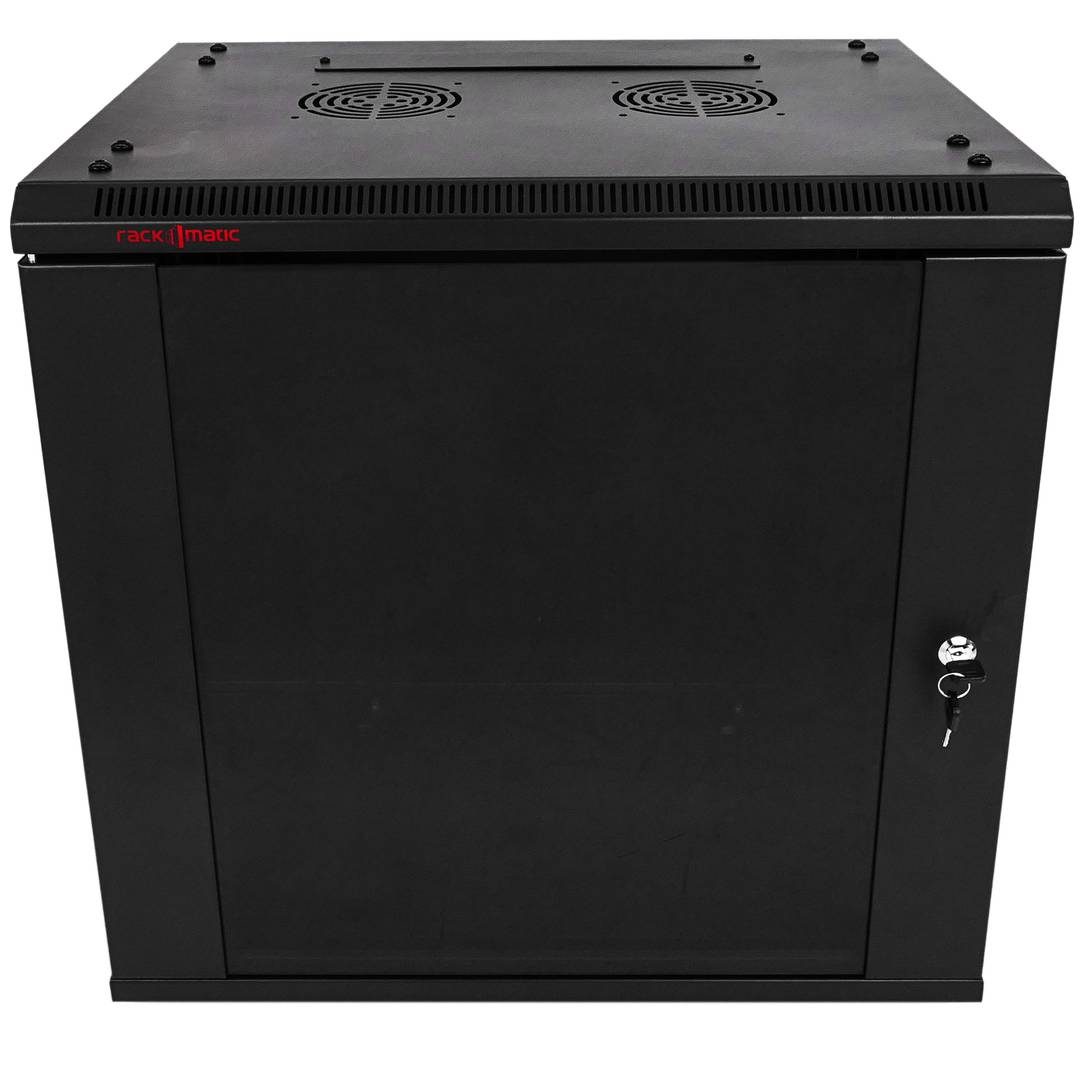

Server rack cabinet 19" 12U mural 600x450x642mm SOHOrack ASW DIY

REF: WY004

Specifications

  • 19 "Rack wall cabinet from the RackMatic SOHORack ASW-DIY range. DIY Rack cabinet (Do It Yourself), supplied disassembled in a cardboard box that occupies 1/3 (approximately) the size of the mounted cabinet.
  • 12U wall cabinet and exterior size in mm 600 (width) x 450 (depth) x 642 (height). The interior racks are configurable in depth. The distance from the front frame to the bottom of the cabinet (useful bottom) could be up to 360 mm, separating the front and rear frames as much as possible.

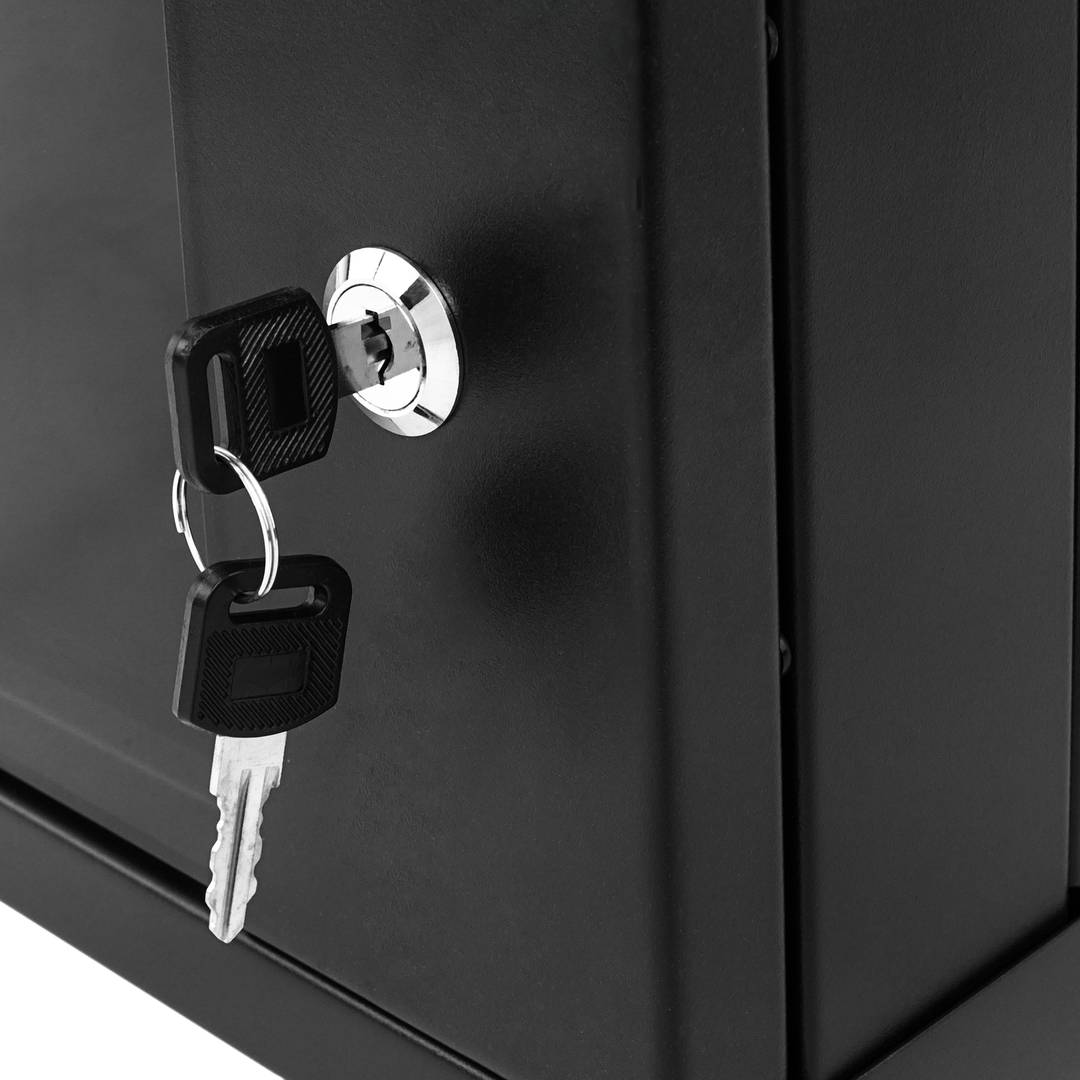

  • Door with safety glass that gives it a more attractive design and lock with key. 180 degree door opening.

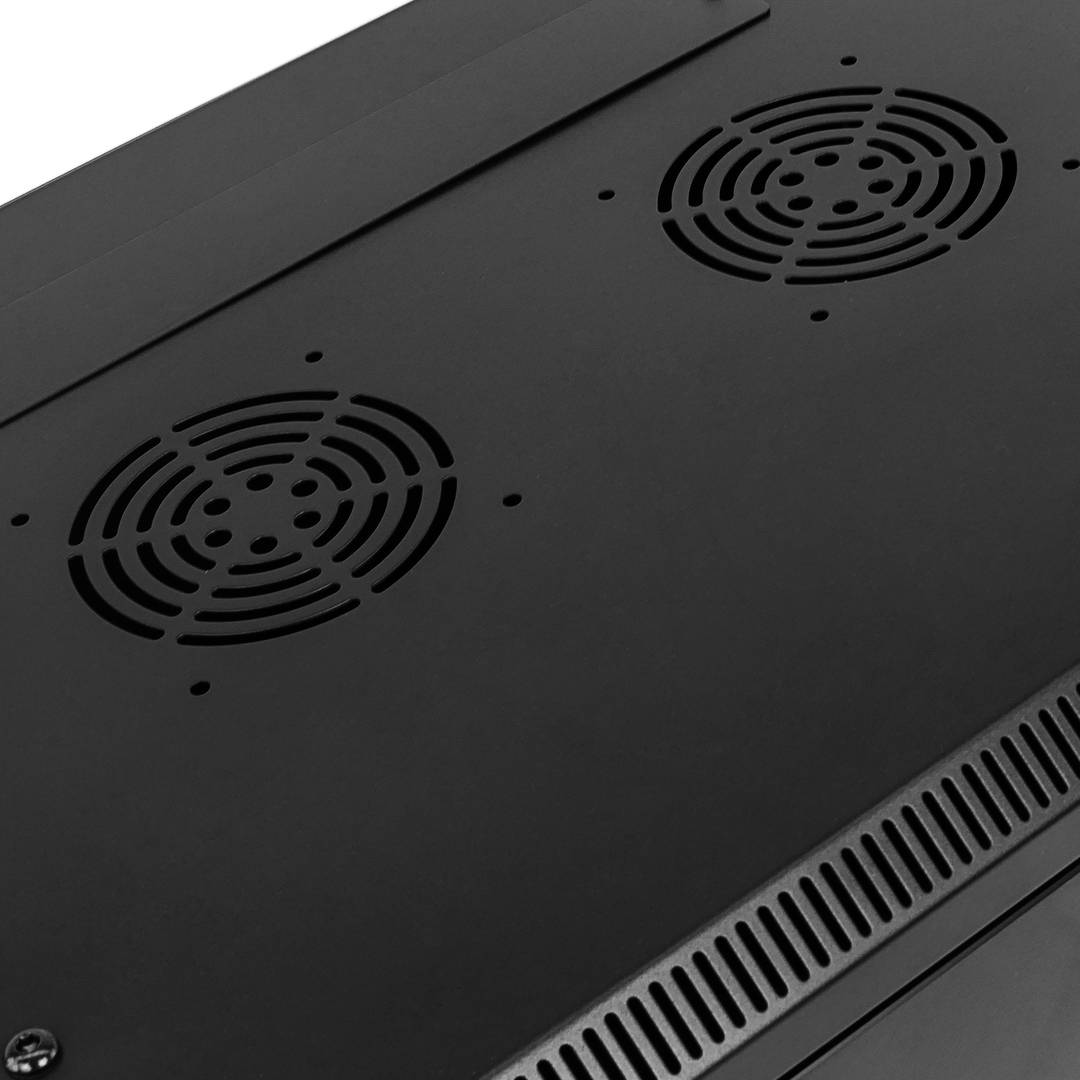

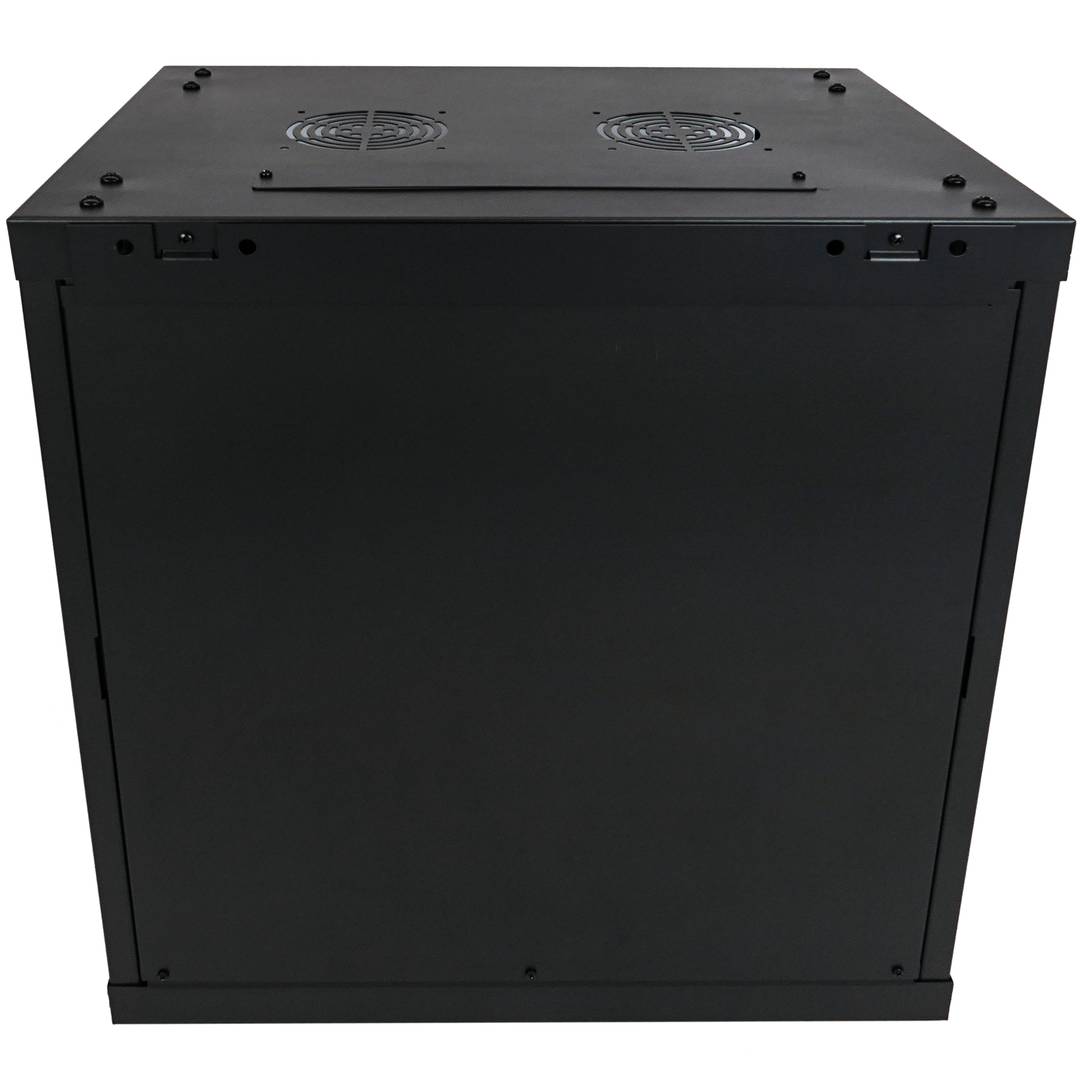

  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate. Drilling for up to two 12 cm fans on the top panel (fans not included). Holes in the back plate for fixing the cabinet to the wall.
  • Side panels with removable system without screws, for convenient lateral access to wiring and housed accessories. Optionally, a lock can be installed on the side panels to avoid unwanted access.

Your price

PVP

98.84

Price including VAT: 98.84

PVD

86.48


Why different prices? Which one is mine? Check rate type

Shipping costs: 14,50 *
GB-SE1 1ES

Related products

Keywords

Did not find what you were looking for? These topic could help you

01/18/2020 1:10 a.m.
https://cablematic.com/en/products/server-rack-cabinet-19-12u-mural-600x450x642mm-sohorack-asw-diy-WY004/

Server rack cabinet 19" 12U mural 600x450x642mm SOHOrack ASW DIY

REF: WY004

Your price

PVP

98.84

Price including VAT: 98.84

PVD

86.48


Why different prices? Which one is mine? Check rate type

Shipping costs: 14,50 *
GB-SE1 1ES

Specifications

  • 19 "Rack wall cabinet from the RackMatic SOHORack ASW-DIY range. DIY Rack cabinet (Do It Yourself), supplied disassembled in a cardboard box that occupies 1/3 (approximately) the size of the mounted cabinet.
  • 12U wall cabinet and exterior size in mm 600 (width) x 450 (depth) x 642 (height). The interior racks are configurable in depth. The distance from the front frame to the bottom of the cabinet (useful bottom) could be up to 360 mm, separating the front and rear frames as much as possible.
  • Door with safety glass that gives it a more attractive design and lock with key. 180 degree door opening.
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate. Drilling for up to two 12 cm fans on the top panel (fans not included). Holes in the back plate for fixing the cabinet to the wall.
  • Side panels with removable system without screws, for convenient lateral access to wiring and housed accessories. Optionally, a lock can be installed on the side panels to avoid unwanted access.

More info

19 "Rack wall cabinet from the RackMatic SOHORack ASW-DIY range. DIY Rack cabinet (Do It Yourself), supplied disassembled in a cardboard box that occupies 1/3 (approximate) of the size of the mounted cabinet. it is done in 5 minutes and the cabinet is solid, stable and robust.If it is disassembled, it facilitates transport and storage.The interior racks are configurable in depth.

specs
  • 19 "Rack wall cabinet from the RackMatic SOHORack ASW-DIY range. DIY Rack cabinet (Do It Yourself), supplied disassembled in a cardboard box that occupies 1/3 (approximately) the size of the mounted cabinet.
  • 12U wall cabinet and exterior size in mm 600 (width) x 450 (depth) x 642 (height). The interior racks are configurable in depth. The distance from the front frame to the bottom of the cabinet (useful bottom) could be up to 360 mm, separating the front and rear frames as much as possible.
  • Door with safety glass that gives it a more attractive design and lock with key. 180 degree door opening.
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate. Drilling for up to two 12 cm fans on the top panel (fans not included). Holes in the back plate for fixing the cabinet to the wall.
  • Side panels with removable system without screws, for convenient lateral access to wiring and housed accessories. Optionally, a lock can be installed on the side panels to avoid unwanted access.
  • They are delivered to the customer disassembled to facilitate transport and storage. They are assembled in 5 minutes, leaving a solid, robust wall cabinet, and ready to be installed.
  • Made of black painted SPCC steel. They comply with the highest standards and standards ANSI / EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7) and DIN41494.
  • Gross Weight: 21.0 kg
  • Product size (width x depth x height): 60.0 x 45.0 x 64.2 cm
  • Number of packages: 1
  • Packages size: 66.0 x 61.5 x 17.0 cm
  • Master-pack: 1

Videos

Technical terms

  • RACK 19
  • Rack unit (U)
RACK 19

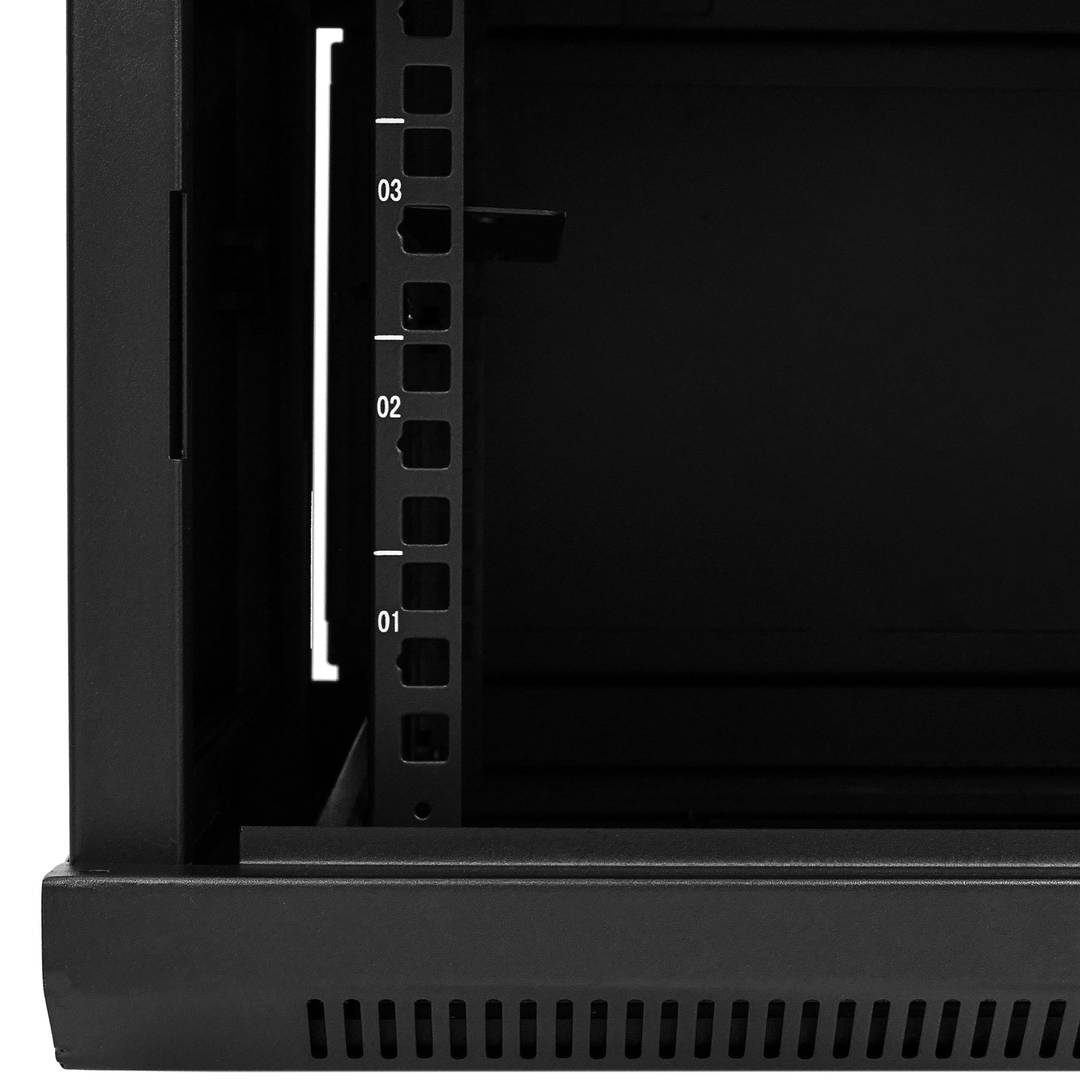

A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
