Server rack cabinet 19 inch 24U 600x800x1200mm floor standing MobiRack by RackMatic
REF: WL012
Specifications
- Rack 19 "from the high-quality RackMatic MobiRack range.
- Cabinet size with installed wheels (width x depth x height): 600 x 800 x 1270 mm. Height of the wheels: 70 mm.
- The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
- Useful background of 687 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame recommended 575 mm (configurable by the user).
- Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
06/01/2020 2 p.m.
https://cablematic.com/en/products/server-rack-cabinet-19-inch-24u-600x800x1200mm-floor-standing-mobirack-by-rackmatic-WL012/
https://cablematic.com/en/products/server-rack-cabinet-19-inch-24u-600x800x1200mm-floor-standing-mobirack-by-rackmatic-WL012/
Server rack cabinet 19 inch 24U 600x800x1200mm floor standing MobiRack by RackMatic
REF: WL012
Your price
PVP
€306.73
Price including VAT: €306.73
PVD
€267.15
Specifications
- Rack 19 "from the high-quality RackMatic MobiRack range.
- Cabinet size with installed wheels (width x depth x height): 600 x 800 x 1270 mm. Height of the wheels: 70 mm.
- The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
- Useful background of 687 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame recommended 575 mm (configurable by the user).
- Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).
More info
19 "rack RackMatic MobiRack 24U height and external size in mm 600 (width) x 800 (depth) x 1200 (height) (cabinet size without wheels or leveling feet). high quality SPCC of 1.2mm thickness, painted in black RAL9004.Rack cabinets that are supplied disassembled.Professional and suitable for the installation of server rooms mounted in 19 "rack, because they allow to be connected laterally.
Specifications
Specifications
- Rack 19 "from the high-quality RackMatic MobiRack range.
- Cabinet size with installed wheels (width x depth x height): 600 x 800 x 1270 mm. Height of the wheels: 70 mm.
- The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
- Useful background of 687 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame recommended 575 mm (configurable by the user).
- Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).
- Compatible 19 "International Standards, ETSI.
- Cabinet made of SPCC steel thickness 1.2mm, painted in black (RAL 9004).
- Supplied disassembled in flat-pack, for greater transport comfort.
- Maximum static load supported: 1,200 Kg.

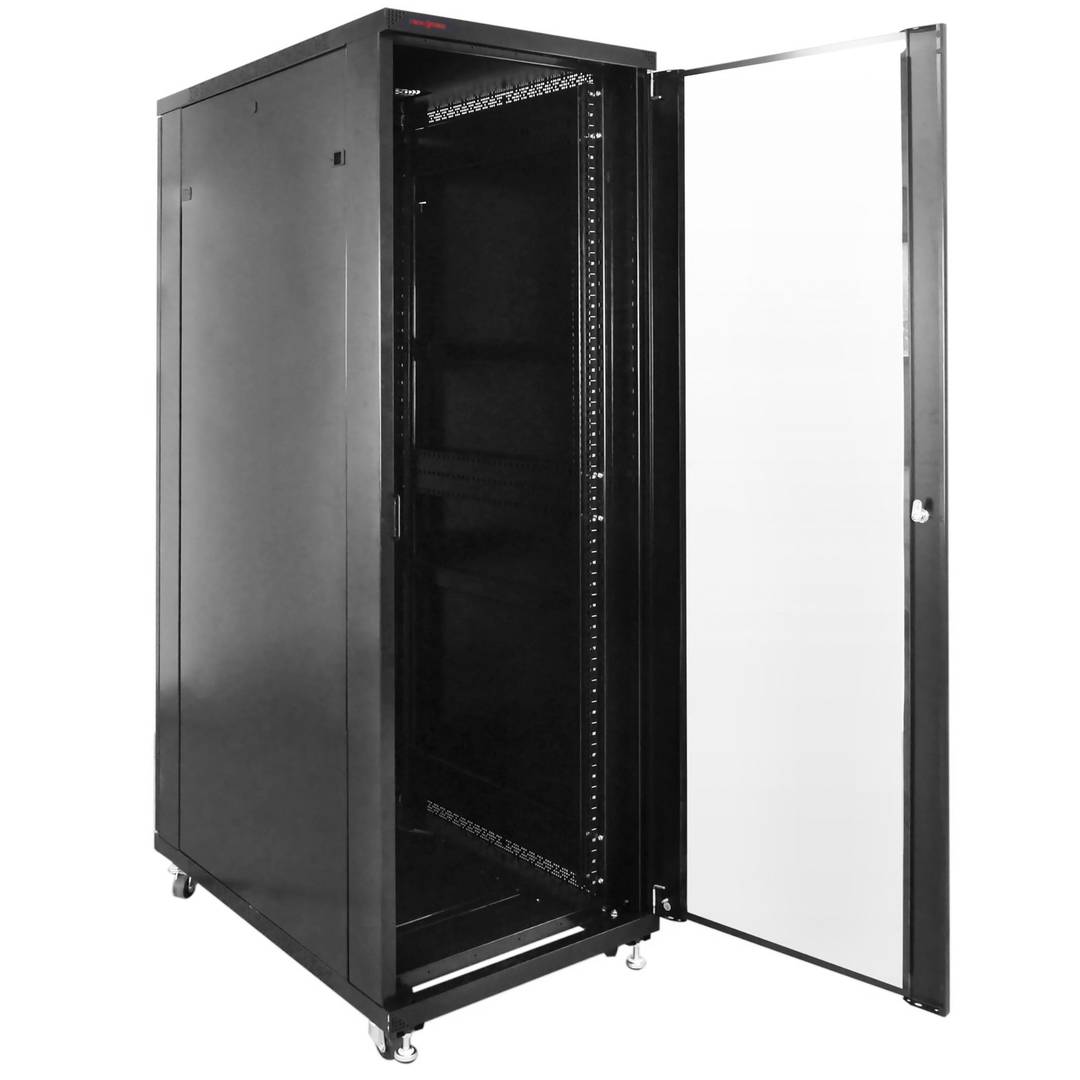

- Front door with metal frame, glass and security key.
- Rear door perforated sheet metal for better ventilation of the interior. With security key
- Top / bottom cover with cable gland.

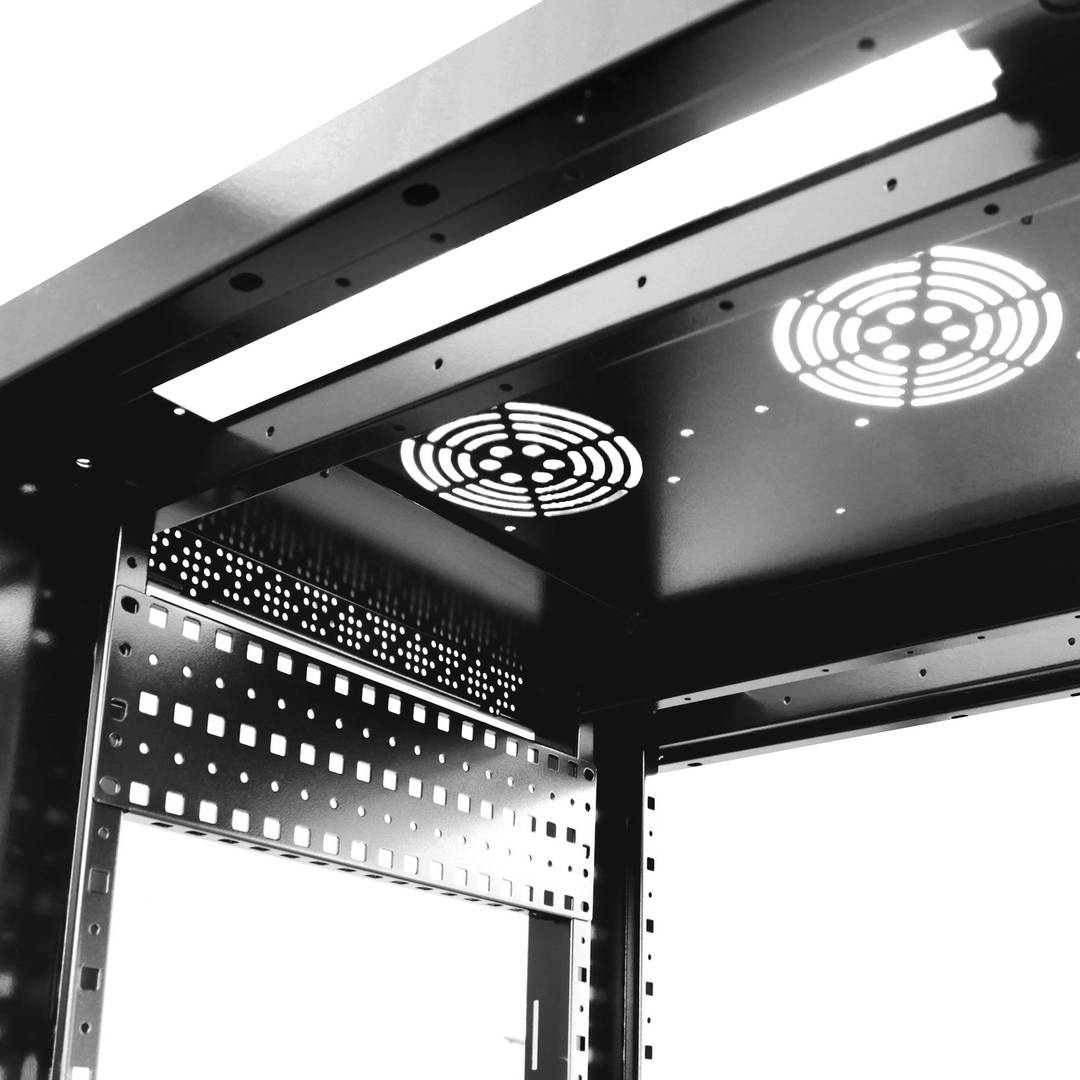

- The top cover is adapted for the installation of 4 120mm side fans (fans not included).
- Possibility of installation of upper ventilation cover (reference # WO2x).
- Removable side covers. They have perforation for the installation of lock with key. The lock is not included (reference # WO33).
- Lateral fixing system for trays. Width of the lateral fixation of 493 mm.

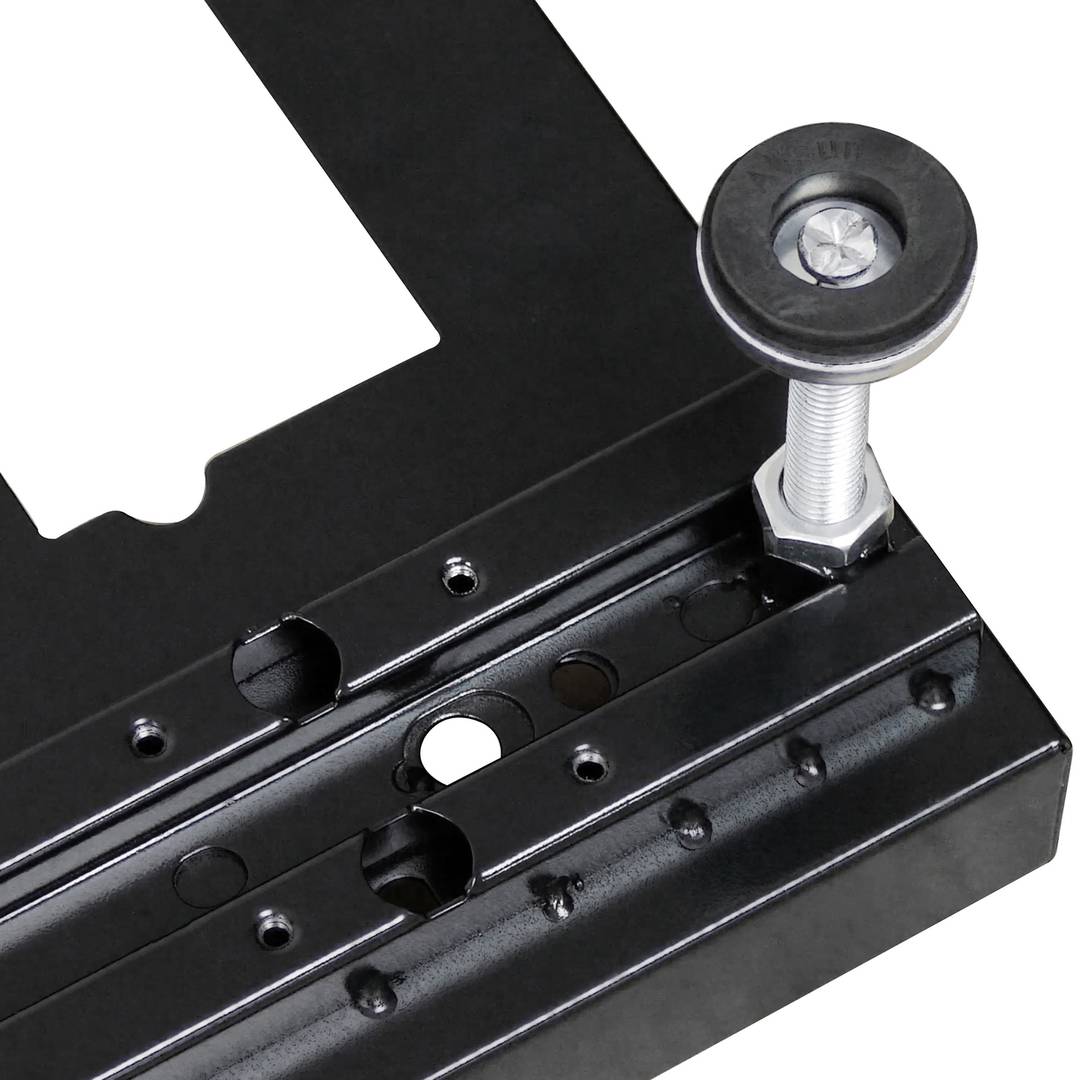

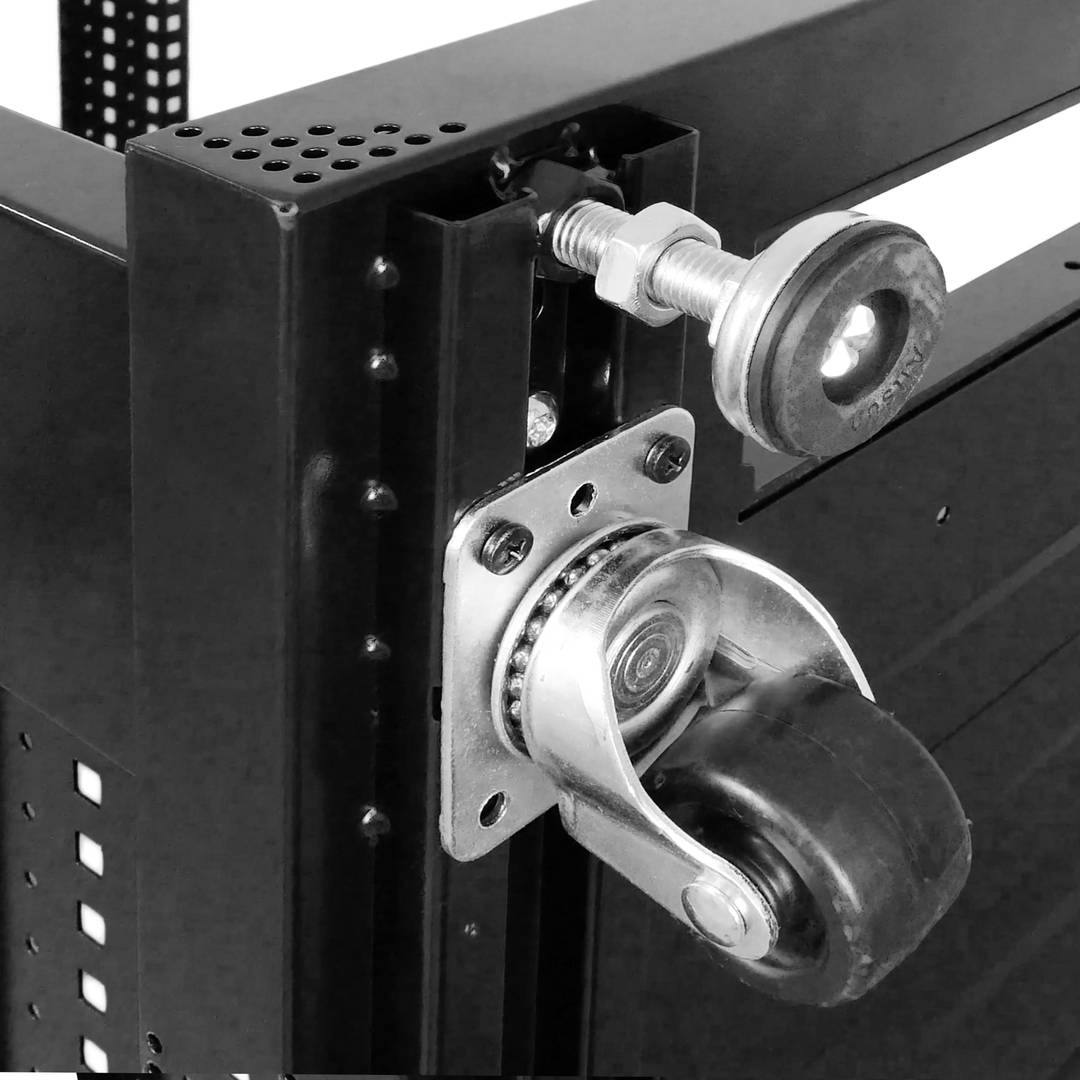

- The cabinet is supplied with wheels to facilitate its mobility. Four leveling feet are supplied to configure the cabinet in a fixed position and adjustable in height.
- Possibility of acquiring the union system of two cabinets (reference # WN92). It consists of 4 metal pieces that join 2 cabinets. For the union you must do without the installation of the side covers of both cabinets, by the sides that go together.
- Includes hardware package for fixing 19 "rack accessories (20 units).
- Bulk 1: 122X64X24 cm and 45Kg.
- Bulk 2: 84X64X11 cm and 17Kg.
- Gross Weight: 61.5 kg
- Product size (width x depth x height): 60.0 x 80.0 x 127.0 cm
- Number of packages: 2
Technical terms
- RACK 19
- Flat-pack
- Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
