Tool cable fault locator probe data

REF: CT014

Specifications

  • Continuity tester in data cables.
  • Monitoring of whats cables to diagnose the cutoff or failure.
  • The probe receives the tone through the data cables.
  • In telephone cables it identifies the state of the telephone (no signal, call or busy).
  • The emitter sends a continuous tone or an intermittent tone. It has a selection switch.

Your price

PVP

28.29

Price including VAT: 28.29

PVD

24.87


Why different prices? Which one is mine? Check rate type

Shipping costs: 26,81 *
GB-SE1 1ES

Specifications

  • Continuity tester in data cables.
  • Monitoring of whats cables to diagnose the cutoff or failure.
  • The probe receives the tone through the data cables.
  • In telephone cables it identifies the state of the telephone (no signal, call or busy).
  • The emitter sends a continuous tone or an intermittent tone. It has a selection switch.

Keywords

Did not find what you were looking for? These topic could help you

More info

Cable tester through probe. This cable tester can detect the point of failure in the cable thanks to the probe available. Designed to be used in telephone, network, twisted pair, etc. data cables. It consists of two parts: the signal transmitter and the signal receiver (probe).

Specifications
  • Continuity tester in data cables.
  • Monitoring of whats cables to diagnose the cutoff or failure.
  • The probe receives the tone through the data cables.
  • In telephone cables it identifies the state of the telephone (no signal, call or busy).
  • The emitter sends a continuous tone or an intermittent tone. It has a selection switch.

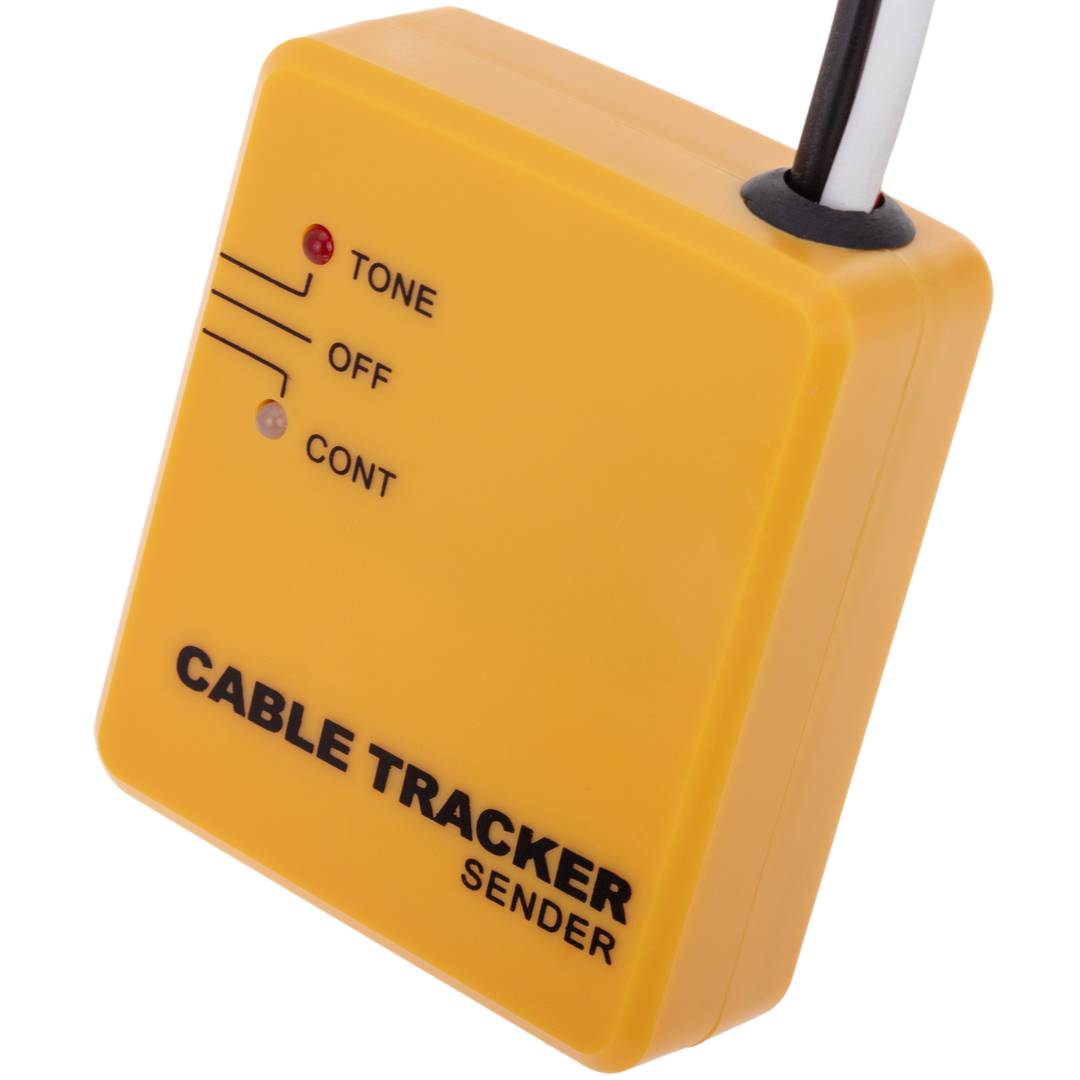

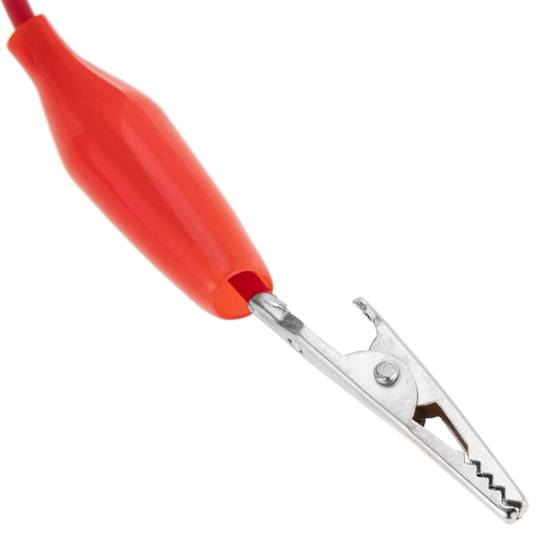

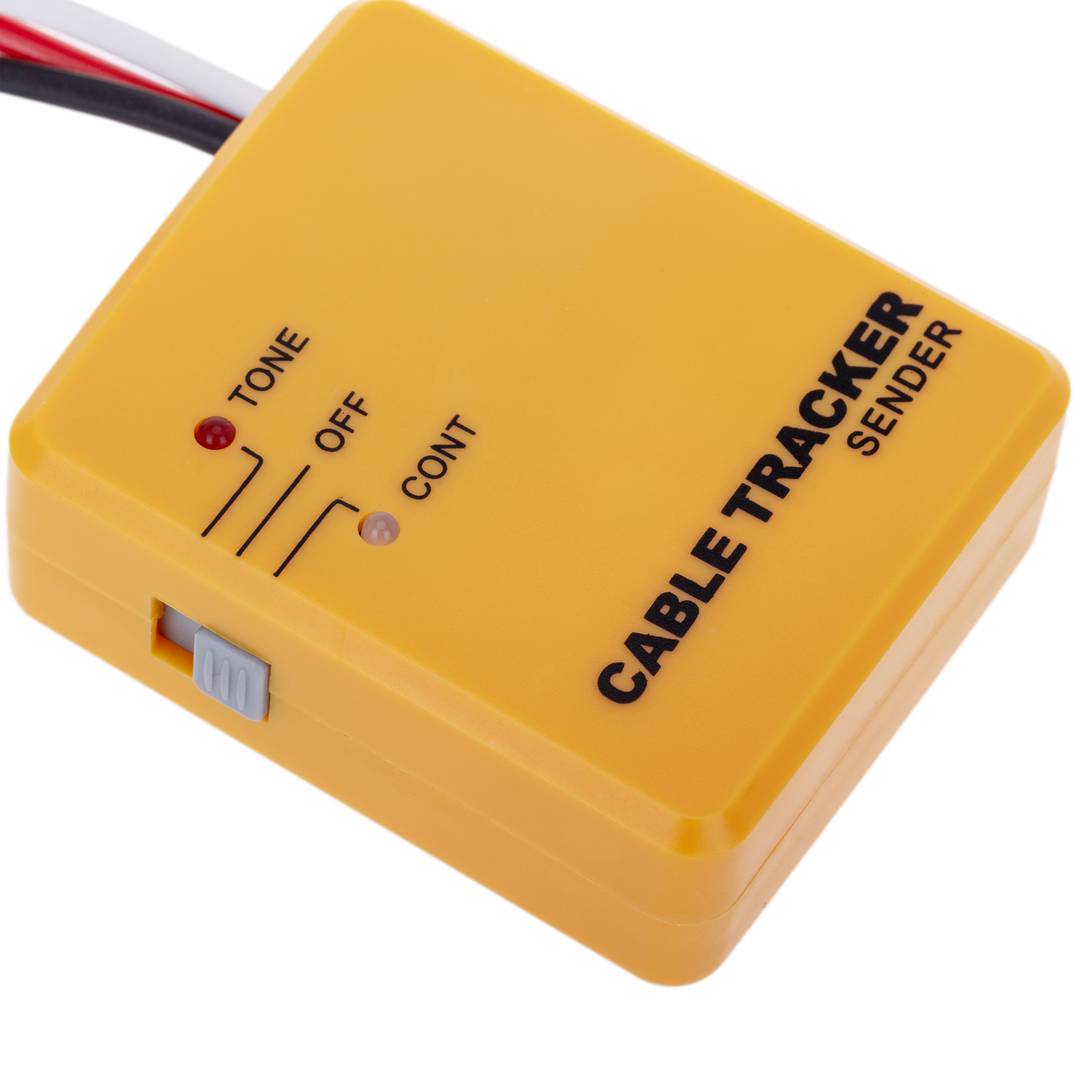

  • The transmitter has an RJ11 connector for connection to the telephone jack to be checked. It also has two clampsof crocodile for the co-approval of any data cable.

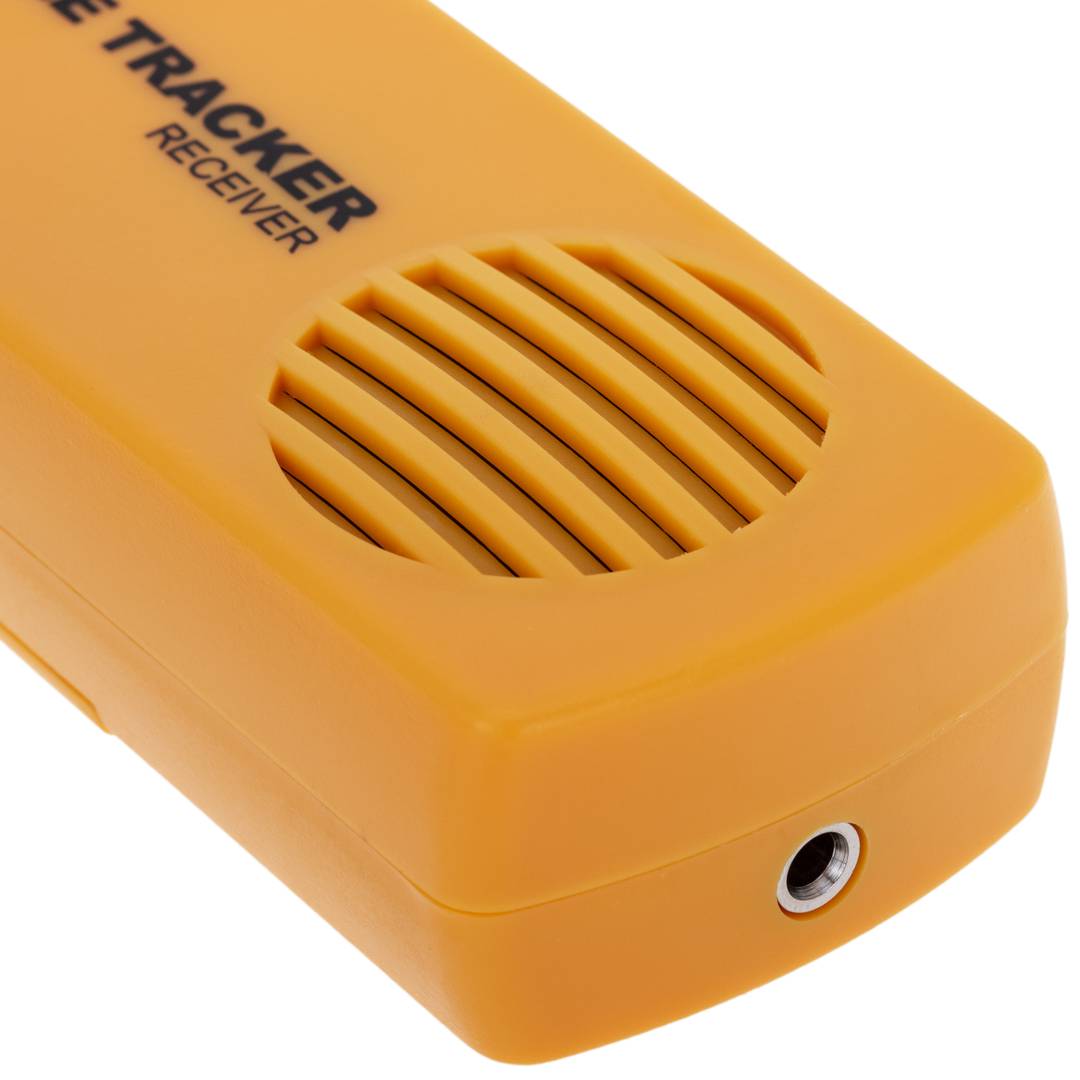

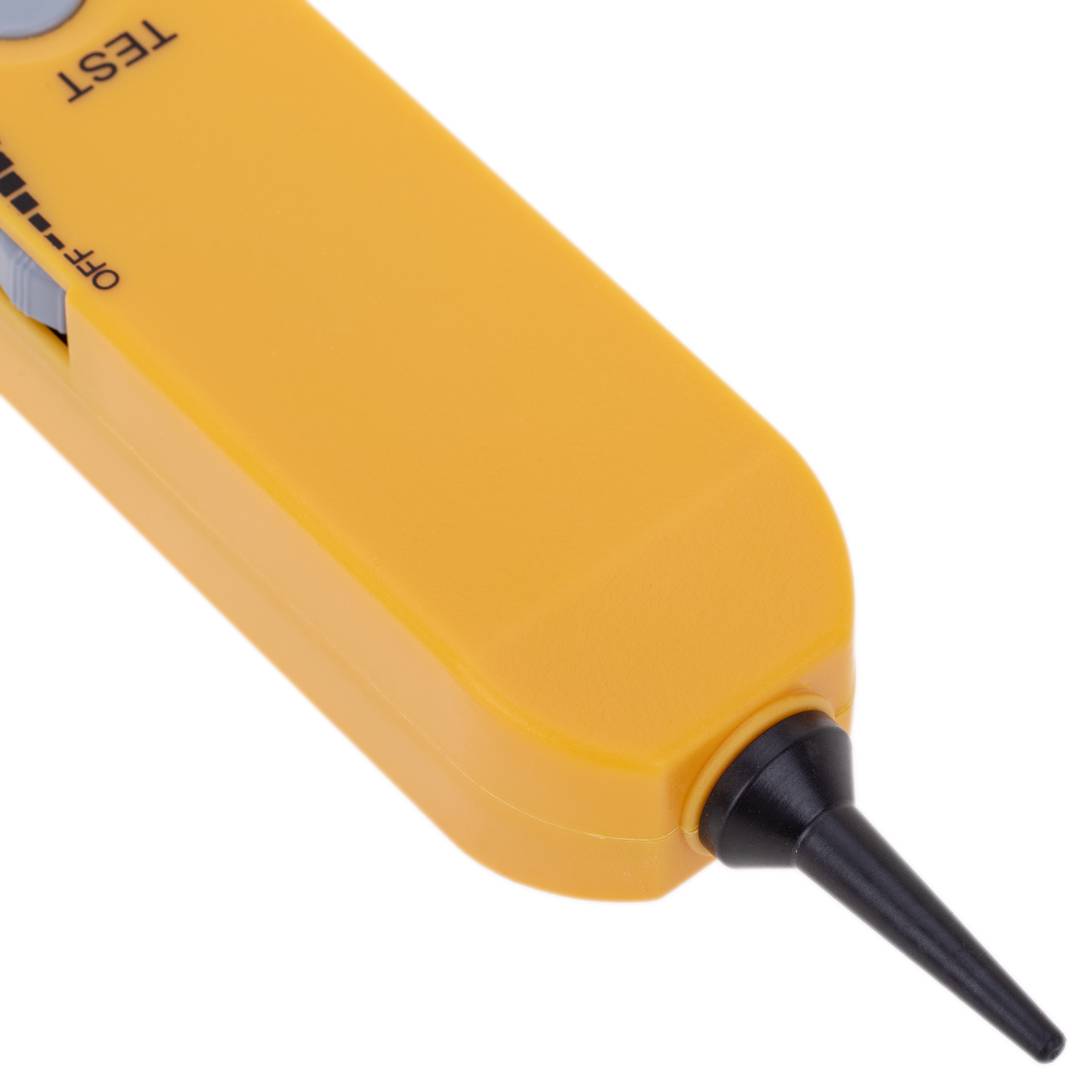

  • The probe has a sensor to track the cable to the point of failure. From that point on, no signal is received.

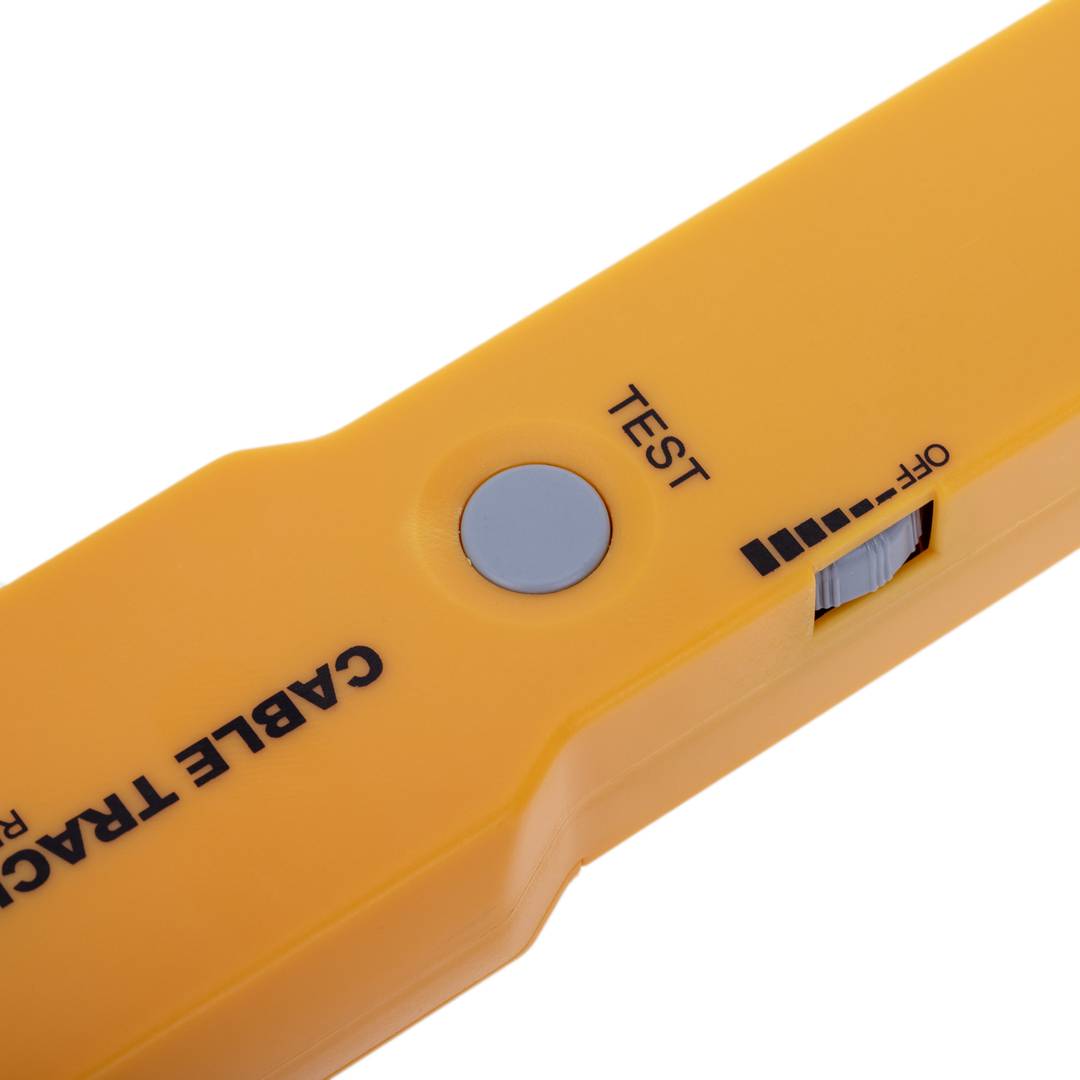

  • The probe has a potentiometer for sensitivity adjustment and a TEST button.
  • The transmitter and the receiver require 9 VDC batteries (not included).
  • It is supplied in a transport case.
  • Gross Weight: 280 g
  • Product size (width x depth x height): 23.3 x 4.3 x 2.5 cm
  • Number of packages: 1
  • Packages size: 26.9 x 12.5 x 3.5 cm
  • Master-pack: 30

Videos

play_button Watch video

Technical terms

  • RJ11
  • VDC
RJ11
The RJ-11 is mainly used to link telephone networks connector. It is small and has four contacts measures to support 4-way 2 cables. It is the most widely used globally for connecting conventional telephones, which generally tend to use only the two central threads to a single line or a twisted pair connector. And the four wires are used only for telephony equipment special using double line or two telephone pairs. After crimp the cable, it is almost impossible to disarm the RJ-11 without causing its deactivation.
