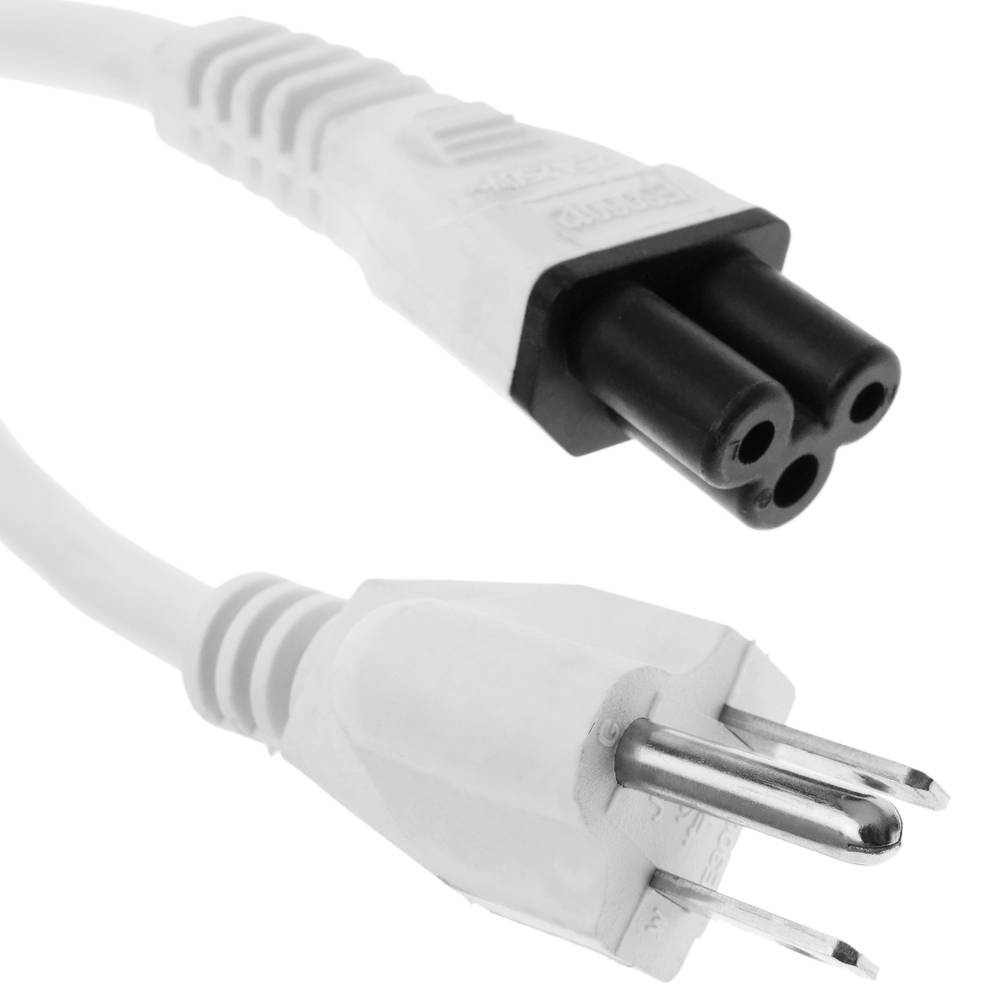

US Power Cord NEMA-5-15P to IEC-60320-C5 white 1m
REF: CL035
OUTLET
Specifications
- Power cable for electronic equipment, based on the IEC (International Electrotechnical Commission) and NEMA (National Electrical Manufacturers Association) standards.

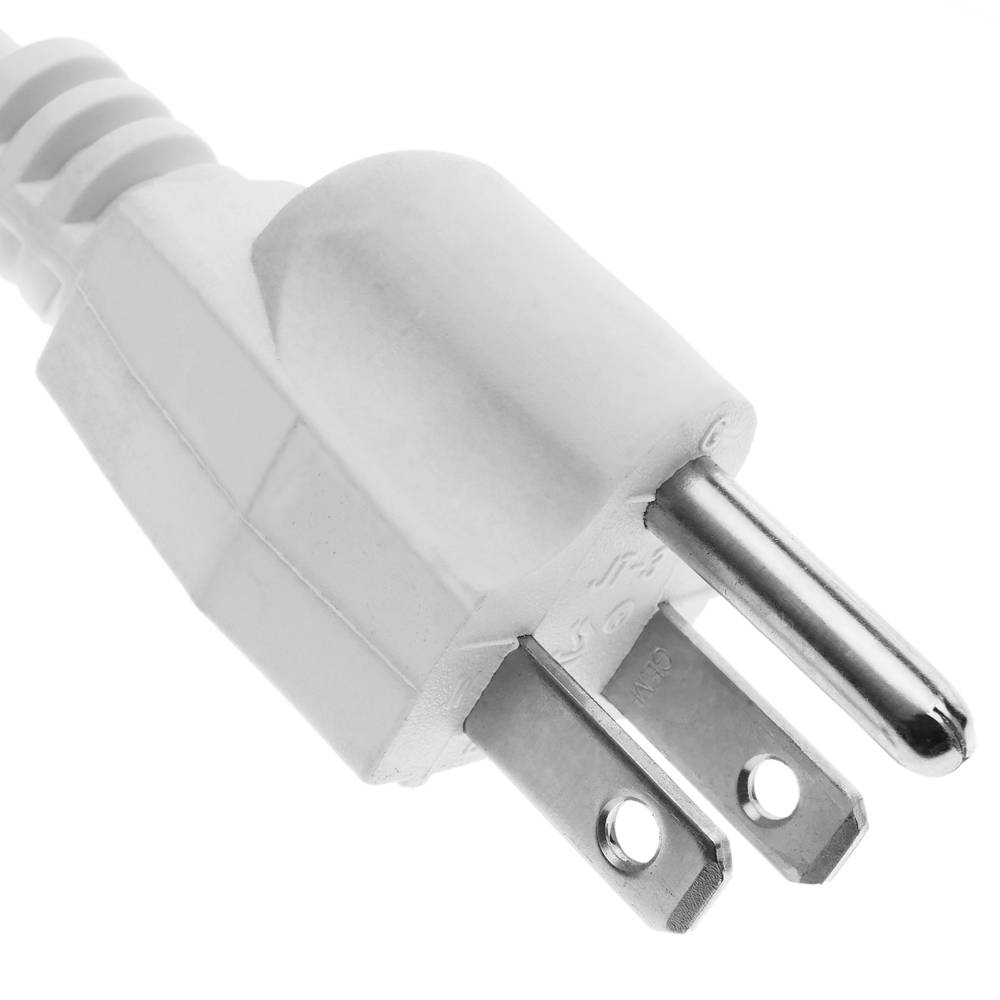

- Power cable with American plug on one end (NEMA-5-15-P male with 3-pin).
- At the other end it has a female IEC-60320-C5 plug.
- Three-pole cable 3x18AWG.
- White color.
Watch video
PVP
€1.32
€0.34
Price including VAT:
€0.34
PVD
€1.17
€0.30
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 years
warranty
warranty
14 days
returns
returns
OUTLET
We will notify you when it is back in stock.
Specifications
- Power cable for electronic equipment, based on the IEC (International Electrotechnical Commission) and NEMA (National Electrical Manufacturers Association) standards.
- Power cable with American plug on one end (NEMA-5-15-P male with 3-pin).
- At the other end it has a female IEC-60320-C5 plug.
- Three-pole cable 3x18AWG.
- White color.
Keywords
Did not find what you were looking for? These topic could help you
More info
Power cable for electronic equipment, based on the IEC (International Electrotechnical Commission) and NEMA (National Electrical Manufacturers Association) standards. Power cable with American plug on one end (NEMA-5-15-P male with 3-pin). At the other end it has a female IEC-60320-C5 plug. Three-pole cable 3x18AWG. White color. Length of 1m
- Gross Weight: 100 g
- Product size (width x depth x height): 20.0 x 5.0 x 4.0 cm
- Number of packages: 1
- Packages size: 20.0 x 5.0 x 4.0 cm
- Master-pack: 100
Technical terms
- AWG (Measurement of electrical cables)
- IEC
- Schuko
- Electrical cable sections
- Electrical cables according to number of conductors
- Colors of electric cables
- Colors insulating tape
AWG (Measurement of electrical cables)
AWG stands for "American Wire Gauge" being this a measure used to represent the width and section measurements of cables.
Here is an AWG conversion table:
Here is an AWG conversion table:
AWG | Diam. mm | Mm2 area | AWG | Diam. mm | Mm2 area | |
1 | 7.35 | 42.40 | 16 | 1.29 | 1.31 | |
two | 6.54 | 33.60 | 17 | 1.15 | 1.04 | |
3 | 5.86 | 27.00 | 18 | 1,024 | 0.823 | |
4 | 5.19 | 21.20 | 19 | 0.912 | 0.653 | |
5 | 4.62 | 16.80 | twenty | 0.812 | 0.519 | |
6 | 4.11 | 13.30 | twenty-one | 0.723 | 0.412 | |
7 | 3.67 | 10.60 | 22 | 0.644 | 0.325 | |
8 | 3.26 | 8.35 | 2. 3 | 0.573 | 0.259 | |
9 | 2.91 | 6.62 | 24 | 0.511 | 0.205 | |
10 | 2.59 | 5.27 | 25 | 0.455 | 0.163 | |
eleven | 2.30 | 4.15 | 26 | 0.405 | 0.128 | |
12 | 2.05 | 3.31 | 27 | 0.361 | 0.102 | |
13 | 1.83 | 2.63 | 28 | 0.321 | 0.0804 | |
14 | 1.63 | 2.08 | 29 | 0.286 | 0.0646 | |
fifteen | 1.45 | 1.65 | 30 | 0.255 | 0.0503 |
