Wheelbarrow swivel wheel 300 lbs 10x3,5" 254x89 mm. Replacement tyre for transport platform
Wheelbarrow swivel wheel 300 lbs 10x3,5" 254x89 mm. Replacement tyre for transport platform
REF: QR116
Specifications
- Inflatable pneumatic wheel for cars, trucks and transport platforms. Ideal as replacement of punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 kg) at cold pressure of 30 psi (2.07 bar).

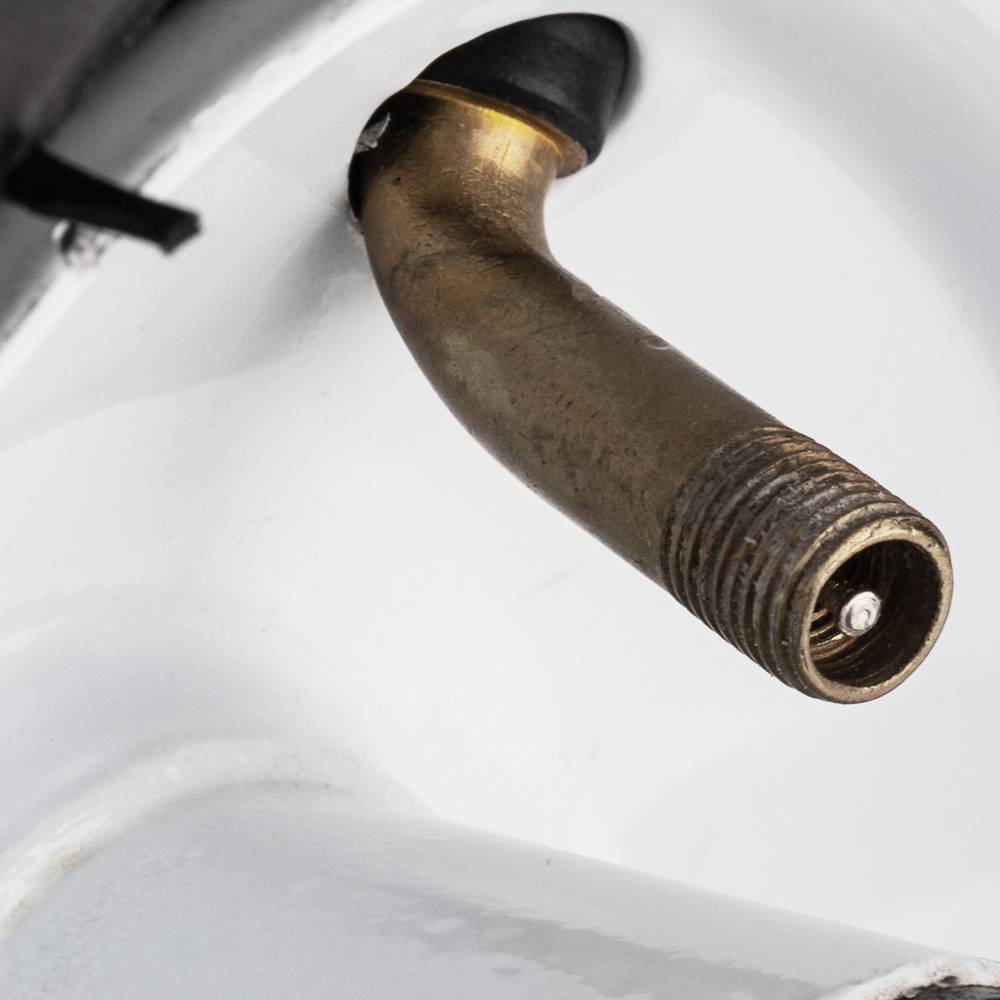

- Inflation valve type schrader (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm). Total height (with fixing bracket): 300 mm.
- White metal rim. Swivel wheel mounted on metal structure with flat surface size 100 x 113 mm. The fixing holes are approximately 75 x 85 mm away.
Watch video
PVP
€28.94
Price including VAT:
€28.94
PVD
€25.56
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Inflatable pneumatic wheel for cars, trucks and transport platforms. Ideal as replacement of punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 kg) at cold pressure of 30 psi (2.07 bar).
- Inflation valve type schrader (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm). Total height (with fixing bracket): 300 mm.
- White metal rim. Swivel wheel mounted on metal structure with flat surface size 100 x 113 mm. The fixing holes are approximately 75 x 85 mm away.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info
Inflatable pneumatic wheel for cars, trucks and transport platforms. Ideal as replacement of punctured or worn wheels. Wheel mounted on metal structure with flat surface.
specs
specs
- Inflatable pneumatic wheel for cars, trucks and transport platforms. Ideal as replacement of punctured or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 kg) at cold pressure of 30 psi (2.07 bar).
- Inflation valve type schrader (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm). Total height (with fixing bracket): 300 mm.
- White metal rim. Swivel wheel mounted on metal structure with flat surface size 100 x 113 mm. The fixing holes are approximately 75 x 85 mm away.
- Gross Weight: 2.933 kg
- Product size (width x depth x height): 25.4 x 13.5 x 30.0 cm
- Number of packages: 1
- Packages size: 30.0 x 25.4 x 13.5 cm
- Master-pack: 1
Technical terms
- Types of fixing for wheels
Types of fixing for wheels
Depending on the need for installation and type of base, trolley or chair, we can find various types of fixation. Among the most common we find:
A - Through hole: It has a hole in which a screw or stem is inserted. It is a very simple installation system. Ideal for wheels that should not support a lot of load.
B - Threaded stem: It has a threaded stem or nut, it is fixed to the surface with a nut. It is usually the most used fastening system.
C - Angular plate: They are usually less used fastening systems, they have lateral plates to fix on the base.
D - Plate: It has a rectangular or square plate on its surface, it includes 4 or more fastening holes to the base, it is one of the most common.
E - Smooth stem: The stem without thread is inserted into the female of the base, we can find it in the typical office chairs with wheels, TV furniture etc ...
A - Through hole: It has a hole in which a screw or stem is inserted. It is a very simple installation system. Ideal for wheels that should not support a lot of load.
B - Threaded stem: It has a threaded stem or nut, it is fixed to the surface with a nut. It is usually the most used fastening system.
C - Angular plate: They are usually less used fastening systems, they have lateral plates to fix on the base.
D - Plate: It has a rectangular or square plate on its surface, it includes 4 or more fastening holes to the base, it is one of the most common.
E - Smooth stem: The stem without thread is inserted into the female of the base, we can find it in the typical office chairs with wheels, TV furniture etc ...
