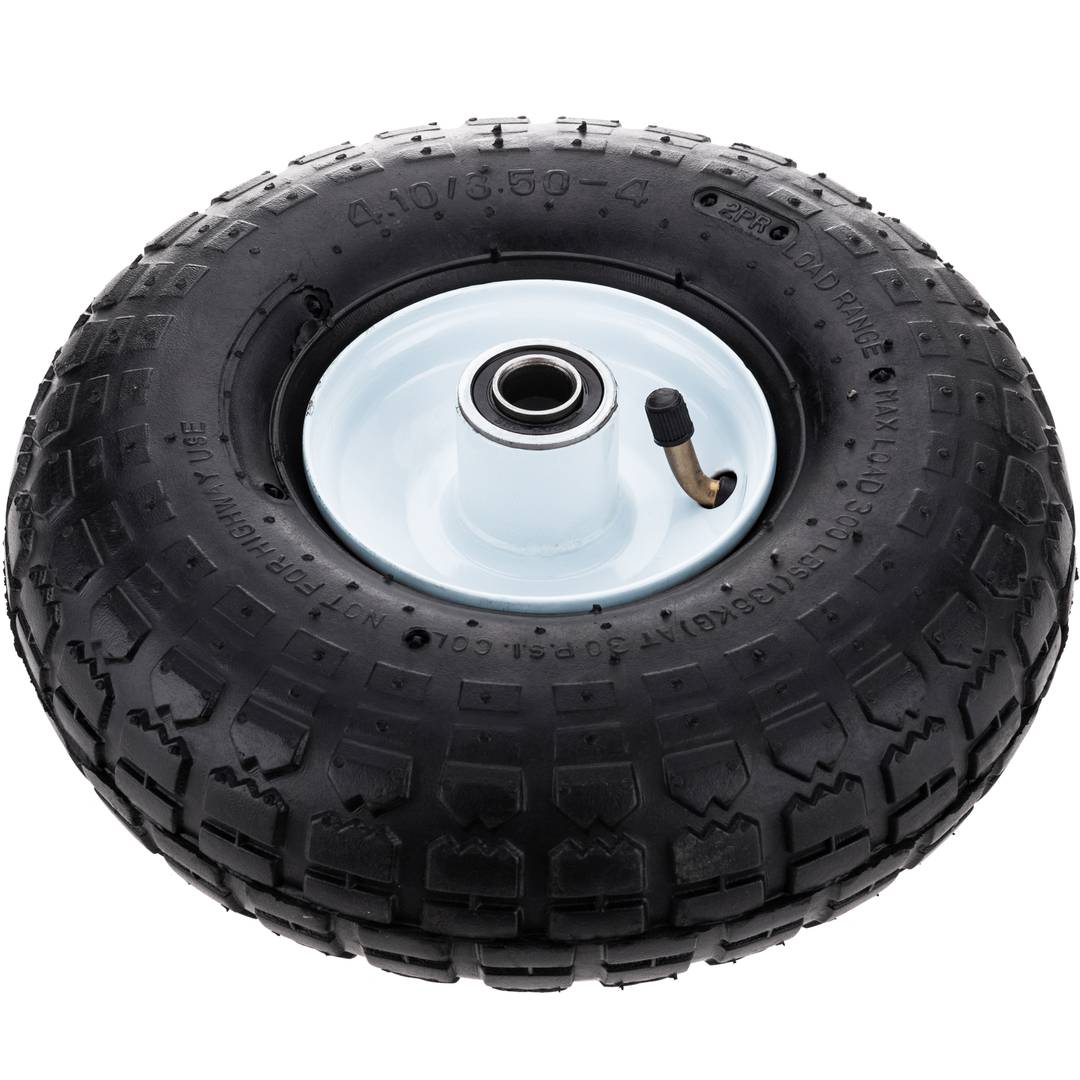

Wheelbarrow wheel 300 lbs 2-pack 10x3,5" 254x89 mm. Replacement tyre for transport platform
Wheelbarrow wheel 300 lbs 2-pack 10x3,5" 254x89 mm. Replacement tyre for transport platform
REF: QR203
Specifications

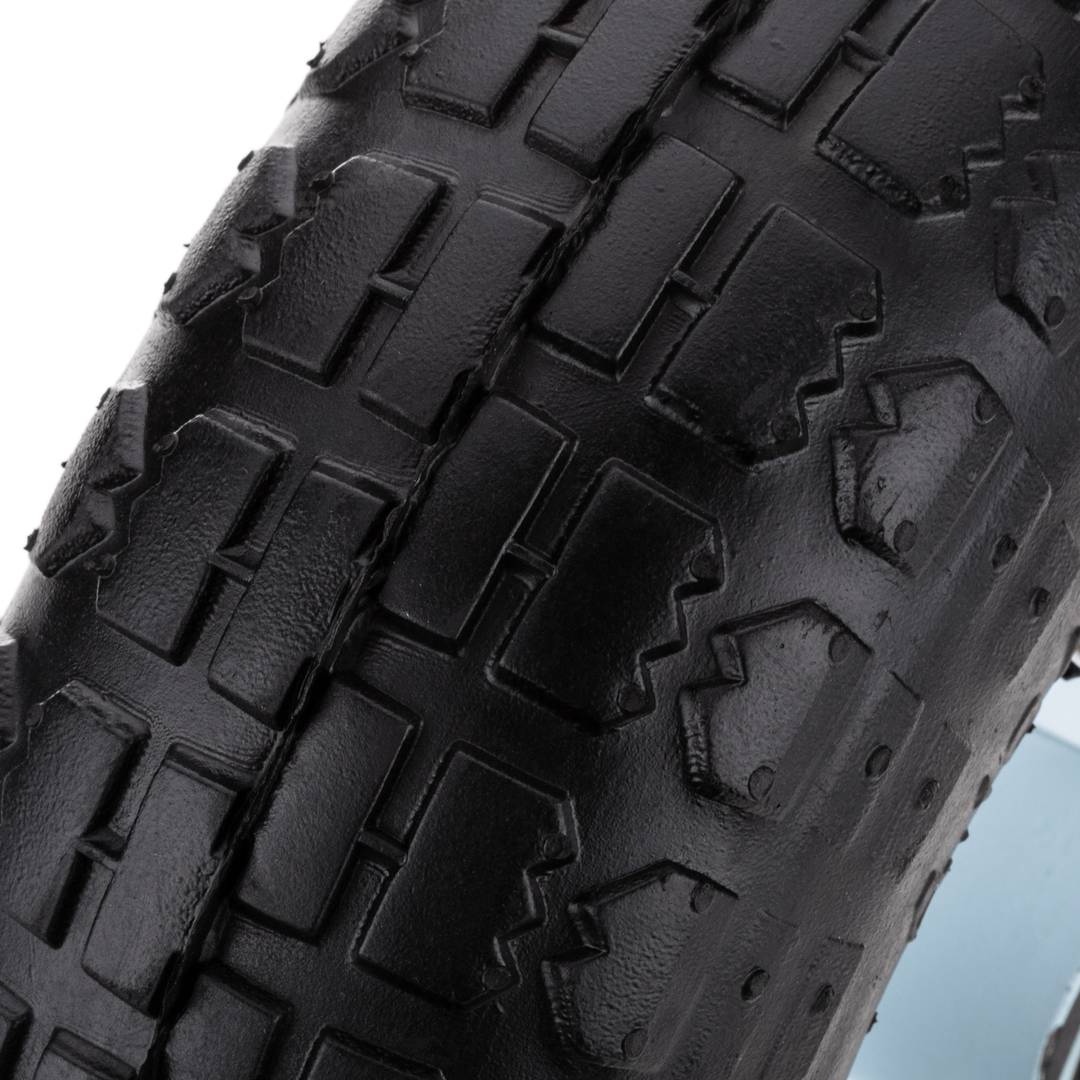

- Kit of 2 inflatable pneumatic wheels for trolleys, trolleys and transport platforms. Ideal as a replacement for flat or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 Kg) at cold pressure of 30 psi (2.07 bar).
- Schrader type inflation valve (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm).

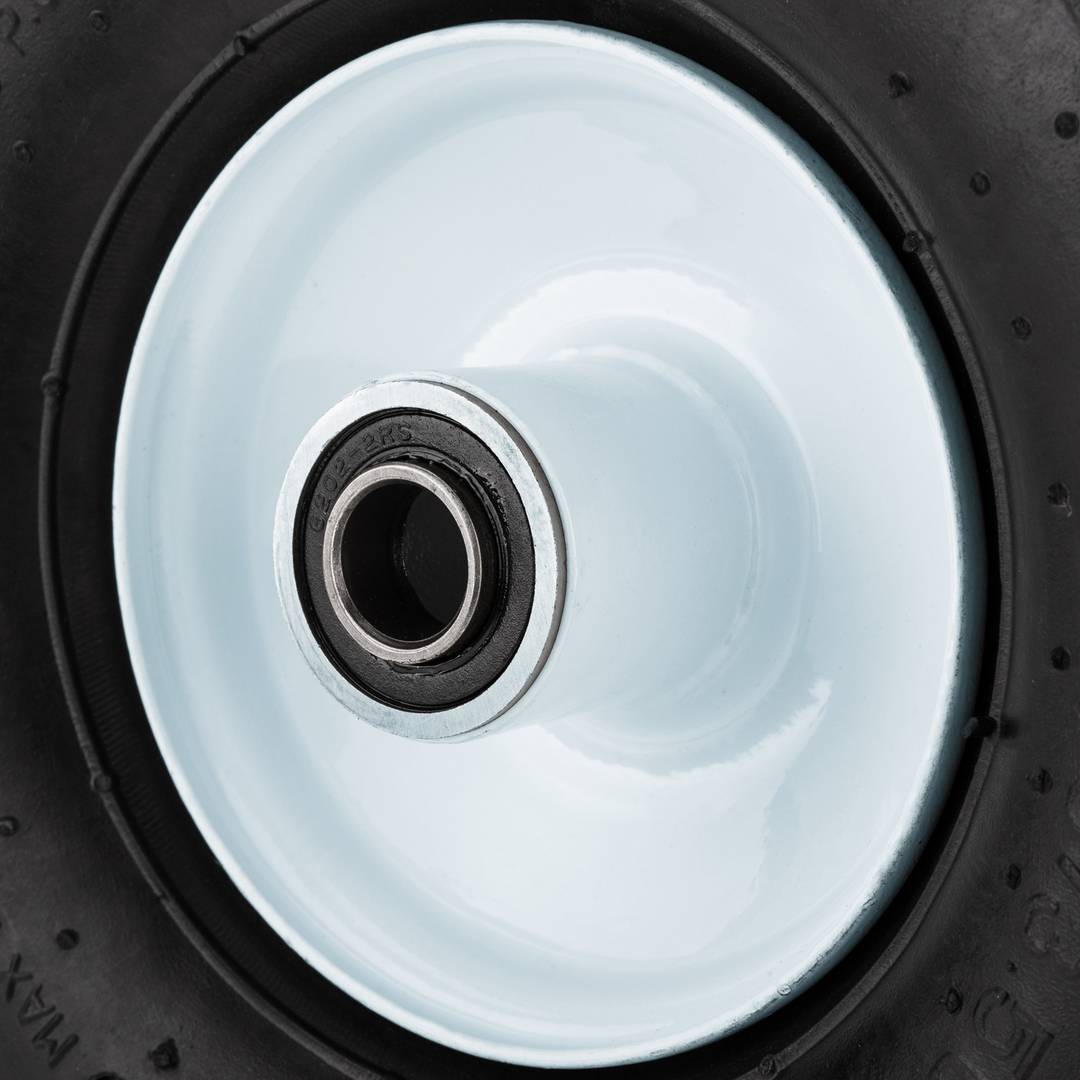

- White metal rim. Hub diameter (central axis): 16 mm. Hub length: 90mm.
Watch video
PVP
€22.43
€11.22
Price including VAT:
€11.22
PVD
€19.65
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
Buy before:
Receive it:
Thursday 28
Delivery times are approximate. Cablematic is not responsible for delays.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Kit of 2 inflatable pneumatic wheels for trolleys, trolleys and transport platforms. Ideal as a replacement for flat or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 Kg) at cold pressure of 30 psi (2.07 bar).
- Schrader type inflation valve (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm).
- White metal rim. Hub diameter (central axis): 16 mm. Hub length: 90mm.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info
Kit of 2 inflatable pneumatic wheels for trolleys, trolleys and transport platforms. Ideal as a replacement for flat or worn wheels.
specs
specs
- Kit of 2 inflatable pneumatic wheels for trolleys, trolleys and transport platforms. Ideal as a replacement for flat or worn wheels. Reinforced with 4 layers of highly resistant materials (Classification: 4 Ply, type B, 2PR).
- Maximum load of 300 lbs (136 Kg) at cold pressure of 30 psi (2.07 bar).
- Schrader type inflation valve (the same model used by car wheels).
- Wheel size (diameter x width): 10 x 3.5 inches (254 x 89 mm).
- White metal rim. Hub diameter (central axis): 16 mm. Hub length: 90mm.
- Gross Weight: 2.712 kg
- Product size (width x depth x height): 25.4 x 8.9 x 25.4 cm
- Number of packages: 1
- Packages size: 25.4 x 25.4 x 17.8 cm
- Master-pack: 1
Technical terms
- Types of fixing for wheels
Types of fixing for wheels
Depending on the need for installation and type of base, trolley or chair, we can find various types of fixation. Among the most common we find:
A - Through hole: It has a hole in which a screw or stem is inserted. It is a very simple installation system. Ideal for wheels that should not support a lot of load.
B - Threaded stem: It has a threaded stem or nut, it is fixed to the surface with a nut. It is usually the most used fastening system.
C - Angular plate: They are usually less used fastening systems, they have lateral plates to fix on the base.
D - Plate: It has a rectangular or square plate on its surface, it includes 4 or more fastening holes to the base, it is one of the most common.
E - Smooth stem: The stem without thread is inserted into the female of the base, we can find it in the typical office chairs with wheels, TV furniture etc ...
A - Through hole: It has a hole in which a screw or stem is inserted. It is a very simple installation system. Ideal for wheels that should not support a lot of load.
B - Threaded stem: It has a threaded stem or nut, it is fixed to the surface with a nut. It is usually the most used fastening system.
C - Angular plate: They are usually less used fastening systems, they have lateral plates to fix on the base.
D - Plate: It has a rectangular or square plate on its surface, it includes 4 or more fastening holes to the base, it is one of the most common.
E - Smooth stem: The stem without thread is inserted into the female of the base, we can find it in the typical office chairs with wheels, TV furniture etc ...
