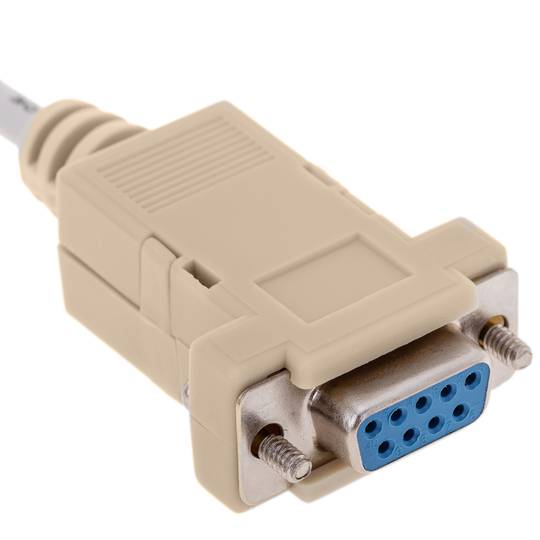

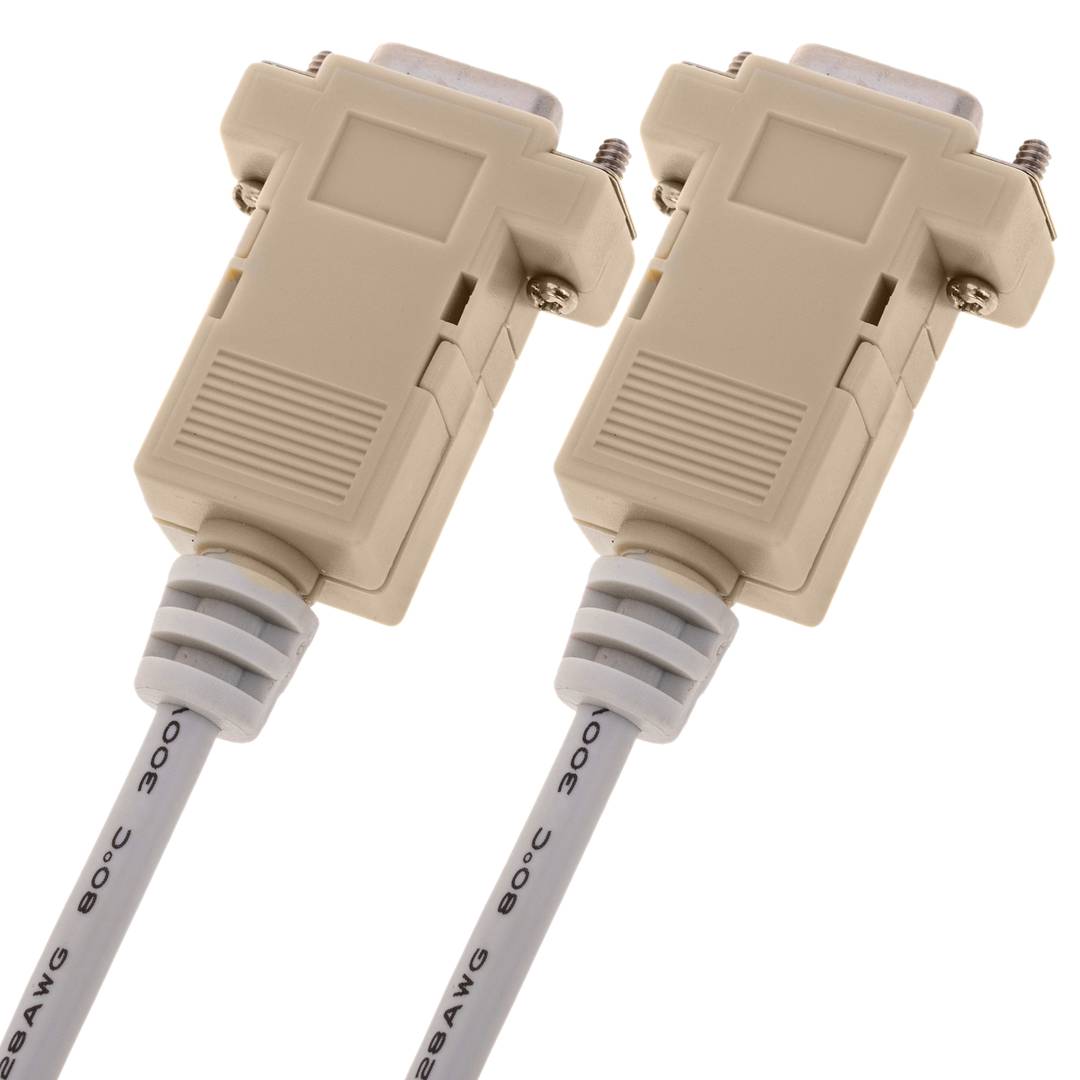

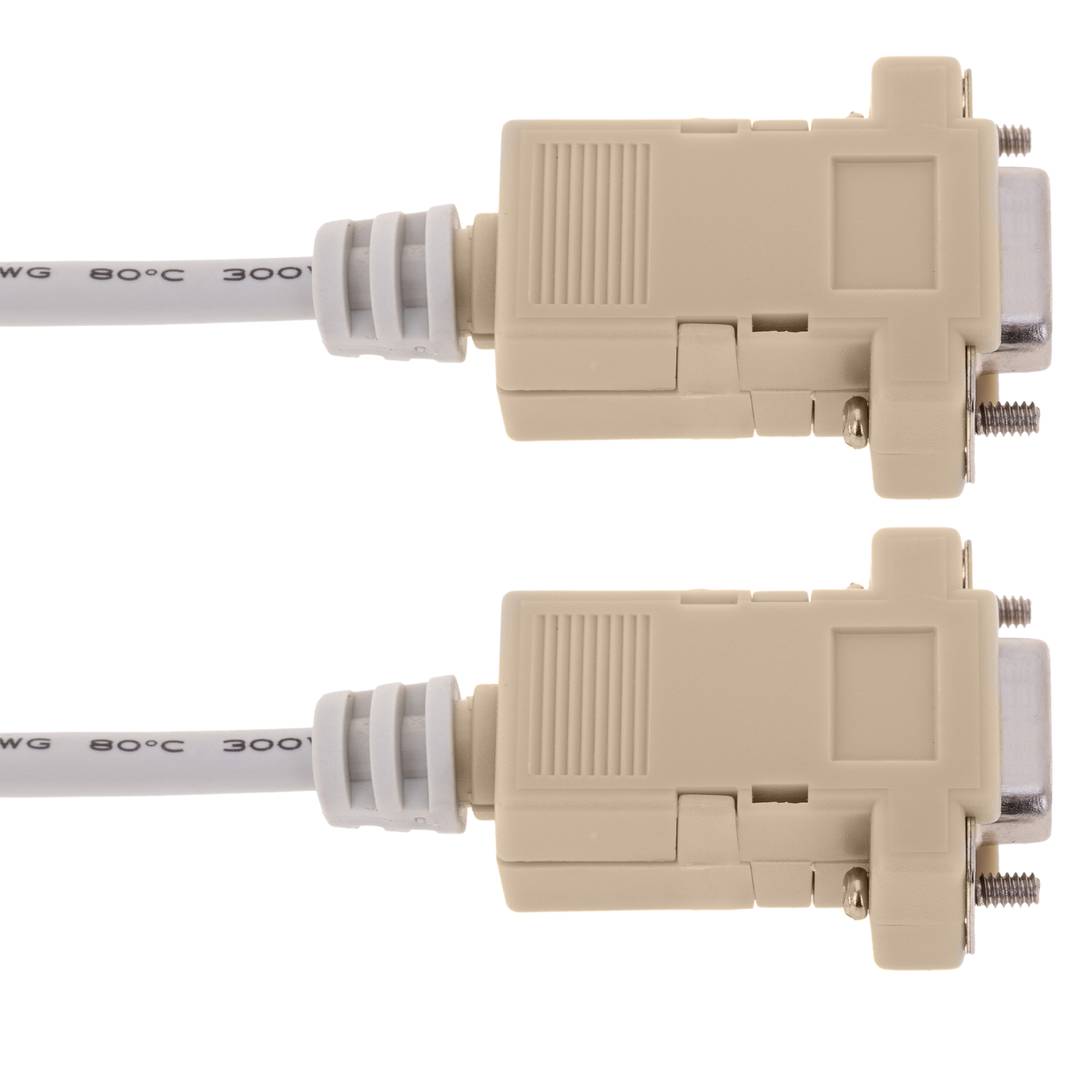

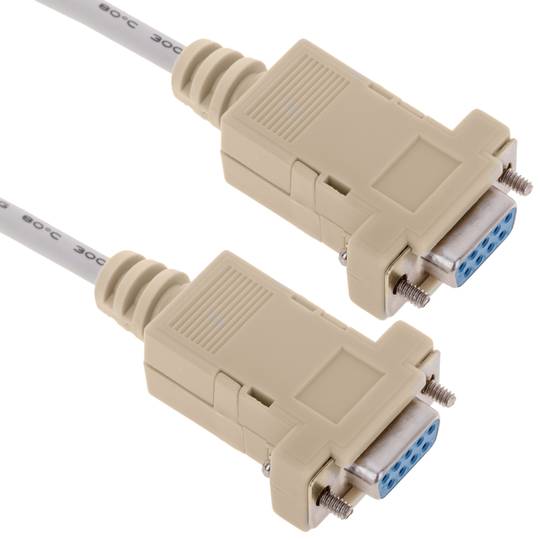

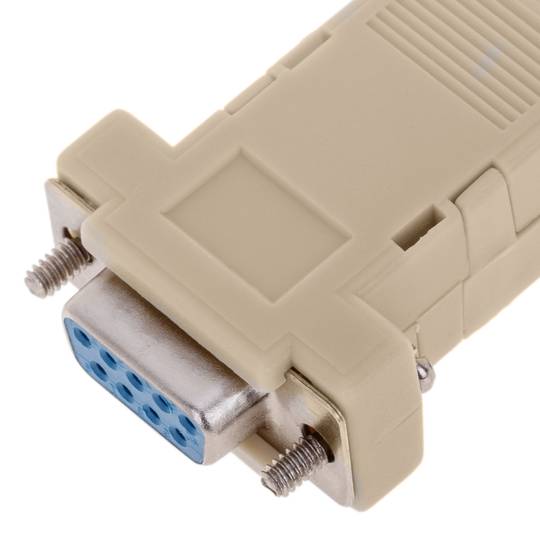

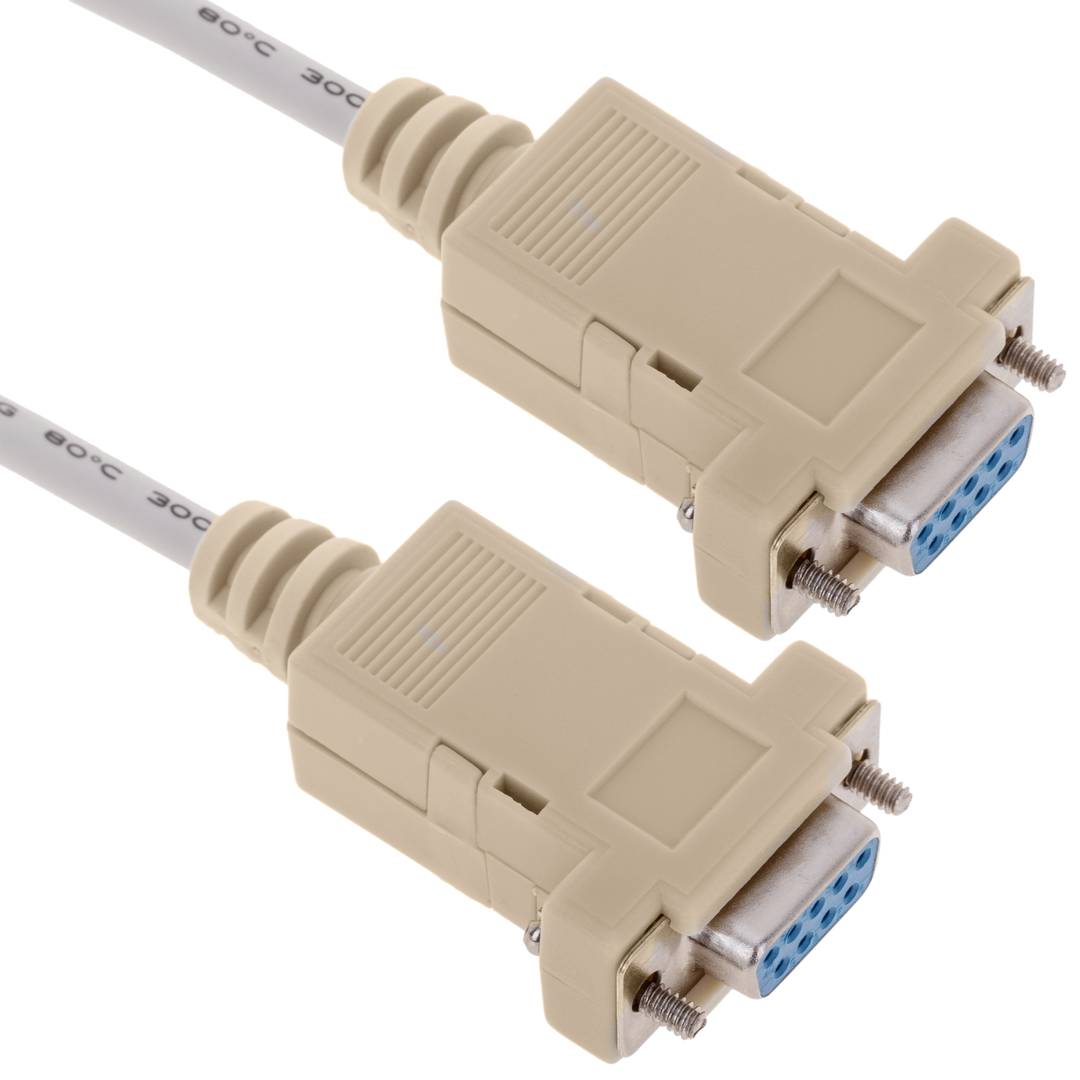

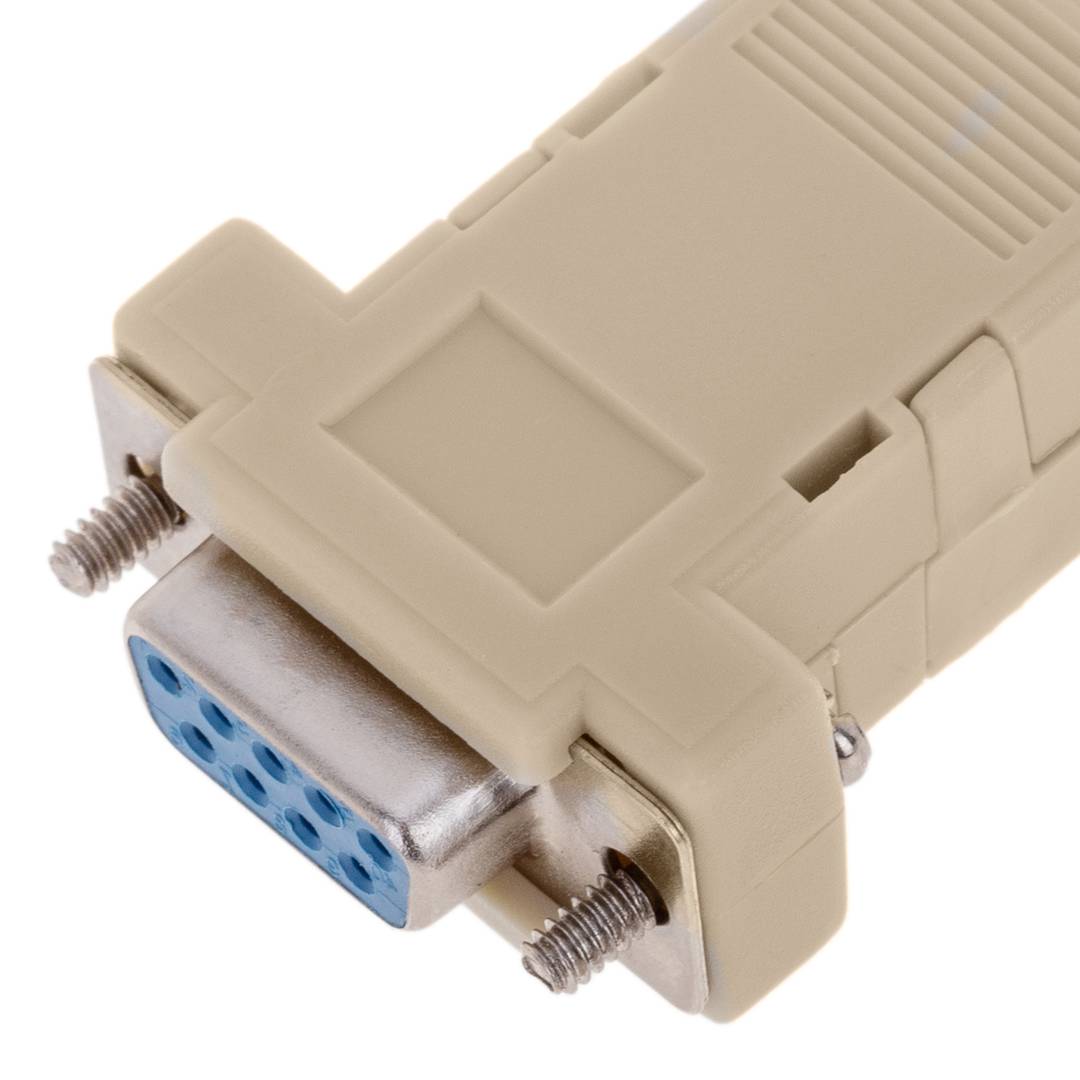

Cable Null-Modem Series 3m POS (DB9-M/H)
REF: NM032
Specifications
  • Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON).
  • It has DB9-Female connectors at both ends.
  • Length of 3m.
  • The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.
play_button Watch video
More info
PVP
5.23
Price including VAT: 5.23
PVD
3.87
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON).
  • It has DB9-Female connectors at both ends.
  • Length of 3m.
  • The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.

More info

Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON). It has DB9-Female connectors at both ends. Length of 3m. The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.
  • Gross Weight: 150 g
  • Product size (width x depth x height): 18.0 x 14.0 x 3.0 cm
  • Number of packages: 1
  • Packages size: 18.0 x 14.0 x 3.0 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Communication Series
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
