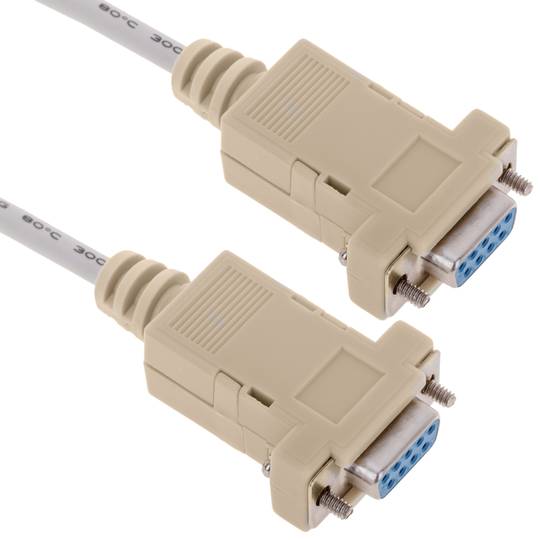

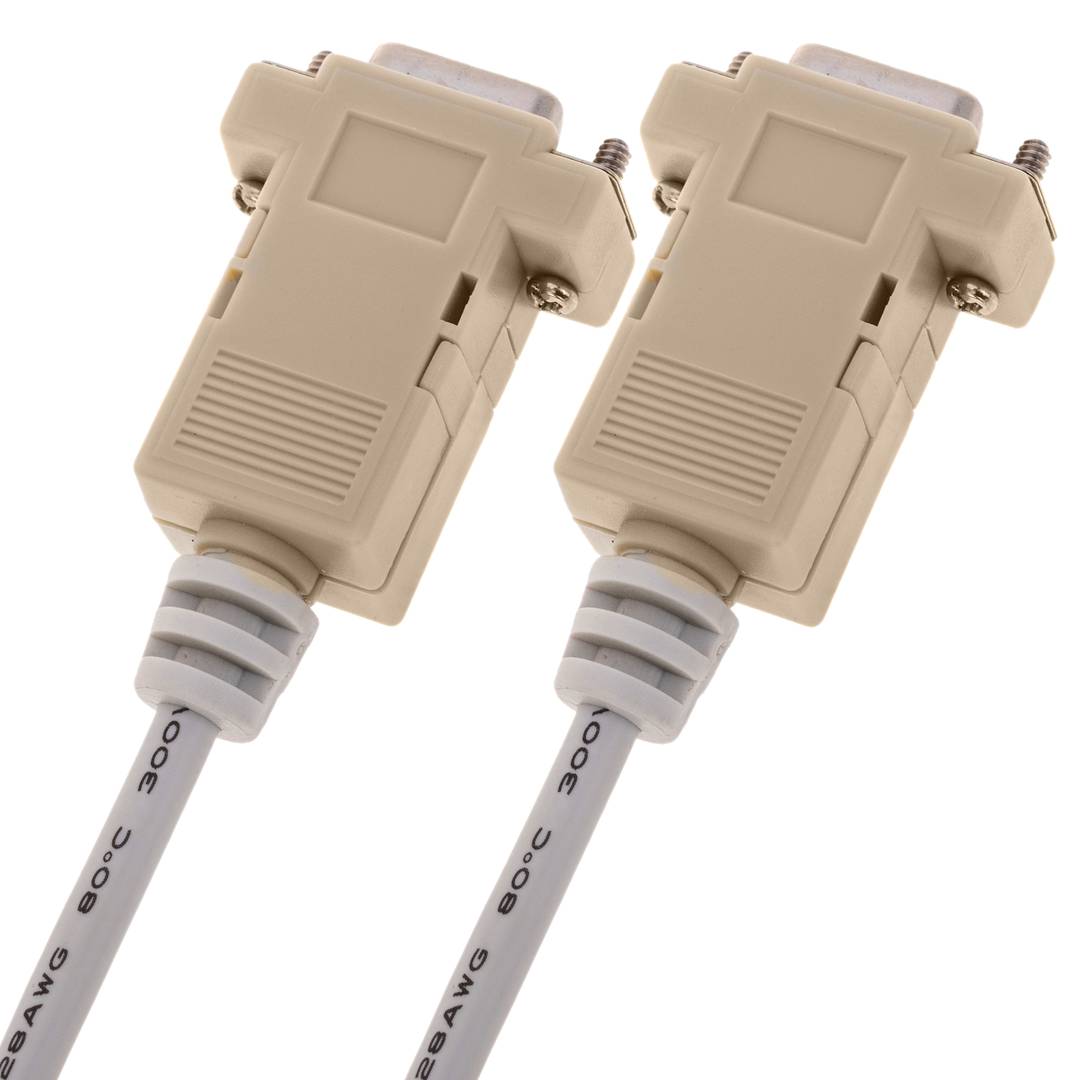

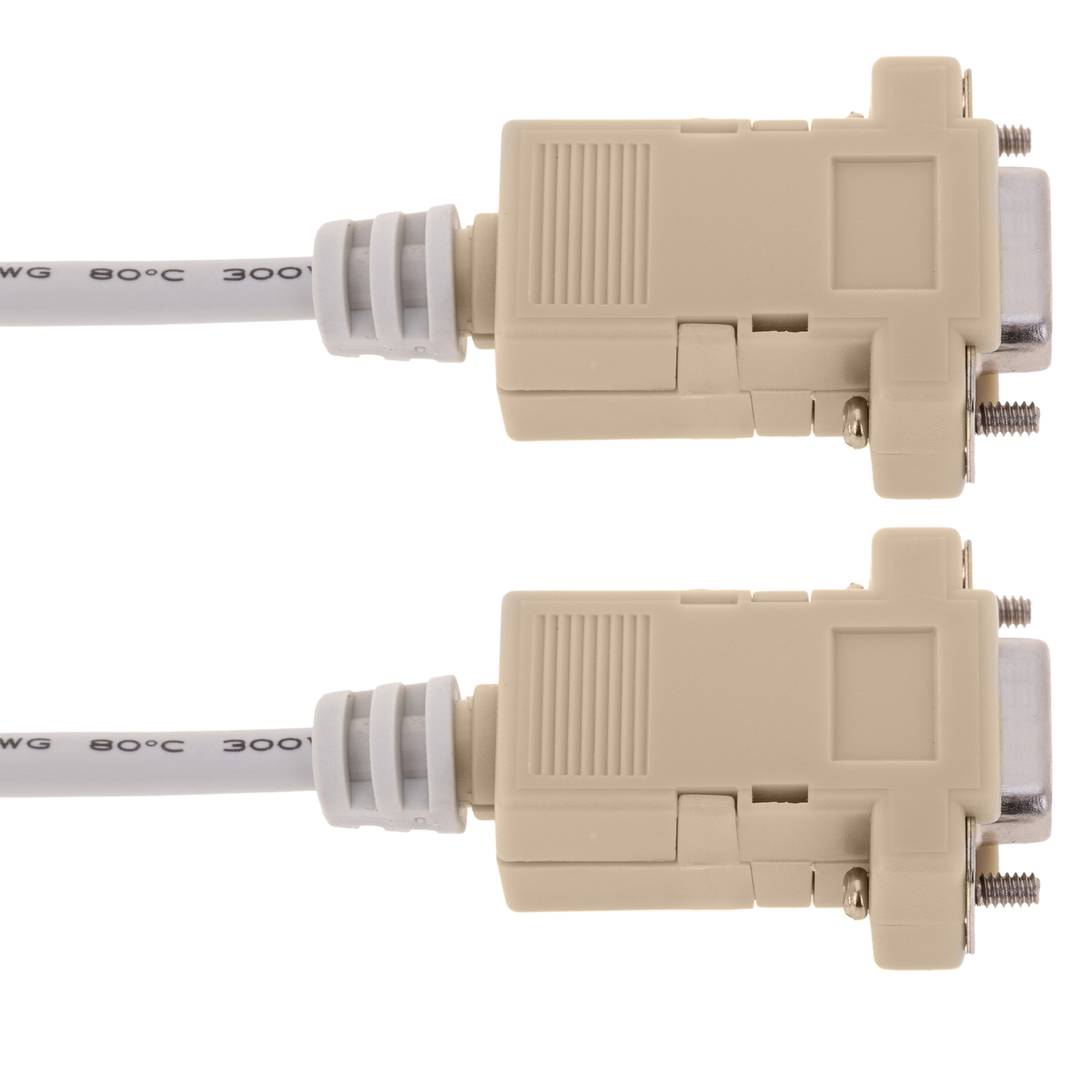

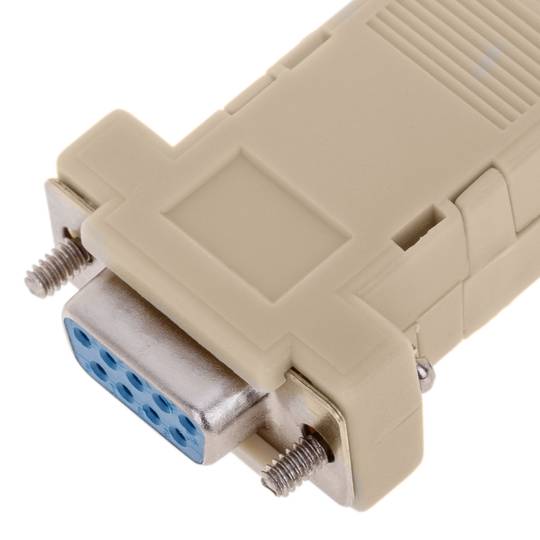

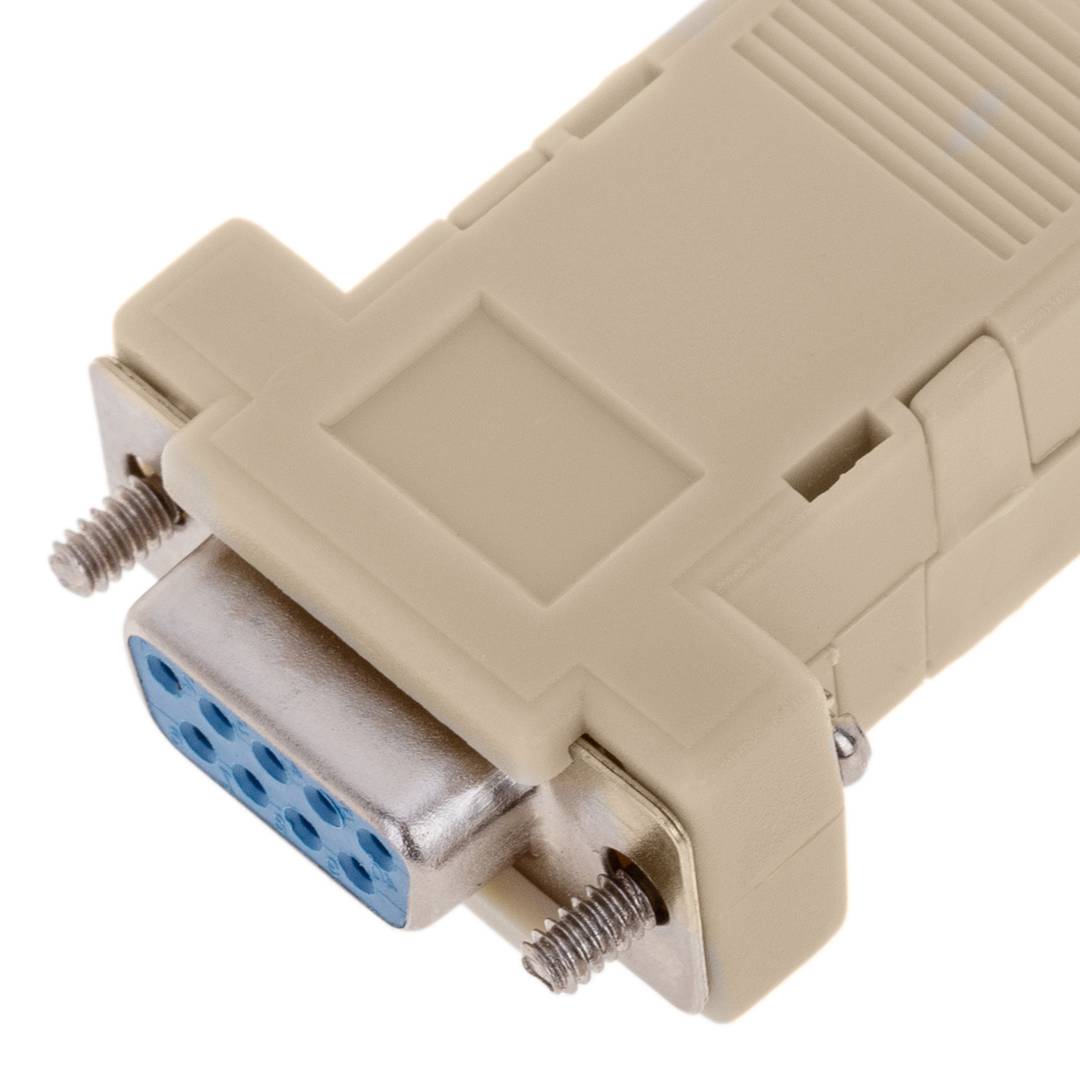

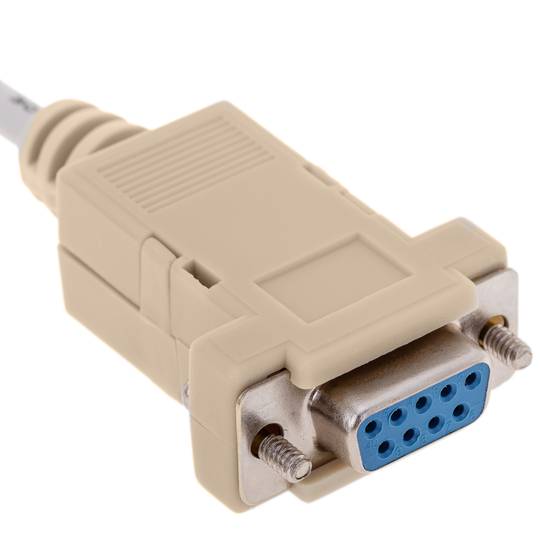

Cable Null-Modem Series 1.8m POS (DB9-M/H)
Cable Null-Modem Series 1.8m POS (DB9-M/H)
REF: NM031
Specifications
- Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON).
- It has DB9-Female connectors at both ends.
- 1.8m length.
- The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.
Watch video
PVP
€2.97
Price including VAT:
€2.97
PVD
€2.60
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON).
- It has DB9-Female connectors at both ends.
- 1.8m length.
- The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info
Serial cable with special pin-out, similar to the null modem standard, but adapted to other market standards (compatible with EPSON). It has DB9-Female connectors at both ends. 1.8m length. The pin-out of the cable is: 1-7, 1-8, 2-3, 3-2, 4-6, 5-5, 6-4, 7-1 and 8-1.
- Gross Weight: 90 g
- Product size (width x depth x height): 18.0 x 13.0 x 1.6 cm
- Number of packages: 1
- Packages size: 18.0 x 13.0 x 1.6 cm
- Master-pack: 125
Technical terms
- Communication Series
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
