The SMD led (surface mounted device) refers to how the LEDs are mounted on a board. This type of LEDs have a resin encapsulation on their surface. It does not reach the same performance as a COB LED and is usually used in less demanding luminaires due to its low heat dissipation, the main problem in this type of LEDs.

Its light is unidirectional, creating an angle of illumination is 360º to difof a COB LED. By not having any type of filament this type of LED is very durable and resistant to shock.

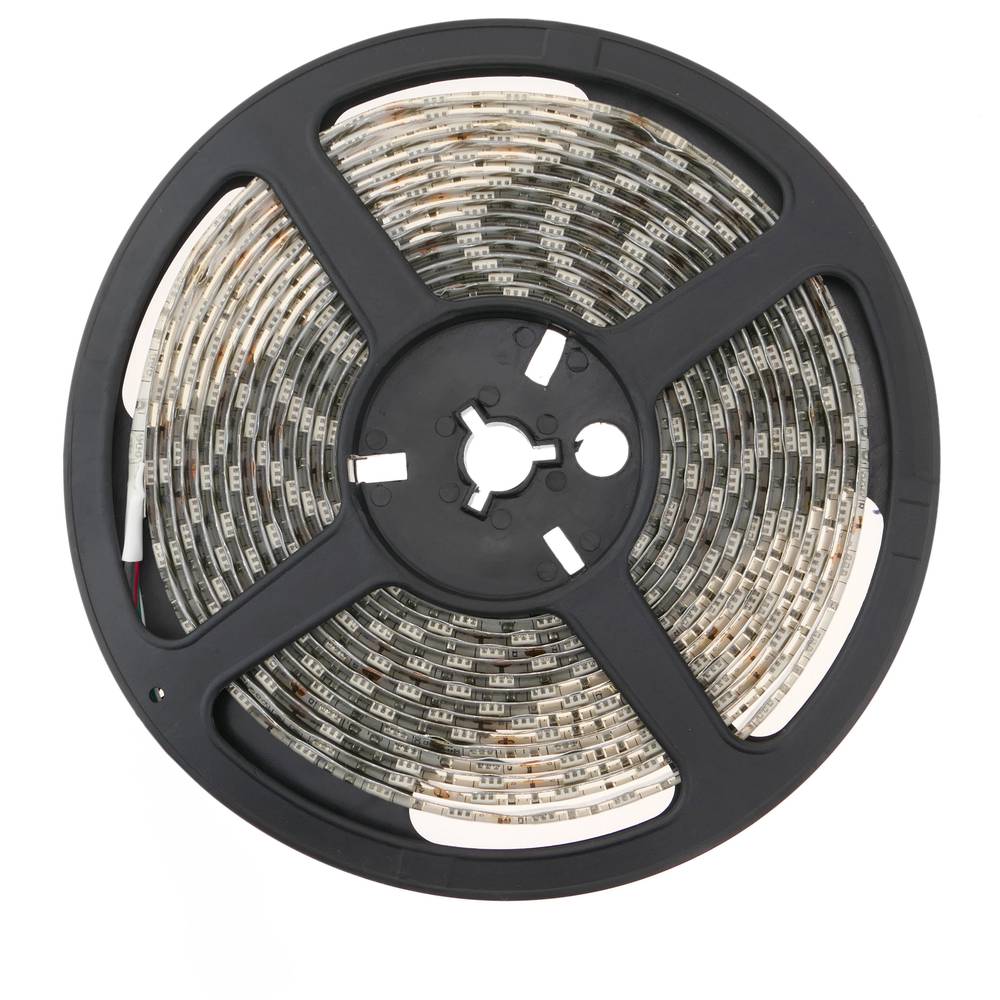

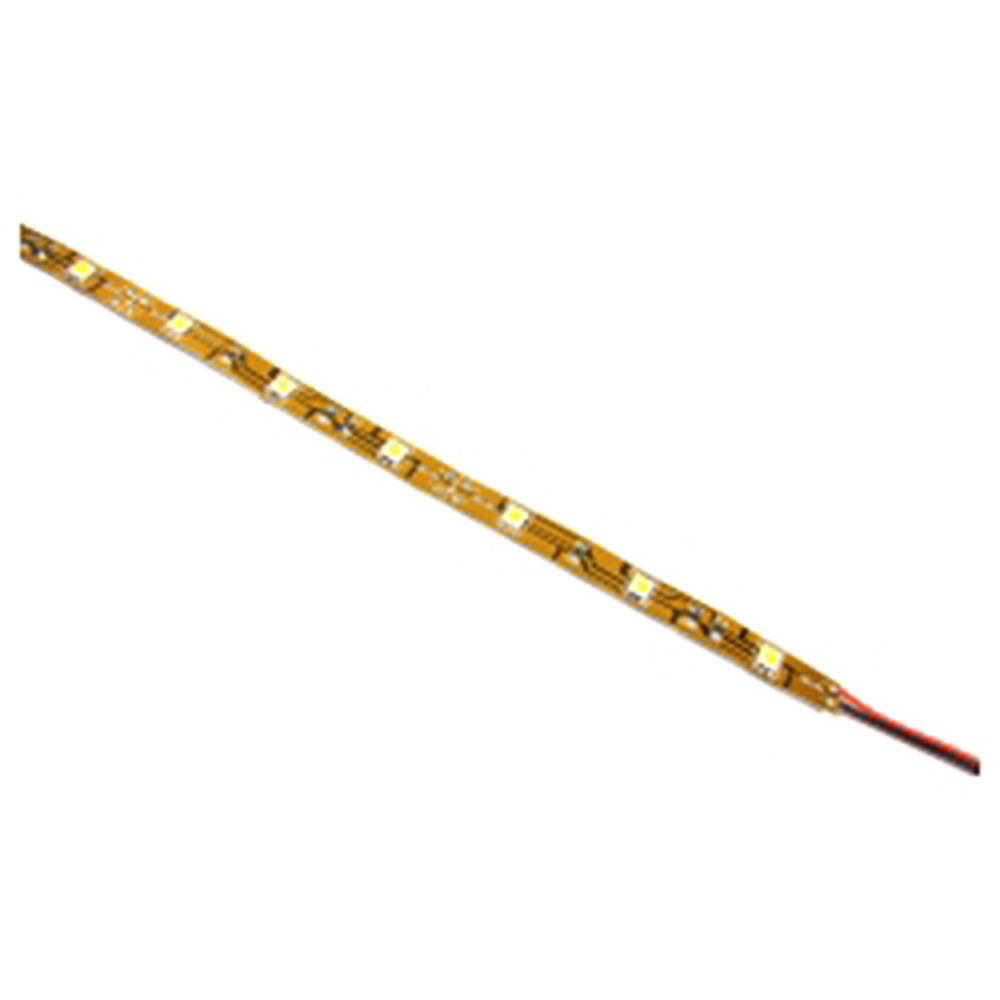

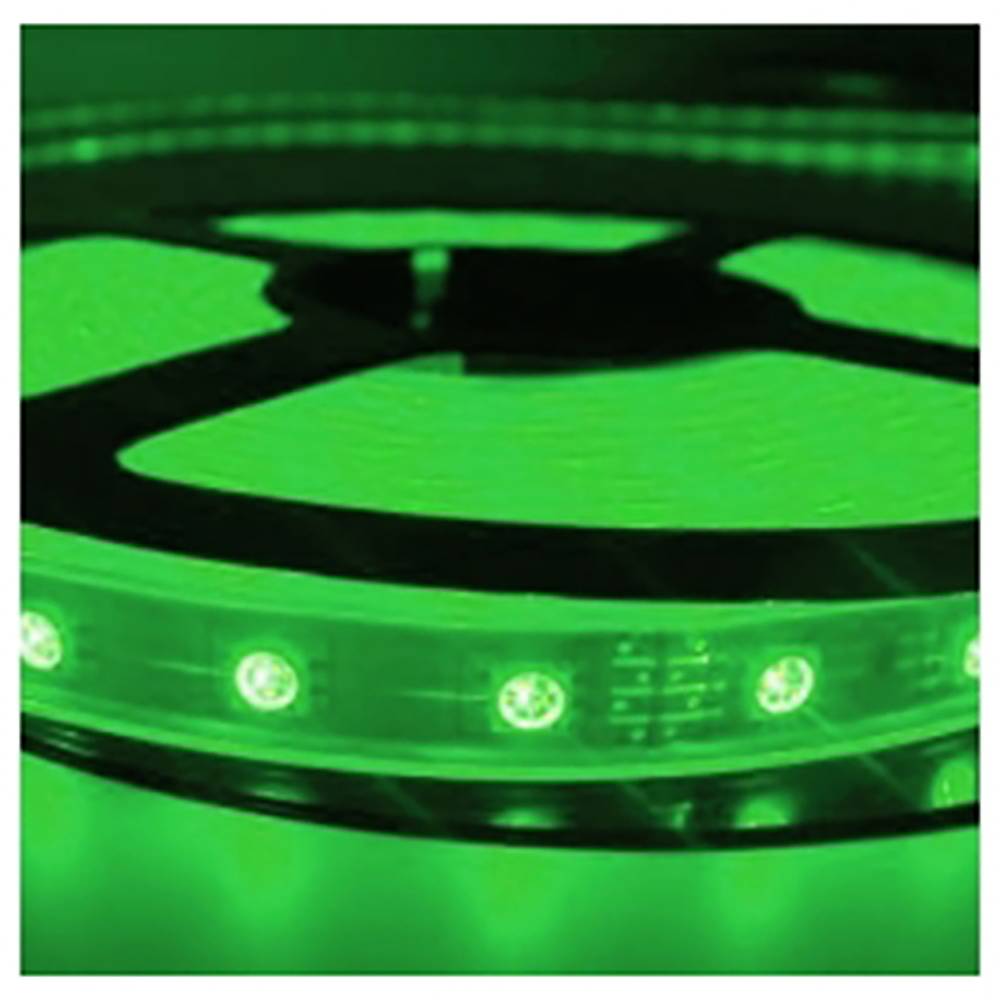

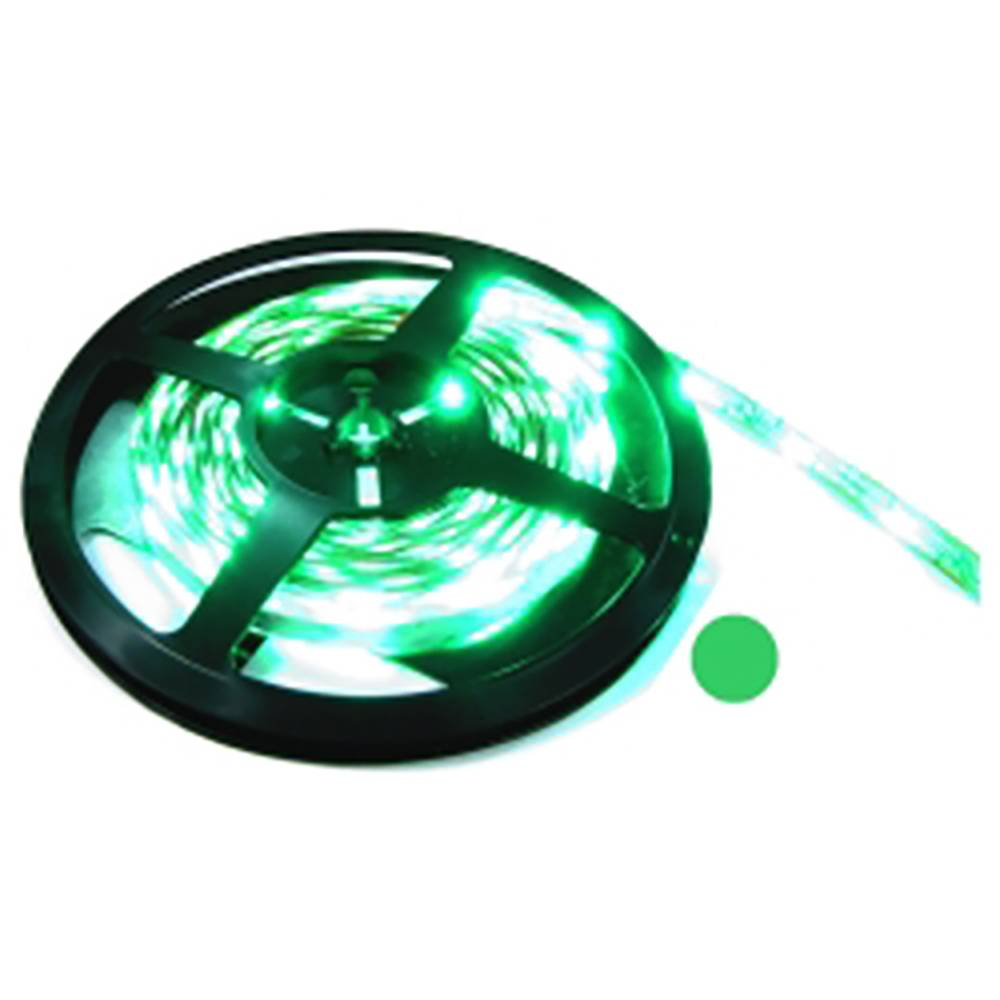

They are the typical LEDs that we can find in a strip of LEDs for decoration, we can find according to your design, a single LED that will emit white light or according to your distribution you can find 3 LEDs that emit the different primary colors that in combination will show different .

Your performanceIt is usually 60 to 70 lumens per watt.

Within the SMD LEDS range we can find those that work at 220v and those that work at 12/24v.

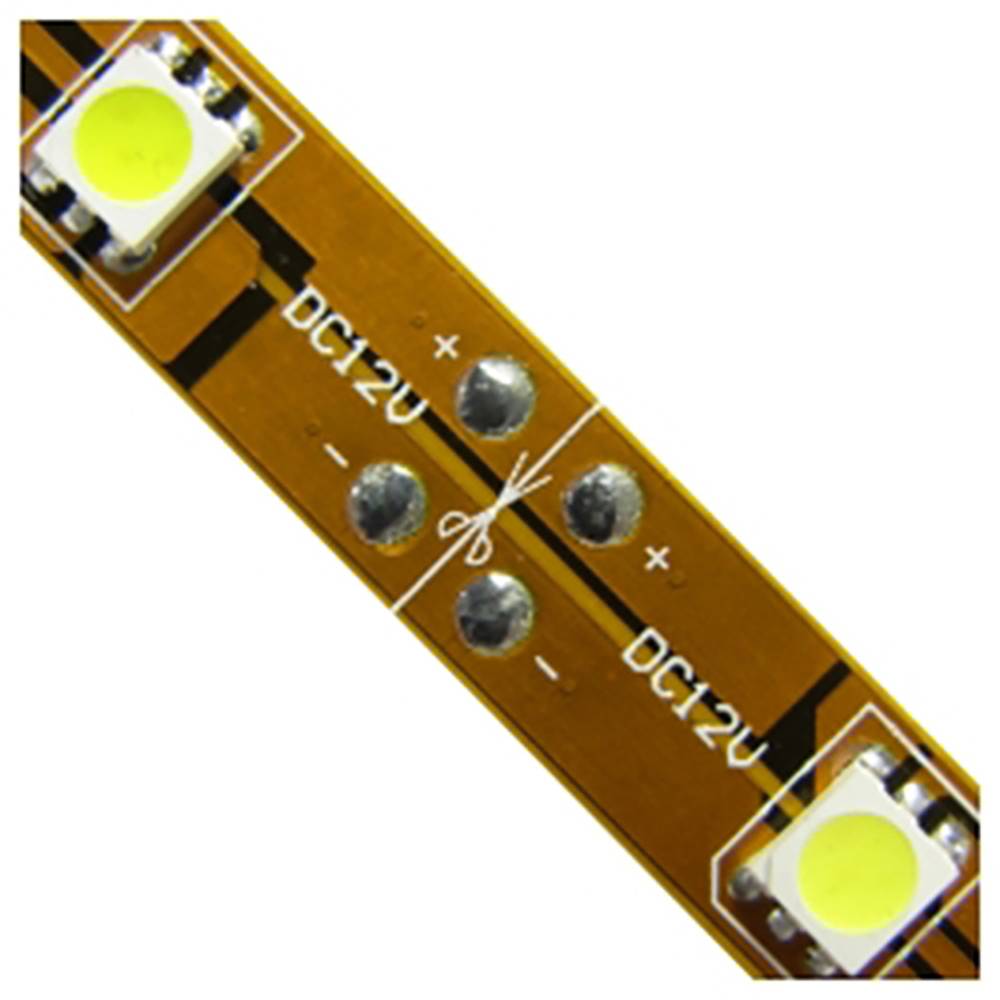

Its nomenclature is of type SMD5050, SMD3528 and SMD3014 etc. where the figures indicate the size of the led, for example a led SMD5050 will have a size of 5x5.0mm

VDC would be the abbreviation for Volt Direct Current which translated would volts direct current. The idea of ??this type is unidirectional current to the load. Direct current is normally produced by batteries, thermocouples, solar cells and a dynamo electric machine type. The direct current can flow in conductors such as wires, but may also flow through semiconductors, insulators ... In the image: 1 - current per pulse 2 - Direct Current (DC) 3 - Alternating Current (AC) 4 - Variable Current

The lumen (symbol: lm) is the unit of the International System of Units to measure the luminous flux, a measure of the light power emitted by the source. The luminous flux of radiant flux difference that the former provides the variable sensitivity of the eye to different wavelengths of light and the latter involves all electromagnetic radiation emitted by the source according Wien law and Stefan-Boltzmann regardless of whether such radiation is visible or not. 1 lm = 1 cd. sr = 1 lx. m2

Surface mount technology, better known by its acronym SMD (Surface Mount Device) is the method of construction of electronic devices most currently used. It is used for both active and passive components, and is based on the assembly thereof SMC (Surface Mount Component English) on the surface of the printed circuit. In the case of SMD LED technology is the differently constructedon the plate makes SMD LED and have a physical difference.

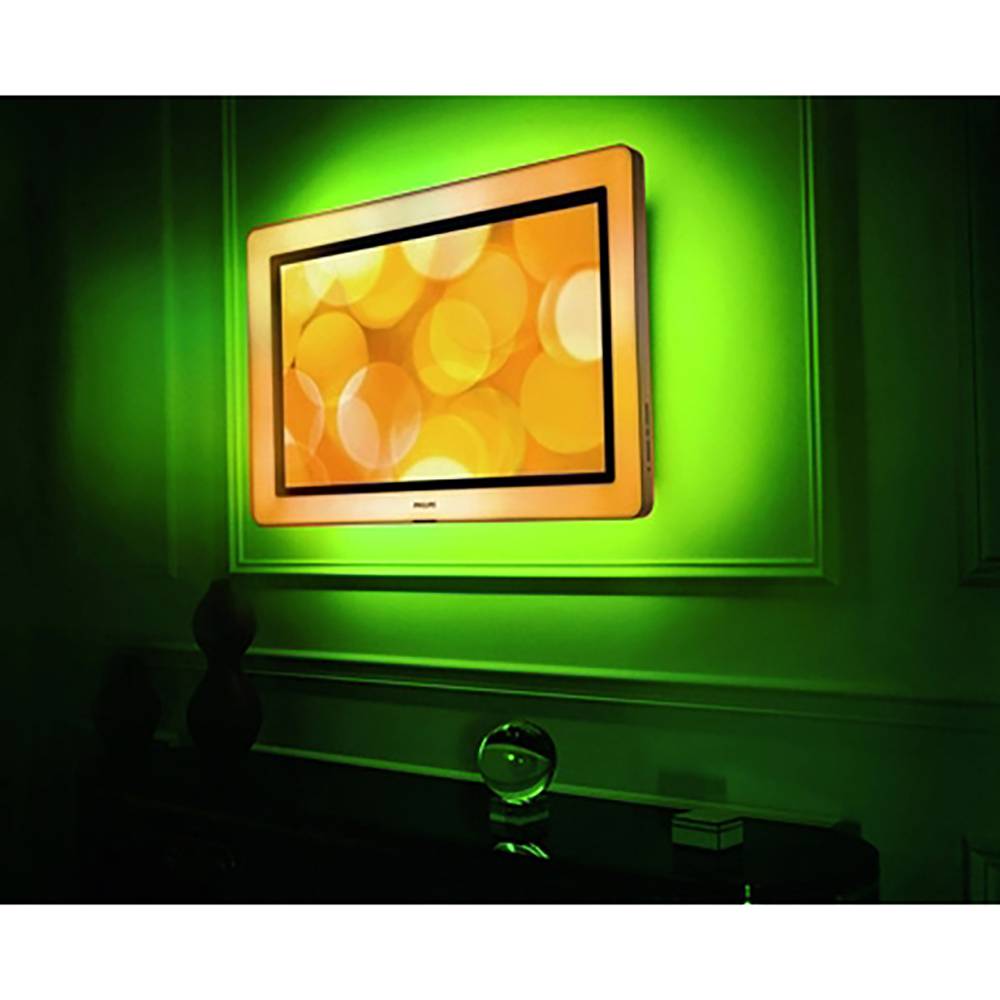

The SMD LED is an LED module that uses a surface mount technology to place a diode on the surface of a printed circuit and encapsulated on a semi-rigid resin. Typically used for lighting all types, since its opening angle can be 360° and LEDs, being very small, they can be distributed throughout the bulb. Ideal for decoration lighting in homes or places of transit dondand they will not be on continuously. It is also often used in automotive interior lighting. Each LED SMD chip is identified by a 4-digit number. This code identifies the size of the LED chip, the first two digits indicate the height and width the next two, in millimeters. For example, the dimensions of a LED 5050SMD are 5.0 x 5.0 mm. There is an exception, 3528SMD LED chip is also knownon how 1210SMD, with dimensions 3.5 x 2.8 mm.

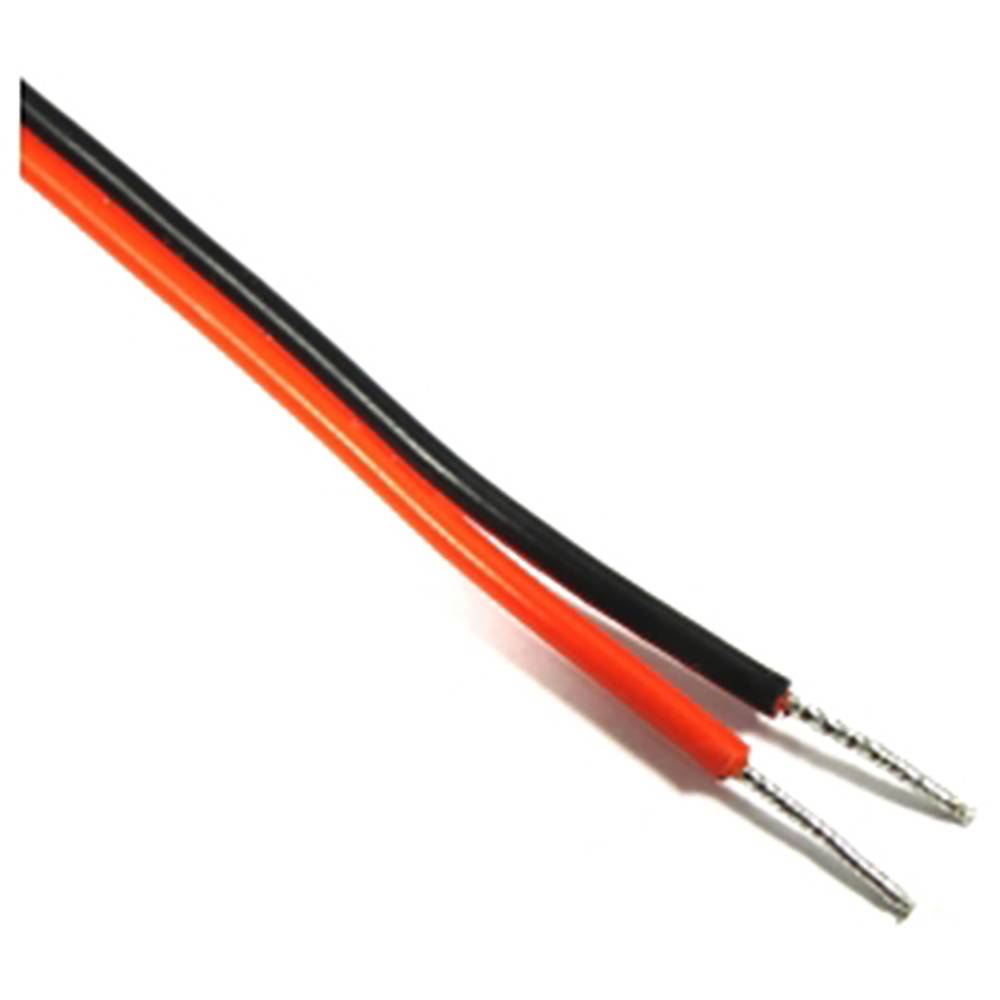

When carrying out an electrical installation or electrical circuit several factors must be taken into account, one of them is the selection of the appropriate cable. According to the installation and the use of the same we can find different diameters that support different loads. The cable section will also help us not to overheat our installation, since the larger the section, the greater the thermal resistance.
In the following table poWe can see the corresponding load supported for the different sections of cables.

The insulating or insulating tape is a fundamental element when making a repair or performing an electrical installation. The insulating tape will help us to protect and insulate the electrical cables from possible crossings or contacts between them or with other elements, guaranteeing that the connection is well insulated avoiding possible short circuits.
Its use is very simple, since being a flexible material allows us to apply it with comfort.
To achieve a perfect union, it is recommended that we wrap the tape covering half the cable and half over the joint, stretching the tape slightly while rolling obliquely.

• For the ground wire, colored insulation tape will be used:
• Green.
• Green with a yellow line.
• For the neutral cable, blue insulating tape will be used.
• For the cable the phase isYou can use any other color:
• Any color different from neutral or earth.
• Black insulating tape.
• Brown insulating tape.
• Gray insulating tape.

As it is common in installations we can find a standard of colors in the electric cables.

These regulations help at a glance to understand the connection and the resolution of possible faults or failures.

Below we attach the color/cable relation for electrical installations.

1. The ground wire can be identified in several ways:
• Green cable.
• C cablegreen smell with a yellow line.
• Cable without insulation.
2. The neutral wire will be blue.
3. The phase cable can be identified in several ways:
• Any color different from neutral or earth.
• Black insulation.
• Brown isolate.
• Gray insulation.
